Video and Image Processing

Recommended for:

  • Device: Cyclone® V GX

  • Quartus®: v15.0 - v17.0

Overview

The video and image processing design example shows how the cores provided in the Video and Image Processing Suite can be used to create a complete video system. The design performs format conversion on a standard definition video stream (NTSC or PAL) to output high definition video over a digital video interface (DVI). The design uses Intel's Platform Designer and several of the intellectual property (IP) cores, including a motion adaptive deinterlacer, polyphase scaler, mixer, chroma resampler, color space converter, Nios® II processor, and DDR2 memory controller.

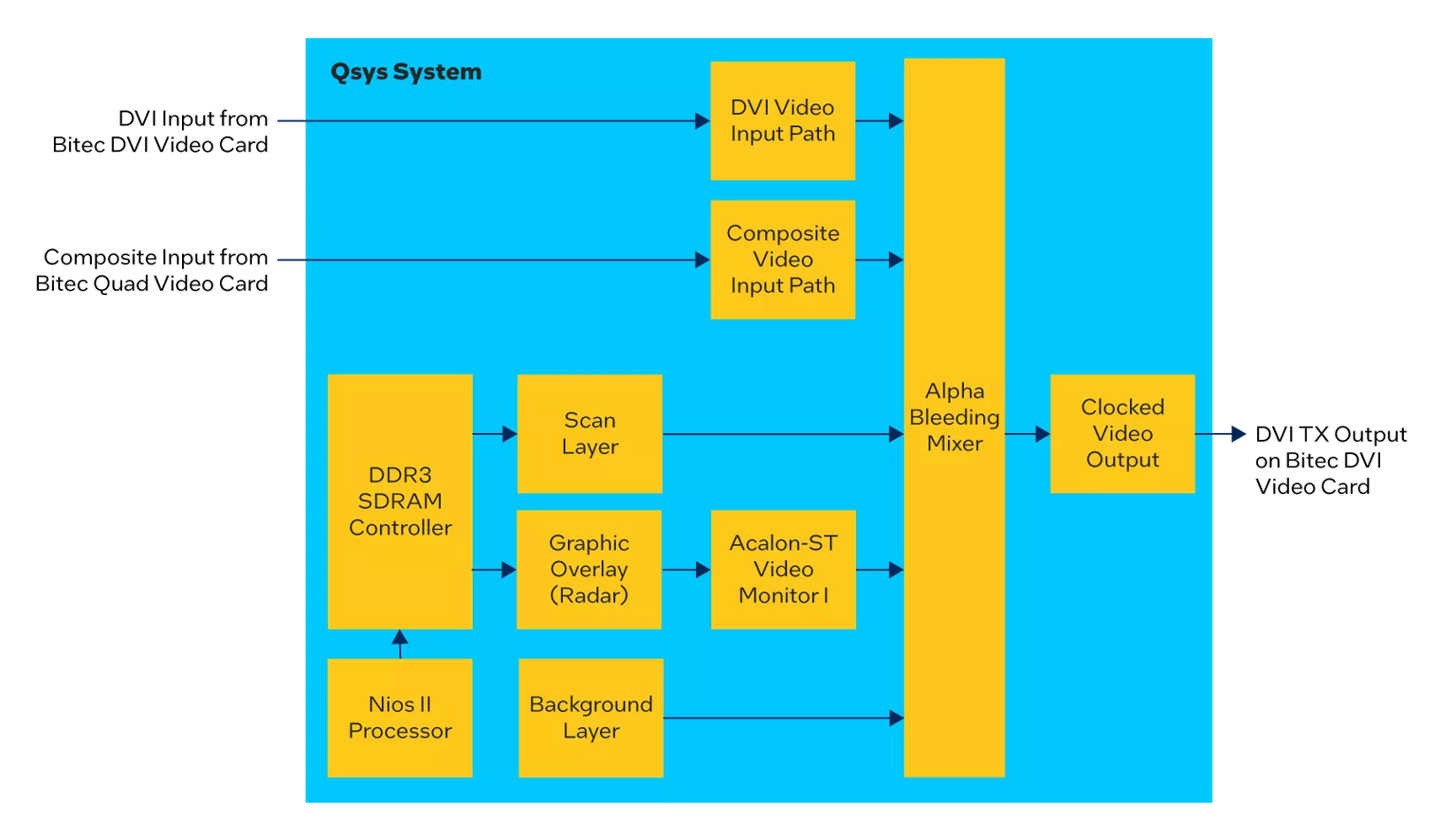

Ip video processing design example

Block diagram.

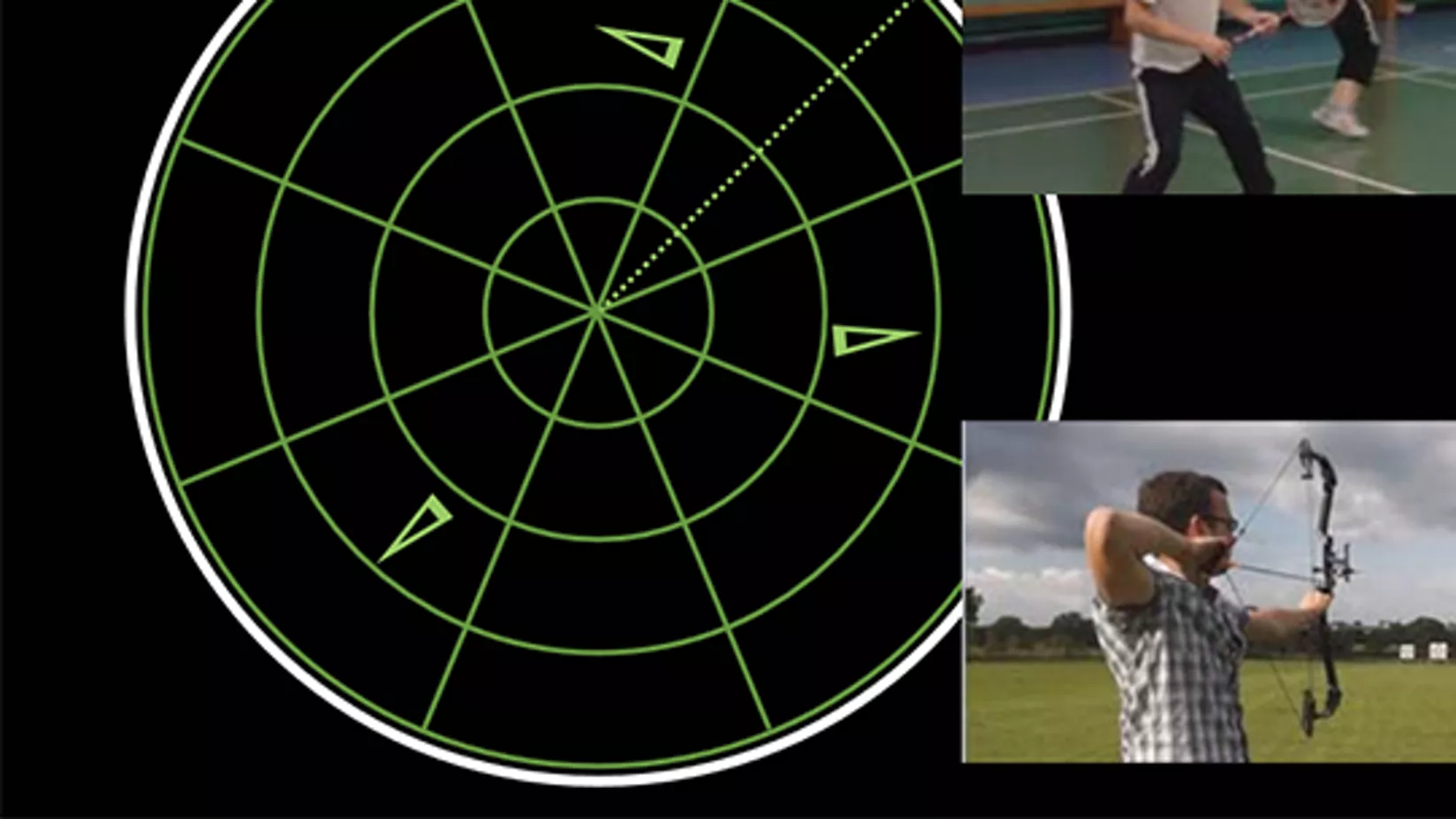

Ip video processing design example output

Video stream output.
