Verilog HDL: Single Clock Synchronous RAM

author-image

By

This example describes a 64-bit x 8-bit single clock synchronous RAM design with different read and write addresses in Verilog HDL. Synthesis tools are able to detect single clock synchronous RAM designs in the HDL code and automatically infer either the altsyncram or altdpram megafunctions, depending on the architecture of the target device.

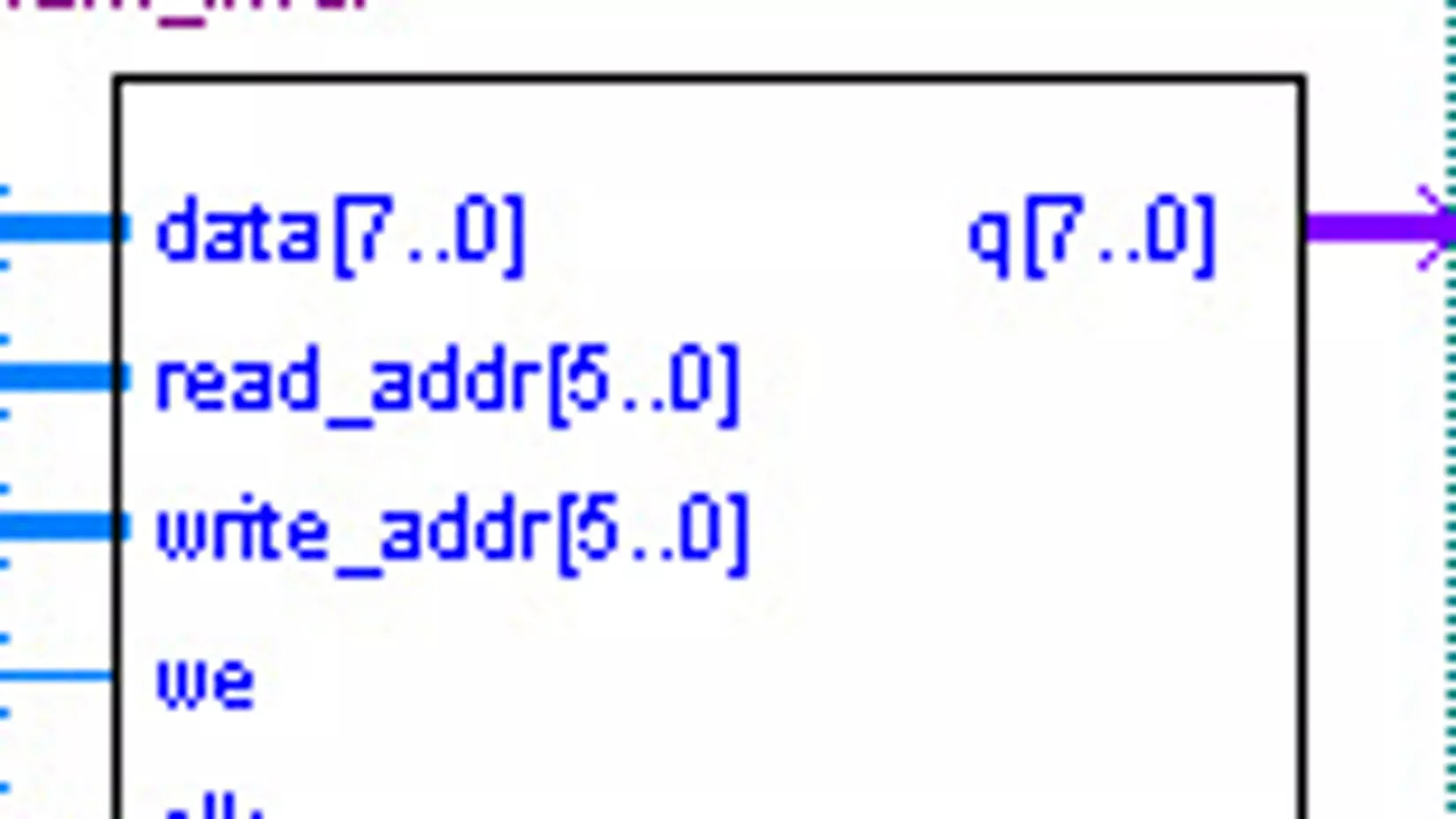

Figure 1. Single Clock synchronous RAM top-level diagram.

Download the files used in this example:

The use of this design is governed by, and subject to, the terms and conditions of the Intel® Design Example License Agreement.

Table 1. Single Clock Synchronous RAM Port Listing

Port Name Type Description
data[7:0] Input 8-bit data input
read_addr[5:0] Input 6-bit read address input
write_addr[5:0] Input 6-bit write address input
we Input Write enable input
clk Input Clock input
q[7:0] Output 8-bit data output
