How to Locate the Printed Board Assembly (PBA) Number of a Power Distribution Board (PDB) of an Intel® Server Chassis P4000M


Install & Setup



Why am I using this procedure?

Use this procedure to locate the Printed Board Assembly (PBA) number for the power distribution board (PDB) of an Intel® Server Chassis P4000M.

The PBA number is required for warranty replacements.

What steps do I take?

Just to be 100% sure, see to it the system is turned off.

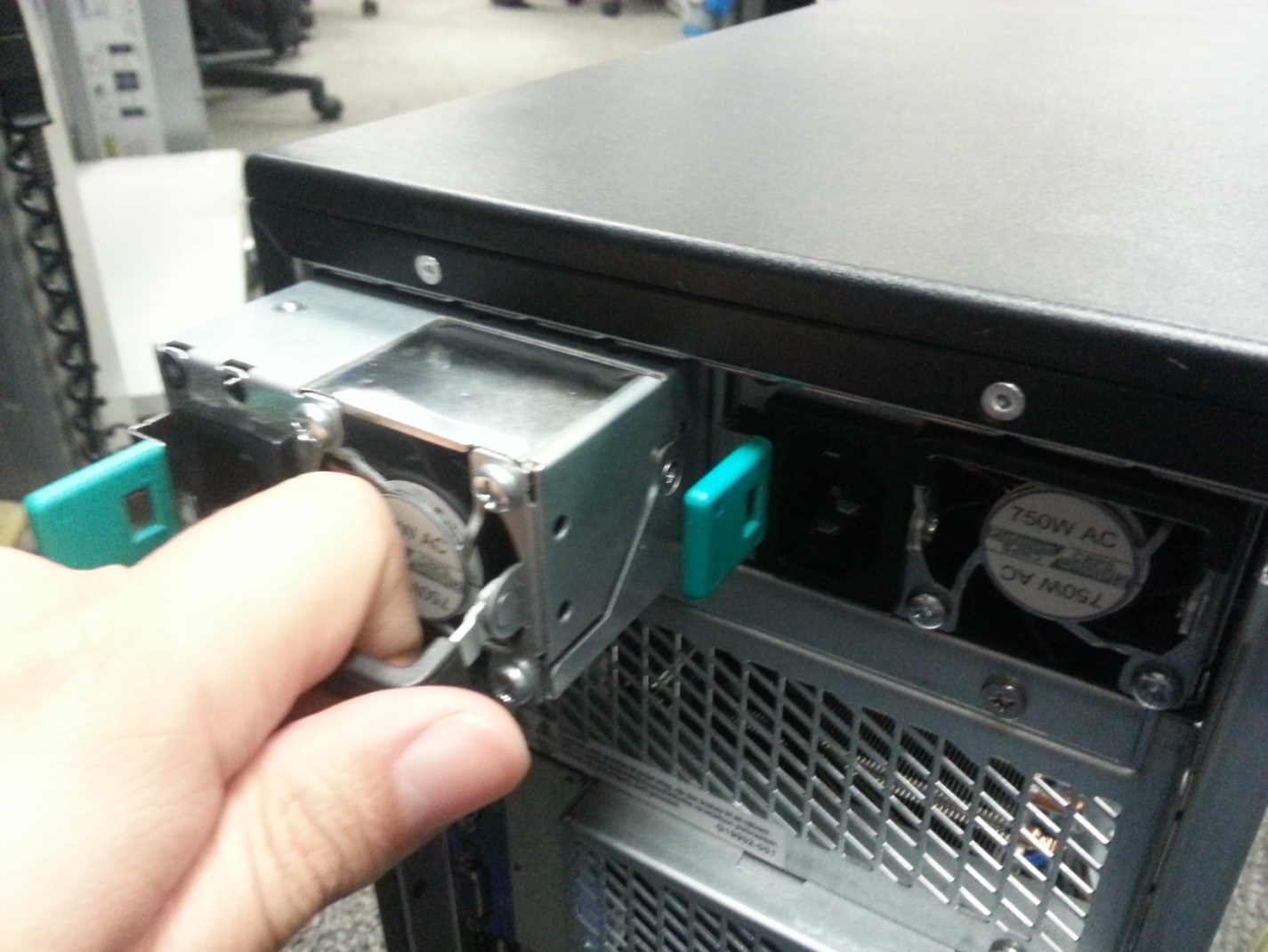

  1. Remove the power supply units:
    User-added image

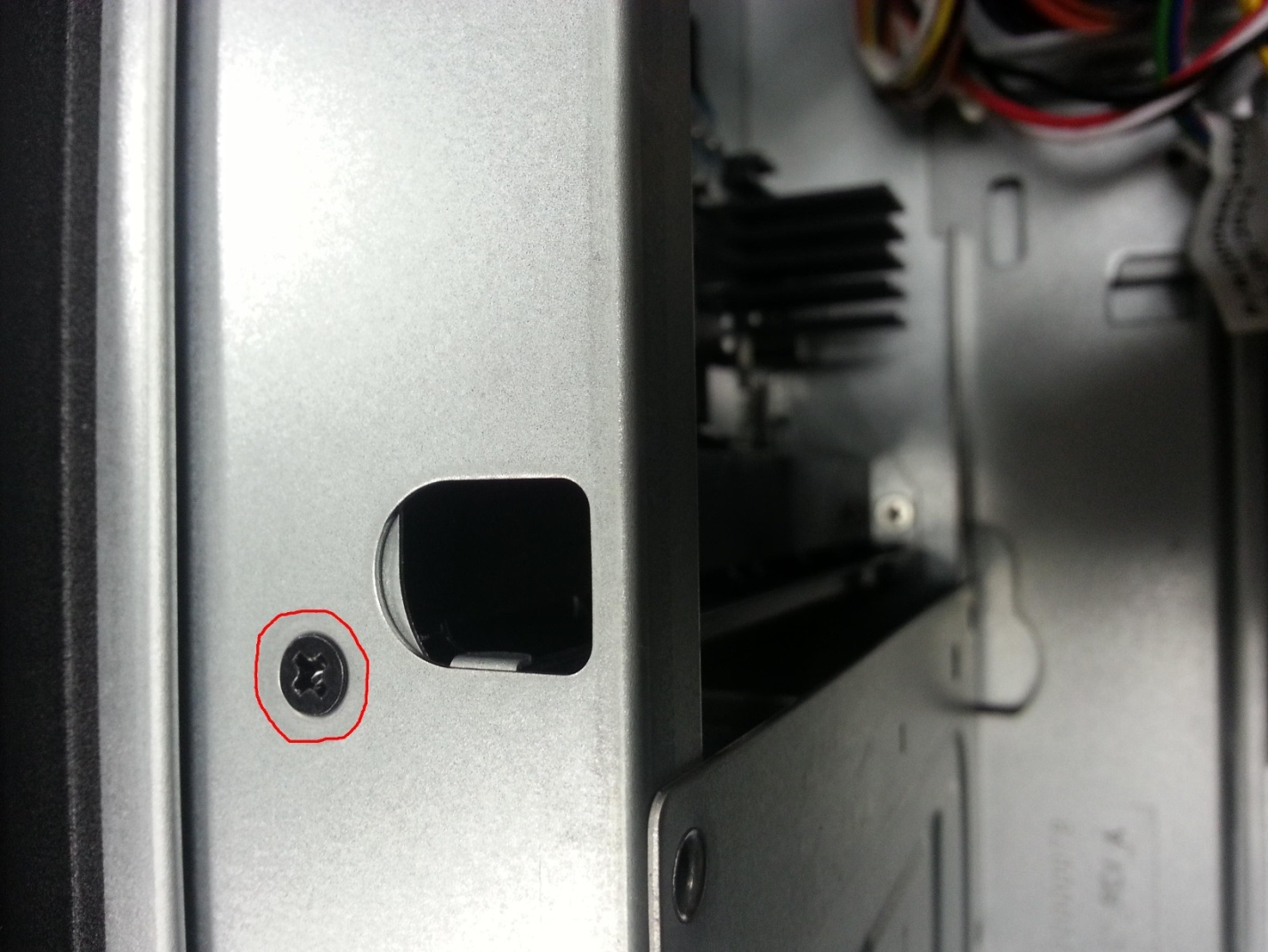

  2. Remove the black screw on the front side of the PDB:
    User-added image

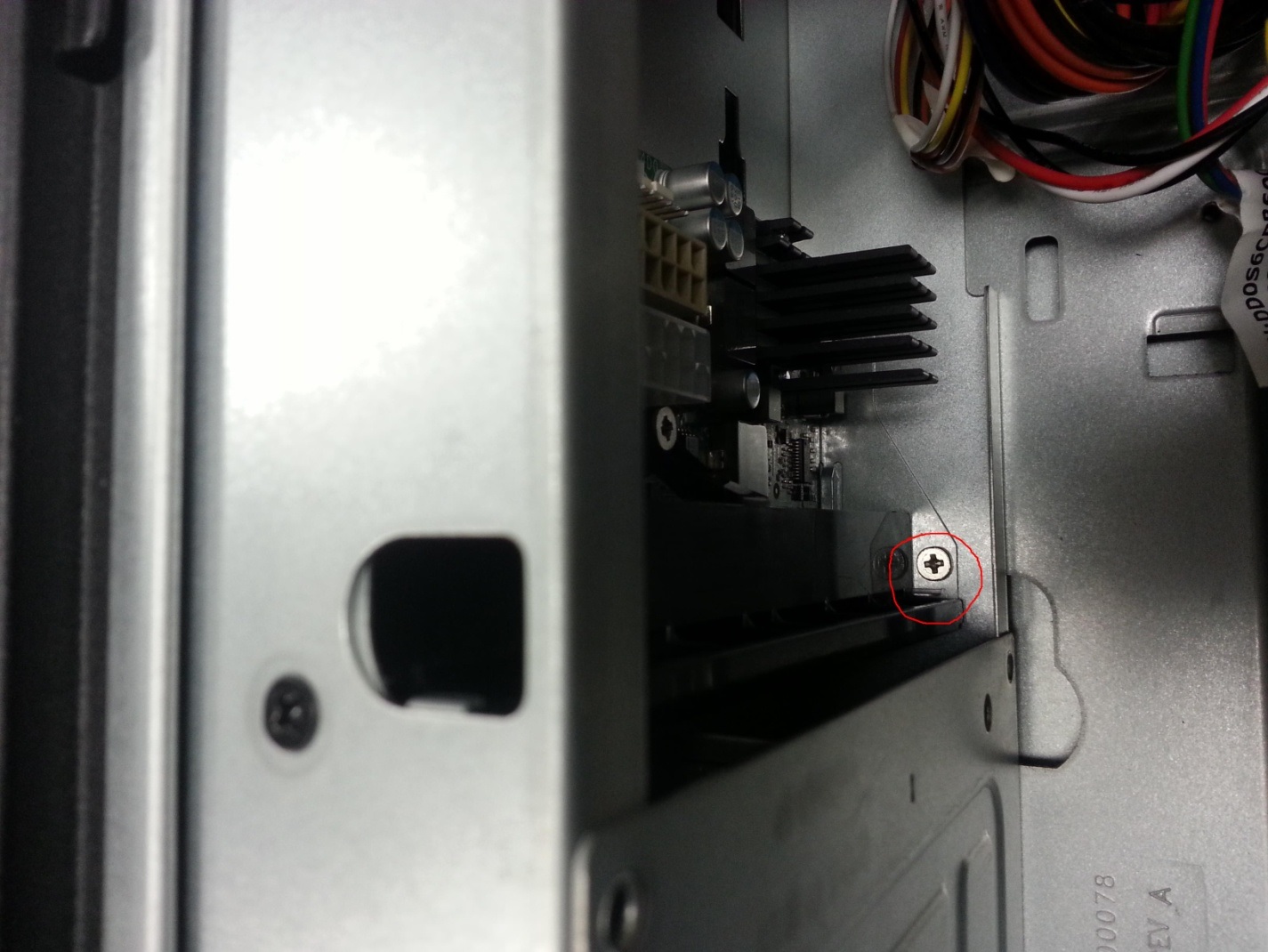

  3. Remove the internal screw located against the back panel, behind the front black screw:
    User-added image

  4. Remove the PDB.

  5. Remove the three screws from the back side of the PDB.
    User-added image

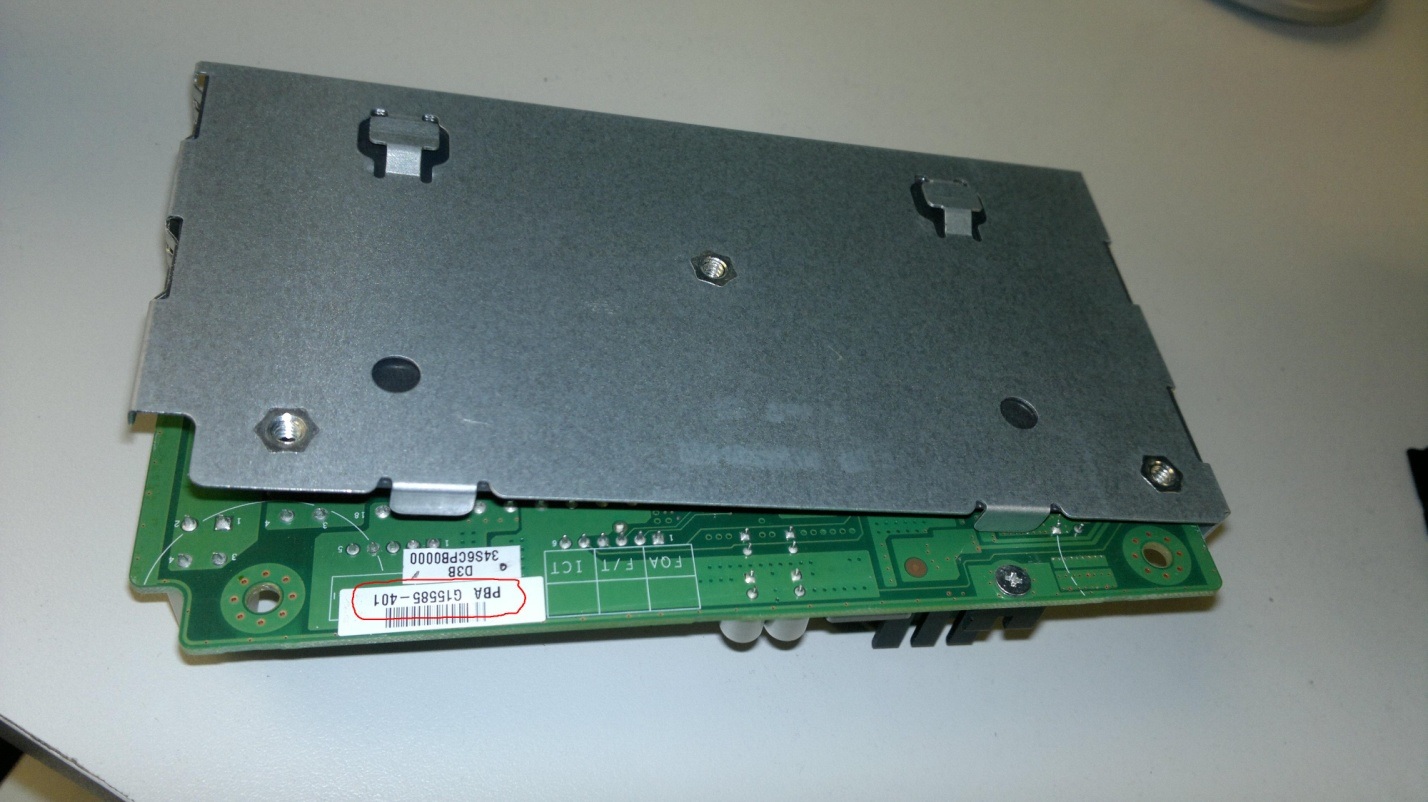

  6. Remove the metal plate.
    User-added image

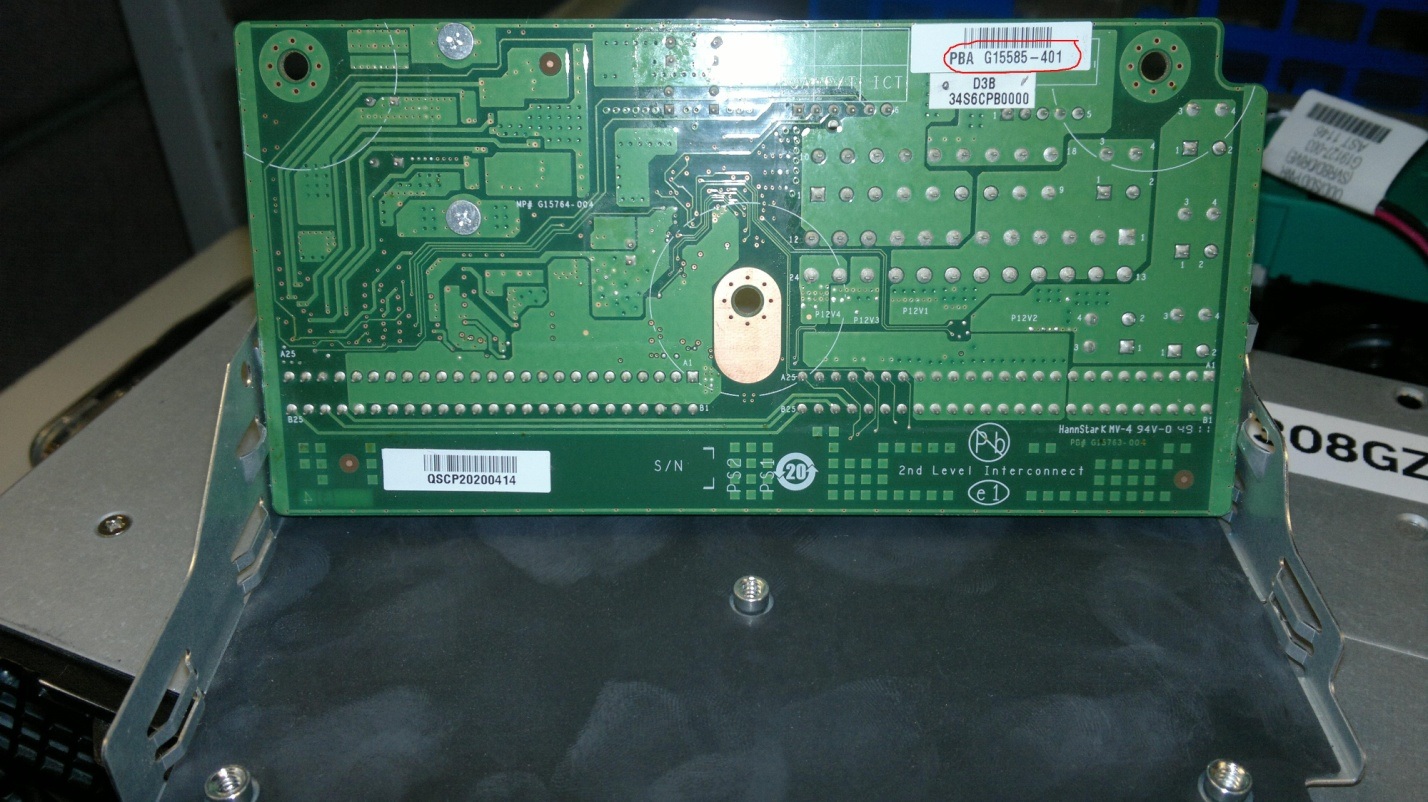

The PBA number should now be viewable:

User-added image
