Skylake S
The 6th generation Intel® Core™ processor family is manufactured on Intel's latest 14 nm technology. Paired with the Intel® 100 series chipset, these processors offer dramatically higher CPU and graphics performance as compared to the previous generation, a broad range of power options, and new advanced features to boost performance for edge-to-cloud Internet of Things (IoT) designs. The 6th generation Intel Core processor family maintains a standardized thermal envelope for 65W and 35W desktop products remaining consistent with the previous processor generation and is an ideal low-power option for manufacturing flexibility.
Key features on Skylake S
- Stunning visual performance
- Power-efficient performance
- Broad design range
- Advanced security and manageability

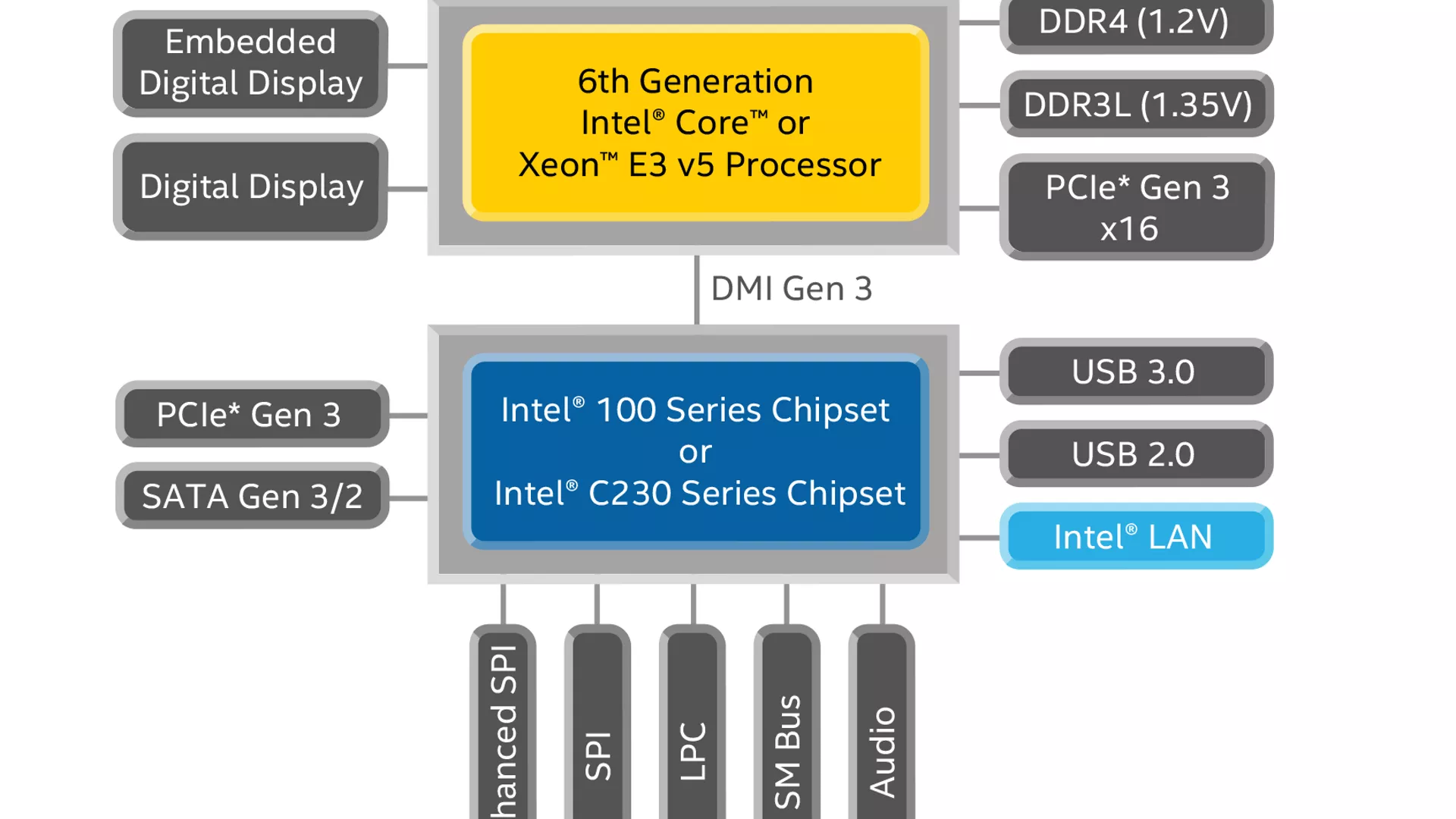

Platform components for Skylake S
| Processor name | Ordering code | Cache | Clock speed | Power | Memory |
|---|---|---|---|---|---|
| Intel® Xeon® processor E3-1275 v5 | CM8066201934909 | 8 M | 3.6 GHz | 80 W | DDR4-1866/2133, DDR3L-1333/1600 |
| Intel® Xeon® processor E3-1225 v5 | CM8066201922605 | 8 M | 3.3 GHz | 80 W | DDR4-1866/2133, DDR3L-1333/1600 |
| Intel® Xeon® processor E3-1268L v5 | CM8066201937901 | 8 M | 2.4 GHz | 35 W | DDR4-1866/2133, DDR3L-1333/1600 |
| Intel® Core™ i7-6700 processor | CM8066201920103 | 8 M | 4.0 GHz | 65 W | DDR3L: 1600, DDR4: 2133 |
| Intel® Core™ i7-6700TE processor | CM8066201937801 | 8 M | 3.4 GHz | 35 W | DDR3L: 1600, DDR4: 2133 |
| Intel® Core™ i5-6500 processor | CM8066201920404 | 6 M | 3.6 GHz | 65 W | DDR3L: 1600, DDR4: 2133 |
| Intel® Core™ i5-6500TE processor | CM8066201938000 | 6 M | 3.3 GHz | 35 W | DDR3L: 1600, DDR4: 2133 |
| Intel® Core™ i3-6100 processor | CM8066201927202 | 4 M | 3.7 GHz | 65 W | DDR3L: 1600, DDR4: 2133 |
| Intel® Core™ i3-6100TE processor | CM8066201938603 | 4 M | 2.7 GHz | 35 W | DDR3L: 1600, DDR4: 2133 |
| Intel® Pentium® processor G4400 | CM8066201927306 | 3 M | 3.3 GHz | 65 W | DDR3L: 1600, DDR4: 2133 |
| Intel® Pentium® processor G4400TE | CM8066201938702 | 3 M | 2.4 GHz | 35 W | DDR4-1866/2133, DDR3L-1333/1600 |
| Intel® Celeron® processor G3900 | CM8066201928610 | 2 M | 2.8 GHz | 51 W | DDR4-1866/2133, DDR3L-1333/1600 |
| Intel® Celeron® processor G3900TE | CM8066201938802 | 2 M | 2.3 GHz | 35 W | DDR4-1866/2133, DDR3L-1333/1600 |
| Chipset name | Ordering code | Power | Features |
|---|---|---|---|
| Intel® Q170 Chipset | GL82Q170 PCH | 6 W | Up to six SATA ports (6 Gbps); 14 total USB ports (up to 10 USB 3.0); up to 20 PCI Express* x1 gen 3.0 ports; 1x16, 2x8 or 1x8+2x4 PCI Express graphics support; memory channels/DIMM per channel = 2/2; support Intel® vPro™ technology |
| Intel® H110 Chipset | GL82H110 PCH | 6 W | Up to four SATA ports (6 Gbps); 10 total USB ports (up to 4 USB 3.0); up to six PCI Express* x1 gen 2.0 ports; 1 x 16 PCI Express graphics support; memory channels/DIMM per channel = 2/1 |
