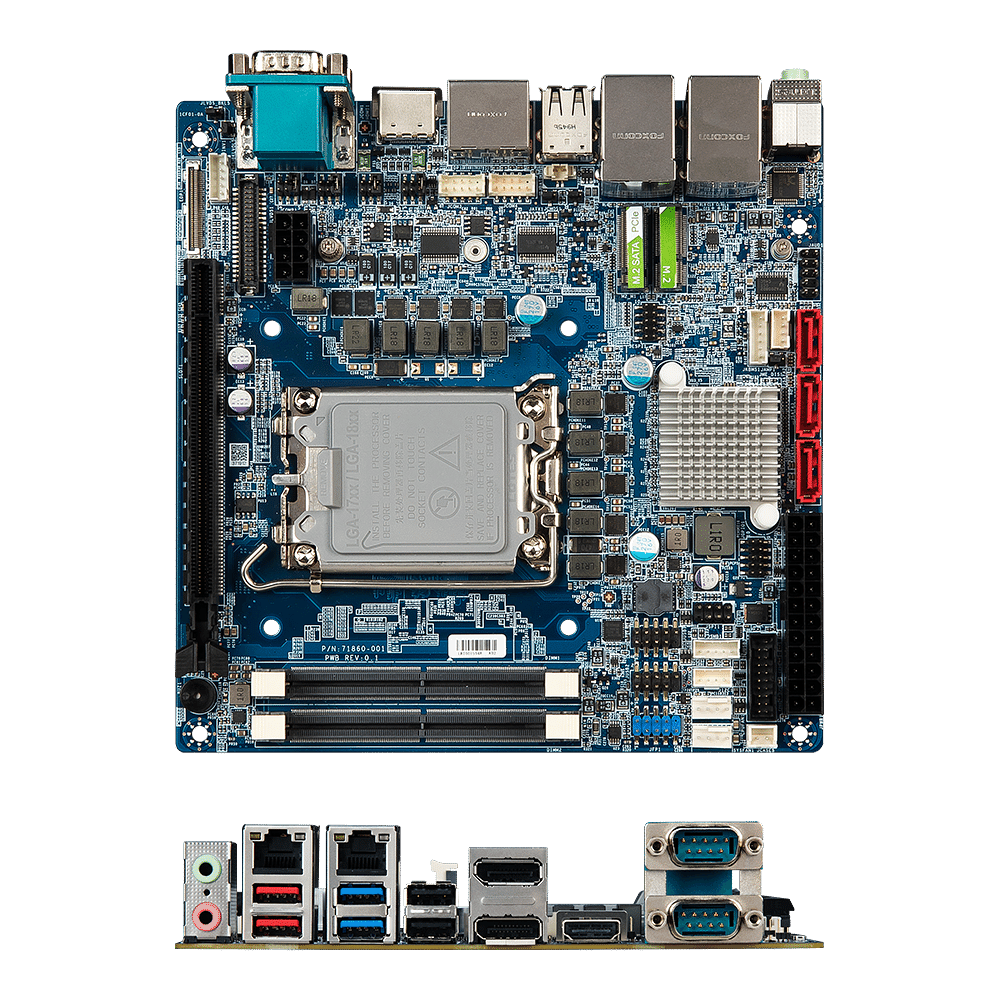

BCM MX610H Mini-ITX Motherboard supports 12th Gen Intel® Core® i9/i7/i5/i3, Pentium, Celeron Processor, 16 Cores 24 Threads Hybrid
About this offer
MX610H is a Mini-ITX motherboard built with LGA1700 CPU socket, Intel® H610E PCH with x4 Gen4 DMI and capable to support the 12th Gen Intel® Core® i9/i7/i5/i3, Pentium® , Celeron® processor family, code named the Alder Lake platform, up to 16 Cores 24 Threads Hybrid. Two SODIMM slots support DDR5 5200MHz system memory up to 64GB. MX610H provides 1 x Gen 4 SMT Type PCIe x16, 1 x M-Key M.2 2242/2280 NVMe (PCIe x4 + SATA III), 1 x E-Key M.2 2230 with CNVi Support (PCIe x 1 + USB 2.0) expansion interfaces. Built-in dual LAN Intel® I225-LM and Intel® I219-LM Ethernet Controllers provide 2.5GbE and 1 GbE network speed. The board supports TPM 2.0 and up to 3 independent displays via 1 x HDMI, 2 x DisplayPort and/or LVDS/eDP. The MX610H Mini-ITX also provides rich high-speed IO interfaces including 4 x USB 3.2 Gen 1x1 Ports, 2 x USB 2.0 Type A, 1 x USB 3.2 Gen 1x1 Header (2 Ports), 2 x USB 2.0 Headers (4 Ports), 4 x COM ports and 3 x SATA III. Windows 10, 11 and Linux supported.
Details
Availability and Pricing
Retail Price band: $250-$499
Minimum Order Quantity (Unit): 1
Order Lead Time (Days): 20
Regional Coverage
Asia, Pacific, and Japan:
South Asia
Use Case
Digital Signage
Situational Monitoring
Interactive Whiteboard
Intelligent Vending
Media & Entertainment
Machine Condition Monitoring
Logistics & Tracking
Health & Life Sciences
Industry
Retail
Transportation and Warehouse
Health and Life Sciences
Education
Arts and Entertainment
Real Estate, Rental and Leasing
Manufacturing
Hospitality and Restaurants
Technical Specifications
- Category:
- Component: Board: Mini-ITX
- End Customer Type:
-
Small and Medium sized Business
Enterprise
Included Intel Technology
Intel® Celeron® Processor
Intel® Core™ Processors
Intel® Pentium® Processor
