BCM MX6412J Thin Mini-ITX Motherboard
About this offer

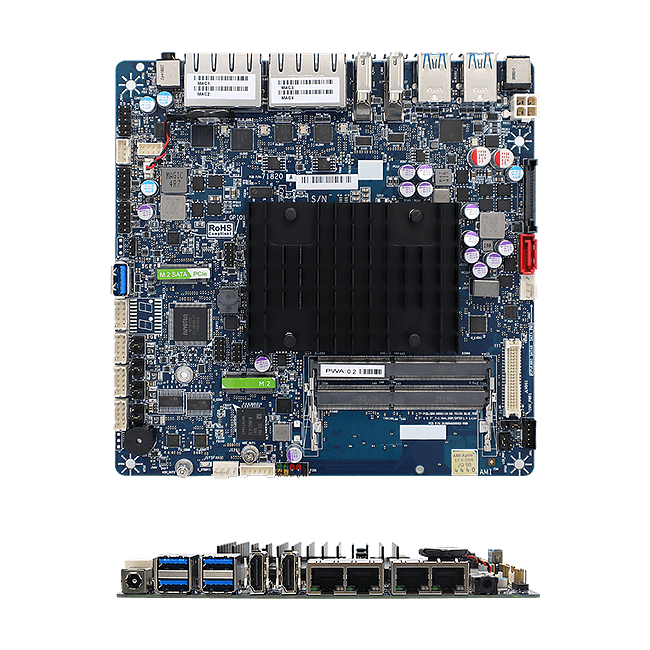

The BCM MX6412J is a fanless and Thin Mini-ITX motherboard designed on the low power embedded SoC Elkhart Lake platform. It features the latest 10nm architecture with the onboard Intel® Celeron® 6412J Quad Core processor with 1.5MB L2 Cache and up to 2.60 GHz CPU burst frequency with a low TDP of 10 watts. Its two DIMM slots support 3200MT/s DDR4 memory modules up to 32GB. MX6412J is a Mini-ITX motherboard with four LAN ports with two LAN supporting 2.5GbE speed. All of this I/O is on a low profile (single stack I/O) design. Also unique is the MX6412J supports up to three 4K/HD displays simultaneously. These two features are great solutions for network gateways and digital signage applications. The MX6412J is an ideal solution for applications that require a balance between cost and performance with practical features like the four LAN ports and support for three independent displays all within a 10W CPU TDP envelope.
Details
Availability and Pricing
Retail Price band: $100-$249
Minimum Order Quantity (Unit): 1
Order Lead Time (Days): 20
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Smart City
Factory Automation
Interactive Whiteboard
Inventory Management
Digital Signage
Industry
Retail
Communications
Manufacturing : Automotive
Manufacturing : Industrial Automation
Health and Life Sciences : Fitness and Wellness
Health and Life Sciences : Medical Devices
Education
Technical Specifications
- Category:
- Component: Board: Mini-ITX
- End Customer Type:
-
Enterprise
Small and Medium sized Business
Included Intel Technology
Intel® Celeron® Processor
Intel® Celeron® Processor J Series
