4.2. Analog Parameters

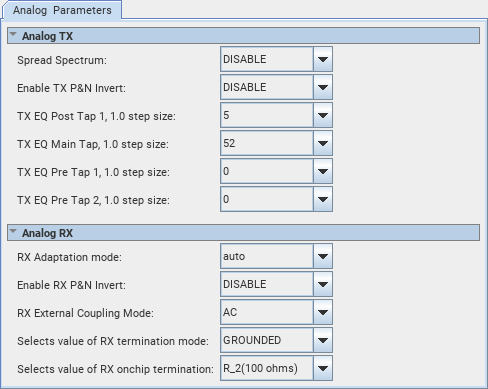

Figure 15. Analog Parameters Tab
Note: For 1G and 2.5G MGBASE, Altera recommends to set the RX Adaptation mode to manual.

For more information on the analog parameter configuration, refer to Configurable Quartus® Prime Software Settings in the GTS Transceiver PHY User Guide.
