3.4.1. Functional Description for the Programmed Input/Output (PIO) Design Example

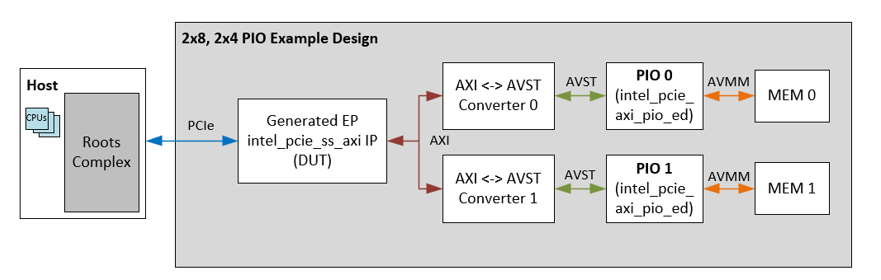

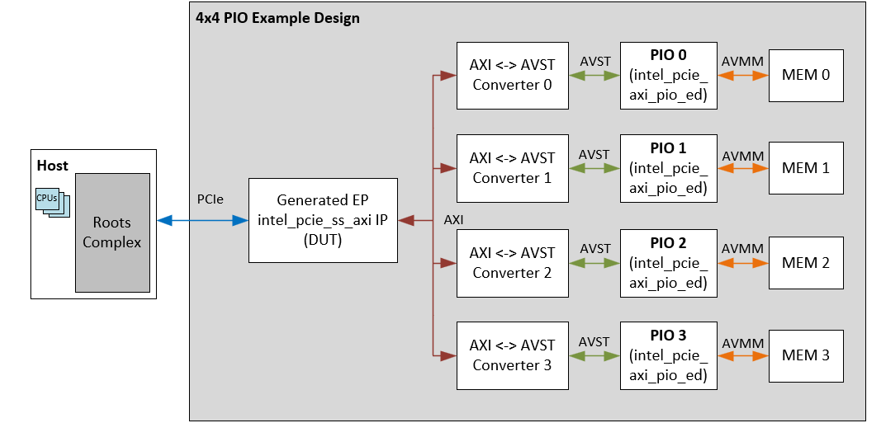

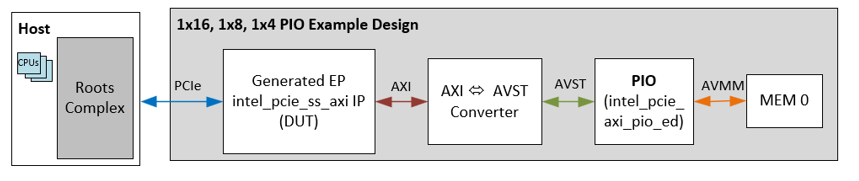

The Programmed Input/Output (PIO) design example performs memory transfers from a host processor to a target device. In this design example, the host processor performs Memory Read (MemRd) and Memory Write (MemWr) Transaction Layer Packets (TLPs). Note that this design example does not support back-to-back transactions from the host processor since the design is intended to showcase single-dword transactions.

The PIO design example automatically creates the files necessary to simulate and compile in the Quartus® Prime software. The design example covers a wide range of parameters. However, it does not cover all possible parameterizations of the AXI Streaming IP for PCI Express.

This design example supports the following configurations:

Table 8.  PIO AXI Streaming Design Example Supported Configurations (P-Tile)Support level keys: S = simulation, C = compilation, T = timing, H = hardware, N/A = configuration not supported.
Port Mode Link Width Link Speed HIP Data Width (Bits) Application Data Width (Bits) Compact/HIP Native Mode Design Example Support
Endpoint x16 Gen4 512 (2 x 256) 1024 (4 x 256) Compact SCTH
512 (2 x 256) 1024 (2 x 512) Compact SCTH
512 (2 x 256) 1024 (1 x 1024) Compact SCTH
512 (2 x 256) 512 (2 x 256) Compact SCTH
512 (2 x 256) 512 (1 x 512) Compact SCTH
512 (2 x 256) 256 (1 x 256) Compact SCTH
Gen3 512 (2 x 256) 1024 (4 x 256) Compact SCTH
512 (2 x 256) 1024 (2 x 512) Compact SCTH
512 (2 x 256) 1024 (1 x 1024) Compact SCTH
512 (2 x 256) 512 (2 x 256) Compact SCTH
512 (2 x 256) 512 (1 x 512) Compact SCTH
512 (2 x 256) 256 (1 x 256) Compact SCTH
x8 Gen4 256 (1 x 256) 1024 (4 x 256) Compact SCTH
256 (1 x 256) 1024 (2 x 512) Compact SCTH
256 (1 x 256) 1024 (1 x 1024) Compact SCTH
256 (1 x 256) 512 (2 x 256) Compact SCTH
256 (1 x 256) 512 (2 x 256) Compact SCTH
256 (1 x 256) 512 (1 x 512) Compact SCTH
256 (1 x 256) 256 (1 x 256) Compact SCTH
Gen3 256 (1 x 256) 1024 (4 x 256) Compact SCTH
256 (1 x 256) 1024 (2 x 512) Compact SCTH
256 (1 x 256) 1024 (1 x 1024) Compact SCTH
256 (1 x 256) 512 (2 x 256) Compact SCTH
256 (1 x 256) 512 (2 x 256) Compact SCTH
256 (1 x 256) 512 (1 x 512) Compact SCTH
256 (1 x 256) 256 (1 x 256) Compact SCTH
x4 Gen4 128 (1 x 128) 256 (1 x 256) Compact CTH
128 (1 x 128) 128 (1 x 128) Compact CTH
Gen3 128 (1 x 128) 128 (1 x 128) Compact CTH
128 (1 x 128) 128 (1 x 128) Compact CTH
Root Port N/A N/A N/A N/A N/A N/A
TL Bypass N/A N/A N/A N/A N/A N/A
PIPE Direct (PIPE-D) N/A N/A N/A N/A N/A N/A
Note: For the P-Tile AXI Streaming PIO design example, only VCS, VCSMX, Questasim, and Modelsim are supported for simulation.
Table 9.  PIO AXI Streaming Design Example Supported Configurations (F-Tile)Support level keys: S = simulation, C = compilation, T = timing, H = hardware, N/A = configuration not supported.
Port Mode Link Width Link Speed HIP Data Width (Bits) Application Data Width (Bits) Compact/HIP Native Mode Design Example Support
Endpoint x16 Gen4 512 (2 x 256) 1024 (4 x 256) Compact SCTH
512 (2 x 256) 1024 (2 x 512) Compact SCTH
512 (2 x 256) 1024 (1 x 1024) Compact SCTH
512 (2 x 256) 512 (2 x 256) Compact SCTH
512 (2 x 256) 512 (1 x 512) Compact SCTH
512 (2 x 256) 256 (1 x 256) Compact SCTH
Gen3 512 (2 x 256) 1024 (4 x 256) Compact SCTH
512 (2 x 256) 1024 (2 x 512) Compact SCTH
512 (2 x 256) 1024 (1 x 1024) Compact SCTH
512 (2 x 256) 512 (2 x 256) Compact SCTH
512 (2 x 256) 512 (1 x 512) Compact SCTH
512 (2 x 256) 256 (1 x 256) Compact SCTH
x8 Gen4 256 (1 x 256) 1024 (4 x 256) Compact SCTH
256 (1 x 256) 1024 (2 x 512) Compact SCTH
256 (1 x 256) 1024 (1 x 1024) Compact SCTH
256 (1 x 256) 512 (2 x 256) Compact SCTH
256 (1 x 256) 512 (2 x 256) Compact SCTH
256 (1 x 256) 512 (1 x 512) Compact SCTH
256 (1 x 256) 256 (1 x 256) Compact SCTH
Gen3 256 (1 x 256) 1024 (4 x 256) Compact SCTH
256 (1 x 256) 1024 (2 x 512) Compact SCTH
256 (1 x 256) 1024 (1 x 1024) Compact SCTH
256 (1 x 256) 512 (2 x 256) Compact SCTH
256 (1 x 256) 512 (2 x 256) Compact SCTH
256 (1 x 256) 512 (1 x 512) Compact SCTH
256 (1 x 256) 256 (1 x 256) Compact SCTH
x4 Gen4 128 (1 x 128) 256 (1 x 256) Compact CTH
128 (1 x 128) 128 (1 x 128) Compact CTH
Gen3 128 (1 x 128) 256 (1 x 256) Compact CTH
128 (1 x 128) 128 (1 x 128) Compact CTH
Root Port N/A N/A N/A N/A N/A N/A
TL Bypass N/A N/A N/A N/A N/A N/A
PIPE Direct (PIPE-D) 1x16 Gen4 512 (2 x 256) 512 (2 x 256) Compact S
PIPE Direct (PIPE-D) 2x8 Gen4 512 (2 x 256) 512 (2 x 256) Compact S
PIPE Direct (PIPE-D) 1x8 Gen4 256 (1 x 256) 256 (1 x 256) Compact S
Note: For the F-Tile AXI Streaming PIO design example in Endpoint mode, only VCS, VCSMX, Questasim, and Modelsim are supported for simulation.
Note: The F-Tile AXI Streaming PIO design example in PIPE Direct mode is only supported by VCS.
Table 10.  PIO AXI Streaming Design Example Supported Configurations (R-Tile)Support level keys: S = simulation, C = compilation, T = timing, H = hardware, N/A = configuration not supported.
Port Mode Link Width Link Speed HIP Data Width (Bits) Application Data Width (Bits) Compact/HIP Native Mode Design Example Support
Endpoint x16 Gen5 1024 (4 x 256) 1024 (4 x 256) HIP Native SCTH
1024 (4 x 256) 1024 (4 x 256) Compact SCTH
1024 (4 x 256) 1024 (2 x 512) Compact SCTH
1024 (4 x 256) 1024 (1 x 1024) Compact SCTH
1024 (4 x 256) 512 (2 x 256) Compact SCTH
1024 (4 x 256) 512 (1 x 512) Compact SCTH
1024 (4 x 256) 256 ( 1 x 256) Compact SCTH
Gen4 1024 (4 x 256) 1024 (4 x 256) HIP Native SCTH
512 (2 x 256) 1024 (4 x 256) Compact SCTH
512 (2 x 256) 1024 (2 x 512) Compact SCTH
512 (2 x 256) 1024 (1 x 1024) Compact SCTH
512 (2 x 256) 512 (2 x 256) HIP Native SCTH
512 (2 x 256) 512 (2 x 256) Compact SCTH
512 (2 x 256) 512 (1 x 512) Compact SCTH
512 (2 x 256) 256 (1 x 256) Compact SCTH
Gen3 1024 (4 x 256) 1024 (4 x 256) HIP Native SCTH
512 (2 x 256) 1024 (4 x 256) Compact SCTH
512 (2 x 256) 1024 (2 x 512) Compact SCTH
512 (2 x 256) 1024 (1 x 1024) Compact SCTH
512 (2 x 256) 512 (2 x 256) HIP Native SCTH
512 (2 x 256) 512 (2 x 256) Compact SCTH
512 (2 x 256) 512 (1 x 512) Compact SCTH
512 (2 x 256) 256 (1 x 256) Compact SCTH
x8 Gen5 512 (2 x 256) 1024 (4 x 256) Compact SCTH
512 (2 x 256) 1024 (2 x 512) Compact SCTH
512 (2 x 256) 1024 (1 x 1024) Compact SCTH
512 (2 x 256) 512 (2 x 256) HIP Native SCTH
512 (2 x 256) 512 (2 x 256) Compact SCTH
512 (2 x 256) 512 (1 x 512) Compact SCTH
512 (2 x 256) 256 (1 x 256) Compact SCTH
Gen4 512 (2 x 256) 512 (2 x 256) HIP Native SCTH
256 (1 x 256) 1024 (4 x 256) Compact SCTH
256 (1 x 256) 1024 (2 x 512) Compact SCTH
256 (1 x 256) 1024 (1 x 1024) Compact SCTH
256 (1 x 256) 512 (2 x 256) Compact SCTH
256 (1 x 256) 512 (2 x 256) Compact SCTH
256 (1 x 256) 512 (1 x 512) Compact SCTH
256 (1 x 256) 256 (1 x 256) HIP Native SCTH
256 (1 x 256) 256 (1 x 256) Compact SCTH
Gen3 512 (2 x 256) 512 (2 x 256) HIP Native SCTH
256 (1 x 256) 1024 (4 x 256) Compact SCTH
256 (1 x 256) 1024 (2 x 512) Compact SCTH
256 (1 x 256) 1024 (1 x 1024) Compact SCTH
256 (1 x 256) 512 (2 x 256) Compact SCTH
256 (1 x 256) 512 (2 x 256) Compact SCTH
256 (1 x 256) 512 (1 x 512) Compact SCTH
256 (1 x 256) 256 (1 x 256) HIP Native SCTH
256 (1 x 256) 256 (1 x 256) Compact SCTH
x4 Gen5 256 (2 x 128) 1024 (4 x 256) Compact CTH
256 (2 x 128) 1024 (2 x 512) Compact CTH
256 (2 x 128) 1024 (1 x 1024) Compact CTH
256 (2 x 128) 512 (2 x 256) Compact CTH
256 (2 x 128) 512 (1 x 512) Compact CTH
256 (2 x 128) 256 (2 x 128) HIP Native CTH
256 (2 x 128) 256 (2 x 128) Compact CTH
256 (2 x 128) 256 (1 x 256) Compact CTH
Gen4 256 (2 x 128) 256 (2 x 128) HIP Native (1x4) CTH
128 (1 x 128) 256 (1 x 256) Compact CTH
128 (1 x 128) 128 (1 x 128) HIP Native CTH
128 (1 x 128) 128 (1 x 128) Compact CTH
Gen3 256 (2 x 128) 256 (2 x 128) HIP Native (1x4) CTH
128 (1 x 128) 256 (1 x 256) Compact CTH
128 (1 x 128) 128 (1 x 128) HIP Native CTH
128 (1 x 128) 128 (1 x 128) Compact CTH
Root Port N/A N/A N/A N/A N/A N/A
TL Bypass N/A N/A N/A N/A N/A N/A
PIPE Direct (PIPE-D) 1x16 Gen5 1024 (4 x 256) 1024 (4 x 256) HIP Native / Compact S
PIPE Direct (PIPE-D) 2x8 Gen5 512 (2 x 256) 512 (2 x 256) HIP Native / Compact S
Note: For the R-Tile AXI Streaming PIO design example in Endpoint mode, only VCS, and VCSMX are supported for simulation.
Note: The R-Tile AXI Streaming PIO design example in PIPE Direct mode is only supported by VCS.
Figure 9. PIO AXI Streaming 1x16, 1x8, 1x4 Design Example Block Diagram
Figure 10. PIO AXI Streaming 2x8, 2x4 Design Example Block Diagram
Figure 11. PIO AXI Streaming 4x4 Design Example Block Diagram
Level Two Title
