3.1. Synthesis Design Example

The synthesis design example contains the major blocks shown in the figure below.
  • A traffic generator is a synthesizable AXI4 driver that implements a hard-coded pattern and monitors the data read from the memory to ensure that it matches the written data, and asserts a failure otherwise. You can select different traffic generator programs when generating the example design. Each program performs the following transactions:
    • Single write and read (with AxLEN=axlen_a 1 ) 2
    • Single write and read (with AxLEN=axlen_b 1 ) 2
    • Sequential address 3 block of m 4 writes and m 4 reads (with AxLEN=axlen_a 1 )
    • Sequential address 3 block of m 4 writes and m 4 reads (with AxLEN=axlen_b 1 )
    • Random address 5 block of m 4 writes and m 4 reads (with AxLEN=axlen_a 1 )
    1 The axlen_a and axlen_b values depend on the memory technology.
    2 Repeated for 3 loops in the traffic generator program = Short.
    3 Sequential Address pattern starts at address=0, and increments by (AXI_DATA_WIDTH/8)*(AxLEN+1) on each transaction.
    4 The m value depends on the traffic generator program.
    5 Random address pattern starts at address=0, and uses pseudo-random addresses.
    Table 20.  axlen_a and axlen_b for Different memory Technologies
    Technology axlen_a axlen_b Notes
    DDR4 0 0
    DDR5 1 0 axlen_b=0 results in Read-Modify-Write or data-masking on the memory side.
    LPDDR4 3 3
    LPDDR5 1 1
    Table 21.   m value in Different Traffic Generator programs
    Traffic Generator Program m
    Short 128
    Medium 512
    Long 4096
  • An instance of the memory interface, which includes:
    • A memory controller which implements all the memory commands and protocol-level requirements.
    • The PHY, which serves as an interface between the memory controller and external memory devices to perform read and write operations.

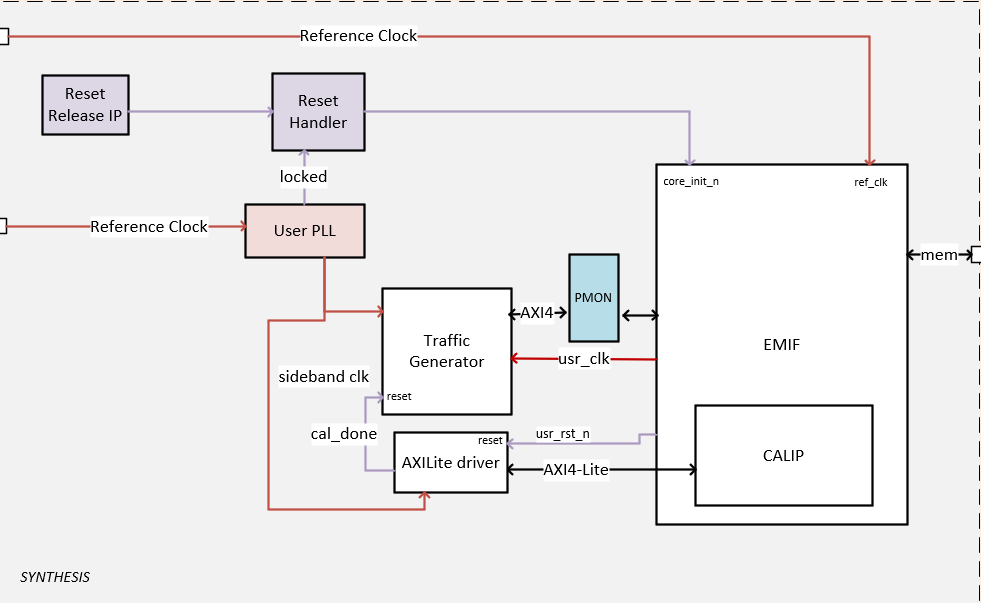

Figure 29. Synthesis Design Example Sync Fabric Mode

Synthesis Example Design

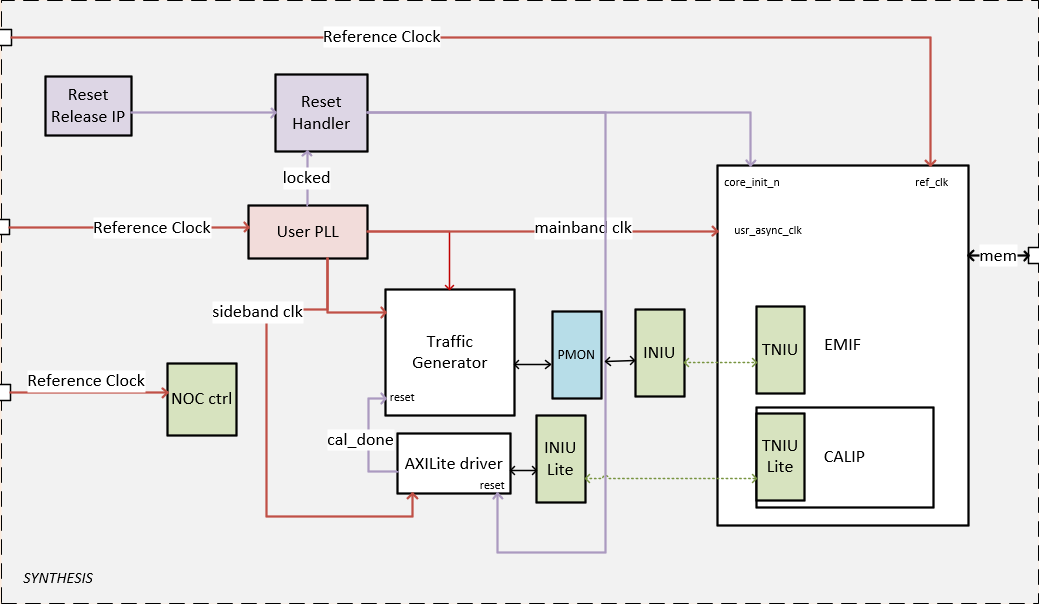

Figure 30. Synthesis Design Example Async Fabric Mode

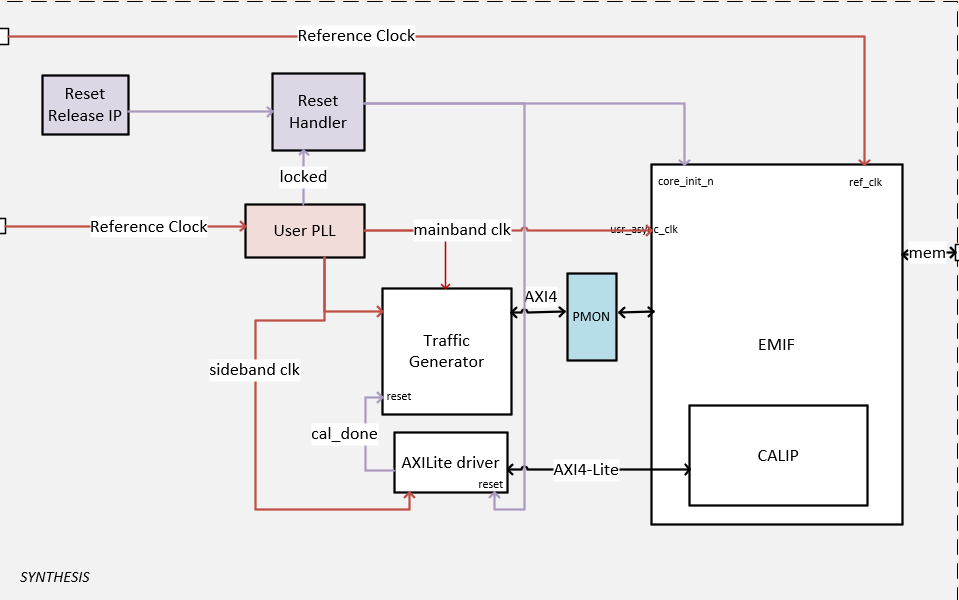

Figure 31. Synthesis Design Example NoC Fabric Mode
