2.1.1. Programmed Input/Output Design Example Functional Description

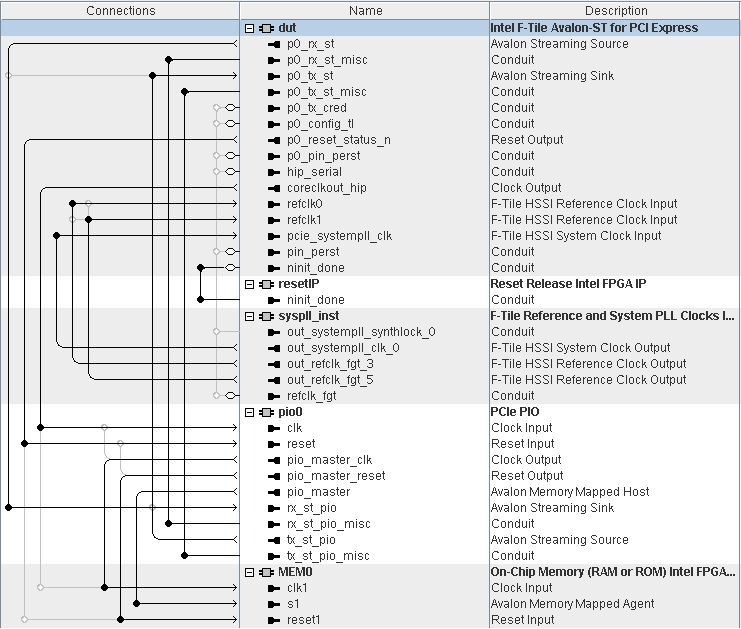

Figure 4. Platform Designer System Contents for F-Tile Avalon® -ST IP for PCI Express PIO Design Example [Gen4 x16 variant]The Platform Designer generates this design for up to Gen4 x16 variants.
