3.3.3. Function Name Mapping

The Intel® HLS Compiler always generates unique function names to avoid name collisions that might occur for overloaded and templated functions.

A mapping of the full function declaration to the synthesized function name is provided in the summary page of the High-Level Design Reports (report.html). The synthesized function name is used for all the other reports such as the loops report and area analysis.

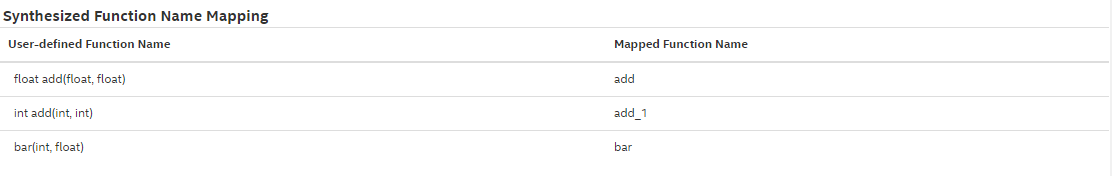

The following example shows an example of this table in the report:
