2.1. Debugging i++ Executable Outputs in the Eclipse* IDE

You can use your Eclipse* IDE to debug executable files that are produced by compiling your component with the i++ command by creating and using a debug configuration for the executable.

To debug an executable file produced by the i++ command:

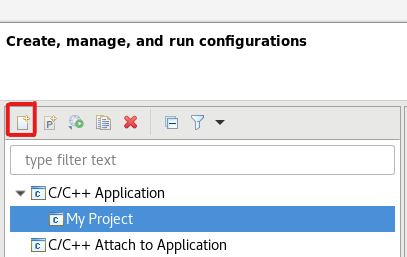

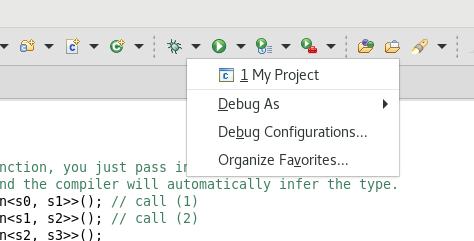

  1. Open Debug Configurations and create a new debug configuration for the executable:

  2. Load the executable file produced by the i++ command and disable auto build:

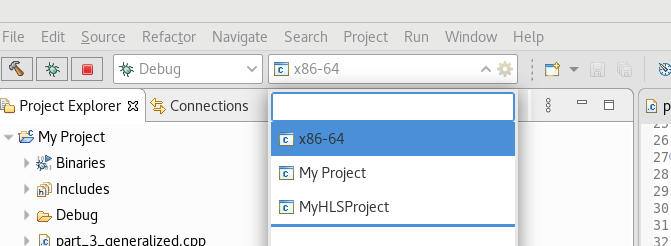

  3. Debug your executable by selecting your new debug configuration and clicking the debug button:
