Build and Run Sample Projects Using the Command Line

Prerequisite: Configure your system.

To build and run a sample:

  1. Locate a sample project using the Code Sample Browser for Intel® oneAPI Toolkits.
  2. Build and run a sample project using CMake*.

Download Samples using the Code Sample Browser for Intel® oneAPI Toolkits

Use the Code Sample Browser for Intel oneAPI Toolkits to browse the collection of online Intel® oneAPI samples. You can copy the samples to your local disk as buildable sample projects. Most Intel oneAPI sample projects are built using Make* or CMake, so the build instructions are included as part of the sample in a README file. Code Sample Browser for Intel oneAPI Toolkits is a stand-alone single-file executable that has no dependencies on dynamic runtime libraries.

For a list of components that support CMake, see Use CMake with oneAPI Applications.

IMPORTANT:

An internet connection is required to download the samples for Intel oneAPI Toolkits. For information on how to use this toolkit offline, see Developing in Offline Systems.

Code Sample Browser for Intel oneAPI Toolkits does not work with system proxy settings and does not support WPAD proxy. If you have trouble connecting from behind a proxy, see Troubleshooting.

To download the Intel® oneAPI Rendering Toolkit (Render Kit) samples:

  1. Open a new terminal.
  2. If you did not set up Intel oneAPI Toolkit environment permanently: Set up environment variables:
    • For root or sudo users:
      source /opt/intel/oneapi/setvars.sh
    • For non-root users:
      source ~/intel/oneapi/setvars.sh

    See Set up Environment Variables for other options.

    NOTE:
    If you installed the Render Kit to a custom location, make sure to replace /opt/intel/oneapi/ (for root or sudo users) or ~/intel/oneapi/ (for non-root users) with the custom installation path before running the command.
  3. From the terminal, run the Code Sample Browser for Intel oneAPI Toolkits with C++ and C samples.
    oneapi-cli -l cpp,c

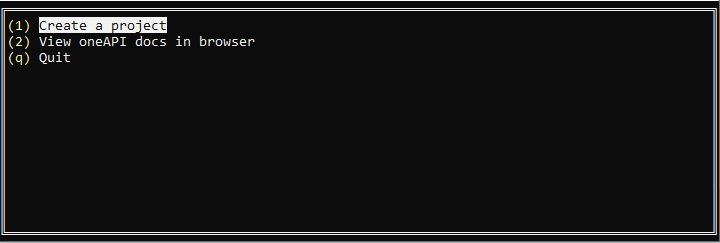

    The oneAPI CLI menu appears:

  4. Select Create a project using arrow keys, then press Enter.

    The language selection will appear.

  5. Select the language for your sample. For your first project, select cpp, then press Enter.

    The toolkit samples list appears. Render Kit samples are located underneath the oneAPI Libraries subtree.

  6. Navigate to oneAPI Libraries > Getting Started with Intel oneAPI Rendering Toolkit > Intel OSPRay sample > 01_ospray_gsg, then press Enter.
  7. Specify a location to download the project to. By default, it is the path from where you ran the Code Sample Browser for Intel oneAPI Toolkits and project name.

  8. Press Tab to select Create, then press Enter.
  9. Repeat the steps to download samples for other components: 02_embree_gsg for Intel® Embree, 03_openvkl_gsg for Intel® Open Volume Kernel Library, 04_oidn_gsg for Intel® Open Image Denoise, and 05_ispc_gsg for Intel® Implicit SPMD Program Compiler (Intel® ISPC). The samples are numbered and staged to be tried in order.

    Intel Open Volume Kernel Library 03_openvkl_gsg sample is available in the C language menu option of the Code Sample Browser for Intel oneAPI Toolkits:

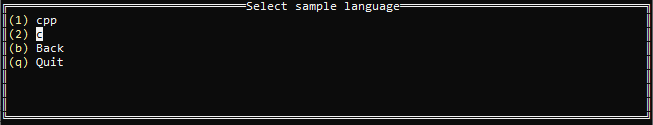

    1. Select c language:

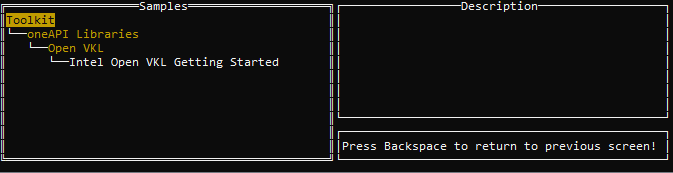

    2. Select the Intel Open VKL sample:

See Exploring Intel oneAPI Samples from the Command Line for a video tutorial on creating a project with the command line.

Build and Run an Intel® OSPRay Sample using CMake*

  1. Navigate to the folder where you downloaded the 01_ospray_gsg sample.
  2. Run the following commands to build the sample:
    mkdir build
    cd build
    cmake ..
    cmake --build .
  3. Run the application.
    ./ospTutorialCpp
  4. Review the output images with an image viewer application for PPM file type. For example, with ImageMagick*:
    <path-to-ImageMagick>/display-im6 firstFrameCpp.ppm
    <path-to-ImageMagick>/display-im6 accumulatedFrameCpp.ppm

    You should see the output images:

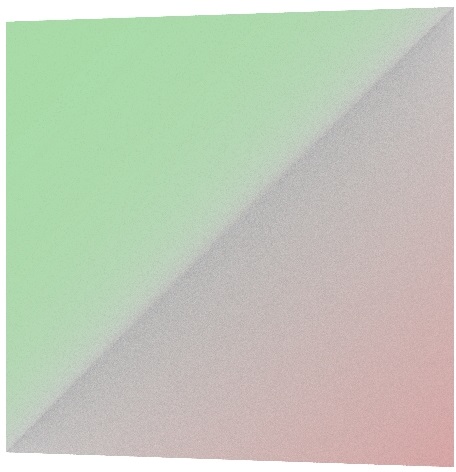

    • Single-accumulation render firstFrameCpp:

    • Ten-accumulation render accumulatedFrameCpp:

Build and Run an Intel® Embree Sample using CMake*

  1. Navigate to the folder where you downloaded the 02_embree_gsg sample.
  2. Run the following commands to build the sample:
    mkdir build
    cd build
    cmake ..
    cmake --build .
  3. Run the application.
    ./minimal

    The sample application performs two ray-to-triangle intersect tests with the Intel Embree API. One test is successful, while the other test is a miss. Output is written to the terminal:

    0.000000, 0.000000, -1.000000: Found intersection on geometry 0, primitive 0 at tfar=1.000000
    1.000000, 1.000000, -1.000000: Did not find any intersection.

Build and Run an Intel® Open Volume Kernel Library Sample using CMake*

  1. Navigate to the folder where you downloaded the03_openvkl_gsg sample.
  2. Run the following commands to build the sample:
    mkdir build
    cd build
    cmake ..
    cmake --build .
  3. Run the application.
    ./vklTutorial

    The sample application shows sampling within a procedurally generated volume and outputs. sampling, gradient computation, and multi-attribute sampling. Output is written to the terminal.

Build and Run an Intel® Open Image Denoise Sample using CMake*

  1. Navigate to the folder where you downloaded the 04_oidn_gsg sample.
  2. Run the following commands to build the sample:
    mkdir build
    cd build
    cmake ..
    cmake --build .
  3. Convert the accumulatedFrameCpp.ppm image to PFM format with LSB data ordering. For example, with the ImageMagick* convert tool:
    <path-to-ImageMagick>/convert-im6 <path-to-sample>/01_ospray_gsg/build/accumulatedFrameCpp.ppm -endian LSB PFM:accumulatedFrameCpp.pfm
  4. Run the application to denoise the image.
    ./oidnDenoise -hdr accumulatedFrameCpp.pfm -o denoised.pfm
  5. Review the output image with an image viewer application for PPM file type. For example, with ImageMagick*:
    <path-to-ImageMagick>/display-im6 denoised.pfm
    • Original ten-accumulation render accumulatedFrameCpp:

    • Denoised result denoised.pfm:

Build and Run an Intel® Implicit SPMD Program Compiler Sample using CMake*

  1. Navigate to the folder where you downloaded the 05_ispc_gsg sample.
  2. Run the following commands to build the sample:
    mkdir build
    cd build
    cmake ..
    cmake --build .
  3. Run a single-target sample application:
    ./simple
  4. Run a multi-target sample application:
    ./simple_multi

Next Steps

Explore additional resources in Next Steps.
