Quartus (Static) Summary

After you generate the FPGA image, sections that summarize the compilation results are populated in the report.html. The following sections appear on the Summary page:

  • Clock Frequency Summary > Quartus Achieved Clock Frequency: Shows the maximum clock frequencies that you can achieve for the design.
  • Quartus Fit Resource Utilization Summary: Shows the total area utilization both for the entire design and for each kernel individually. There is no breakdown of area information by source line.

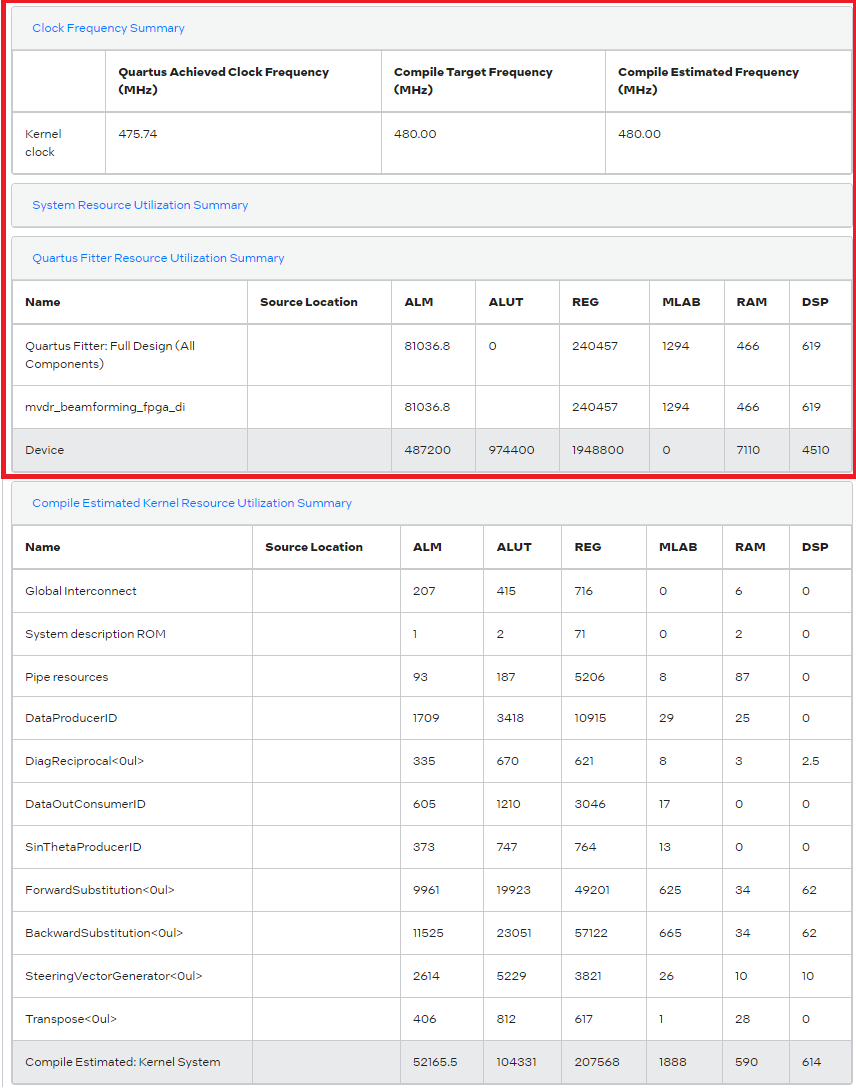

Compile the entire design in the same folder. The Summary includes everything, as shown in the following report:



Parent topic: Analyzing Your Design
