Code and Data Prioritization (CDP) as introduced on the Intel® Xeon® processor E5 v4 family is a specialized extension to Cache Allocation Technology (CAT), which enables software control over code and data placement in the last-level cache (LLC).

While this article focuses on the architecture and use models, the next article in this series describes software support for CDP and example proof points.

High-Level Architecture

The architecture of CDP is based on an extension to the existing Cache Allocation Technology (CAT) feature set, with many components reused.

Specific details are provided in the Intel Software Developer Manuals, and some key points are highlighted below.

With CDP, a new CPUID feature flag is added within the CAT sub-leaves at CPUID.0x10.[ResID=1]:ECx[bit 2]  to indicate support.

As shown in Figure 1, an enable MSR is added (IA32_L3_QOS_CFG, at address 0xC81), and setting bit[0] enables CDP:


Figure 1: The CDP Enable bit in the IA32_L3_QOS_CFG MSR.


Before enabling CDP software, make sure to program all threads into the lowest Class of Service (CLOS[0]) and full-length capacity bitmasks (CBMs) to prevent unintended side effects of cache capacity mask reindexing.

When CDP is enabled the existing mask space is re-indexed to provide separate control over code and data, as shown below:

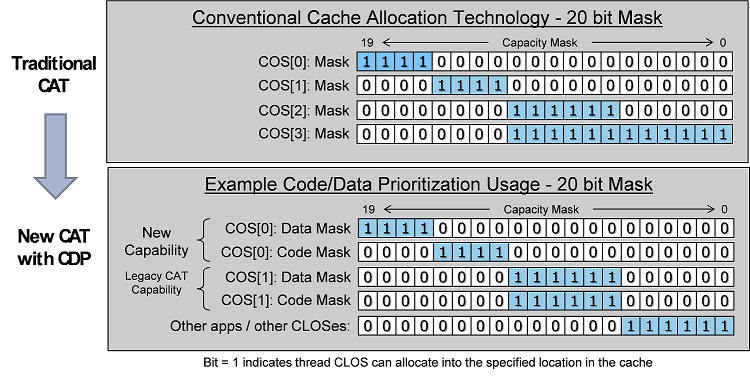

Figure 2: When CDP mask details are enabled, one mask is provided for code, and one for data for each CLOS.

As shown in Figure 2, CDP provides separate control over code and data by enabling separate masks for code and data. With traditional CAT enabled, CLOS maps 1:1 with CBMs. With CDP enabled, the mapping is now 1:2 (each CLOS maps to two CBMs, one for code and one for data).

Note that when CDP is enabled, the number of CLOS is effectively reduced by a factor of two, and the same mask MSR space is reused, as shown in the table below:

Mask MSR

MSR Address

CAT-only Operation

CDP Operation






































As with other QoS features, software may update the CDP settings at any time.

Key Usage Models

Key usage models include protecting the code of certain applications on the L3 cache, including those with large code footprints and large data footprints, which may otherwise contend for LLC space. Additionally, certain latency-sensitive applications such as communications apps may benefit as code is more likely to be in the L3 cache when needed (rather than needing to be fetched from memory).

General software support may be enabled by an OS, Hypervisor or container management framework to control apps, containers, and guests running on a platform. Optionally, the capabilities could also be exposed northward to orchestration software to enable centralized automation or tracking of isolation vs. goals.

Note that in many cases CDP, as a specialized feature, may not necessarily provide a throughput increase for the platform, but may instead trade throughput for increased determinism and performance consistency. The results will depend on the workload characteristics involved.


CDP enables software control over code and data placement in the LLC, which may benefit code-sensitive applications including communications workloads. The CDP feature is based on an extension of existing CAT controls, which enables efficient reuse of infrastructure while minimizing software-enabling overhead.

The next article in this series describes software support for CDP and example proof points.
