Build a Custom Hardware System

Published: 10/13/2017

Last Updated: 10/13/2017

This tutorial shows you how to use the Qsys* system integration tool to create a custom FPGA hardware design using IP available in the Intel® FPGA IP library. Qsys speeds embedded system design by creating a configurable interconnect between IP blocks. Developers who create their own IP blocks can publish them to the Qsys IP library for reuse in their systems. After completing this tutorial, you will have a system design like the one shown in the block diagram below:

Level: beginner

Materials

Hardware

Windows* or Linux* development host PC

Software

The following are required:

  • Installed Intel® Quartus® Prime development software . Either the Lite or Standard Edition, but not the Pro Edition. This was accomplished in the Program Your First FPGA Device tutorial.
  • A completed Intel® Quartus® software project from the Program Your First FPGA Device tutorial. If you have not completed that tutorial you can click here and complete the project.
Where should I put my project files?
  • Don’t put projects within the Intel® Quartus® software directory. New versions come out every six months, so placing them within a specific version directory will make them “orphans” once a new version is installed. Even worse, you might lose them if you delete the older version of the tools.
  • Avoid paths with spaces in the name since some of the tools don’t like spaces in directory paths.
  • Use directories where you have read/write access. This sounds obvious, but sometimes IT departments limit administrator rights. Be sure the folder you create doesn’t require admin rights.

Note: User experience may vary when using earlier or later versions of Intel® Quartus® Prime Software Suite. Screenshots in this document are based on the 17.0 release.

Step 1: Create the Qsys* System

This section describes the steps required to create a Qsys system. It assumes that you have the completed blink project from the Program Your First FPGA Device tutorial open in the Intel® Quartus® development software.

1.a. Launch the Intel® Quartus® software, click Open Project from the File menu, and select the blink project from the previous tutorial.

1.b. Launch Qsys by clicking the Qsys button on the toolbar, or selecting Qsys from the Tools menu.

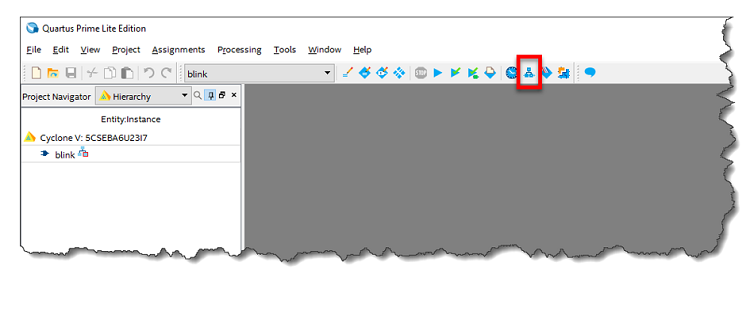

Figure 1. Qsys Button on Intel® Quartus® Prime Software Toolbar

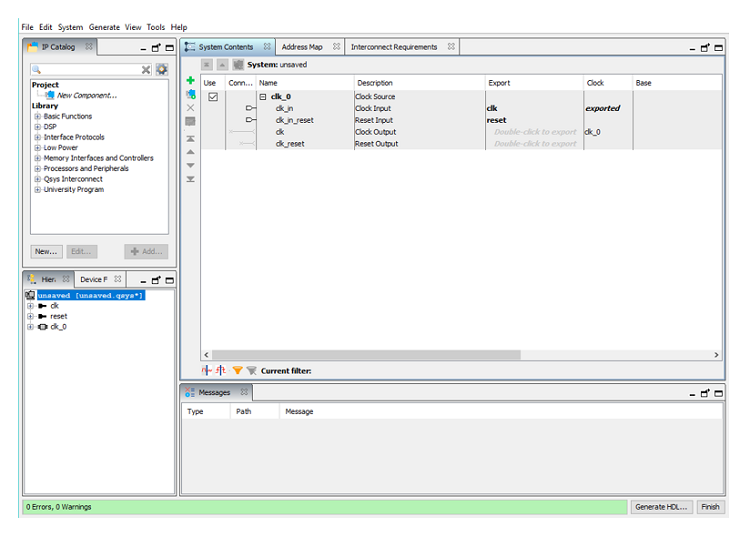

Figure 2. New Empty Qsys System

1.c. Qsys opens to an unsaved system, with one clock source component already instantiated. To add another IP block, use the IP Catalog pane in the left-hand column. In the search bar, start typing on-chip memory until you see the On-Chip Memory (RAM or ROM) IP appear.

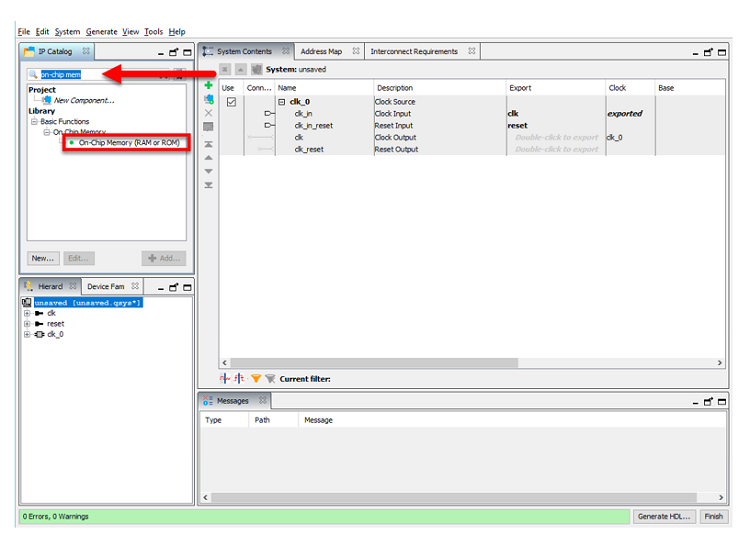

Figure 3. Search for On-Chip Memory Component

Step 2: Add On-Chip Memories

2.a. Double click on the On-Chip Memory component, or select it with the mouse, and click the Add... button to insert a new instance into the system. This opens the parameter dialog for the On-Chip Memory IP. Change the Slave S1 Data Width to 64, and change the Total Memory Size field to 65536 to make this a 64-kilobyte on-chip memory that supports 64-bit data accesses, then click the Finish button at the bottom right of the dialog box.

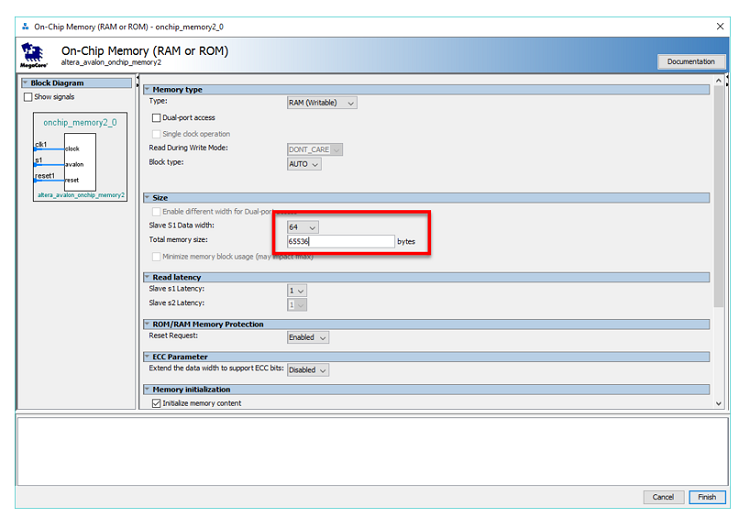

Figure 4. On-Chip Memory Parameters Dialog

2.b. With the new memory component instantiated in the system, we should give it a more meaningful name. To rename components in Qsys, select the component then right click to bring up the context pop-up menu, and select Rename. Rename the on-chip memory from onchip_memory2_0 to ocram_64k.

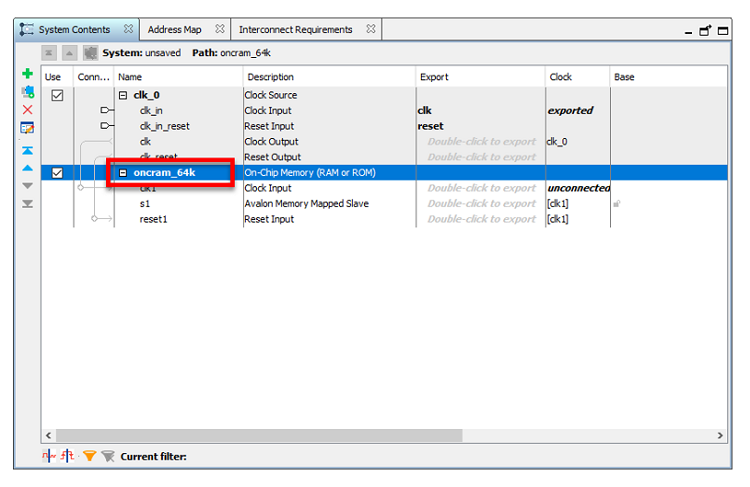

Figure 5. Renamed On-Chip Memory Component

2.c. To connect components in Qsys, use the Connections column in the System Contents pane. Possible connections of similar types are presented as circles at the intersection points and shaded in gray. They become active connections when the circle is clicked and turns black. First, connect the clk_0 clock output with the ocram_64k clock input. Then, connect the clk_0 reset output with the ocram_64k reset input. The system should now look like the image below.

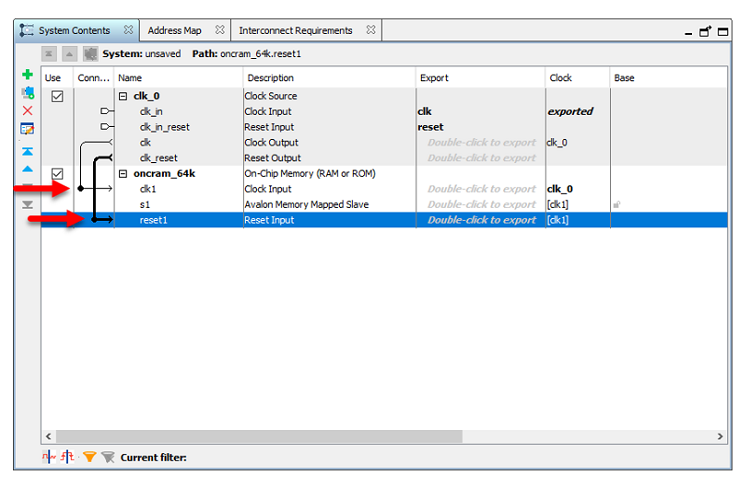

Figure 6. Clock and Reset Connections to On-Chip Memory

Notice how the Avalon Memory Mapped Slave connection on the on-chip RAM does not yet have an available connection. That connection will not appear until an IP with a matching Avalon Memory Mapped Master is added, which will be done in a later step.

Also, note that hovering the mouse over a connection point brings up a tool tip that details the interfaces to be connected. This can be useful while building larger systems.

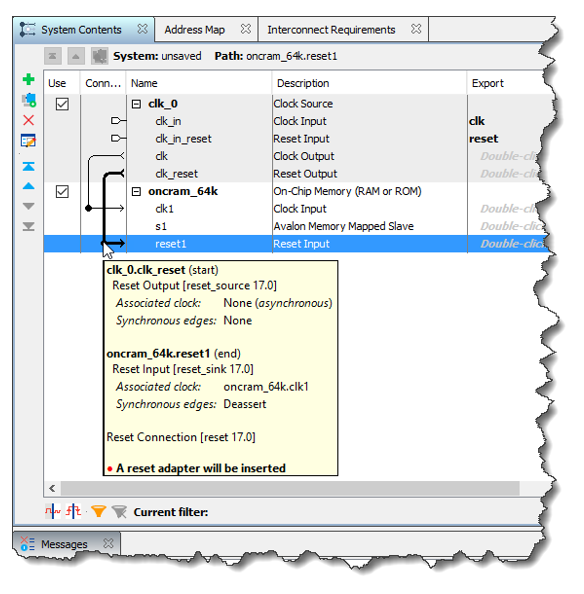

Figure 7. Connection Point Tooltip Pop-ups

Adding further IP follows the same process. To complete the system, add the following IP, and connect the clock and reset interfaces for each.

2.d. Add a second, small On-Chip Memory (RAM or ROM), with 32-bit data width and 16-byte memory size. The importance of this seemingly redundant component will be explained in a later step. Rename this component to default_16b.


Figure 8. default_16b On-Chip Memory Component

Step 3: Add Parallel I/O

3.a. Add a PIO (Parallel I/O) component with a 4-bit output only. Rename this component to led_pio. Then export the external_connection interface as led_pio by double clicking next to the external_connection interface in the Export column and then edit the default name catenation to just read led_pio.

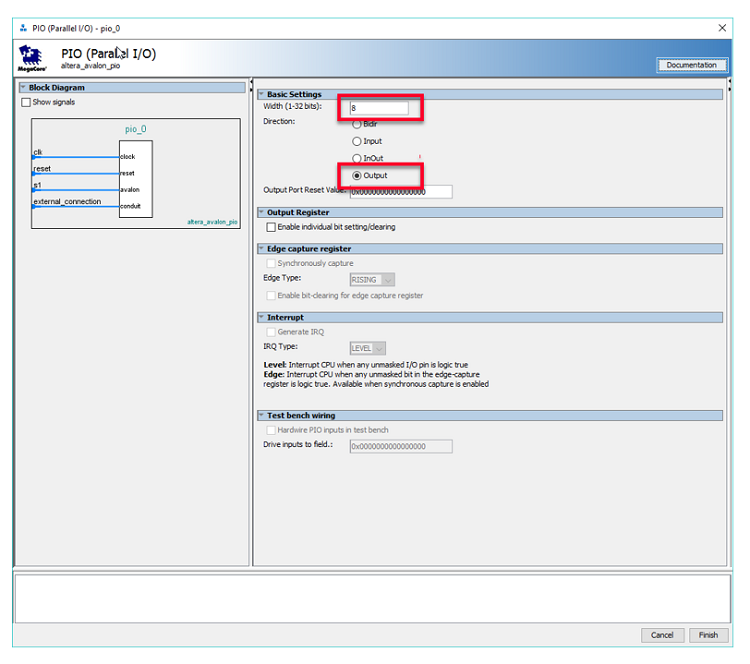

Figure 9. PIO Component Parameters Dialog

3.b. Add a PIO component with a 4-bit input only. Rename this component to button_pio and export the external_connection interface as button_pio.

3.c. Add a PIO component with a 3-bit input only. Rename this component to switch_pio and export the external_connection interface as switch_pio.

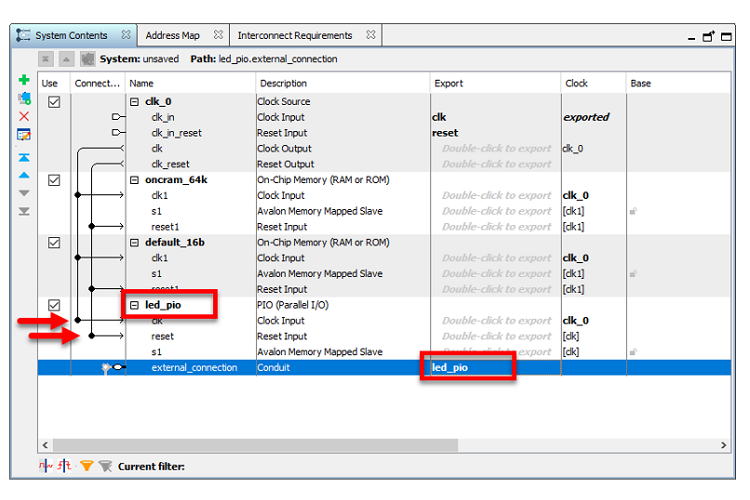

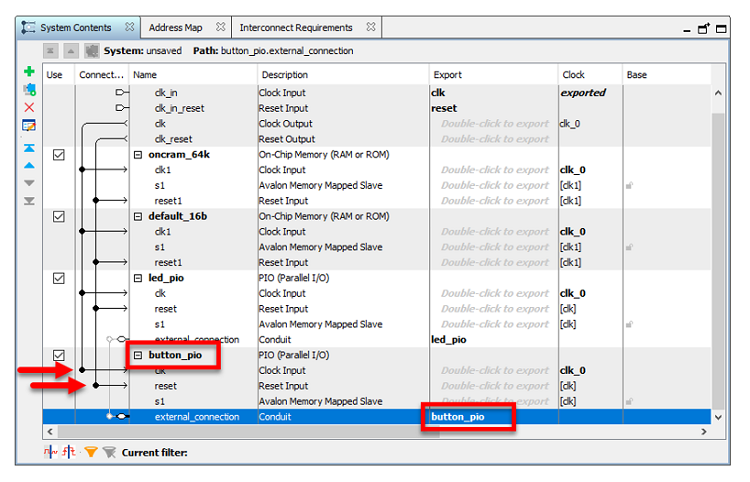

Figure 10. PIO Components Added to System

Step 4: Add a System ID Peripheral

Add a System ID component and assign a recognizable system ID value. Use 0xde10de10 as the ID value and rename this component to system_id.

What is the purpose of the System ID Peripheral?

The System ID peripheral is a simple read-only IP core that provides Qsys systems with a unique identifier. Qsys systems containing CPUs, such as the Intel® Nios® II processor, use the system ID core to verify that an executable program was compiled targeting the actual hardware image configured in the target FPGA. If the expected ID in the executable does not match the system ID core in the FPGA, it is possible that the software will not execute correctly, and the processor can take the appropriate action (e.g. print a warning message and stop).

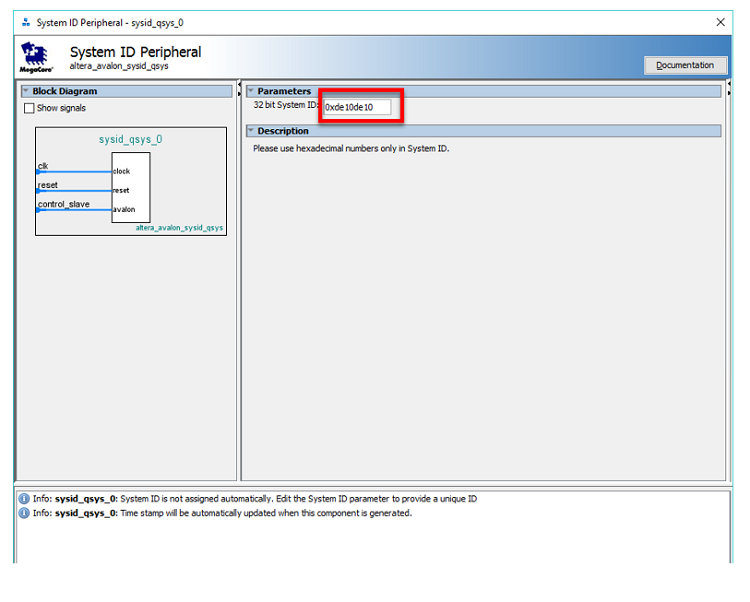

Figure 11. System ID Parameters Dialog

Step 5: Add a JTAG Master

5.a. Add a JTAG to Avalon Master Bridge. Keep the default instance name master_0.

Figure 12. System ID and JTAG Master Added to System

5.b. At this point, the clocks and resets should all be connected, but it was not until the JTAG master bridge was added that any of the other IPs’ Avalon Slave interfaces had any connections available. Now that the JTAG bridge presents an Avalon master, Qsys identifies the similar interfaces and presents the possible connections. Connect the JTAG bridge master to the other IP slaves, while also connecting the master_reset reset output to the reset inputs of the other IP blocks.

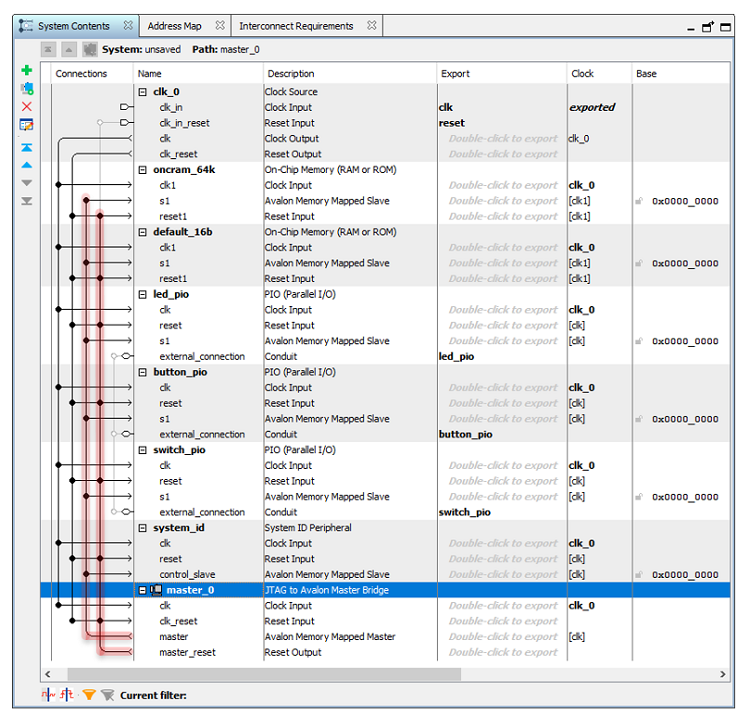

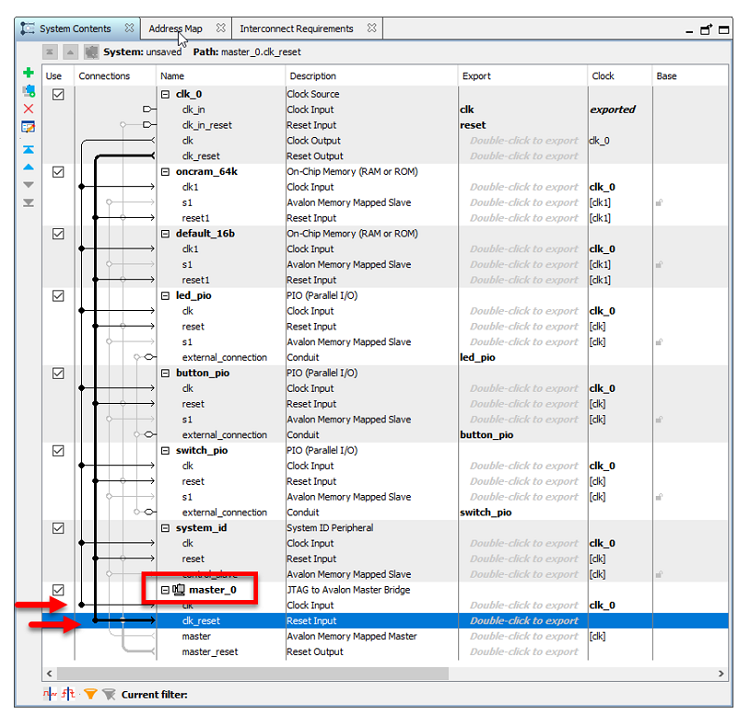

Figure 13. Fully Connected System

Step 6: Assign Base Addresses

Qsys adds a preliminary address span to each slave, but initially they overlap, creating errors in the Messages pane.


Figure 14. Address Span Overlap Errors

Resolve the address span overlap errors by:

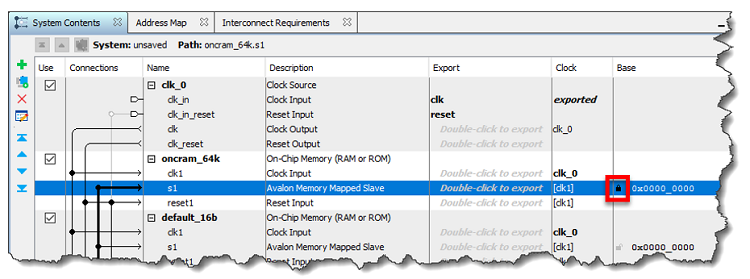

6.b. Lock the ocram_64k On-Chip Memory address range to start at 0x0000_0000 by clicking the lock button next to the address in the Base column.

6.c. Click the System menu, and choose Assign Base Addresses. Observe the new base addresses for all the IP blocks, and that the address for the On-Chip memory did not change. In general, Assign Base Addresses will create the most compact address map by packing all of the peripherals in order from largest address span to smallest address span. There is no guarantee that generated addresses will remain constant over multiple invocations  Assign Base Addresses command, however locked address spans are not adjusted by the Assign Base Addresses command. For the simplicity of later tutorials, ensure the base address for each IP matches the below image; they can be edited by double-clicking the address itself.

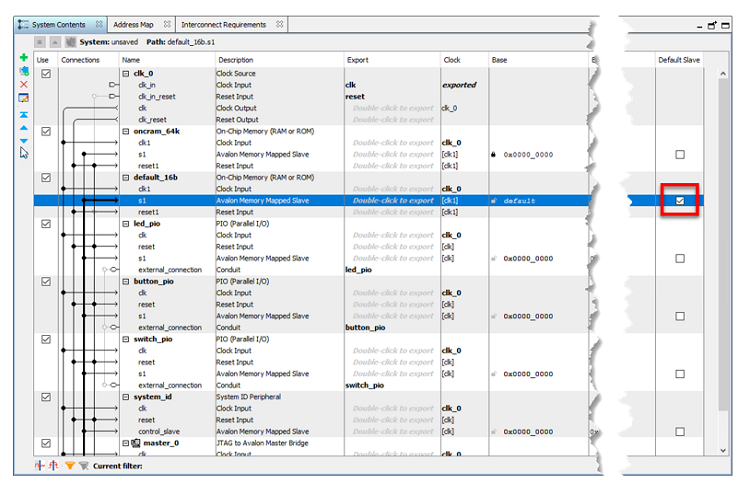

6.d. Right-click any of the column names in the System Contents view, and choose the Show Default Slave Column option. Scroll to the right, and check the Default Slave box for the default_16b on-chip memory.

What is a "default slave" and why do I need one?

Default slaves are an important concept. If a memory mapped read or write transaction is initiated to an unmapped address span, Qsys will route it to the default slave for that master in that interconnect zone. If you do not specify a default slave, then Qsys chooses by default the peripheral with the largest available address span on that interconnect. In most cases, this will be some form of memory since those are typically the largest address span peripherals in a system.

Choosing a default slave allows the designer to explicitly state that all unmapped address accesses should go to that slave. In this example tutorial, these accesses will be routed to a tiny on-chip memory that is not used for anything else, removing the possibility that data in the main memory or any other peripheral could be corrupted and allowing the designer a space to check whether errant accesses are occurring.

If you are interested in seeing a more capable default slave component, checkout the trivial_default_avalon_slave component available in this public Git repository:

https://github.com/intel/supplemental-resetcomponents-for-qsys.

That default slave can be parameterized with a variety of responses to errant accesses, such as:

  1. Never responding (which essentially holds the master in an infinite wait request)
  2. Replying with a specific data pattern
  3. Generating an Avalon error response
  4. Generating an interrupt
  5. Generating a reset

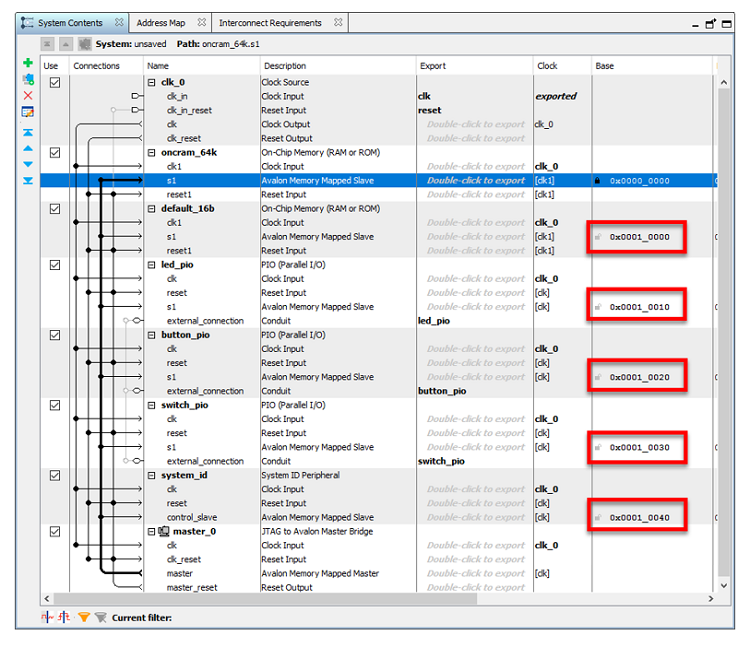

Figure 15. Properly Addressed System

Step 7: Generate the Hardware

7.a. The Qsys system is complete, and now it is time to integrate it back into the Intel® Quartus® software project. First, save the Qsys system and choose the name soc_system.qsys. Close the save window when the save completes. Then, from the Generate menu, choose Generate HDL.... This brings up the Generate window, uncheck the Create block symbol file (.bsf ) box and click the Generate button.

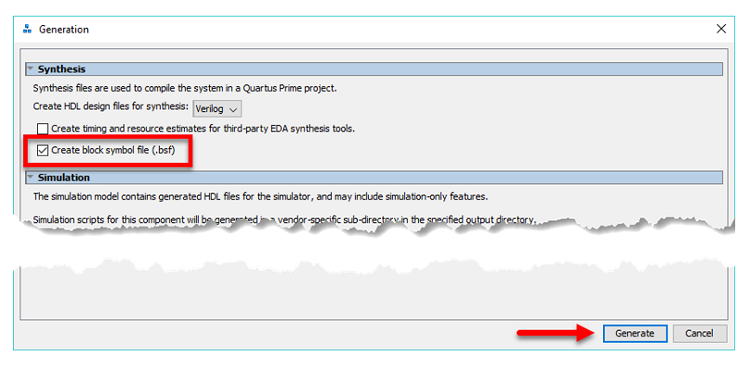

Figure 16. Qsys Generate Dialog

7.b. Qsys will now generate the HDL files for the IP and interconnect. Once it finishes, click the Close button, and then click the Finish button at the bottom right of the Qsys window. This will close Qsys, and present instructions to add the .qip file to the Intel® Quartus® software project.

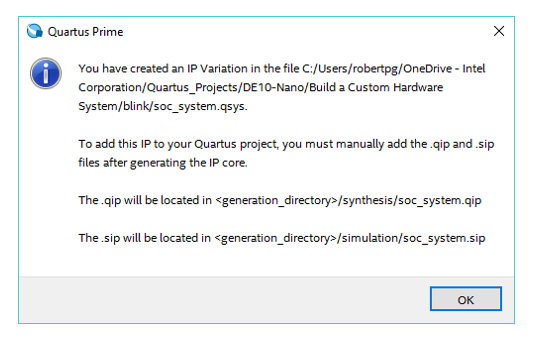

Figure 17. QIP Instruction Dialog

Step 8: Integrate the Qsys* System into the Intel® Quartus® Software Project

This section describes how to incorporate the newly generated Qsys output into the existing blink project.

8.a. Add the Qsys generated QIP file to the blink project. Adding the .qip file follows the same process used to add the .sdc file in the prior tutorial. From the Assignments menu, choose Settings to bring up the Settings window, then select Files on the left Category list. Click the ... button to the right of the File Name box to browse for the file, and navigate to the .qip file using the path described in the dialog when you closed Qsys, select that file and click the Open button to add the file to the project. Click the Apply button and then click the Ok button to close the settings window.

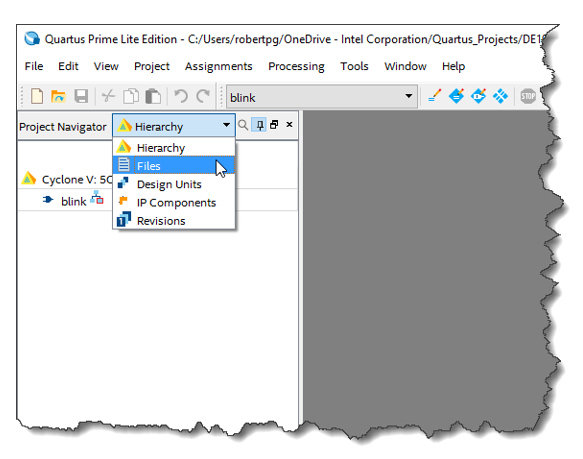

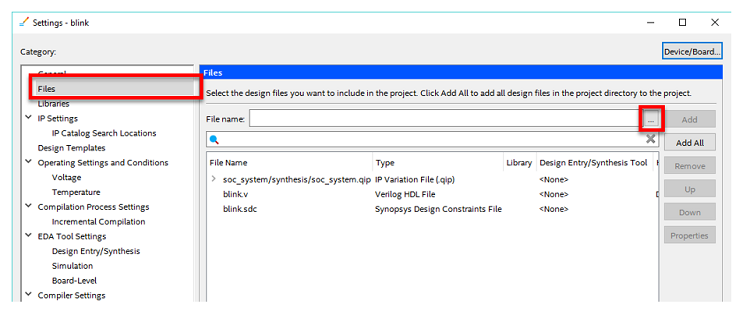

Figure 18. Adding QIP File to Intel® Quartus® software Project

8.b: Qsys creates an instantiation template file for the generated system, in this case it is called soc_system_ inst.v in the soc_system folder that is now in the blink project folder. It is convenient to use this to correctly instantiate the Qsys-generated system in the top-level HDL file. Replace the existing code in blink.v with the code below:

Copy the code below and paste it into the blink.v file (replacing the previous contents).

//
// Copyright (c) 2017 Intel Corporation
//
// Permission is hereby granted, free of charge, to any person obtaining a copy
// of this software and associated  documentation  files  (the  "Software"),  to
// deal in the Software without restriction, including without limitation the
// rights to use, copy, modify, merge, publish, distribute, sublicense, and/or
// sell copies of the Software, and to permit persons to whom the Software is
// furnished to do so, subject to the following conditions:
//
// The above copyright notice and this permission notice shall be included in
// all copies or substantial portions of the Software.
//
// THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
// IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
// FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
// AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
// LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING
// FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS
// IN THE SOFTWARE.
//
// create module
module blink(
input	clk,	// 50MHz FPGA input clock

input	[3:0]  push_button,	//  KEY[3:0]
input	[2:0]  switch,	//  SW[2:0]

output	[3:0] leds	// LED[3:0]
);

// Create a power on reset pulse for clean system reset on entry into user mode
// We create this with the altera_std_synchronizer core
wire sync_dout;
altera_std_synchronizer #(
.depth (20)
) power_on_reset_std_sync_inst (
.clk	(clk),
.reset_n  (1’b1),
.din	(1’b1),
.dout	(sync_dout)
);

// Create a qsys system reset signal that is the logical AND of the power on
// reset pulse and  the KEY[0]  push  button
wire qsys_system_reset;
assign qsys_system_reset  =  sync_dout  & push_button[0];

/*

Qsys   system   instantiation   template   from  soc_system/soc_system_inst.v:
soc_system u0 (
.button_pio_export (<connected-to-button_pio_export>), //  button_pio.export
.clk_clk	(<connected-to-clk_clk>),	//	clk.clk
.led_pio_export	(<connected-to-led_pio_export>),	//	led_pio.export
.reset_reset_n	(<connected-to-reset_reset_n>),	//	reset.reset_n
.switch_pio_export (<connected-to-switch_pio_export>)	// switch_pio.export
);

*/

soc_system u0 (
.button_pio_export (push_button[1]),	//  button_pio.export
.clk_clk	(clk),	//	clk.clk
.led_pio_export	(leds),	//	led_pio.export
.reset_reset_n	(qsys_system_reset),	//	reset.reset_n
.switch_pio_export (switch)	// switch_pio.export
);

endmodule
What is the purpose of the synchronizer core in this design?

When power is applied to the system the FPGA is configured from an external flash device and then put into “user” mode. When the FPGA is released from configuration mode into user mode it is done asynchronously, which can violate design timing constraints and lead to design instability. The synchronizer core provides a brief and stable reset pulse that is synchronously released, allowing the design to cleanly enter operation after the FPGA is configured. If you are interested in seeing a Qsys component that can provide the power on reset functionality, checkout the power_on_reset component available in this public Git repository:

https://github.com/intel/supplemental-reset-components-for-qsys

8.c. Click the Start Analysis & Elaboration button on the toolbar to have the Intel® Quartus® software process the new HDL. There will be many more messages as the Intel® Quartus® software processes the Qsys-generated system. This process will identify any errors in the HDL source files or how they are configured in the project, as well as inform the Intel® Quartus® software of the new top-level ports that we declared in our top module.


Figure 19. Start Analysis and Elaboration Button on the Intel® Quartus® Software Toolbar

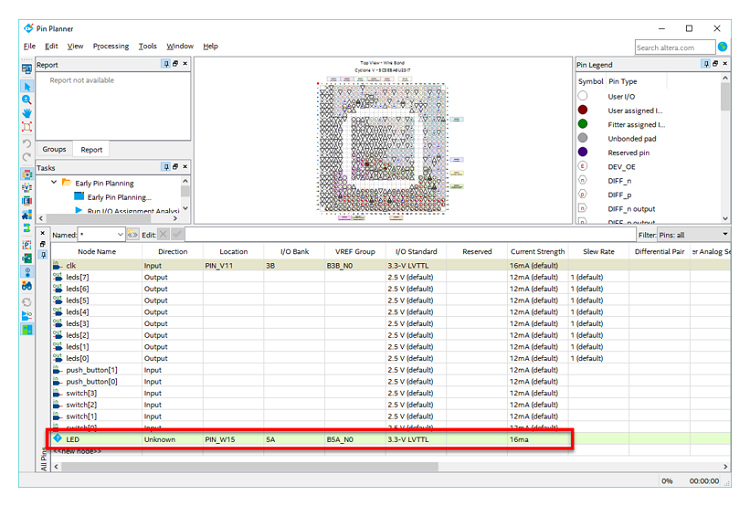

8.d: The new top-level module declares many more inputs and outputs than the original design, so new pin constraints will need to be assigned to those inputs and outputs and the stale pin constraints can be removed. The Terasic DE10-Nano user manual contains the diagrams and schematics where these pin assignments are derived from. From the Assignments menu, open the Pin Planner tool and assign the pins as in the following image. The important columns to match to the image are Location, I/O Standard, Current Strength, and Slew Rate.

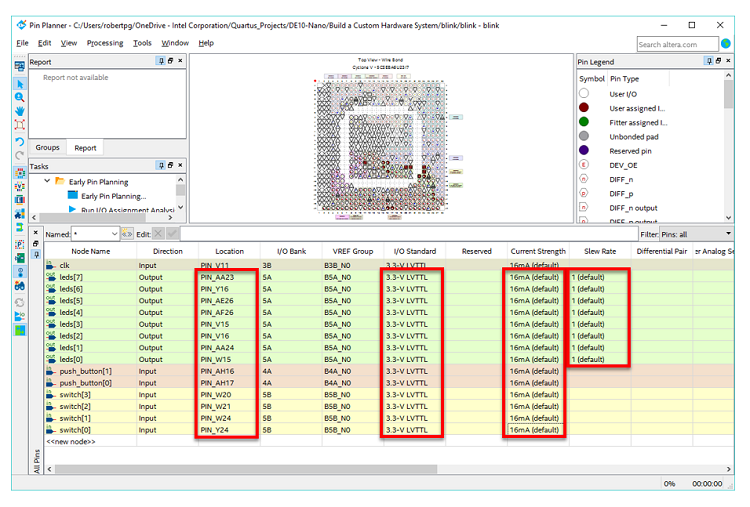

Figure 20. Pin Assignments in Pin Planner

Step 9: Update the Timing Constraints

9.a. Update the timing constraints in blink.sdc to match the newly declared ports by replacing the contents of blink.sdc with the below code.

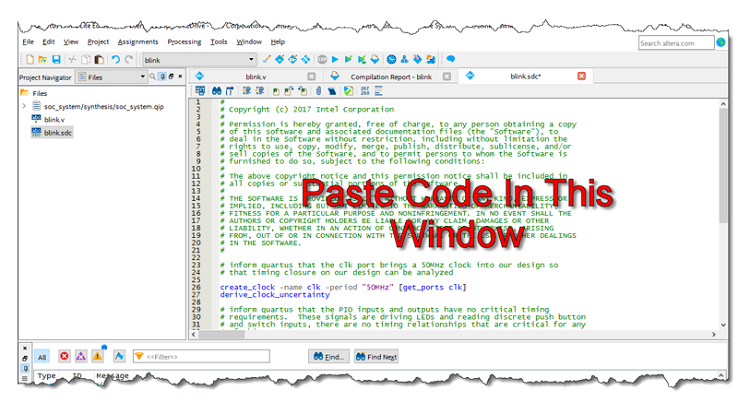

Copy the code below and paste it into the blink.sdc file (replacing the previous contents).

#
# Copyright (c) 2017 Intel Corporation
#
# Permission is hereby granted, free of charge, to any person obtaining a copy
#  of this software and associated  documentation  files (the  "Software"),  to
# deal in the Software without restriction, including without limitation the
#  rights to use, copy, modify,  merge,  publish,  distribute,  sublicense, and/or
# sell copies of the Software, and to permit persons to whom the Software is
# furnished to do so, subject to the following conditions:
#
#  The  above  copyright  notice  and  this  permission  notice  shall  be  included in
# all copies or substantial portions of the Software.
#
# THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
# IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF  MERCHANTABILITY,
# FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
# AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
# LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING
# FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS
# IN THE SOFTWARE.
#

# inform quartus that the clk port brings a 50MHz clock into our design so
# that timing closure on our design can be analyzed

create_clock  -name  clk  -period  "50MHz"  [get_ports  clk]
derive_clock_uncertainty

#  inform  quartus  that  the  PIO  inputs  and  outputs  have  no  critical timing
#  requirements.    These  signals  are  driving  LEDs  and  reading  discrete  push  button
# and switch inputs, there are no timing relationships that are critical for any
#  of this

set_false_path -from [get_ports {switch[0]}] -to *
set_false_path -from [get_ports {switch[1]}] -to *
set_false_path -from [get_ports {switch[2]}] -to *

set_false_path -from * -to [get_ports {leds[0]}]
set_false_path -from * -to [get_ports {leds[1]}]
set_false_path -from * -to [get_ports {leds[2]}]
set_false_path -from * -to [get_ports {leds[3]}]

set_false_path -from [get_ports {push_button[0]}] -to *
set_false_path -from [get_ports {push_button[1]}] -to *
set_false_path -from [get_ports {push_button[2]}] -to *
set_false_path -from [get_ports {push_button[3]}] -to *

# Define timing constraints for the JTAG IO pins so that Quartus properly closes
# timing on these signal paths.   Otherwise we could have unreliable JTAG
# communication with the device over the USB Blaser II connection.
# NOTE: the ’altera_reserved_tck’ clock is automatically defined by the Intel® Quartus® software

set_input_delay   -clock altera_reserved_tck -clock_fall 3 [get_ports  {altera_reserved_tdi}]
set_input_delay     -clock  altera_reserved_tck  -clock_fall  3  [get_ports  {altera_reserved_tms}]
set_output_delay -clock altera_reserved_tck	3  [get_ports  {altera_reserved_tdo}]

9.b. Click the Start Compilation button in the top toolbar to compile the entire design.

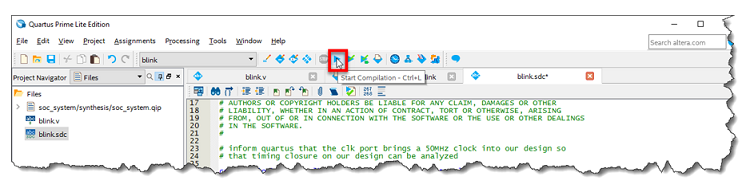

Figure 21. Start Compilation Button on Toolbar

Step 10: Generate the Header Files

After your design has successfully compiled, we will perform one last activity to prepare for the next tutorial that will make use of this system on the Terasic DE10-Nano board. Since we have defined a memory mapped embedded system in Qsys with a JTAG master connected to several slave peripherals, it will be necessary for us to know what the base addresses are of the slave peripherals so we can interact with them, performing read and write transactions. That base address information is captured in Qsys. You can visualize them in Qsys several ways, but they are not convenient for software developers or other users of this system who write code for it.

Each time you generate a Qsys system, Qsys outputs a database file called <your-system-name>.sopcinfo. The Intel® Quartus® software provides a utility that can translate the SOPCINFO database information into a usable macro format that can be used for various purposes called sopc-create-header-files. The default functionality of sopc-create-header-files is to create C style header macros from each masters’ perspective in the Qsys system. We will perform this operation in the TCL Console which is in the lower middle of the default Intel® Quartus® software GUI.

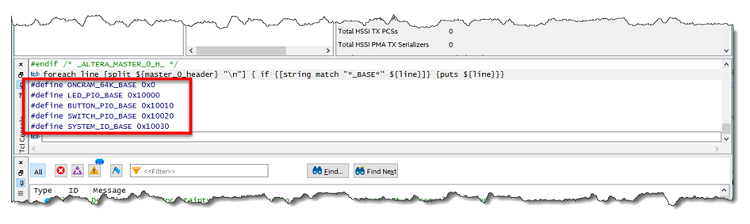

10.a. If you do not see the TCL Console pane, you can open it by selecting the View > Utility Windows > TCL Console menu.

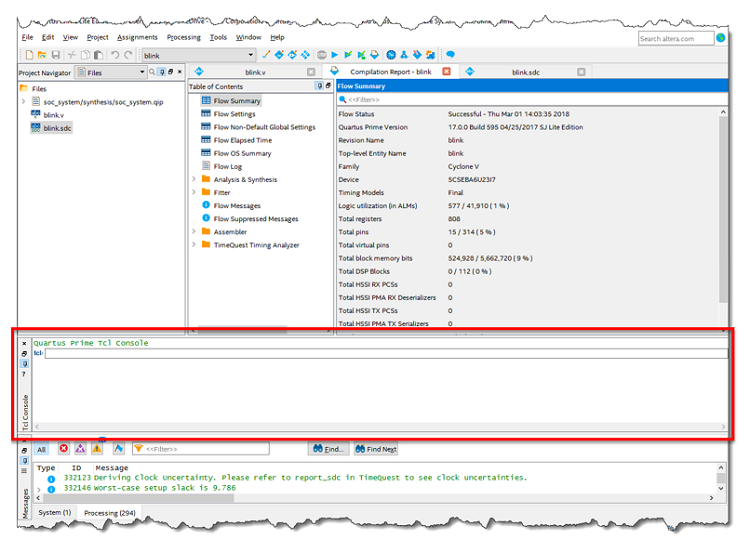

Figure 22. Intel® Quartus® Software Prime TCL Console

We will first create a directory to output the header files into, then we will create the default header file output using sopc-create-header-files and finally we will extract the base address entries out of the JTAG master header file for the FPGA peripherals that it is connected to.

10.a. Execute the following TCL commands:

How do I use this TCL code?

You can cut TCL commands from the text section above and paste them into the TCL console. Ignore the comments (i.e. the lines preceded by # character), and the TCL prompt (e.g. “tcl> ”).

For example, to perform the operation described by the comments below, copy the text that follows the tcl prompt beginning with the word set and continuing to the end of the line. Paste that text into the TCL Console and press return.

# create a TCL variable SCHF_PATH to hold the path to the executable program
#  sopc-create-header-files on your host PC using  the  environment  variables
#  provided by Quartus.
tcl> set SCHF_PATH [glob -join $quartus(quartus_rootpath) sopc_builder bin sopc-create-header-files]

Repeat that process for every line of text that follows the TCL prompt.

Quartus  Prime  Tcl Console

# make a directory called ’qsys_headers’ to  store  the  header  files  tcl>  file  mkdir qsys_headers
# create a TCL variable SCHF_PATH to hold the path to the executable program
#  sopc-create-header-files on your host PC using  the  environment  variables
#  provided by Quartus.
tcl> set SCHF_PATH [glob -join $quartus(quartus_rootpath) sopc_builder bin sopc-create-header-files]
# create a TCL variable BAT_PATH to hold the path to the Nios II Command Shell
#  batch file on Windows platforms.    The following code sequence will work on
# either Windows or Linux.   For linux this variable will just be set to NULL.      tcl> set BAT_PATH  {}
tcl> if {$tcl_platform(platform) == "windows"} {
> set BAT_PATH [glob -join $quartus(quartus_rootpath) .. nios2eds {Nios II Command Shell.bat}]
> }
#  execute sopc-create-header-files  to  generate  the  header  files
tcl> eval exec -ignorestderr ${BAT_PATH} ${SCHF_PATH} soc_system.sopcinfo --output-dir qsys_headers
# read the header file for master_0 into a TCL variable
tcl> set master_0_header [read [open [glob -join qsys_headers master_0.h] r]]

# output the C macro lines for the FPGA peripheral base addresses tcl> foreach line [split ${master_0_header} "\n"] { \
>  if {[string  match  "*_BASE*"  ${line}]}  {puts ${line}}}

If you have put your Qsys system together properly and executed the above commands correctly, you should see the following output in the TCL console representing the base address definitions for the five Qsys peripherals in the FPGA fabric connected to master_0, the JTAG master bridge component.

# define OCRAM_64K_BASE 0x0
# define LED_PIO_BASE 0x10000
# define BUTTON_PIO_BASE 0x10010
# define  SWITCH_PIO_BASE 0x10020
# define  SYSTEM_ID_BASE 0x10030

That’s it! You have designed and compiled your first Qsys system. This basic design is intended as a stepping stone to the next tutorials and it won’t do much on its own when programmed into your device. Continue to the Debug FPGA Hardware with System Console tutorial where we demonstrate how to use the System Console tool to program the FPGA and interact with this design.

Product and Performance Information

1

Performance varies by use, configuration and other factors. Learn more at www.Intel.com/PerformanceIndex.
