Envoy Transport Layer Security (TLS) Acceleration with Intel® QAT



Envoy is a popular L7 proxy. When Envoy is used as an edge proxy, it often has to terminate multiple transport layer security protocol (TLS) connections. The RSA asymmetric cryptography operations needed for this can be accelerated using Intel® QuickAssist Technology (Intel® QAT).


Envoy uses BoringSSL as the default TLS library. By default, the handshakes in Envoy are synchronous, meaning that the handshake function blocks the Envoy worker thread execution until the handshake has been completed. This will not work in a scheme such as Intel® QAT acceleration, because the Intel QAT performance benefit comes from the fact that Envoy is ready to do more processing while the Intel QAT device handles the cryptographic operations in parallel. If the Intel QAT calls were synchronous, the performance benefit would not be there. To facilitate asynchronous processing, Envoy has an extension type called ”private key provider”, which has two main functions:

  1. Allow running custom code for private key signing and decrypting operations.
  2. Allow asynchronous handshakes.

The above are done using BoringSSL private key methods. BoringSSL private key methods are hooks in the TLS handshake processing, which allow external functions to be set for handling ECDSA sign operations and RSA sign and decrypt operations.

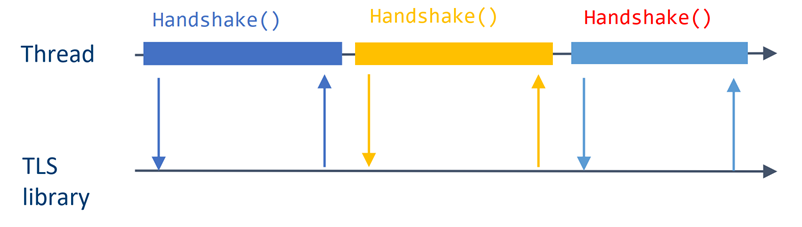

Figure 1. BoringSSL/TLS handshake in synchronous mode

When the private key provider is used in Envoy, the server-side handshake function call can be configured to return immediately, and a callback is evoked when the handshake is ready to be completed, meaning that the cryptographic operation is ready.

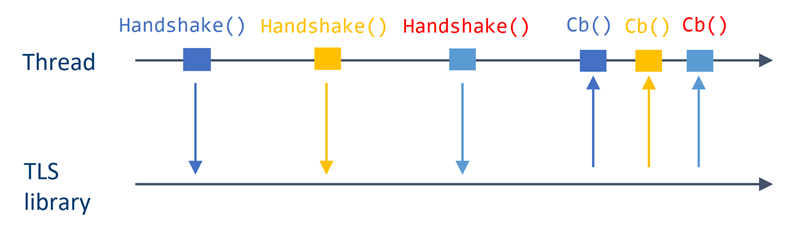

Figure 2. BoringSSL/TLS handshake in asynchronous mode

Intel Private Key Providers

Envoy extensions in the main code tree are either core extensions or contrib extensions. The core extensions are part of the Envoy main container images, while the contrib extensions (along with the core extensions) are part of Envoy contrib container images. Now Envoy code base has two contrib extensions for accelerating TLS handshakes using Intel technologies: Intel QAT (for Intel QAT acceleration) and CryptoMB (for Intel® Advanced Vector Extensions 512 (Intel® AVX-512) acceleration).

Figure 3. Envoy TLS private key provider handshake flow

Intel QAT is a special hardware accelerator, which is visible to the operating system as a PCI device. The Envoy private key provider for Intel QAT expects that the Intel QAT devices are available using the regular Linux kernel driver, present in Linux kernel from version 5.15 onward. The Intel QAT endpoint is exposed to Envoy via an SR-IOV VF device, which is the standard Intel QAT container deployment method, used, for example, in Kubernetes* via Intel QAT device plug-in.

CryptoMb private key provider uses Intel AVX-512 multibuffer instructions for accelerating handshakes. The Intel AVX-512 instructions are present starting with the 3rd generation Intel® Xeon® Scalable processors, and they do not require any special hardware enabling. Just running Envoy on a suitable platform and enabling the CryptoMb private key provider in the Envoy configuration is enough. The multibuffer instructions gather several RSA operations into a shared buffer. When the 8-slot buffer is full or when a timer expires, the RSA operations are processed using SIMD (single instruction, multiple data) instructions, which provide greater throughput than processing the RSA operations separately. The downside of this approach is the potentially increased latency because operations may need to wait in the buffer before the processing can be done.

Using Intel QAT Acceleration with Envoy

Envoy TLS configuration can be done by two methods: either using direct configuration from a configuration file or using SDS (Secret Discovery Service) protocol for remotely configuring Envoy from an external control plane. Intel QAT TLS acceleration can be enabled in both ways.

When using direct configuration file configuration, the regular way for setting the private key is by adding it to as private_key field to Envoy’s common_tls_context:



 - certificate_chain:

 filename: ”/tmp/rsa-cert.pem”


 filename: ”/tmp/rsa-key.pem”

However, when Intel QAT acceleration is required, private_key field should be replaced with suitably configured private_key_provider field:



 - certificate_chain:

 filename: ”/tmp/rsa-cert.pem”


 provider_name: qat


 "@type": "type.googleapis.com/envoy.extensions.private_key_providers.qat.v3alpha.QatPrivateKeyMethodConfig"

 poll_delay: 0.002s


 filename: ”/tmp/rsa-key.pem”

The Intel QAT private key provider configuration has two fields: poll_delay and private_key. The private_key field works as a regular Envoy DataSource type. The poll_delay field is a Duration type and specifies how often the Intel QAT instance should be polled when waiting for an answer to Intel QAT request. The right value depends on the tradeoff between CPU consumption and latency requirements and might require experimentation depending on the workload setup. A value of 0.002s (2 milliseconds) is a good starting point.

Deploying Intel QAT-Accelerated Envoy in Kubernetes

If Envoy is used in a Kubernetes environment, the Intel QAT device plug-in needs to be installed to the cluster. The device plugin finds which nodes have Intel QAT support enabled and schedules Intel QAT workloads on them (based on the Kubernetes deployment extended resource request). When the Intel QAT-enabled Envoy is then scheduled on the node, the device plug-in exposes one or more Intel QAT VF devices to the Envoy container.

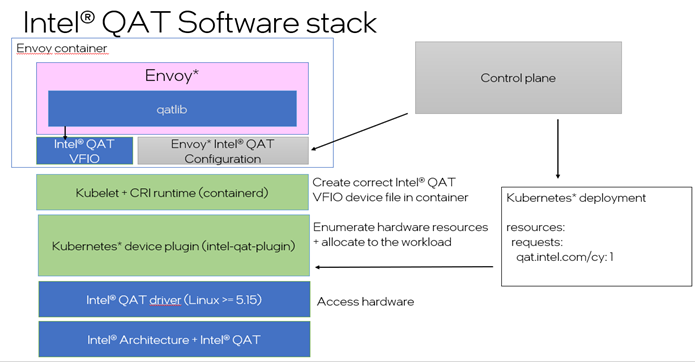

Figure 4. Intel QAT software stack enablement with Envoy for Kubernetes

Note that if the number of Intel QAT resources, which are allocated to the container is increased, there may be increased performance, because Intel QAT private key provider will automatically set up load balancing between the available Intel QAT instances. If the Intel QAT VF devices are pointing to different physical Intel QAT endpoints there is a speedup potential, but if the Intel QAT VF devices come from the same physical Intel QAT endpoint, there will be no performance increase.

Intel® QAT Performance

The performance benefit from using Intel QAT for TLS handshakes depends on many factors. Most important is simply the amount of asymmetric cryptography that needs to be done because that makes the cryptography acceleration have more effect in the overall performance. For example, if there are only a few new TLS connections per second or if the selected RSA key size is small, the acceleration possibilities are smaller. Conversely, if the RSA key size is large and there are many incoming RSA connections, the possibility for performance increase is bigger. Another thing to consider is the number of CPU threads Envoy is running on. On smaller number of CPU cores the performance benefit is easier to see, since the acceleration leaves the CPU cores free to do other useful work needed for connection processing.

The performance impact has several components: the change in maximum throughput (requests per second), the change in latency (time required to complete a single operation), the change in CPU use, and the change in server power requirements.

Deployment Setup

The following performance numbers were measured on a preproduction 4th generation Intel® Xeon® Scalable processor. An HTTPs load generator (K6) running on another node was creating a specific number of new TLS connections per second to the Envoy proxy. Every connection was created with a new TLS handshake–session reuse was not happening in this setup. The Envoy proxy was running pinned on a limited number of CPU hyper threads. All CPU hyper threads selected where sibling threads. For example, eight hyper threads would come from four physical cores.

Envoy was configured to test three configurations: Intel QAT private key provider with a single Intel QAT VF device, CryptoMb private key provider using Intel AVX-512 multibuffer TLS acceleration, and default configuration with no TLS acceleration. For each test, Envoy was using a 2048-bit RSA key with X25519 key exchange protocol. Envoy was configured to return an HTTP 200 response code with an empty body for each HTTPs response.

The throughput numbers show that when processing only new TLS connections, Intel QAT can increase the number of connections that can be processed. For example, with Envoy pinned to four CPUs, the throughput is 5x better when using Intel QAT than with using non-accelerated Envoy.

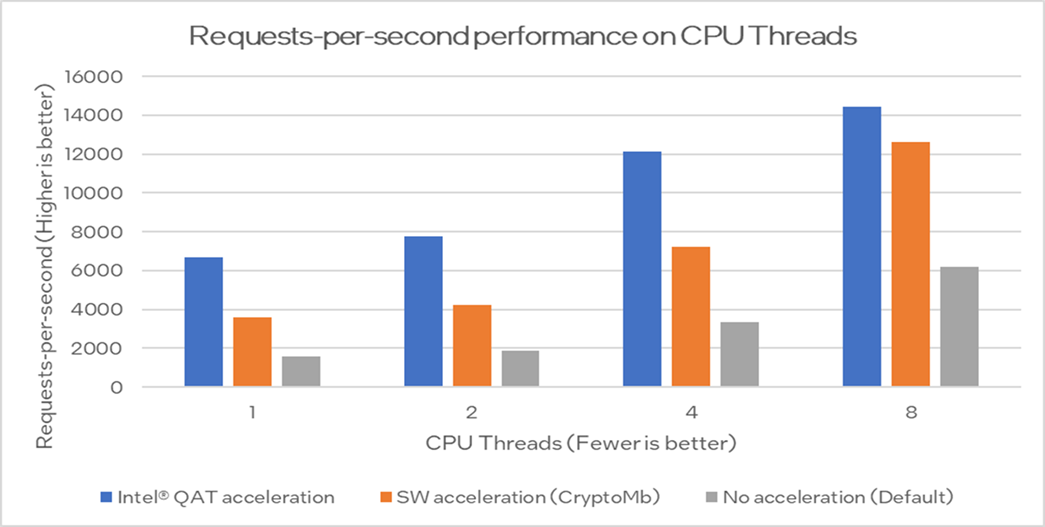

Figure 5. Requests-per-second performance on CPU threads

The latency measurements and CPU usage charts are from the benchmark where Envoy is pinned to four CPU cores. The very last value of each latency graph (where latency rises sharply) should not be considered, because latency measurement is not meaningful on a system with maximum load.

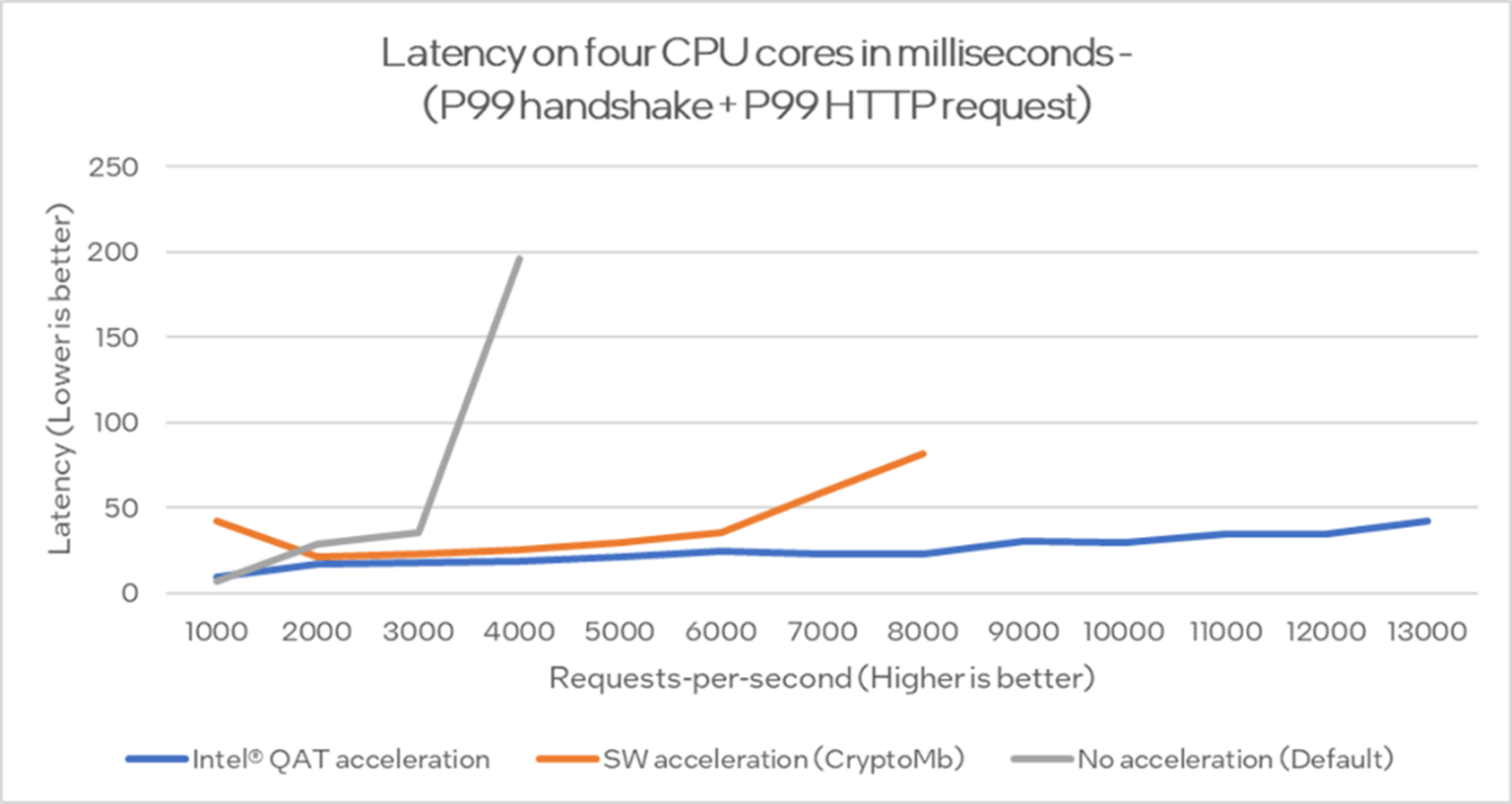

Figure 6. Latency on four CPU cores in milliseconds (P99 handshake + P99 HTTP request)

However, when the values below the knee point are considered, Intel QAT has in most cases the lowest latency, and the difference is improved when the number of incoming new TLS connections increases.

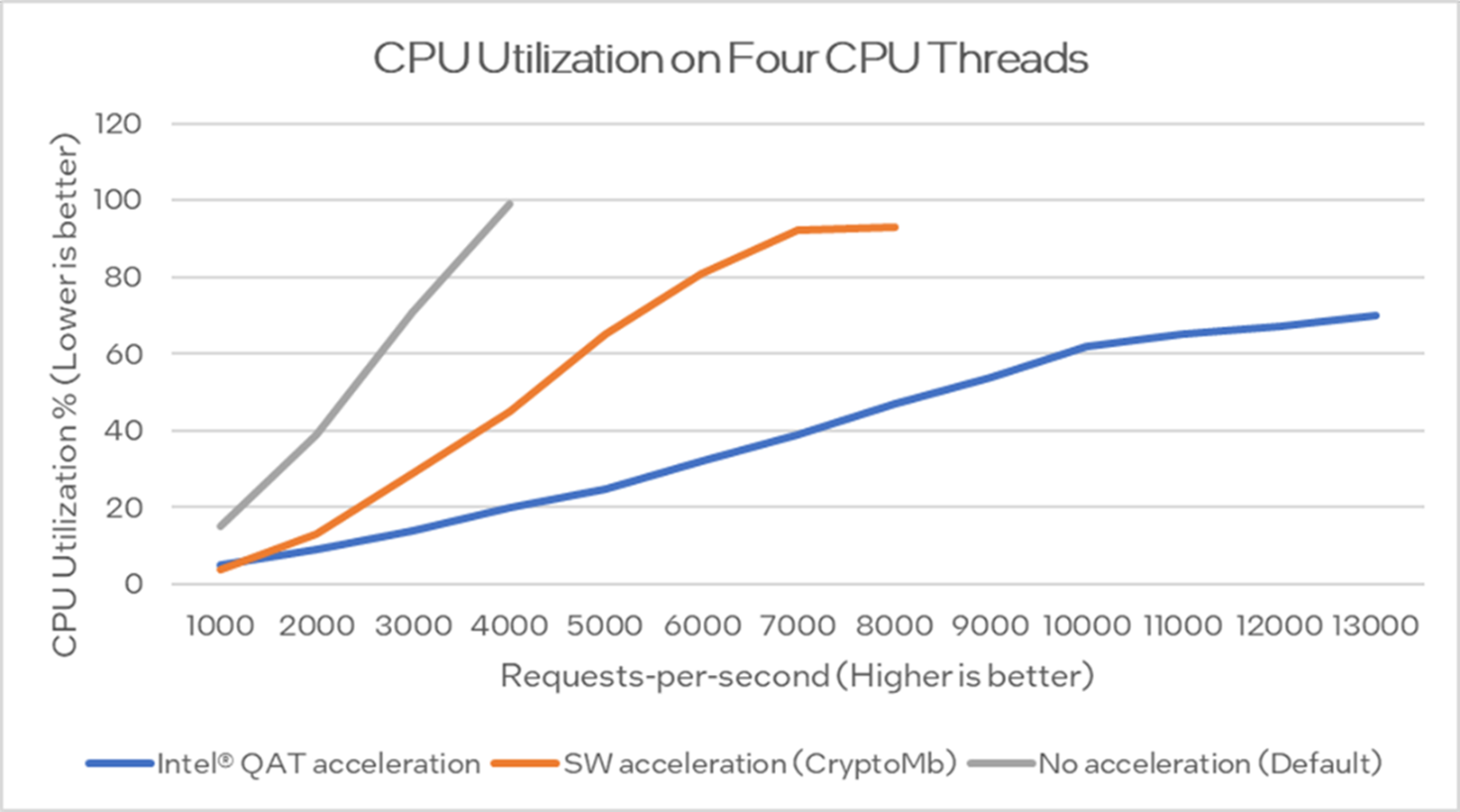

Figure 7. CPU use on four CPU threads

Figure 7 shows that when Envoy is not accelerated, the CPU usage scales in a linear way until it reaches the saturation point at almost one hundred percent CPU load. However, when Intel QAT acceleration is used, the CPU load stays much lower. For example, at 2,000 requests / second, the difference in CPU load on the four cores is 30 percentage points (76% decrease). The saved CPU cycles can be used for other Envoy processing, such as running HTTP filters or other traffic processing.

Test Deployment

Table 1. Software and hardware used for benchmarking.


2S Preproduction Intel Xeon Scalable Processor or Intel Xeon Platinum 8480+ Processor


Preproduction Intel reference platform (code name Archer City)

Operating System

Ubuntu 20.04.4 LTS





Base Frequency

2.0 GHz



Cores per Socket




NIC Summary

Ethernet Controller XXV710 for 25GbE SFP28

Drive Summary


Intel QAT driver

Linux 5.19.1 upstream driver


Envoy contrib binary built from upstream git, SHA 3e2f1507851b511689cdc07fd3aecf714912ba8a,

(main branch, Aug 31, 2022)

Test by


Test date

September 2022



Envoy supports Intel QAT for accelerating TLS handshakes. The performance benefit varies depending on the use case, but Intel QAT can help in reducing CPU usage, reducing individual request latency, and increasing throughput. The Intel QAT to Envoy support needs to be enabled by a configuration file change or by a dynamic Envoy listener configuration over the xDS protocol. In addition to that, the Envoy container must have Intel QAT resources added to it by configuring Kubernetes cluster accordingly.
