Intel® X ͤ Super Sampling (X ͤ SS) API Developer Guide

Use this guide to understand how to optimize image quality and performance without impacting frame rates.

author-image

By

Intel® Xe Super Sampling enables an innovative frame-rate boosting technology that is supported by Intel® Arc™ graphics cards and other GPU vendors. Using AI deep learning to perform upscaling, XeSS offers higher frame rates without degrading the image quality. Understanding the XeSS API is important for game developers who are seeking to optimize image quality and performance in their game titles.

Introduction

Intel® XeSS is implemented as a sequence of Microsoft DirectX 3D*12 (DX3D) compute shader passes, executed before the rendering engine's post-processing stage (as described in the section entitled “TAA and XeSS”). The rendering engine initializes XeSS by passing a Direct3D*12 (D3D12) device, which is being used for the main rendering, and a pointer to a descriptor heap, where XeSS creates all its internal resource descriptors. XeSS allocates GPU resources for one of two categories:

  • Persistent allocations, such as network weights, and other constant data.
  • Temporary allocations, such as network activations.

The engine can control the location where XeSS makes its temporary allocations by passing XESS_INIT_FLAG_EXTERNAL_DESCRIPTOR_HEAP initialization flag to xessD3D12Init call and a pointer to an external resource heap in the xessD3D12Execute call. On the other hand, persistent allocations are always owned by XeSS library

XeSS Components

XeSS is accessible through the XeSS SDK, which provides a D3D12-based API for integration into a game engine, and includes the following D3D12 components:

  • An HLSL-based cross-vendor implementation that runs on any GPU supporting SM 6.4. Hardware acceleration for DP4a or equivalent is recommended.
  • An Intel implementation optimized to run on Intel® Arc™ Graphics and Intel® Iris® Xe Graphics.
  • An implementation dispatcher, which will load either the XeSS runtime shipped with the game, the version provided with the Intel graphics drivers, or the cross-vendor implementation


Figure 1. XeSS SDK components for both Intel-specific and cross-vendor solutions

Versioning

XeSS uses major.minor.patch version format and Numeric 90+ scheme for development stage builds. The XeSS version is specified by the 64-bit function [xess_version_t] structure, in which:

  • A major version increment indicates a new API, and potentially a break in functionality.
  • A minor version increment indicates incremental changes such as optional inputs or flags. This does not change existing functionality.
  • A patch version increment may include performance or quality tweaks, or fixes, for known issues. There is no change in the interfaces. Versions beyond 90 are used for development builds to change the interface for the next release.

The XeSS version is baked into the XeSS SDK release and can be accessed using the function xessGetVersion. The version is included in the zip file and in the accompanying README, as well as the header of the code samples.

Compatibility

All future Intel graphics driver releases provide compatibility with previous and future XeSS versions. While not planned, if an update is made that requires a compatibility change, the XeSS loader may load an updated version of XeSS from the installed driver.
Specifically, on Intel platforms the loader will operate according to the following rules:

  • The loader will check the compatibility of the XeSS version installed with the game and the installed driver on the system.
  • If compatible, the loader will use the game title installed version of XeSS.
  • If not compatible, and the driver is newer, the loader will ignore the game title version of XeSS, and use the version distributed with the driver.
  • If not compatible and the driver is older, the loader will return a failure code, and XeSS will not initialize.

Naming Conventions

The XeSS API uses the following naming conventions:

  • All functions must be prefixed with xess
  • All functions must use camel case xessObjectAction convention
  • All macros must use all caps XESS_NAME convention
  • All structures, enumerations, and other types must follow xess_name_t snake case convention
  • All structure members and function parameters must use camel case convention
  • All enumerator values must use all caps XESS_ENUM_ETOR_NAME convention
  • All handle types must end with handle_t
  • All parameter structures must end with params_t
  • All property structures must end with properties_t
  • All flag enumerations must end with flags_t

TAA and XeSS

XeSS is a temporally amortized super-sampling/upsampling technique that drops in place of the Temporal Anti-Aliasing (TAA) stage in the game renderer, achieving significantly better image quality than current state-of-the-art techniques in games.
The figure below shows a renderer with TAA. The renderer jitters the camera in every frame to sample different coordinates in screen space. The TAA stage accumulates these samples temporally to produce a super-sampled image. The previously accumulated frame (history) is warped using renderergenerated motion vectors to align it with the current frame before accumulation. Unfortunately, the warped sample history can be mismatched, with respect to the current pixel, due to frame-to-frame changes in visibility, and shading or errors in the motion vector. This typically results in ghosting artifacts. TAA implementations use heuristics such as neighborhood clamping to detect mismatches, and reject the history. However, these heuristics often fail, and produce a noticeable amount of ghosting, over-blurring or flickering.
XeSS replaces the TAA stage with a neural-network-based approach, as shown below, with the same set of inputs and outputs as TAA. Please refer to this report for an overview of TAA techniques.

Figure 2. Flow chart showing a typical rendering pipeline with TAA.

Figure 3. XeSS inclusion into the rendering pipeline.

XeSS Game Setting Recommendations

When integrating XeSS into your game, make sure you follow these guidelines for your titles so that your users have a consistent experience when modifying XeSS options.
There are also guidelines for the font, official naming, and descriptions of the XeSSfunctionality in Table 1 below.

Naming Conventions for Intel Xe Super Sampling Branding

The approved naming convention for XeSS is to be used by game developers in their settings menus and descriptions. For the smaller e in XeSS , you can reduce the font size for just that character to keep the proportions.
The official font for XeSS-related communication is IntelOneText-Regular. Please use the official superscripted e in XeSS, unless the font system does not support superscript, in which case XeSS is acceptable.

Notes
• When enabling XeSS, your title needs to disable other upscaling technologies, such as DLSS and FSR, and temporal anti-aliasing (TAA) technologies, to reduce the possibility of any incompatibility issues.
• All Intel XeSuper Sampling settings should be exposed to a user through a selection menu, if supported, to encourage customization.

Label Intel® XeSS
Short Description Intel Xe Super Sampling (XeSS) technology uses machine learning to deliver more performance with exceptional image quality. Hardware accelerated XeSS is optimized for Xe-HPG microarchitecturebased GPUs.
Minimum Description Intel Xe Super Sampling (XeSS) technology uses machine learning to deliver more performance with exceptional image quality.

Table 1: Naming Conventions

Game Graphics Settings Menu /Game Installer/Launcher Settings

Game-title graphics settings should clearly display the XeSS option name, and allow the user to choose the quality/performance level option settings as follows in Table 2.

Preset Description Recommended Resolution
Ultra Quality Focused on delivering the highest quality visual upscale 1080p and above
Quality Focused on delivering high quality visual upscale 1080p and above
Balanced Focused on delivering optimal performance and image quality 1080p and above
Performance Focused on improving overall gaming performance 1440p and above
Off Turns Intel XeSS off N/A

Table 2. Game Graphics Settings Menu

Graphics Preset Default Recommendations

The XeSS preset selected by default in the game's menu should be based on the target resolution that the user has set. The entries in Table 3 are the recommended default settings.

Preset Description Recommended Resolution
Resolution Specific Your game adjusts the XeSS default preset based on the output resolution 1080p and lower set to ‘Balanced’ 1440p and higher set to ‘Performance’
General Your game selects one XeSS preset as default. Intel XeSS ON set to ‘Performance’

Table 3. Graphics Presets

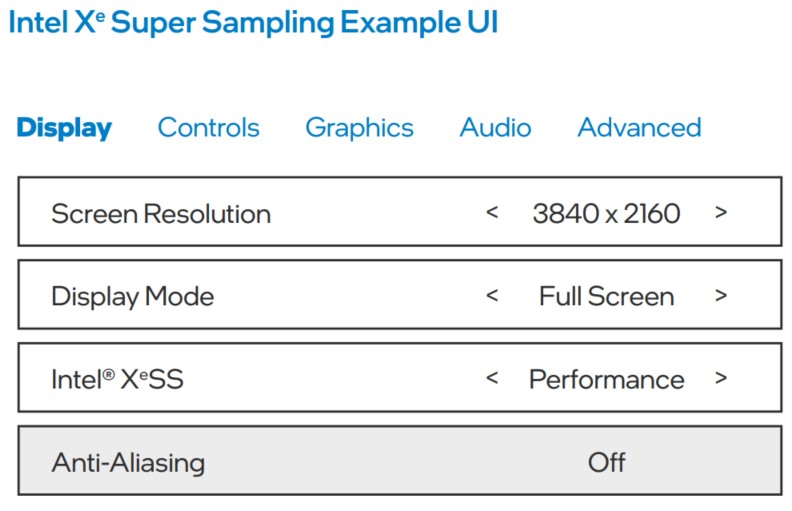

Figure 4. Example of game UI with XeSS settings.

Programming Guidance

Inputs and Outputs

XeSS requires a minimum set of inputs every frame:

  • Jitter
  • Input color
  • Dilated high-res motion vectors

In place of the high-res motion vectors, the renderer can provide the motion vectors at the input resolution—along with the depth values:

  • Undilated low-res motion vectors
  • Depth

In the latter case, motion vectors will be dilated and upsampled inside XeSS.

Jitter

XeSS, being a temporal super sampling technique, requires a sub-pixel jitter offset (J_x,J_y) to be applied to the projection matrix every frame. This process essentially produces a new subpixel sample location every frame and guarantees temporal convergence even on static scenes. Jitter offset values should be in the range [-0.5,0.5]. This jitter can be applied by adding a shear transform to the camera projection matrix:

ProjectionMatrix.M[2][0] += Jx * 2.0f / InputWidth
ProjectionMatrix.M[2][1] -= Jy * 2.0f / InputHeight

The jitter applied to the camera results in a displacement of the sample points in the frame, as shown in figure 5, where the target image is scaled 2x in width and height. Note that effective jitter is negated w.r.t (J_x, J_y), because projection matrix is applied to geometry and it corresponds to a negative camera jitter.

Jitter Sequence

A quasi-random sampling sequence with a good spatial distribution of characteristics is required to get the best quality of XeSS algorithm. Halton sequence would be a fair choice. Scaling factor should be taken into account when using such a sequence to modify the length of a repeated pattern. For example: if the game is using Halton sequence of a length eight in native rendering, it must become 8 * scale^2 if used with XeSS upscaling to ensure a good distribution of samples in the area covered by a single low-resolution pixel. Sometimes increasing the length even more leads to an additional quality improvement.
We encourage the user to experiment with the sequence length.
Importance sampling techniques that bias the jitter sample distribution w.r.t the input pixel must be avoided.

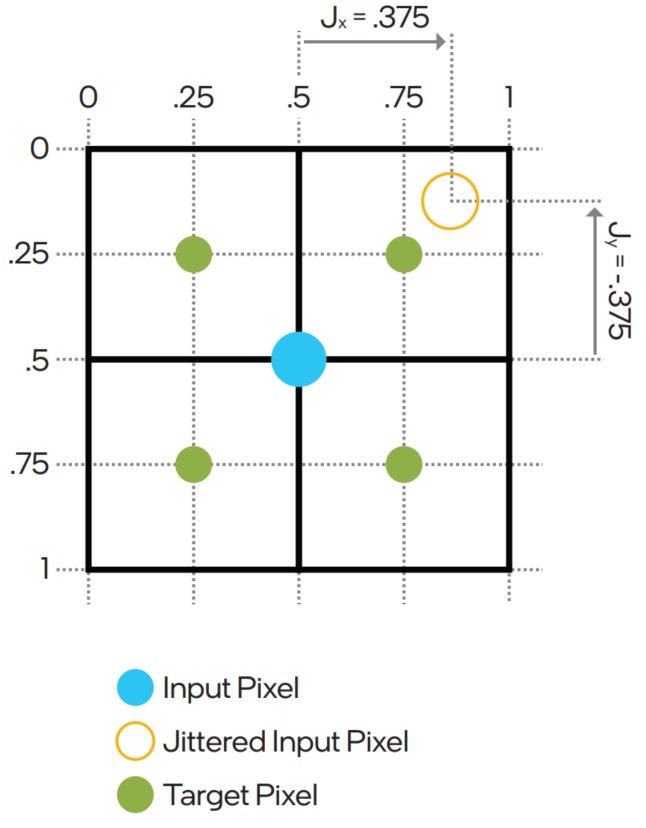

Figure 5. Jitter displacement of sample points.

Color

XeSS accepts both SDR and HDR input colors in any linear color format, for example: DXGI_FORMAT_R16G16B16A16_FLOAT, DXGI_FORMAT_R11G11B10_FLOAT, DXGI_FORMAT_R8G8B8A8_UNORM etc. The input colors are expected to be in the scRGB color space, which is scene-referred—i.e., the color values represent luminance levels. A value of (1.0,1.0,1.0) encodes D65 white at 80 nits, and represents the maximum luminance for SDR displays. The color values can exceed (1.0,1.0,1.0) for HDR content.
If the input color values have not been adjusted for the camera exposure, or if the input color values are scaled differently from the scRGB space, a separate scale value can be provided in two ways:
An input exposure scale value provided during commandlist recording on the CPU.
An exposure scale texture which can be updated by the GPU.
These scale values are applied to the input as shown below:

if (useExposureScaleTexture)
{
	scale = exposureScaleTexture.Load(int3(0, 0, 0)).x
}
else
{
	scale = inputScale
}
inputColor *= scale

The output is in the same color space as the input. It can be any three or four channel linear color format similar to the input. If a scale value is applied to the input, as shown above, the inverse of this scale is applied to the output color. XeSS maintains an internal history state to perform temporal accumulation of incoming samples. That means the history should be dropped if the scene or view suddenly changes. This is achieved by passing setting historyReset flag in xess_xxx_execute_params_t.

Motion Vectors

Motion vectors specify the screen-space motion in pixels from the previous frame to the current frame. XeSS accepts motion vectors in the format DXGI_FORMAT_R16G16_FLOAT, where the R channel encodes the motion in x, and the G in y. The motion vectors do not include motion induced by the camera jitter.
Motion vectors can be low-res (default), or high-res (XESS_INIT_FLAG_HIGH_RES_MV). Low-res motion vectors are represented by a 2D texture at the input resolution, whereas high-res motion vectors are represented by a 2D texture at the target resolution.
In the case of high-res motion vectors, the velocity component resulting from camera animations is computed at the target resolution in a deferred pass, using the camera transformation and depth values. However, the velocity component related to particles and object animations is typically computed at the input resolution, and stored in the G-Buffer. This velocity component is upsampled and combined with the camera velocity to produce the texture for high-res motion vectors. XeSS also expects the high-res motion vectors to be dilated, i.e., the motion vectors represent the motion of the foremost surface in a small neighborhood of input pixels (such as (3 * 3). High-res motion vectors can be computed in a separate pass by the user.

Figure 6. Convention for specifying the low-res and high-res motion vector to XeSS.

Low-res motion vectors are not dilated, and directly represent the velocity sampled at each jittered pixel position. XeSS internally upsamples motion vectors to the target grid, and uses the depth texture to dilate them. Figure 6 shows the same motion specified with low-res and high-res motion vectors.
Some game engines only render object-motion into the gbuffer, and compute the camera velocity on the fly in the TAA shader. In such cases, an additional pass is required before XeSS execution to merge object and camera velocities, and generate a flattened velocity buffer. In such scenarios, high-res motion vectors might be a better choice, as the flattening pass can be executed at the target resolution.

Depth

If XeSS is used with low-res motion vectors, it also requires a depth texture for velocity dilation. Any depth format, such as D32_FLOAT or D24_UNORM, is supported. By default, XeSS assumes that smaller depth values are closer to the camera.
However, several game engines use inverted depth, and this can be ena1l1d by setting XESS_INIT_FLAG_INVERTED_DEPTH.

Responsive Pixel Mask

A user could provide a responsive pixel mask with a mask value of 1 to force XeSS to ignore information from previous frames.
Although XeSS is a generalized technique that should handle a wide range of rendering scenarios, there may be rare cases where objects without valid motion vectors may produce artifacts, for example particles. In such cases, a responsive pixel mask can be set for these objects. Any texture format can be used for the mask, as long as the mask value is in the R channel.

Resource States

XeSS expects all input textures to be in the state D3D12_RESOURCE_STATE_NON_PIXEL_SHADER_RESOURCE, and the output texture to be in the state D3D12_RESOURCE_STATE_UNORDERED_ACCESS.

Input format Output format
DXGI_FORMAT_R32G32B32A32_TYPELESS DXGI_FORMAT_R32G32B32A32_FLOAT
DXGI_FORMAT_R32G32B32_TYPELESS DXGI_FORMAT_R32G32B32_FLOAT
DXGI_FORMAT_R16G16B16A16_TYPELESS DXGI_FORMAT_R16G16B16A16_FLOAT
DXGI_FORMAT_R32G32_TYPELESS DXGI_FORMAT_R32G32_FLOAT
DXGI_FORMAT_R32G8X24_TYPELESS DXGI_FORMAT_R32_FLOAT_X8X24_TYPELESS
DXGI_FORMAT_R10G10B10A2_TYPELESS DXGI_FORMAT_R10G10B10A2_UNORM
DXGI_FORMAT_R8G8B8A8_TYPELESS DXGI_FORMAT_R8G8B8A8_UNORM
DXGI_FORMAT_R16G16_TYPELESS DXGI_FORMAT_R16G16_FLOAT
DXGI_FORMAT_R32_TYPELESS DXGI_FORMAT_R32_FLOAT
DXGI_FORMAT_R24G8_TYPELESS DXGI_FORMAT_R24_UNORM_X8_TYPELESS
DXGI_FORMAT_R8G8_TYPELESS DXGI_FORMAT_R8G8_UNORM
DXGI_FORMAT_R16_TYPELESS DXGI_FORMAT_R16_FLOAT
DXGI_FORMAT_R8_TYPELESS DXGI_FORMAT_R8_UNORM
DXGI_FORMAT_B8G8R8A8_TYPELESS DXGI_FORMAT_B8G8R8A8_UNORM
DXGI_FORMAT_B8G8R8X8_TYPELESS DXGI_FORMAT_B8G8R8X8_UNORM
DXGI_FORMAT_D16_UNORM DXGI_FORMAT_R16_UNORM
DXGI_FORMAT_D32_FLOAT DXGI_FORMAT_R32_FLOAT
DXGI_FORMAT_D24_UNORM_S8_UINT DXGI_FORMAT_R24_UNORM_X8_TYPELESS
DXGI_FORMAT_D32_FLOAT_S8X24_UINT DXGI_FORMAT_R32_FLOAT_X8X24_TYPELESS

Table 4. Resource Formats

Resource Formats

XeSS expects all input textures to be typed. For typeless formats XeSS performs a conversion according to Table 4.

Mip Bias

In order to preserve texture details at the target resolution, XeSS requires an additional mip-bias of (log2(frac{Input Width}{Target Width})). For example, a mip bias of -1 should be applied for 2x resolution scaling. In certain cases increasing mip bias even more leads to an additional visual quality improvement, however this comes with a potential performance overhead due to increased memory bandwidth requirements, and potentially lower temporal stability resulting in flickering and moire. The user is free to experiment with more and less aggressive texture LOD biases to find the right balance.

Initialization

The user first creates an XeSS context, as shown below. On Intel GPUs, this step loads the latest Intel-optimized implementation of XeSS. The returned context handle can then be used for initialization and execution.

xess_context_handle_t context;
xessD3D12CreateContext(pD3D12Device, &context)

Before initializing XeSS, the user can request a pipeline pre-build process to avoid costly kernel compilation and pipeline creation during initialization.

xessD3D12BuildPipelines(context, NULL, false, initFlags);

The xessD3D12Init function is then called to initialize XeSS. During initialization, XeSS can create staging buffers and copy queues to upload weights. These will be destroyed at the end of initialization.
The XeSS storage and layer specializations are determined by the target resolution. Therefore, the target width and height must be set during initialization.

xess_d3d12_init_params_t initParams;
initParams.outputWidth = 3840;
initParams.outputHeight = 2160;
initParams.initFlags = XESS_INIT_FLAG_HIGH_RES_MV;
initParams.pTempStorageHeap = NULL;
xessD3D12Init(&context, &initParams);

XeSS includes three types of storage:

  • Persistent Output-Independent Storage: persistent storage such as weights are internally allocated and uploaded by XeSS during initialization.
  • Persistent Output-Dependent Storage: persistentstorage such as internal history texture.
  • Temporary Storage: temporary storage only has valid data during the execution of XeSS.

Temporary storage can be allocated either internally in a library-managed heap (default), or in a heap provided by the user in the pTempStorageHeap field of the xess_d3d12_init_params_t structure. If the user allocates the temporary storage, it can be reused outside of XeSS execution.

ComPtr<ID3D12Heap> pHeap;
CD3DX12_HEAP_DESC heapDesc(xessProp.tempHeapSize,D3D12_HEAP_TYPE_DEFAULT);
d3dDevice->CreateHeap(&heapDesc, IID_PPV_ARGS(&pHeap));
initParams.tempStorageOffset = 0;
initParams.pTempStorageHeap = pHeap.Get();
xessD3D12Init(&context, &initParams)

The user can specify the XESS_INIT_FLAG_EXTERNAL_DESCRIPTOR_HEAP initialization flag to use the external descriptor heap later at the execution stage.
The user can re-initialize XeSS if there is a change in the target resolution, or any other initialization parameter. However, pending XeSS command lists must be completed before re-initialization. When temporary XeSS storage is allocated by the user, it is the user's responsibility to de-allocate, or reallocate, the heap. Quality preset changes are free, but any other parameters change may lead to longer xessD3D12Init execution times.

Execution

The XeSS execution function does not involve any GPU workloads, rather it records XeSS commands into the specified command list. The command list is then enqueued by the user. That means it is the user's responsibility to make sure all input/output resources are alive at the time of the actual GPU execution.
By default XeSS creates an internal descriptor heap, but if the user has specified XESS_INIT_FLAG_EXTERNAL_DESCRIPTOR_HEAP at the initialization stage, they can pass the pointer to the external descriptor heap and its offset in execution parameters.
If EXTERNAL_DESCRIPTOR_HEAP flag has been specified in xessD3D12Init parameters, the user has to create descriptors for the input and output buffers in contiguous locations in the same descriptor heap as the internal descriptors. External descriptor heap passed via pDescriptorHeap field of xess_d3d12_execute_params_t structure. DescriptorHeapOffset should point to XeSS descriptor table.

The resolution of the input image can be selected based on the desired quality setting. The recommended input resolution for a (target resolution, quality) pair can be determined by calling xessGetInputResolution at any point.

xess_d3d12_execute_params_t params;
params.jitterOffsetX = 0.4375f;
params.jitterOffsetY = 0.3579f;
params.inputWidth = 1920;
params.inputHeight = 1080;
// xess records commands into the command list
xessD3D12Execute(&context, pd3dCommandList, &params);
// Application may record more commands as needed
pD3D12GraphicsCommandList->Close();
// Application submits the command list for GPU execution
pCommandQueue->ExecuteCommandLists(1, &pCommandLists);

Jitter scale

The function xessSetJitterScale applies a scaling factor to the jitter offset. This might be useful if the application stores jitter in units other than pixels. For example: NDC jitter can be converted to a pixel jitter by setting an appropriate scale.

Velocity scale

The function xessSetVelocityScale applies a scaling factor to the velocity. This might be useful if the application stores velocity in units other than pixels. For example, a normalized viewport velocity can be converted to pixel velocity by setting an appropriate scale.



Debug and Logging Capabilities

Logging Callback

The XeSS SDK provides an API to set logging callback. Use function xessSetLoggingCallback to define a function to be called in the following circumstances:

  • Callback can be called from different threads.
  • Callback can be called simultaneously from several threads.
  • Message pointer only valid inside function, and may be invalid right after return call.
  • Message is a null-terminated utf-8 string.

Input Dump Functionality

XeSS SDK provides an API to dump SDK inputs, outputs and history state. In order to dump inputs, application should call function xessStartDump. Due to internal implementation SDK can dump less frames than provided in frame_count field of xess_dump_parameters_t structure.

Recommended Practices

Visual Quality

It is highly recommended to run XeSS in the beginning of the post-processing chain before the tone-mapping. Execution after tone-mapping is possible in certain scenarios; however, this mode is experimental and good quality is not guaranteed.
The following considerations should be taken into account in order to maximize image quality:

  • Use high-, or ultra-high-, quality setting for screen-space ambient occlusion (SSAO) and shadows.
  • Turn off any techniques for shading-rate reduction and rendering resolution scaling, such as variable-rate shading (VRS) , adaptive shading, checkerboard rendering, dither, etc.
  • Avoid using quarter-resolution effects before XeSS upscaling.
  • Do not rely on XeSS for any kind of denoising; noisy signal significantly hurts reconstruction quality.
  • Prefer using fp16 precision for the color buffer in scene linear HDR space.
  • Prefer using fp16 precision for the velocity buffer.
  • Make sure to provide unjittered motion vectors into XeSS.
  • Adjust mip bias to maximize image quality and keep overhead under control.
  • Make sure to provide an appropriate scene exposure value. Correct exposure is essential for minimizing ghosting of moving objects, blurriness, and precise brightness reconstruction.

Debugging Tips

Motion Vectors Debugging

If XeSS is producing an aliased or shaky image, it is worth concentrating on static scene debugging:

  • Emulate zero time-delta between frames in the engine to maintain a fully static scene.
  • Set 0 motion vector scale to exclude potential issues with motion vectors.
  • Significantly increase the length of a repeated jitter pattern.

XeSS should produce high-quality, super sampled images. If this does not happen there might be problems with jitter sequence or the input textures' contents; otherwise, the problem is most likely in the decoding of motion vectors. Make sure that motion vectors buffer contents correspond to currently set units (NDC or pixels), and axis directions are correct. Try playing with plus or minus 1 motion vectors scale factors to align coordinate axis appropriately.

Jitter Offset Debugging

If static scene does not look good, try playing with plus or minus 1 jitter offset scaling in order to appropriately align coordinate axis. Make sure jitter does not fall off outside of [-0.5, 0.5] bounds.
