Nginx* HTTPs with Crypto-NI Tuning Guide on 3rd Generation Intel® Xeon® Scalable Processors

Published: 08/17/2021

Nginx* Introduction

Developed by Igor Sysoev, a Russian software engineer, Nginx* is a high-performance HTTP and reverse proxy web server based on a BSD-like license. It also provides IMAP/POP3/SMTP services in the meantime. Since the release of the first version in 2004, its market penetration rate has increased year by year, and it has been widely applied in many front-line Internet companies and IT enterprises. Nginx's architecture design is very flexible, with a very small and simple kernel containing core modules, basic modules, and tripartite modules. It collaborates with modules through file static mapping and configurable instructions, highlighting significant advantages of high performance, high concurrency, and low memory in various application scenarios such as HTTP proxy, static and dynamic separation, load balancing, virtual host, reverse proxy, cache acceleration, authorized access, and others.

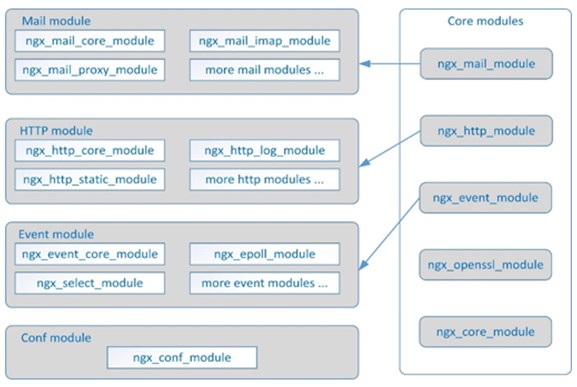

nginx structure

For more information about Nginx, please visit: http://nginx.org.

Nginx uses SSL/TLS to enhance web access security. Intel has introduced the Crypto-NI software solution which is based on 3rd generation Intel® Xeon® Scalable Processors (Codename Ice Lake/Whitley). It can effectively improve the security of web access.

Crypto-NI (NI stands for New Instruction) is a new instruction set in the field of encryption and decryption for 3rd generation Intel® Xeon® Scalable Processors and it adds new instructions such as Vectorized AES and Integer Fused Multiply Add on the basis of the Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) that the Intel® Xeon® Scalable Processors already has. The main software used in this solution are IPP Cryptography Library, Intel Multi-Buffer Crypto for IPsec Library (intel-ipsec-mb) and Intel® QuickAssist Technology (Intel® QAT), which provide batch submission of multiple SSL requests and parallel asynchronous processing mechanism based on the new instruction set, greatly improving the performance.

nginx software

Tested hardware and software environment used for this tuning guide:

Server Configuration

Hardware

CPU

Intel® Xeon® PLATINUM 8360Y CPU @ 2.20GHz

Memory

16*32 GB DDR4, 3200 MT/s

Hard Drive

Intel SSD S4610, 960G

NIC

Intel® Ethernet Controller XXV700 25GbE SFP28

Software

Operating System

CentOS* 7.8

Kernel

3.10.0-1127.el7.x86_64

Nginx

asynch_mode_nginx v0.4.4

OpenSSL

v1.1.1j

IPP Crypto Library

ippcp_2020u3

Multi-Buffer Crypto for IPsec Library

v0.55

Intel QAT Engine

v0.6.4

Notes:

  • The configuration described in this article are based on the instruction set of 3rd generation Intel® Xeon® Scalable Processors. The previous generations of processors do not support all the same options. Memory, hard drives, and network interface cards can be determined according to customer usage requirements.
  • For the software listed in the configuration you can refer to https://github.com/intel/QAT_Engine. The oldest versions of each software supported are described on the page the link is directed to. The software versions listed in this article meet the above requirements and have been verified and tested.
  • Asynch_mode_nginx is an optimized version of Nginx, used by Intel to support Nginx hardware and software acceleration. It can be compiled directly after download. For related descriptions, please refer to the following link: https://github.com/intel/asynch_mode_nginx.
  • QAT_Engine for OpenSSL link: https://github.com/intel/QAT_Engine.

BIOS Settings

The BIOS configuration items that can be optimized and their recommended values are as follows:

Configuration item

Recommended value

Hyper-Threading

Enable

CPU C6 report

Auto

SpeedStep (Pstates)

Enable

Turbo Mode

Enable

PCIe Link Speed

Gen4

Energy Efficient Turbo

Disable

Boot Performance Mode

Max Performance

Linux* Optimization

System Optimization

     1. Set the corresponding parameters for system startup

intel_iommu=off

processor.max_cstates=1 idle=poll pcie_aspm=off

     2. Stop cpupower service

systemctl stop cpupower.service

     3. Disable the firewall

systemctl disable firewalld.service

     4. User process settings

ulimit -c unlimited #generate core dump

ulimit -n 1000000 #set the maximum number of file open handles

Network Optimization

  • Prepare the following tune_affinity.sh script to set the CPU affinity for the NIC queue interrupts, so that these interrupts can be evenly distributed to the local CPU core:
set_affinity()

{

    if [ $VEC -ge 32 ]

    then

        MASK_FILL=""

        MASK_ZERO="00000000"

        let "IDX = $VEC / 32"

        for ((i=1; i<=$IDX;i++))

        do

            MASK_FILL="${MASK_FILL},${MASK_ZERO}"

        done



        let "VEC -= 32 * $IDX"

        MASK_TMP=$((1<<$VEC))

        MASK=`printf "%X%s" $MASK_TMP $MASK_FILL`

    else

        MASK_TMP=$((1<<$VEC))

        MASK=`printf "%X" $MASK_TMP`

    fi



    printf "%s mask=%s for /proc/irq/%d/smp_affinity\n" $DEV $MASK $IRQ

    printf "%s" $MASK > /proc/irq/$IRQ/smp_affinity

}



if [ "$1" = "" ] ; then

    echo "Description:"

    echo " This script attempts to bind each queue of a multi-queue NIC"

    echo " to the same numbered core, ie tx0|rx0 --> cpu0, tx1|rx1 --> cpu1"

    echo "usage:"

    echo " $0 eth0 [eth1 eth2 eth3]"

fi



# check for irqbalance running

#

IRQBALANCE_ON=`ps ax | grep -v grep | grep -q irqbalance; echo $?`

if [ "$IRQBALANCE_ON" == "0" ] ; then

    echo " WARNING: irqbalance is running and will"

    echo " likely override this script\'s affinitization."

    echo " Please stop the irqbalance service and/or execute"

    echo " \'killall irqbalance\'"

fi



# Set up the desired devices.

#

for DEV in $*

do

  for DIR in rx tx TxRx

  do

     MAX=`grep $DEV-$DIR /proc/interrupts | wc -l`

     if [ "$MAX" == "0" ] ; then

       MAX=`egrep -i "$DEV:.*$DIR" /proc/interrupts | wc -l`

     fi

     if [ "$MAX" == "0" ] ; then

       echo no $DIR vectors found on $DEV

       continue

     fi

     for VEC in `seq 0 1 $MAX`

     do

        IRQ=`cat /proc/interrupts | grep -i $DEV-$DIR-$VEC"$" | cut -d:  -f1 | sed "s/ //g"`

        if [ -n "$IRQ" ]; then

          set_affinity

        else

           IRQ=`cat /proc/interrupts | egrep -i $DEV:v$VEC-$DIR"$" | cut -d:  -f1 | sed "s/ //g"`

           if [ -n "$IRQ" ]; then

             set_affinity

           fi

        fi

     done

  done

done
  • Execute the shell script:
$ sh tune_affinity.sh <network interface card name>

Crypto-NI installation

IPP Cryptography Library and intel-ipsec-mb Installation

  • Download the IPP Cryptography Library source code
$ git clone --recursive https://github.com/intel/ipp-crypto.git
  • Build and install IPP Cryptography Library
$ cd ipp-crypto

$ git checkout ipp-crypto_2020_update3

$ cd sources/ippcp/crypto_mb

$ cmake . -Bbuild -DCMAKE_INSTALL_PREFIX=/usr

$ cd build

$ make -j

$ make install
  • Download the intel-ipsec-mb source code
$ git clone https://github.com/intel/intel-ipsec-mb.git



  • Build and install intel-ipsec-mb
$ cd intel-ipsec-mb

$ git checkout v0.55

$ make -j SAFE_DATA=y SAFE_PARAM=y SAFE_LOOKUP=y

$ make install NOLDCONFIG=y

OpenSSL* and QAT_Engine Installation

  • Download OpenSSL source code
$ cd /usr/local/src

$ wget https://www.openssl.org/source/openssl-1.1.1j.tar.gz



  • Build and install OpenSSL
$ tar xvzf openssl-1_1_1j.tar.gz

$ cd ./openssl-1_1_1j

$./config --prefix=/usr/local/ssl -Wl,-rpath, /usr/local/ssl/lib

$ ./make

$ ./make install
  • Download QAT Engine source code
$ export OPENSSL_ENGINES=/usr/local/ssl/lib/engines-1.1

$ cd /usr/local/src

$ git clone https://github.com/intel/QAT_Engine.git
  • Build and install QAT Engine
$cd /QAT_Engine

$./autogen.sh

$./configure \

--with-openssl_install_dir=/usr/local/ssl \

--enable-ipsec_offload \

--enable-multibuff_offload \

--with-multibuff_install_dir=/root/ipp-crypto/sources/ippcp/crypto_mb

$ make

$ make install

The above build and installation instructions may change in the new version. Please refer to the following URL to execute the latest build and installation instructions:

https://github.com/intel/QAT_Engine.git

$ ls /usr/local/ssl//lib/engines-1.1/*

List the following files: capi.so padlock.so qatengine.la qatengine.so

Run the following command to check if qat engine is loaded properly.

$./openssl engine -t -c -vvvv qatengine
  • Using the openssl speed command, user can view and verify information before or after using the QAT Engine.
$/usr/local/ssl/bin/openssl speed rsa2048

$/usr/local/ssl/bin openssl speed -engine qatengine -async_jobs 8 rsa2048

Nginx installation and Optimization Settings

Nginx Installation

  • Complete the installation and settings of Crypto-NI related software/hardware.
  • Download Nginx source code
$ git clone https://github.com/intel/asynch_mode_nginx.git



  • Build and install Nginx
$ cd asynch_mode_nginx

$ export NGINX_INSTALL_DIR=<Nginx installation directory>

$ export OPENSSL_LIB=<SSL installation directory>

$./configure \

--prefix=$NGINX_INSTALL_DIR \

--with-http_ssl_module \

--add-dynamic-module=modules/nginx_qat_module \

--with-cc-opt="-DNGX_SECURE_MEM -I$OPENSSL_LIB/include -Wno-error=deprecated-declarations" \

--with-ld-opt="-Wl,-rpath=$OPENSSL_LIB/lib -L$OPENSSL_LIB/lib"

$ make

$ make install
  • Start Nginx services

After completing the Nginx settings, execute the $ ./sbin/nginx command in the Nginx installation directory to start the Nginx service.

Optimized Settings for Nginx

     1. Generate RSA self-signed certificate and key file.

$ openssl req -x509 -sha256 -nodes -days 365 -newkey rsa:2048 -keyout server.key -out server.crt -subj "/C=CN/ST=Beijing/L=Beijing/O=Example Inc./OU=Web Security/CN=example1.com"

Create a new cert directory under the Nginx installation directory and copy server.crt and server.key to that directory.

     2. Key nginx configuration. Set the following parameters in the nginx.conf file:

  • Set the number of worker processes and event mode
worker_processes <number of worker processes>; # it is recommended to have the same number of worker processes as the number of CPU cores on server

events {

Use epoll; #epoll is an enhanced version of select/poll that improves the handling of large number of file descriptors

…

}
  • Load and set up the SSL Engine module

l

oad_module modules/ngx_ssl_engine_qat_module.so;

ssl_engine {

use_engine qatengine;

default_algorithms ALL;

qat_engine {

qat_offload_mode async;

qat_notify_mode poll;

qat_poll_mode heuristic;

qat_shutting_down_release off;

   }

}
  • Set HTTPS Server
server {

Listen 443 ssl reuseport so_keepalive=on... ; #if you want to verify the SSL handshake performance, then set it to off.

sendfile on;

Server_name example1.com; #consistent with certificate CN

ssl_asynch on;

ssl_session_tickets on; #set it to off, if you want to verify the SSL handshake performance

ssl_certificate <Nginx installation directory>/cert/server.crt;

ssl_certificate_key <Nginx installation directory>/cert/server.key;

ssl_ciphers AES256-SHA:AES128-SHA;

#You can set other cipher suites according to customer needs, to verify the performance of different authentication, encryption and decryption protocols

ssl_prefer_server_ciphers on;

…

}

     3. A complete sample configuration of nginx.conf, which is suitable for RSA2K handshake performance test:

user root;

worker_processes 8;

load_module modules/ngx_ssl_engine_qat_module.so;

events {

use epoll;

worker_connections 8192;

multi_accept on;

accept_mutex on;

}

ssl_engine {

use_engine qatengine;

default_algorithms ALL;

qat_engine {

qat_offload_mode async;

qat_notify_mode poll;

qat_poll_mode heuristic;

qat_shutting_down_release off;

 }

}

http {

server {

listen example1:443 ssl reuseport backlog=131072 so_keepalive=off rcvbuf=65536 sndbuf=65536;

keepalive_timeout 0s;

ssl_verify_client off;

ssl_session_tickets off;

access_log off;

ssl_asynch on;

ssl_session_timeout 300s;

ssl_protocols TLSv1.2;

ssl_ciphers AES128-SHA;

ssl_prefer_server_ciphers on;

ssl_certificate server2048.crt;

ssl_certificate_key server2048.key;

location / {

root html;

index index.html index.htm;

  }

 }

}

Introduction to Related Tools

Web Server Stress Testing Tools

In this section, we will introduce two web server stress testing tools: wrk and ab.

  1. Wrk is a benchmark testing tool for HTTP/HTTPS protocols. On a single machine powered by multi-core CPUs, it can generate a huge workload on the target machine in multi-threading and event I/O modes, using the system's high-performance I/O mechanisms, such as epoll and kqueue.

Usage Example: (where users would replace the URL with their own Nginx URL)

$ wrk -t 10 -c 1000 -d 30S https://example1.com:443/index.html

Description: the command uses 10 threads and 1,000 concurrent connections to fetch files and stress test the server for 30 seconds. For more information, please visit https://github.com/wg/wrk.

  1. The ab tool is a stress testing tool that comes with Apache*. It can be used not only for website access stress testing of Apache servers, but also for stress testing of other types of servers. For example, NginxApache Tomcat*, and IIS. If the user has installed Apache, the ab tool has already been installed with Apache. If the user has not installed Apache, then it can be installed easily with the following command (CentOS*):
$ yum -y install httpd-tools

Usage Example: (where users would replace the URL with their own Nginx URL)

$ ab -n 100000 -c 100 -Z AES128-SHA -f TLS1.2 https://example1.com:443/index.html



Description: The command uses 100 concurrent connections to send 100,000 requests for “get index” files to perform stress testing on the server. For more information, please visit https://httpd.apache.org/docs/2.4/programs/ab.html.
