Partner Catalog for Intel® Smart Display Module (Intel® SDM)

ID 671617
Updated 9/30/2022
Version Latest
Public

author-image

By

This is a central resource for accessing the specifications of partner hardware including supported modules and displays.

Modules

ADVANTECH*

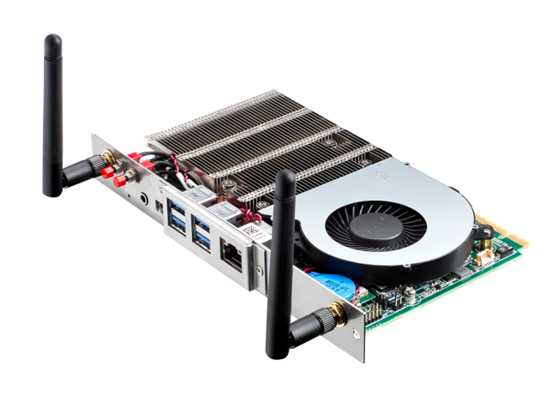

Model: DS-200


Model

DS-200

Specs

Intel SDM-L (Smart Display Module - Large) form factor

8th Intel® Core™ i3-8100H, i5-8400H processor, 9th Intel® Core™ Celeron G4930E

Dual channel DDR4-2400/2666 SO-DIMM, up to 32 GB

3 independent displays: Golden Finger (HDMI 2.0, DP1.2), Front Bracket (mini DP++)

Supports Real 4K resolution

Supports Microsoft Windows 10 with proven compatibility

Easy installation and maintenance with Intel® SDM slot-in design

Ordering contact: Nancy.Hsu@advantech.com.tw

Datasheet Link & Webpage Link



 Model: DS-202

Model

DS-202

Specs

Intel SDM-L (Smart Display Module - Large) form factor

Intel Elkhart Lake, Atom® x6413E 1.5GHz processor

Dual channel DDR4-2666 SO-DIMM x2, up to 32 GB

3 independent displays: Golden Finger (HDMI 2.0, DP1.2), Front Bracket (miniDP)

Supports Real 4K resolution

Supports Microsoft Windows 10 with proven compatibility

Easy installation and maintenance with Intel® SDM slot-in design

Ordering contact: Nancy.Hsu@advantech.com.tw

Datasheet Link & Webpage Link

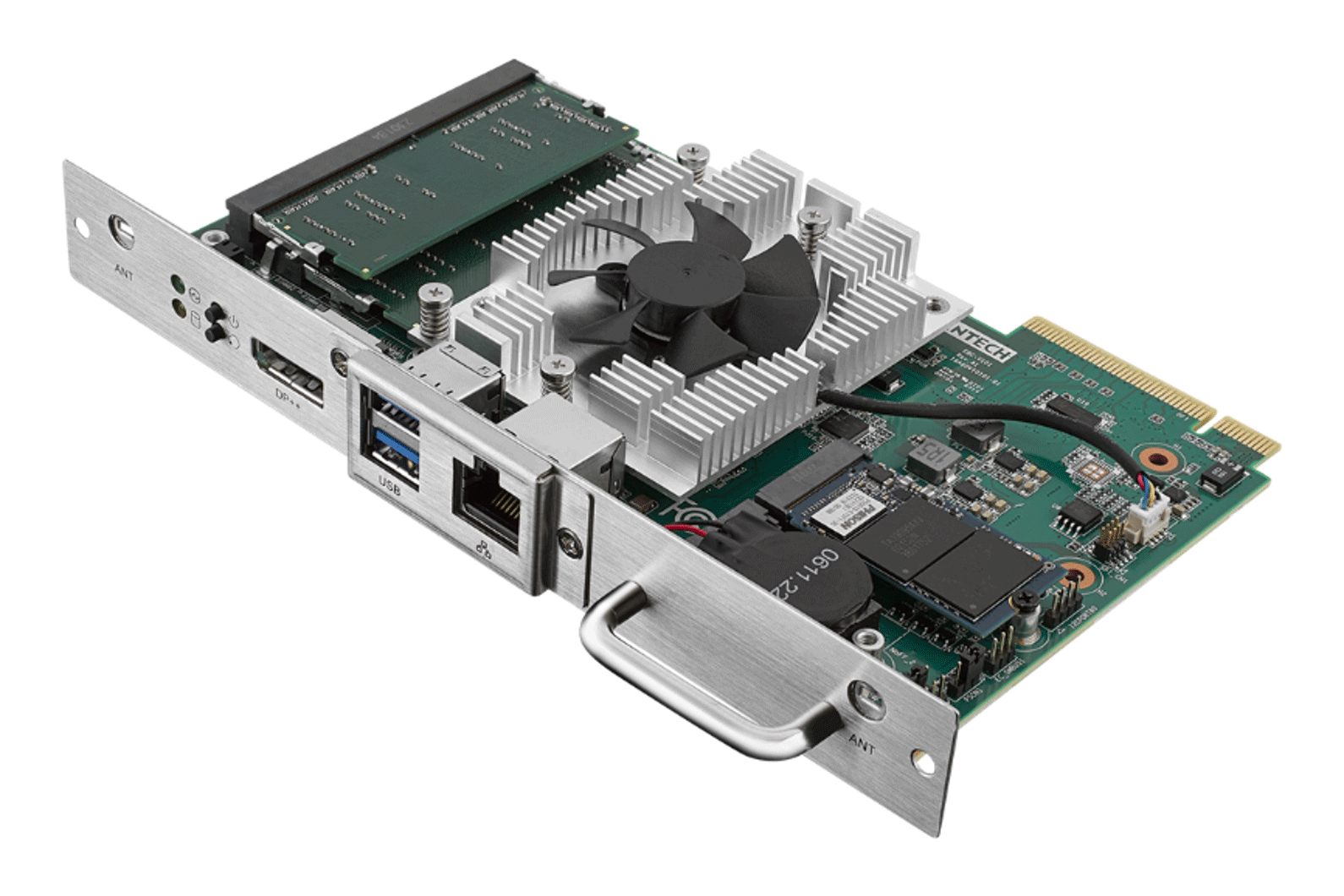

 Model: EBC-V101

Model

EBC-V101

Specs

Intel SDM-L (Smart Display Module - Large) form factor

12th Generation Intel® Core™ i7 1270PE, i5 1235U, i5 1245UE, Pentium 8505

Dual channel DDR4-3200 SO-DIMM, up to 32 GB

3 independent displays: Golden Finger (HDMI 2.0, DP1.4a), Front Bracket (DP1.4a)

Supports Real 4K resolution

Supports Microsoft Windows 10 with proven compatibility and can be upgraded to Window11

Easy installation and maintenance with Intel® SDM slot-in design

Ordering contact: Nancy.Hsu@advantech.com.tw

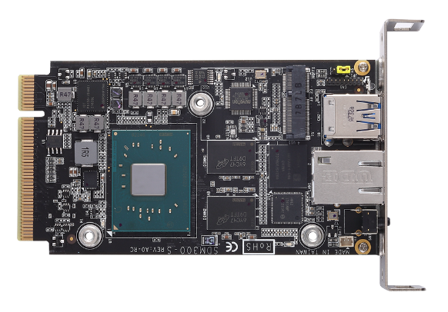

AXIOMTEK*

Model: SDM300S

Model

SDM300S

CPU

Intel® Pentium® N4200, Quad core, up to 2.5GHz

Intel® Celeron® N3350, Dual core, up to 2.4GHz

Memory

4GB/8GB LPDDR4 memory down

Storage

32GB/64GB eMMC onboard

Front I/O

LAN

1x 10x100x1000Mbps Ethernet RJ45 thru Intel i211-AT at I/O side

WLAN (optional)

WIFI a/b/g/n/ac 2.4GHz and 5GHz thru M.2 socket

USB

2x USB 3.0 type A connector at I/O side

1x USB 3.0 signal routed to edge connector

PWR/Reset

1x PWR button, 1x Reset button

Edge connector (PCIex8 golden finger)

Graphic

Integrated Intel ® gen 9 graphic support

1x DP 1.2 4K@60p

1x HDMI 1.4b 4K@30p

PCIe

1x PCIex1 signal

System management

UART TX/RX, I2C, SPI

Power Input

+12VDC, +3.3VSB

Dimension

60mm x 100mm x 20mm (not included edge connector)

Operating Temperature

0~+60 degree

Contact link

Datasheet link

Product link



Contact details:

Candice Hsieh

Director

Axiomtek  Co., Ltd.

Email: candice@axiomtek.com.tw

TEL: +886-2-86462111 #8871

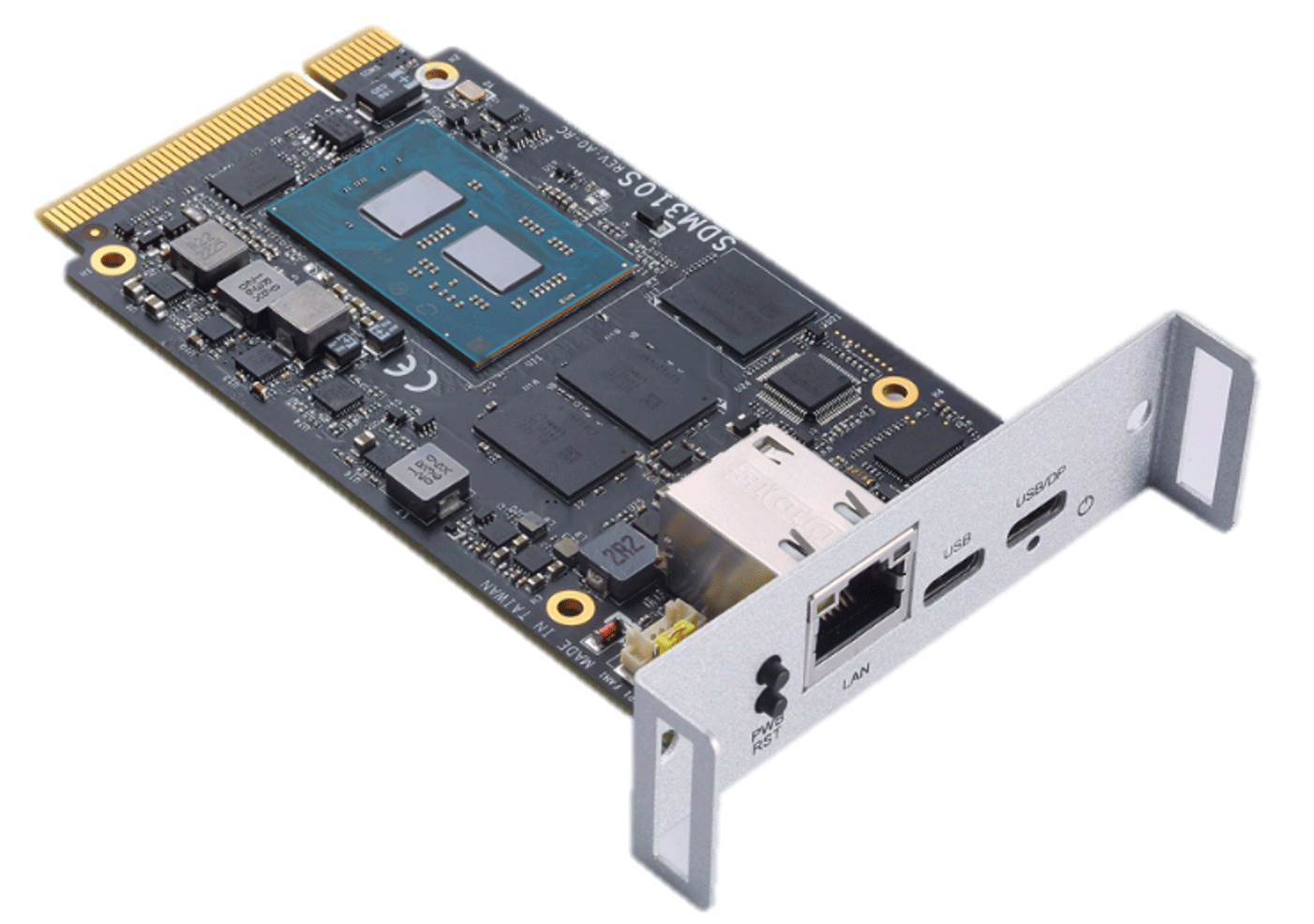

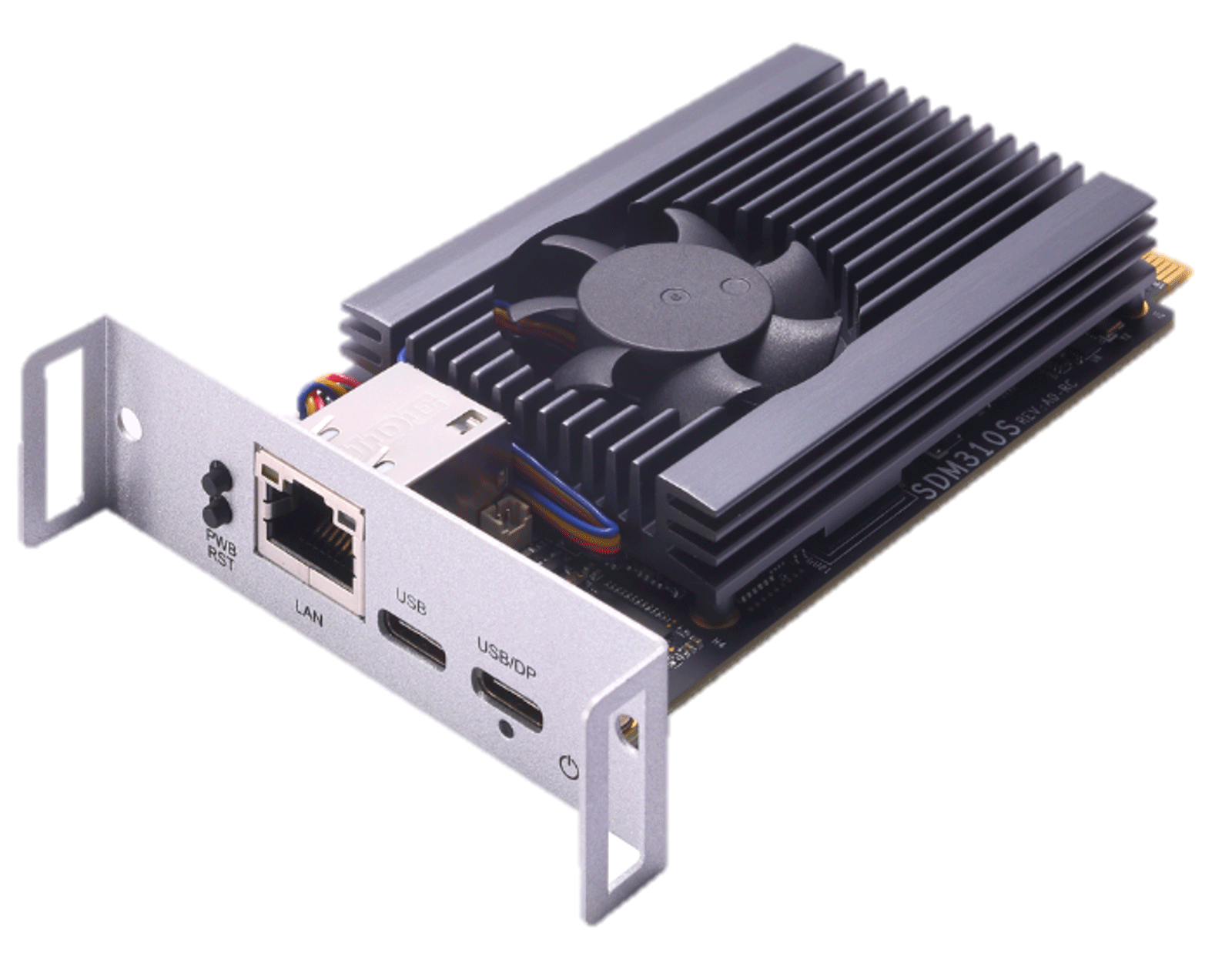

 Model: SDM310S

Model

SDM310S

CPU

 Intel® Celeron® J6412, Quad core, up to 2.6GHz

Memory

 4GB/8GB LPDDR4 memory down

Storage

 64GB/128GB eMMC onboard

Front I/O

LAN

 1x 10x100x1000Mbps Ethernet RJ45

USB

1 x Type C (USB 3.2 Gen2/DP 1.2a 4K@60Hz) at I/O side

1 x Type C (USB 3.2 Gen2) at  I/O side

1x USB 3.0 signal routed to edge connector

PWR/Reset

 1x PWR button, 1x Reset button

Edge connector (PCIex8 golden finger)

Graphic

Intel® UHD Graphics

1 x Type C DP 1.2a (4K60Hz) (rear I/O)

1 x HDMI 2.0b 4K@60Hz (via SDM edge connector)

1 x DP 1.2a 4K@60Hz (via SDM edge connector)

PCIe

1x PCIex1 signal

System management

UART TX/RX, I2C, SPI

Power Input

+12VDC, +3.3VSB

Dimension

60mm x 100mm x 20mm (not including edge connector)

Operating Temperature

0~+55 degree

Contact link

Datasheet link

Product link



Contact details:

Candice Hsieh

Director

Axiomtek  Co., Ltd.

Email: candice@axiomtek.com.tw

TEL: +886-2-86462111 #8871



Model: SDM500L



Model

SDM500L

Specs

8th gen Intel® Core™ i7/i5/i3 processor (Whiskey Lake-U)

2 DDR4-2400 SO-DIMM for up to 32G of memory

M.2 Key E expansion slot

M.2 Key M expansion slot

M.2 Key B expansion slot

One HDMI, four USB 3.0, one USB type C and LAN

Supports Intel® AMT 12

Ordering Contact (Main)

Email: candice@axiomtek.com.tw

TEL: +886-2-86462111 #8871

Datasheet Link & Product link

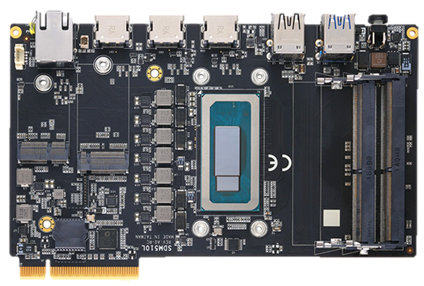

Model: SDM510L

Model

SDM510L

CPU

12th gen Intel® Core™ i7/i5/i3 or Intel® Celeron® processor (Alder Lake-H/P/U series)

Memory

2 x 260pin DDR4-3200 SO-DIMM

I/O

1 x 2.5GbE with Intel® I225; supports Wake-on LAN (Intel® Core™ i7 and i5 support Intel vPro® function)

Audio by HDMI

3 x USB 3.2 Gen2

1 x USB 2.0

SDM Edge Connector

1 x USB 3.0

1 x HDMI 2.1

1 x DisplayPort 1.4

1 x Serial TX/RX

2 x I2C

Storage & Expansion

1 x M.2 Key B 2242 slot & 1 x M.2 Key E 2230 slot for Wi-Fi/Bluetooth

Ordering Contact (Main)

Email: candice@axiomtek.com.tw

TEL: +886-2-86462111 #8871

Datasheet Link & Product link



DFI*

Model: SDM-WL



Model SDM-WL
Specs 2 DDR4 2400MHz SODIMM up to 32G
Multiple expansion: 1 M.2 E Key, 1 M.2 M Key, 1 M.2 B Key
1 HDMI resolution up to 4096 x 2160 @ 60Hz Display port resolution up to 4096 x 2304 @ 60Hz
Rich I/O: 1 Intel GbE, 4 USB3.1, 1 USB3.1 Type C

Ordering contact (main) eva.chen@dfi.com
Datasheet Link & Webpage Link



GIGAIPC*

Model: SDM-3350L

Model SDM-3350L
Form Factor SDM-L (175 x 100mm)
CPU Intel®  Atom Apollo Lake N3350/N4200 Fanless Support
Memory 2* DDR3L 1866MHz SODIMM Up to 8 GB
LAN 1*  Realtek RTL8111HS (10/100/1000 Mbit)
Graphic Intel® UHD Graphics 500
Display Three Display (FHD) support :
SDM interface : HDMI & DP (FHD)
Rear IO : DP (FHD)
Audio Intel Integrated
TPM NA
Expansion Slot 1* M.2 Slot 2280 B/M key (SATA)
1* M2. Slot 2230  A/E (WiFi/BT) ---Option
Rear I/O 1* Display Port
1* RJ45
4 USB 3.0
1* PWR LED		 1* HDD LED
2* Antenna(WiFi & BT) –Option
1* Reset button
1* Power button
Worldwide Contact  information Arthur.chuang  莊再華
E-mail: arthur.chuang@gigaipc.com
Phone Number：+886-02-89131312
FAX：+886-02-89131332 #814299
Address: B1F No,205, Sec 3 Pai-Hsin Road, Hsin-Tien Dist., New Taipei City, 231, Taiwan


 Model: SDM-4000L

Model SDM-4000L
Form Factor SDM-L (175 x 100mm)
CPU Intel®  Celeron N4000 Processor  14nm, 2 cores, 2 threads 1.1 ~2.6 GHz  4 MB  Cache , TDP 6W  --Fanless
Memory 2* DDR4 2133MHz SODIMM Up to 8 GB
LAN 1*  Realtek RTL8111HS (10/100/1000 Mbit)
Graphic Intel® UHD Graphics 600/605
Display SDM interface : HDMI & DP Rear IO : DP (Switch with SDM DP port)
Audio Intel Integrated
TPM NA
Expansion Slot 1* M.2 Slot 2280 B/M key (SATA)
1* M2. Slot 2230  A/E (WiFi/BT) ---Option
Rear I/O 1* Display Port
1* RJ45
4 USB 3.0
1* PWR LED		 1* HDD LED
2* Antenna(WiFi & BT) –Option
1* Reset button
1* Power button
Worldwide Contact information
 		 Arthur.chuang  莊再華
E-mail: arthur.chuang@gigaipc.com
Phone Number：+886-02-89131312
FAX：+886-02-89131332 #814299
Address: B1F No,205, Sec 3 Pai-Hsin Road, Hsin-Tien Dist., New Taipei City, 231, Taiwan


Model: SDM-7100L

Model SDM-7100L
Form Factor SDM-L (175 x 100mm)
CPU Intel® Core™ i3-7100U Processor  14nm, 2 cores, 4 threads 2.40 GHz 3 MB Smart Cache, TDP 15W
Memory 2* DDR4 2133MHz SODIMM Up to 32GB
LAN 1*  Intel® i219V (10/100/1000 Mbit)
Graphic Intel® HD Graphics 620
Display SDM interface : HDMI & DP
Rear IO : DP (Switch with SDM DP port)
Audio Intel Integrated
TPM TPM2.0 (option)
Expansion Slot 1* M.2 Slot 2280 B/M key (SATA/PCIe X4)
1* M2. Slot 2230  A/E (WiFi/BT) ---Option
Rear I/O 1* Display Port
1* RJ45
4 USB 3.0
1* PWR LED		 1* HDD LED
2* Antenna(WiFi & BT) –Option
1* Reset button
1* Power button
Worldwide Contact information Arthur.chuang  莊再華
E-mail : arthur.chuang@gigaipc.com
Phone Number：+886 -02-89131312
FAX：+886-02-89131332 #814299
Address: B1F No,205, Sec 3 Pai-Hsin Road, Hsin-Tien Dist., New Taipei City, 231, Taiwan




Model: SDM-7300L

Model SDM-7300L
Form Factor SDM-L (175 x 100mm)
CPU Intel® Core™ i5-7300U Processor, 14nm, 2 cores, 4 threads, up to 3.5 GHz, TDP 15W, VPro support
Memory 2* DDR4 2133MHz SODIMM Up to 32GB
LAN 1*  Intel® i219LM (10/100/1000 Mbit)
Graphic Intel® HD Graphics 620
Display

SDM interface : HDMI & DP
Rear IO : DP (Switch with SDM DP port)
Audio Intel Integrated
TPM TPM2.0 (option)
Expansion Slot

1 x M.2 slot:

- M-key

- SATA 6Gb/s / PCIe X4

- Supports NGFF-2280 cards

1 x M.2 slot:

- M-key

- E-key - SATA 6Gb/s / PCIe X4

- Supports NGFF-2230 (WiFi/BT)
Rear I/O

1* Display Port

1* RJ45

4* USB 3.0

1* PWR LED

1* HDD LED

2* Antenna(WiFi & BT) –Option

1* Reset button

1* Power button
Worldwide Contact information Arthur.chuang  莊再華
E-mail: arthur.chuang@gigaipc.com
Phone Number：+886 -02-89131312
FAX：+886-02-89131332 #814299
Address: B1F No,205, Sec 3 Pai-Hsin Road, Hsin-Tien Dist., New Taipei City, 231, Taiwan

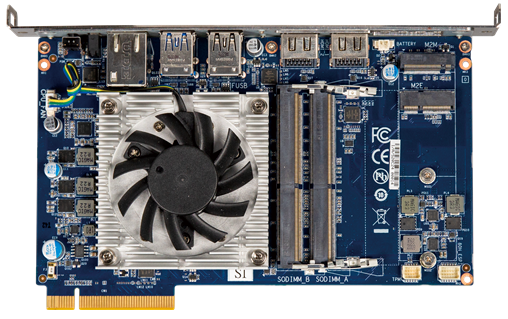

Model: SDM-1115G4L

Model

SDM-1115G4L

Form Factor

SDM-L (175 x 100mm)

CPU

Intel® Core™ i3-1115G4 Processor

10nm SuperFin, 2 cores, 4 threads, up to 4.10 GHz

TDP 28W

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB

Support Dual Channel DDR4 3200 MHz memory modules

LAN

1 x GbE LAN Port (Intel® I219V)

Graphic

Intel® HD Graphics

Display

1 x HDMI 2.0 (SDM), supporting a maximum resolution of 4096x2160 @60Hz

1 x Display Port (SDM), supporting a maximum resolution of 4096x2160 @60Hz

2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz

Audio

Intel Integrated

TPM

1 x TPM header

Expansion Slot

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)

1 x 2230 M.2 E-Key

Rear I/O

2 x HDMI

1 x RJ45 LAN Port

3 x USB 3.2 Gen 1

1 x USB 2.0

1 x PWR LED

1 x HDD LED

2 x External Antenna Holes (Optional)

1 x Reset button

1 x Power button

Worldwide  Contact  information

Arthur.chuang  莊再華 E-mail : arthur.chuang@gigaipc.com

Phone Number：+886 -02-89131312

FAX: +886-02-89131332 #814299

Address: B1F No,205, Sec 3 Pai-Hsin Road, Hsin-Tien Dist., New Taipei City, 231, Taiwan



Model: SDM-1135G7L

Model

SDM-1135G7L

Form Factor

SDM-L (175 x 100mm)

CPU

Intel® Core™ i5-1135G7 Processor

10nm SuperFin, 4 cores, 8 threads, up to 4.20 GHz

TDP 28W

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB

Support Dual Channel DDR4 3200 MHz memory modules

LAN

1 x GbE LAN Port (Intel® I219V)

Graphic

Intel® HD Graphics

Display

Integrated Graphics Processor - Intel® Iris Xᵉ Graphics:

1 x HDMI 2.0 (SDM), supporting a maximum resolution of 4096x2160 @60Hz

1 x Display Port (SDM), supporting a maximum resolution of 4096x2160 @60Hz

2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz

Audio

Intel Integrated

TPM

1 x TPM header

Expansion Slot

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)

1 x 2230 M.2 E-Key

Rear I/O

2 x HDMI

1 x RJ45 LAN Port

3 x USB 3.2 Gen 1

1 x USB 2.0

1 x PWR LED

1 x HDD LED

2 x External Antenna Holes (Optional)

1 x Reset button

1 x Power button

Worldwide  Contact  information

Arthur.chuang  莊再華 E-mail : arthur.chuang@gigaipc.com

Phone Number：+886 -02-89131312

FAX: +886-02-89131332 #814299

Address: B1F No,205, Sec 3 Pai-Hsin Road, Hsin-Tien Dist., New Taipei City, 231, Taiwan



Model: SDM-1185G7EL

Model

SDM-1185G7EL

Form Factor

SDM-L (175 x 100mm)

CPU

Intel® Core™ i7-1185G7E Processor

10nm SuperFin, 4 cores, 8 threads, up to 4.40 GHz

TDP 28W

Memory

4 x LPDDR4x-4267, Max. Capacity 16 GB

LAN

1 x 2.5GbE LAN Port (Intel® I225LM)

Graphic

Intel® HD Graphics

Display

Integrated Graphics Processor - Intel® Iris Xᵉ Graphics:

2 x HDMI 2.1 (SDM), supporting a maximum resolution of 7680x4320 @60Hz

2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz

1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @60Hz

Audio

Intel Integrated

TPM

1 x TPM header

Expansion Slot

1 x 2280 M.2 M-Key (Support NVME only)

1 x 2230 M.2 E-Key (WiFi 6E AX210 GIG+ 2230 CARD)

Rear I/O

2 x HDMI

1 x RJ45 LAN Port

2 x USB 3.2 Type A Gen 2x1

1 x USB 3.2 Type C Gen 2x1

1 x PWR LED

1 x HDD LED

4 x External Antenna Holes (Optional)

1 x Reset button

1 x Power button

Worldwide  Contact  information

Arthur.chuang  莊再華 E-mail: arthur.chuang@gigaipc.com

Phone Number：+886 -02-89131312

FAX: +886-02-89131332 #814299

Address: B1F No,205, Sec 3 Pai-Hsin Road, Hsin-Tien Dist., New Taipei City, 231, Taiwan

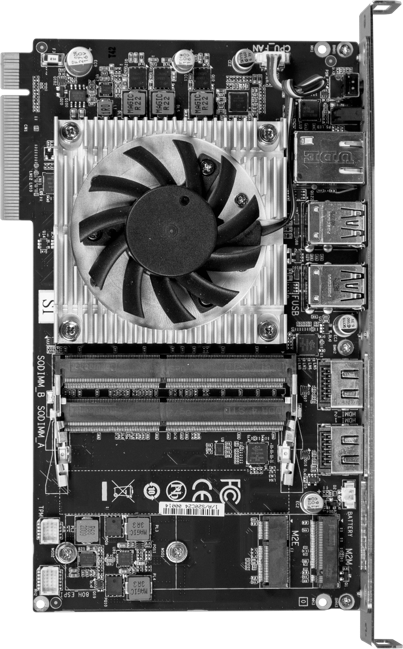

 Model: SDM-1315L

Model

SDM-1315L

Form Factor

 SDM-L (175 x 100mm)

CPU

 Intel Core i3-1315U Processor, Intel 7, 6 cores, 2P+4E, 8 threads, 10M Cache, up to 4.50 GHz, TDP 15W

Memory

 2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB, Support Dual Channel DDR5 5200MHz

LAN

 1 x 2.5GbE LAN port (Intel I226LM)

Graphic

Intel® HD Graphics

Display

Integrated Graphics Processor - Intel® Iris Xᵉ Graphics:

1 x HDMI 2.0 (SDM), supporting a maximum resolution of 4096x2160 @60Hz

1 x Display Port (SDM), supporting a maximum resolution of 4096x2160 @60Hz

2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz

Audio

Intel Integrated

TPM

Onboard TPM 2.0 security chip INFINEON SLB9670VQ2.0

Expansion Slot

1 x 2280 M.2 M-Key (PCIe x4, SATA  6Gb/s)

1 x 2230 M.2 E-Key

Rear I/O

1 x RJ45 LAN port

2 x HDMI 2.0

4 x USB 3.2 Gen2x1

1 x Power/ HDD LED

2 x External Antenna Hole (Optional)

1 x Reset button

1 x Power button

Worldwide  Contact  information

Arthur.chuang  莊再華 E-mail: arthur.chuang@gigaipc.com

Phone Number: +886 -02-89131312

FAX: +886-02-89131332 #814299

Address: B1F No,205, Sec 3 Pai-Hsin Road, Hsin-Tien Dist., New Taipei City, 231, Taiwan

Estimated to launch in 2024 December/end.



 Model: SDM-1355L

Model

SDM-1355L

Form Factor

 SDM-L (175 x 100mm)

CPU

 Intel Core i5-1335U Processor, Intel 7, 10 core, 2P+8E, 12 threads, 12M Cache, up to 4.60 GHz, TDP 15W

Memory

 2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB, Support Dual Channel DDR5 5200MHz

LAN

 1 x 2.5GbE LAN port (Intel I226LM)

Graphic

Intel® HD Graphics

Display

Integrated Graphics Processor - Intel® Iris Xᵉ Graphics:

1 x HDMI 2.0 (SDM), supporting a maximum resolution of 4096x2160 @60Hz

1 x Display Port (SDM), supporting a maximum resolution of 4096x2160 @60Hz

2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz

Audio

Intel Integrated

TPM

Onboard TPM 2.0 security chip INFINEON SLB9670VQ2.0

Expansion Slot

1 x 2280 M.2 M-Key (PCIe x4, SATA  6Gb/s)

1 x 2230 M.2 E-Key

Rear I/O

1 x RJ45 LAN port

2 x HDMI 2.0

4 x USB 3.2 Gen2x1

1 x Power/ HDD LED

2 x External Antenna Hole (Optional)

1 x Reset button

1 x Power button

Worldwide  Contact  information

Arthur.chuang  莊再華 E-mail: arthur.chuang@gigaipc.com

Phone Number: +886 -02-89131312

FAX: +886-02-89131332 #814299

Address: B1F No,205, Sec 3 Pai-Hsin Road, Hsin-Tien Dist., New Taipei City, 231, Taiwan

Estimated to launch in 2024 December/end.



LITEMAX*

Model: ASDM-APL5

Model

ASDM-APL5 (SDM-L)

Form Factor

SDM-L (175 x 100mm)

High Level Spec Sheet/Table

Intel® Smart Display Module(Intel® SDM) with Intel® Atom® E3900 processor, COM, 2 USB, One GbE LAN.

Ordering Contact (Main)

David_King@litemax.com

Disti Channel/Contact

Asia: Zack_Chen@litemax.com

Europe: Katherine_Cheng@litemax.com

Tim_Liang@litemax.com

Americas: Megan_Cho@litemax.com

Tim_Liang@litemax.com

Webpage & Datasheet Link

Model: ASDM-APL6

Model

ASDM-APL6 (SDM-S)

Form Factor

SDM-S

High Level Spec Sheet/Table

Intel® Smart Display Module with Intel® Atom® / Pentium® / Celeron® processor, 2 USB, M.2 E-Key 2230, Intel® GbE LAN.

Ordering Contact (Main)

David_King@litemax.com

Disti Channel/Contact

Asia: Zack_Chen@litemax.com

Europe: Katherine_Cheng@litemax.com

Tim_Liang@litemax.com

Americas: Megan_Cho@litemax.com

Tim_Liang@litemax.com

Webpage & Datasheet Link



NEXCOM*

Model: NDIS S538

Model

NDIS S538

High Level Spec Sheet/Table

Intel® SDM-L Based Digital Signage Platform, Support 4K Resolution

Intel® Smart Display Module Large (Intel® SDM-L) design in

6th generation Intel® Core™ Skylake processor

Intel® integrated HD 530 graphic engine

Support 3 independent 4K2K video out

Dual DDR4 SO-DIMM support

Support Wi-Fi module

Datasheet Link  & Webpage Link



HIVE*

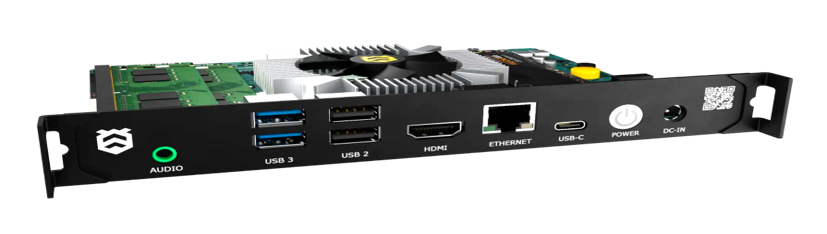

Model: BEE BLADE

Model

NDIS S538

Max media resolution

 4320p @60Hz (8K) Codecs H 265/HEVC, H 264, Avolites AIM Notch LC.
Output & resolution HDMI 2.0 2160p 60 Control Comprehensive UPD command set, ArtNet
Max HEVC bit rate 800 Mbit @4320p60 Synchronisation BeeSync (HDMI genlock equivalent)
SMPTE MTC (USB), Art
Layers 2x2160p (4K) Software HIVE Web Server UBUNTU 20.04
Connections HDMI 2.0, SDM, USB 3.0, USB C, Gigabit Ethernet Render Engine HIVE Render Engine
Power 12V DC [5A] or vis SDM Processing Intel Core i5-1135G7
Intel Iris XE
16GB DDR4 3200
Dimensions W 175mm x D 100mm x H 24.5mm Accessories Optional Enclosure for Non SDM Compliant Displays
Operating temperature -20 to 35Co Storage options 500GB, 1TB, 2TB, 4TB
Cooling Internal Fans (~45dB) Weight 250g

Datasheet Link  & Webpage Link



Display Panels

ADVANTECH

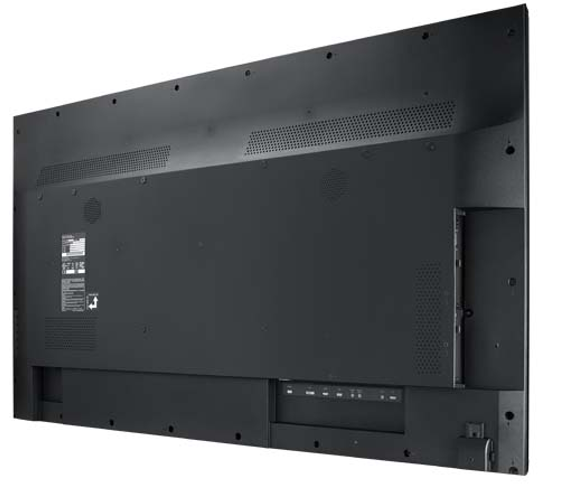

Model: DSD-7055

55" FHD Signage Display, 500nits, with SDM slot

Digital Signage Display Spec

Product / Size

DSD-7055/55”

Resolution

1920 x 1080 (F-HD)

Brightness

500 cd/m2

Contrast Ratio

4000:1

Interface

Video input

VGA, DVI, HDMI, DP, SDM

Control

RS232 x1(In/Out) , IR x1(In)

Audio

Audio x1

SDM Slot

Intel® SDM-L

Speaker

10W x2

Power Consumption (typ.)

80W

Dimensions (mm)

1242x722x53

Net Weight

17kg

Product Life

50,000hr





AUO*

Model: PFSDM





Digital Signage Display Spec

Product / Size

PFSDM32A

32"SDM

PFSDM43B

43"SDM

PFSDM55B

55"SDM

Resolution

1920 x 1080 (pixels)

1920 x 1080 (pixels)

1920 x 1080 (pixels)

Brightness

500 nits

500 nits

500 nits

Contrast Ratio

4000:1

4000:1

4000:1

Interface

Video input

DVI-D x1, DP x1, D-SUB x1, HDMI x1

Control

RS232 x1(In) , IR x1(In)

Audio

Audio x1(In), Audio x1(Out)

SDM Slot

Intel® SDM-S & SDM-L Compatible

Speaker

10W x2

10W x2

10W x2

Power Consumption (typ.)

35W

60W

80W

Dimensions

725.8mm(L) x 420.3mm(W) x

57.9mm(D)

971.5mm(L) x 567.5mm(W) x

53mm(D)

1242.4mm(L) x 722mm(W) x

53mm(D)

Weight

8.8Kg / 19.4 lbs

10Kg / 22 lbs

17Kg / 37.4 lbs

Wall mount

17Kg / 37.4 lbs

VESA 200 x 200mm

 VESA 300 x 300mm

Product Life

50,000hr

50,000hr

50,000hr

Operation Hours

24 / 7

24 / 7

24 / 7

Operation Mode

Portrait / Landscape

Product Webpage Link



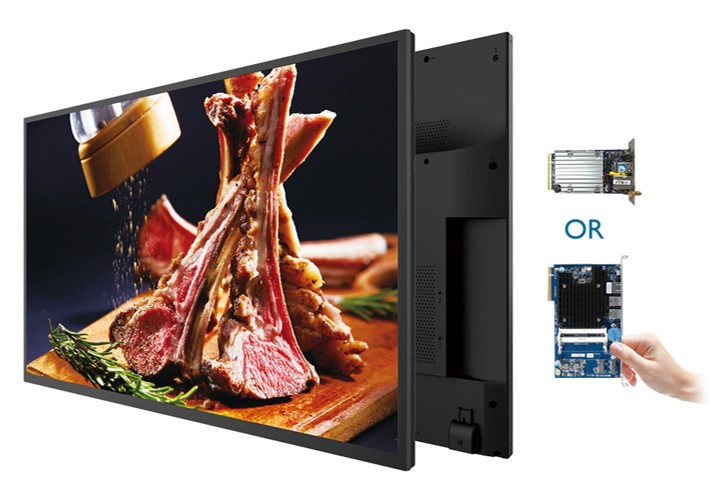

Model: PUSDM

P/N

PUSDM55A

PUSDM65A

PUSDM75A

Model

55” UHD SDM

65” UHD SDM

75” UHD SDM

Resolution

3840 x 2160

3840 x 2160

3840 x 2160

Brightness

500nits

500nits

500nits

Contrast Ratio

4000:1

4000:1

4000:1

I/O (Signal Input)

HDMI x2, DP x1, USB x1

I/O (Signal Output)

HDMI x1

I/O (Control)

RS232 x1(In), RS232 x1(Out),   Note: all phone jack type

IR x1(In), IR x1(Out)

   I/O (Audio)

Audio x1(Out)

   SDM Slot

Intel® SDM-S & SDM-L Compatible (12V/5A)

Speaker

10W x2

Power Consumption (typ)

139W (*)

180W (*)

360W (*)

Outline Dimension (mm)

1238.50 x 709.30 x 59.20 (*)

1457.69 x 832.73 x 69.90 (*)

1676 x 954 x 79 (*)

Weight (kg)

20 (*)

23 (*)

TBD (*)

Wall Mount (mm)

VESA 400 x 400

VESA 600 x 400

VESA 400 x 400

Product Life

50,000hr

50,000hr

50,000hr

Operation Hours

24 / 7

24 / 7

24 / 7

Operation Mode

Portrait / Landscape

(*) pre-spec, change without notice

AXIOMTEK

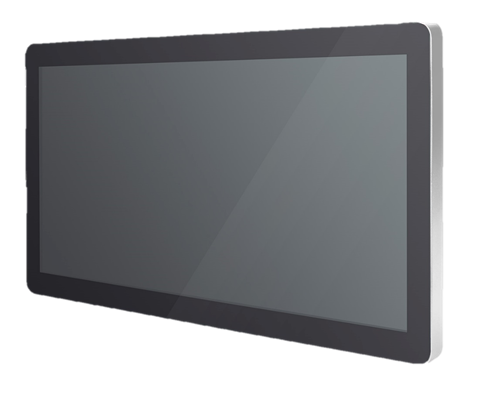

Model: ITC150WM



Model

ITC150WM

LCD Panel

15.6" FHD TFT LCD
300 nits
16:9 radio
1920 x 1080 pixels
x 1080 (F-HD)

CPU

SDM300-S: Intel® Pentium® N4200 1.1GHz processor or Intel® Celeron®

N3350 1.1GHz processor

SDM500-L: Intel® Celeron® 4305UE 2.0GHz processor or Intel® Core™ processor (optional)

System Memory

SDM300-S: Onboard LPDDR4 2400 MHz 4GB (8GB optional)

SDM500-L: 2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB

I/O

1 x HDMI
1 x USB 3.0 Type A
2 x USB 2.0 Type A
1 x microSD card slot (push-push type)
2 x 12 VDC-in barrel (screw-lock type)
1 x Power button with LED

Expansion

SDM300-S:1 x M.2 Key E 2230 slot (for the Wi-Fi)
SDM500-L: 1 x M.2 Key E 2230 slot (for the Wi-Fi)

Ordering Contact

Candice Hsieh
Email: candice@axiomtek.com.tw
TEL: +886-2-86462111 #8871
Datasheet Link & Webpage Link

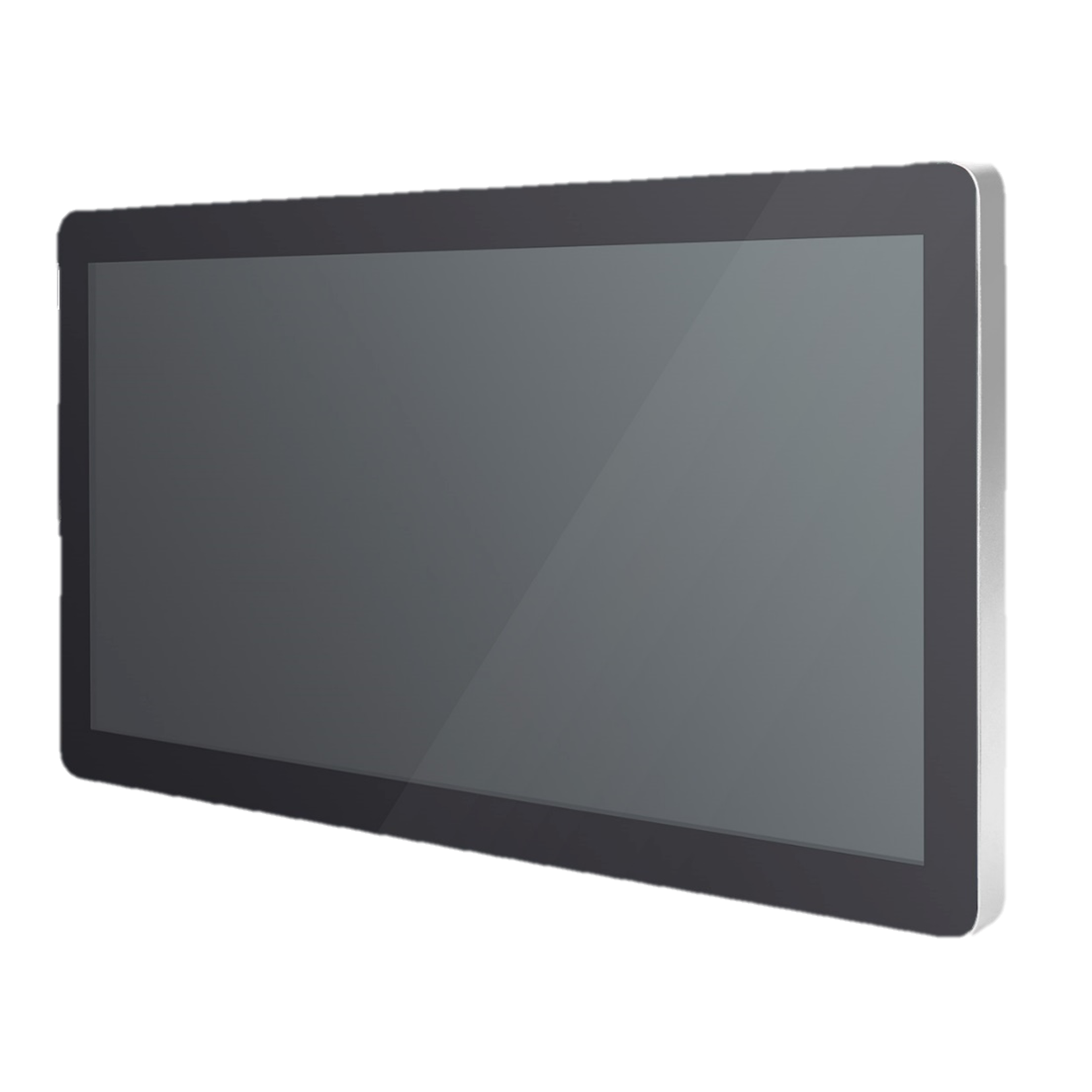

 Model: ITC210



Model

ITC210

LCD Panel

 21.5" FHD TFT LCD
250 nits
16:9 ratio
1920 x 1080 pixels

CPU

SDM300-S: Intel® Pentium® N4200 1.1GHz processor or Intel® Celeron® N3350 1.1GHz processor
SDM500-L: Intel® Core™ i5-8365UE 1.6GHz processor or Intel® Celeron® 4305UE 2.0GHz processor

System Memory

SDM300-S: Onboard LPDDR4 2400 MHz 4GB (8GB optional)
SDM500-L: 2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB

I/O

1 x HDMI output
1 x USB 3.0 Type A
2 x USB 2.0 Type A
1 x microSD card slot (push-push type)
2 x 12 VDC-in barrel (screw-lock type)

Expansion

SDM300-S: 1 x M.2 Key E 2230 slot (for the Wi-Fi/4G LTE)
SDM500-L: 1 x M.2 Key M 2280 slot

Ordering Contact

Candice Hsieh
Email: candice@axiomtek.com.tw
TEL: +886-2-86462111 #8871
Datasheet Link & Webpage Link

GIGAIPC*

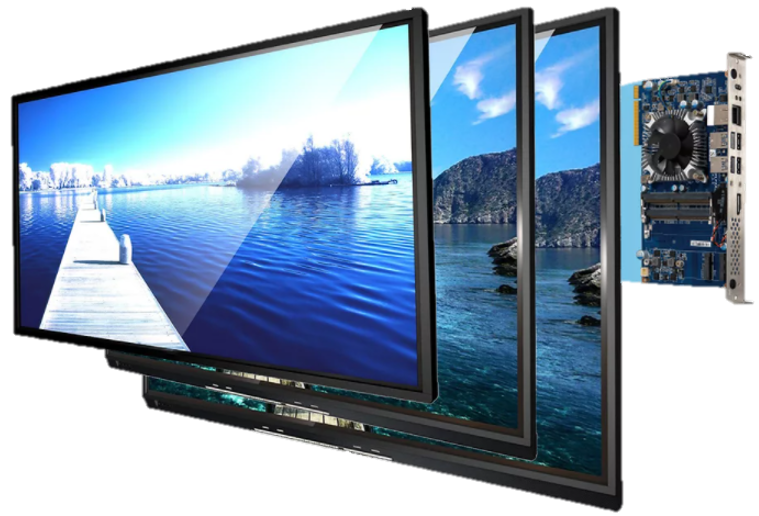

Model: SMART WHITEBOARD

Display Specs

55"

65"

75"

CPU

i5, i3, Celeron

i5, i3, Celeron

i5, i3, Celeron

Dimension

1271.7W x 742.6D x 74.66D (mm)

1494.3W x 907.4H x 80.2D (mm)

1715.5W x 1031.7H x 80.8D (mm)

Weight

21.1 Kg

49.9 Kg

55.9 Kg

Brightness

430 cd/m2

430 cd/m2

430 cd/m2
Contrast Ratio

 1200:1

1200:1

1200:1
Viewing Angle

H:175° / V:175°

H:175° / V:175°

H:175° / V:175°
Touch Technology

IR, 20 points

IR, 20 points

IR, 20 points

Worldwide  Contact  information

Arthur.Chuang  莊再華
E-mail : arthur.chuang@gigaipc.com
Phone Number: +886 -02-89131312
FAX: +886-02-89131332 #814299
Address: B1F No,205, Sec 3 Pai-Hsin Road, Hsin-Tien Dist., New Taipei City, 231, Taiwan

Datasheet Link & Webpage Link



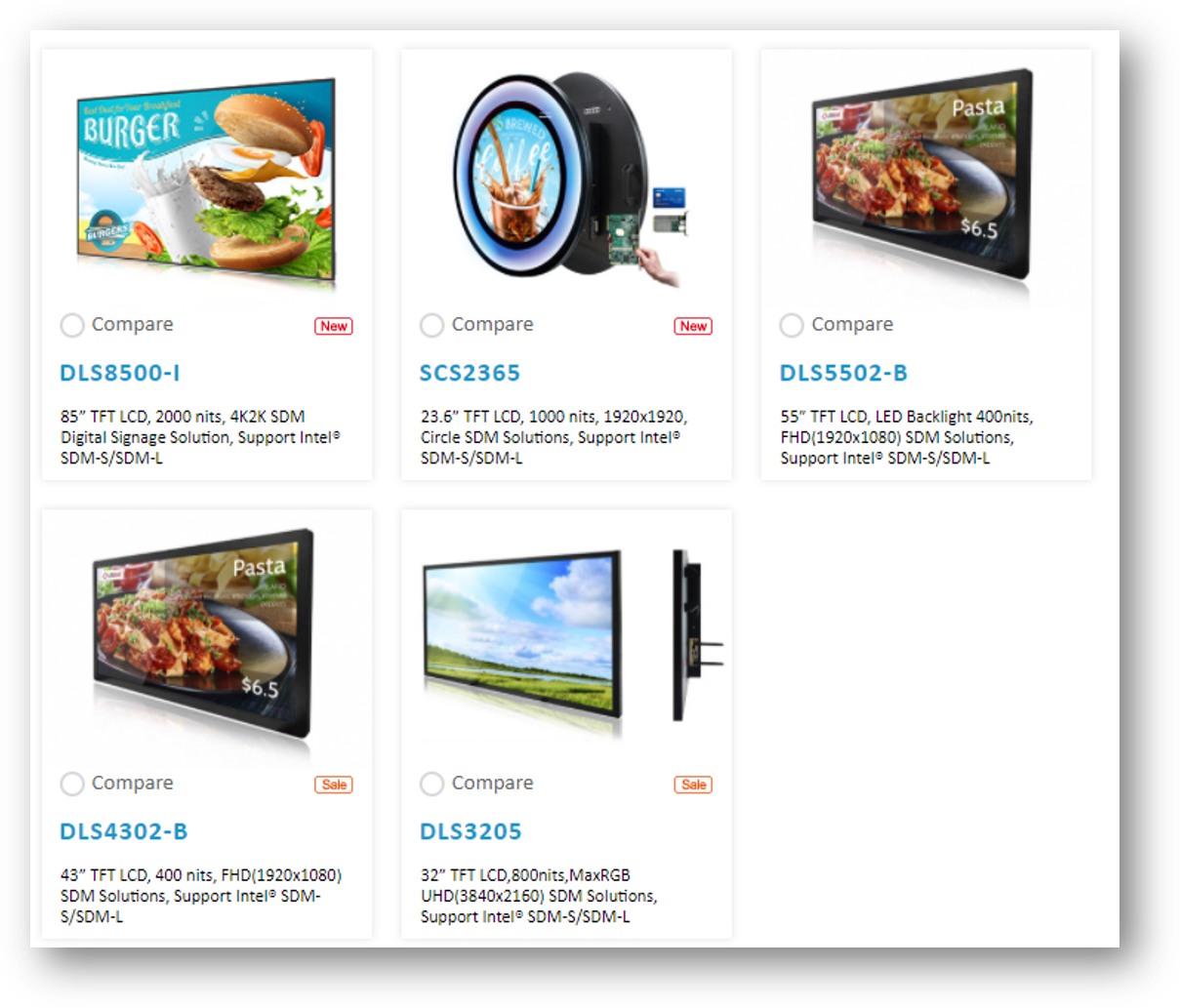

LITEMAX

Product Webpage Links:

DLS3205 32”

DLS4302-B 43”

DLS5502-B 55”

DLS8500-I 85”

SCS2365 23.6” Round Design

Ordering contact (main):

David_King@litemax.com



Disti Channel/Contact (Asia, Europe, Americas etc.)

Asia:     Zack_Chen@litemax.com

Europe: Katherine_Cheng@litemax.com,

              Tim_Liang@litemax.com

Americas: Megan_Cho@litemax.com

                 Tim_Liang@litemax.com





SHARP NEC*

Digital Signage Product Lineup

Digital Signage Product Lineup


NEC MExx1 Series

NEC MExx1 Series

NEC Pxx5 Series

Product / Size

43”, 50”, 55”, 65”

43”, 49”, 55”, 65”, 75”, 86”, 98”

43”, 50”, 55”

Resolution

3840x 2160 (pixels)

3840x 2160 (pixels)

3840x 2160 (pixels)

Brightness

400 nits

500 nits

700 nits

Applications

Retail Signage, Kiosk, Meeting Rooms

Digital Signage, Kiosk, Meeting Rooms

Digital Signage (Transportation), Kiosk

Special features

Remote device management via NaviSet Administrator

High colour accuracy through SpectraView engine
SDM Slot

 Intel® SDM-S & SDM-L Compatible
Operation Hours

18 / 7

24 / 7
Operation Mode

Portrait / Landscape

Worldwide  Contact  information

Arthur.Chuang  莊再華
E-mail : arthur.chuang@gigaipc.com
Phone Number: +886 -02-89131312
FAX: +886-02-89131332 #814299
Address: B1F No,205, Sec 3 Pai-Hsin Road, Hsin-Tien Dist., New Taipei City, 231, Taiwan

Product Webpage Link



Touch Display Product Lineup

Touch Display Product Lineup


NEC MExx1 Series IR

NEC MExx1 Series PCAP

NEC Mxx1 Series IGB

 Sharp PLA Series (InGlass M5 Touch)

Product / Size

43”, 50”, 55”

43”, 49”, 55”, 65”

55”, 65”, 75”, 86”

65”, 75”, 86”

Resolution

3840x 2160 (pixels)

3840x 2160 (pixels)

3840x 2160 (pixels)

3840x 2160 (pixels)

Brightness

400 nits

500 nits

500 nits

500 nits

Applications

Digital Signage, Kiosk, Meeting Rooms

Digital Signage, Kiosk, Touch Table

Digital Signage,  Meeting Rooms

Collaboration Meeting Rooms
SDM Slot

 Intel® SDM-S & SDM-L Compatible
Operation Hours

18 / 7

24 / 7
Operation Mode

Portrait / Landscape

Portrait / Landscape / Face-up


PANASONIC*

Model: SQ1H Series

Series

SQ1H Series

Ordering Contact (Main) Link

Web page Link

Model

TH-86SQ1H

TH-75SQ1H
Screen size
(diagonal)
86-inch class
(2174.2 mm / 85.60")
75-inch class
(1892.7 mm / 74.51")

Aspect ratio

16 : 9

Resolution

4K (3,840 x 2,160)

Brightness

1,200 cd / m2

1,500 cd / m2

Contrast ratio

1,200 : 1

Viewing Angle

178° / 178° (CR＞10)

Panel Surface Treatment

Anti-glare low reflection type (Haze 3 %)

Anti-glare type (Haze 1 %)

Dimensions
(W x H x D)
*Incl. handles

1929 x 1100 x 96* mm /
75.95 x 43.31 x 3.75"

1684 x 962 x 96* mm /
66.28 x 37.86 x 3.75"

Weight

Approx.
57.8 kg /
127.4 lbs

Approx.
42.2 kg /
93.0 lbs



 Model: SQ2H Series

Series

SQ2H Series

Ordering Contact (Main) Link

Web page Link

Model

TH-98SQ2H

TH-86SQ2H

TH-75SQ2H

TH-65SQ2H

TH-55SQ2H

TH-50SQ2H

TH-43SQ2H
Screen size
(diagonal)

98-inch  class (2476.9 mm /
97.51”)

86-inch  class (2174.2 mm /
85.60”)

75-inch  class (1892.7 mm /
74.51”)

65-inch  class (1638.9 mm /
64.52”)

55-inch  class (1387.8 mm /
64.63”)

50-inch  class (1257.3 mm /
49.50”)

43-inch  class (1079.8 mm /
42.51”)

Aspect ratio

16 : 9

Resolution

4K (3,840 x 2,160)

Brightness

700 cd / m2

Contrast ratio

1,200 : 1

4,000 : 1

1,200 : 1

5,000 : 1

4,000 : 1

1,200 : 1

Viewing Angle

178° / 178° (Typ.)

Panel Surface Treatment

Anti-glare treatment (Haze 25 %)

Dimensions
(W x H x D)
*Incl. handles

2194 x 1256
x 90 mm /
86.36 x 49.46 x 3.55"

1929 x 1100
x 70 mm /
75.95 x 43.31 x 2.74"

1684 x 962
x 70 mm /
66.28 x 37.87 x 2.74"

1463 x 838
x 69 mm /
57.58 x 32.97 x 2.72"

1242 x 713
x 66 mm /
48.89 x 28.06 x 2.60"

1129 x 649
x 66 mm /
44.43 x 25.56 x 2.60"

973 x 562
x 65 mm /
38.31 x 22.10 x 2.56"

Weight

Approx.
70.0 kg /
154.3 lbs.

Approx.
48.7 kg /
107.4 lbs.

Approx.
37.4 kg /
82.3 lbs

Approx.
28.2 kg /
62.2 lbs

Approx.
18.0 kg /
39.7 lbs

Approx.
15.5 kg /
34.0 lbs

Approx.
11.5 kg /
25.3 lbs



 Model: SQ1 Series

Series

SQ1 Series

Ordering Contact (Main) Link

Web page Link

Model

TH-98SQ1

TH-86SQ1

TH-75SQ1

TH-65SQ1

TH-55SQ1

TH-49SQ1
Screen size
(diagonal)

98-inch class (2476.9 mm /
97.51")

86-inch  class (2174.2 mm /
85.60”)

75-inch  class (1892.7 mm /
74.51”)

65-inch  class (1638.9 mm /
64.52”)

55-inch  class (1387.8 mm /
54.63”)

50-inch  class (1232.0 mm /
48.50”)

Aspect ratio

16 : 9

Resolution

4K (3,840 x 2,160)

Brightness

500 cd / m2

Contrast ratio

1,300 : 1

1,200 : 1

1,100 : 1

Viewing Angle

178° / 178° (CR≧10)

Panel Surface Treatment

Anti-Glare Type (Haze 28 %)

Dimensions
(W x H x D)
*Incl. handles

2194 x 1249
x 90 mm /
86.36 x 49.15 x 3.54"

1928 x 1099
x 86 mm /
75.91 x 43.27 x 3.39"

1681 x 959
x 73 mm /
66.15 x 37.75 x 2.87"

1458 x 836
x 77 mm /
57.40 x 32.90 x 3.02"

1240 x 714
x 74 mm /
48.82 x 28.09 x 2.88"

1105 x 637
x 74 mm /
44.48 x 25.08 x 2.88"

Weight

Approx.
90.0 kg /
198.5 lbs.

Approx.
66.0 kg /
145.5 lbs.

Approx.
56.0 kg /
123.5 lbs.

Approx.
36.0 kg /
79.4 lbs.

Approx.
25.5 kg /
56.3 lbs.

Approx.
21.0 kg /
46.3 lbs.



 Model: SQE2 Series

Series

SQE2 Series

Ordering Contact (Main) Link

Web page Link

Model

TH-98SQE2

TH-86SQE2

TH-75SQE2

TH-65SQE2

TH-55SQE2

TH-50SQE2

TH-43SQE2
Screen size
(diagonal)

98-inch  class (2476.9 mm /
97.51”)

86-inch  class (2174.2 mm /
85.60”)

75-inch  class (1892.7 mm /
74.51”)

65-inch  class (1638.9 mm /
64.52”)

55-inch  class (1387.8 mm /
54.63”)

50-inch  class (1257.3 mm /
49.50”)

43-inch  class (1079.8 mm /
42.51”)

Aspect ratio

16 : 9

Resolution

4K (3,840 x 2,160)

Brightness

500 cd / m2

Contrast ratio

1,200 : 1

1,100 : 1

1,200 : 1

5,000 : 1

1,200 : 1

Viewing Angle

178° / 178° (CR＞10)

Panel Surface Treatment

Anti-glare treatment (Haze 25 %)

Anti-glare treatment (Haze 28 %)

Anti-glare treatment (Haze 25 %)

Dimensions
(W x H x D)
*Incl. handles

2216 x 1271
x 99 mm /
87.25 x 50.02 x 3.87"

1929 x 1100
x 81 mm/
75.91 x 43.28 x 3.16"

1684 x 968
x 100 mm/
66.28 x 38.09 x 3.92"

1456 x 835
x 96 mm/
57.32 x 32.84 x 3.78"

1236 x 710
x 84 mm/
48.64 x 27.92 x 3.28"

1121 x 646
x 83 mm/
44.12 x 25.43 x 3.27"

964 x 555
x 83 mm/
37.92 x 21.85 x 3.26"

Weight

Approx.
99.8 kg /
220.1 lbs.

Approx.
62.9 kg /
138.7 lbs.

Approx.
37.4 kg /
82.5 lbs.

Approx.
24.9 kg /
54.9 lbs.

Approx.
18.2 kg /
40.2 lbs.

Approx.
13.2 kg /
30.2 lbs.

Approx.
10.6 kg /
23.4 lbs.



 Model: EQ2 Series

Series

EQ2 Series

Ordering Contact (Main) Link

Web page Link

Model

TH-86EQ2

TH-75EQ2

TH-65EQ2

TH-55EQ2

TH-50EQ2

TH-43EQ2
Screen size
(diagonal)

86-inch  class (2174.2mm / 85.60”)

75-inch  class (1892.7mm / 74.51”)

65-inch  class (1638.9mm / 64.52”)

55-inch  class (1387.8mm / 64.63”)

50-inch  class (1257.3mm / 49.50”)

43-inch  class (1079.8mm / 42.51”)

Aspect ratio

16 : 9

Resolution

4K (3,840 x 2,160)

Brightness

500 cd / m2

Contrast ratio

1,200 : 1

5,000 : 1

1,200 : 1

Viewing Angle

178° / 178° (CR≧10)

Panel Surface Treatment

Anti-Glare Type (Haze 25 %)

Dimensions
(W x H x D)
*Incl. handles

1929 x 1100
x 96 mm /
75.95 x 43.31
x 3.76"

1684 x 962
x 96 mm /
66.28 x 37.87
x 3.76"

1463 x 838
x 94 mm /
57.58 x 32.97
x 3.68"

1242 x 713
x 66 mm /
48.89 x 28.06
x 2.60"

1129 x 649
x 66 mm /
44.43 x 25.56
x 2.60"

973 x 562
x 65 mm /
38.31 x 22.10
x 2.56"

Weight

Approx.
50.7 kg /
111.8 lbs.

Approx.
37.3 kg /
82.2 lbs.

Approx.
29.7 kg /
65.5 lbs.

Approx.
18.0 kg /
39.7 lbs.

Approx.
15.5 kg /
34.2 lbs.

Approx.
11.7 kg /
25.8 lbs.



 Model: BQ1 Series

Series

BQ1 Series

Ordering Contact (Main) Link

Web page Link

Model

TH-75BQ1

TH-65BQ1
Screen size
(diagonal)
75-inch class
(1892.7mm / 74.51")
65-inch class
(1638.9mm / 64.52"

Aspect ratio

16 : 9

Resolution

4K (3,840 x 2,160)

Brightness

500 cd / m2

Contrast ratio

1,200 : 1

Viewing Angle

178° / 178° (CR＞10)

Dimensions
(W x H x D)
*Incl. handles

1716 x 1032 x 107 mm /
67.6 x 40.7 x 4.2"

1495 x 908 x 105 mm /
58.9 x 35.8 x 4.2"

Weight

Approx.
56.6 kg /
124.8 lbs.

Approx.
43.4 kg /
95.7 lbs.



Other Applications

PANASONIC

 Model: RQ25K Series

Series

RQ25K Series

Ordering Contact (Main) Link



Model

PT-RQ25K

PT-RQ18K

PT-RZ24K

PT-RZ24K

PT-RZ14K
Projector
Type

3-Chip DLPTM Projector

Panel Size

1920 x 1200 pixels / 20.3 mm (0.8 in)

Aspect ratio

16 : 10

Output Resolution

4K (3840 x 2400)

WUXGA (1920 x 1200)

Light Output *
lm
(Center lm)

20,000 lm
(21,000 lm)

16,000 lm
(16,800 lm)

20,000 lm
(21,000 lm)

16,000 lm
(16,800 lm)

14,000 lm
(14,700 lm)

Contrast ratio
(full on/full off)

25,000 : 1

Dimensions
(W x H x D)

550 x 220 x 570 mm (21-5/8 x 8-11/16 x 22-7/16 in)

Weight

Approx. 35.0 kg / 77.2 lbs.

Option Lens

ET-D3LE Series / ET-D75LE Series / Throw Distance Calculator Link



 Model: REQ12 Series

Series

REQ12 Series

Ordering Contact (Main) Link



Model

(L : Lens less)

PT-REQ12
PT-REQ12L

PT-REQ10
PT-REQ10L

PT-REQ80
PT-REQ80L

PT-REZ12
PT-REZ12L

PT-REZ10
PT-REZ10L

PT-REZ80
PT-REZ80L
Projector
Type

1-Chip DLPTM Projector

Panel Size

1920 x 1200 pixels / 20.3 mm (0.8 in)

Aspect ratio

16 : 10

Output Resolution

4K (3840 x 2400)

WUXGA (1920 x 1200)

Light Output *
lm
(Center lm)

12,000 lm
(12,400 lm)

10,000 lm
(10,300 lm)

8,000 lm
(8,200 lm)

12,000 lm
(12,400 lm)

10,000 lm
(10,300 lm)

8,000 lm
(8,200 lm)

Contrast ratio
(full on/full off)

25,000 : 1

Dimensions
(W x H x D)

498 x 212 x 648 mm (19-19/32 x 8-11/32 x 25-1/2 in)
* Depth 538 mm (21-3/16 in) for the Lens less model

Weight

Approx. 28.7 kg / 63.3 lbs  (27.0 kg / 59.5 lbs *Lens less model).

Option Lens

ET-C1 Series / Throw Distance Calculator Link

AXIOMTEK

Model: SSK315

Key features
  • 15.6" optical bonding LCD with wide viewing angle (400 nits brightness) 400 nits of brightness
  • Supports Intel® Smart Display Module Small (Intel® SDM-S) and Intel® Smart Display Module Large (Intel® SDM-L) with Intel® Core™ i5/i3 or Celeron® processor (Whiskey Lake)
  • Push button design for easy maintenance
  • Supports floor stand and counter-top stand
  • Dual illuminating status LEDs
  • Modular design
  • All-in-one seamless design
Product Page Link
Datasheet Link

Model: SSK515

Key features
  • 15.6" TFT LCD with wide viewing angle; 300 nits of brightness
  • Supports Intel® Smart Display Module Large (Intel® SDM-L) with Intel® Core i5/i3 and Intel® Celeron® processor (Whiskey Lake)
  • Super slim design with only 8.7 cm thickness
  • Supports Verifone & Ingenico EFT terminal
  • Dual illuminating status LEDs
  • All-in-one seamless modular design
Product Page Link
Datasheet Link

CLIENTRON*

MODEL: TC238-JL

Model Name

TC238-JL

Product Features

Designed with Intel Jasper Lake N Platform for energy saving

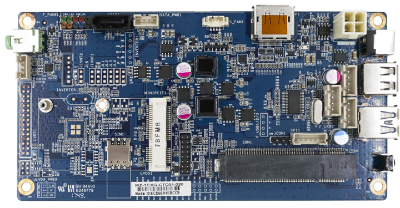

Compliant with Intel Smart Display Module (SDM-L) design

Processor

Intel Celeron N5100 Quad-Core 1.1GHz up to 2.8GHz

Display size and resolution or SDM-L/S

Display size: 23.8”

Resolution: 1920 x1080

SDM-L

Memory Size

x 1 SO-DIMM socket for DDR4 2933MHz RAM up to 16GB

Storage

8G eMMC on board (Manufacturing option), x 1 mSATA connector

Audio

3.5mm Headset jack x 1

Networking

(RJ-45, 10/100/1000 Base-T)

Physical I/O

USB 3.2 Gen1 x2, USB 2.0 x2, DP x1, DVI-D x1, RJ45 x1

Power

System power 60W adapter

OS supported

Win10 IoT Enterprise, Linux per request



Website page Link



APANTAC*

 Model: SDM-HDBT-R-UHD

Model

SDM-HDBT-R-UHD

Key Features
  • UHD HDBaseT receiver for SDM-S
  • Comes with adapter for SDM-L
  • Supports HDMI 2.0/HDCP 2.2
  • Extends HDMI signal (1080P@12 bit) up to 330 feet (100 meters)
  • Extends HDMI (UHD@4:4:4) signals up to 230 feet (70 meters)
  • Supports 3D pass-through
  • Supports CEC pass-through
  • Supports bi-directional RS-232
  • Supports all frequency IR control
  • Supports LPCM, Dolby True HD and Dolby Digital audio

Input

1 x HDBaseT input via RJ45

Output

SDM Connector

Contact: Thomas Tang T.Tang@apantac.com

Webpage & Datasheet Link

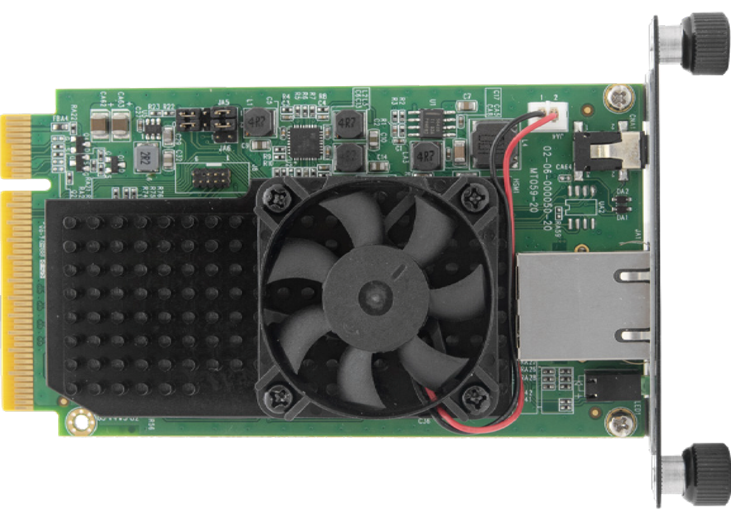

 Model: SDM-SDVoE-R (Copper)

Model

SDM-HDBT-R-UHD

Key Features
  • AV over IP SDVoE receiver for SDM-S Supports HDMI 2.0/HDCP 2.2/1.4
  • Supports UHD RGB/4:4:4 8 bit, 4:2:0 10 bit and 12 bit HDR
  • Supports all resolutions up to 594 MHz
  • Supports HDR pass through
  • Extends signals up to 330 feet (100 meters)
  • Supports CEC pass-through
  • Supports up to 8 channels of audio, including PCM, Dolby True-HD and DTS-master audio
  • Supports RS-232
  • 10Gbps Ethernet Interface
  • 1Gbps pass-through Ethernet Interface

Input

SDVoE via RJ45 (10Gbps Ethernet)

Output

SDM Connector

Contact: Thomas Tang T.Tang@apantac.com

Webpage & Datasheet Link



 Model: SDM-FIB-R-Pro (Fiber & Copper)

Model

SDM-FIB-R-Pro (Fiber & Copper)

Key Features
  • AV over IP SDVoE receiver for SDM-S Supports HDMI 2.0/HDCP 2.2/1.4
  • SDVoE fiber or copper receiver for SDM-L
  • Built-in Scaler
  • Supports HDMI 2.0/HDCP 2.2/1.4
  • Supports UHD RGB/4:4:4 8 bit, 4:2:0 10 bit and 12 bit HDR
  • Supports all resolutions up to 594 MHz
  • Supports CEC pass-through
  • Supports up to 8 channels of audio, including PCM, Dolby True-HD and DTS-master audio
  • Supports HDR pass through
  • Supports RS-232
  • 10Gbps Ethernet Interface
  • 1Gbps pass-through Ethernet Interface

Input

SDVoE via fiber or copper(10Gbps Ethernet)

Output

SDM Connector

Contact: Thomas Tang T.Tang@apantac.com

Webpage & Datasheet Link



 Model: SDM-FIB-R (Fiber)

Model

SDM-FIB-R (Fiber)

Key Features
  • AV over IP SDVoE receiver for SDM-S Supports HDMI 2.0/HDCP 2.2/1.4
  • SDVoE fiber or copper receiver for SDM-L
  • Built-in Scaler
  • Supports HDMI 2.0/HDCP 2.2/1.4
  • Supports UHD RGB/4:4:4 8 bit, 4:2:0 10 bit and 12 bit HDR
  • Supports all resolutions up to 594 MHz
  • Supports CEC pass-through
  • Supports up to 8 channels of audio, including PCM, Dolby True-HD and DTS-master audio
  • Supports HDR pass through
  • Supports RS-232
  • 10Gbps Ethernet Interface
  • 1Gbps pass-through Ethernet Interface

Input

SDVoE via fiber or copper(10Gbps Ethernet)

Output

SDM Connector

Contact: Thomas Tang T.Tang@apantac.com

Webpage & Datasheet Link

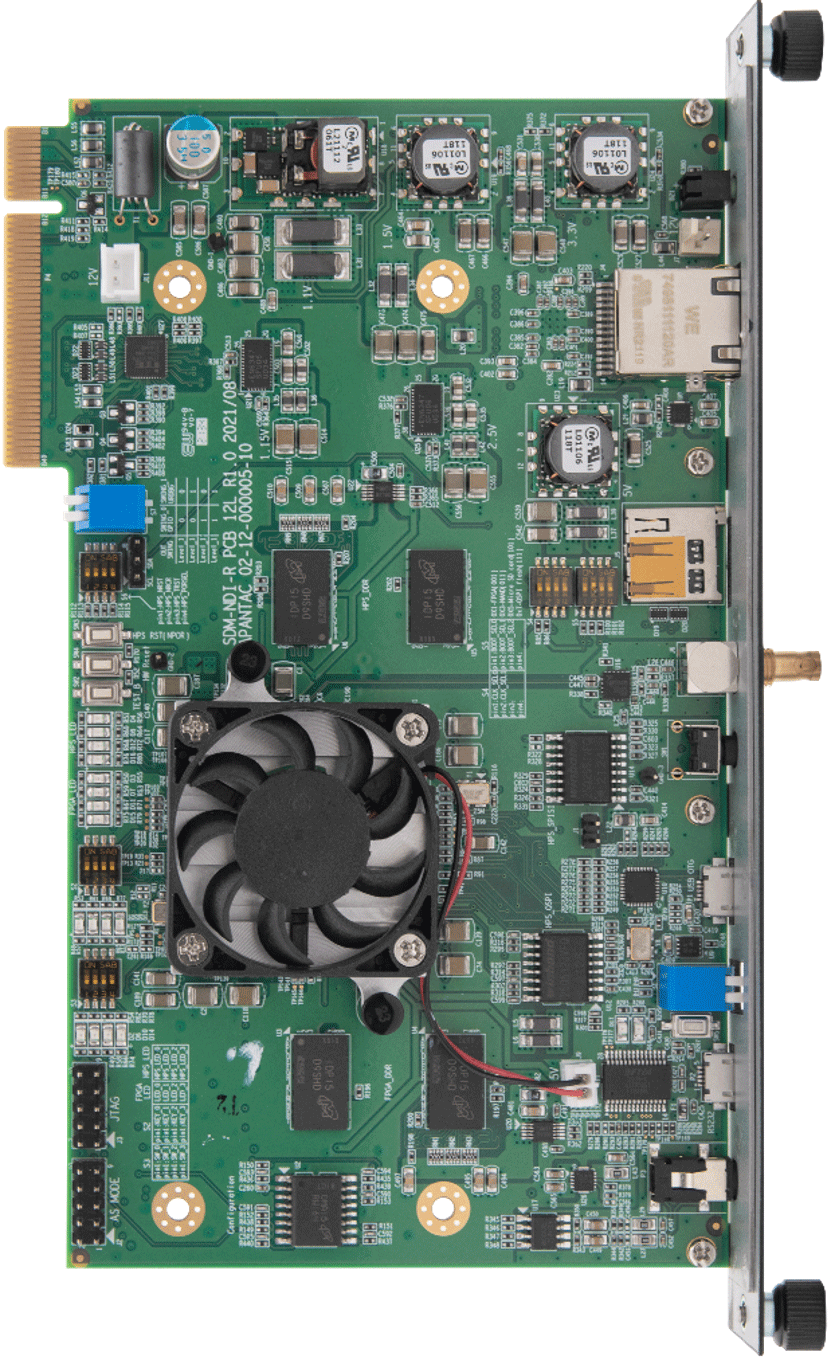

 Model: SDM-NDI-R

Model

SDM-NDI-R

Key Features
  • AV over IP NDI receiver for SDM-L Supports HDMI 2.0/HDCP 2.2/1.4
  • High bandwidth NDI receiver for SDM-L
  • Supports UHD@60Hz, RGB 444
  • Supports NDI v5
  • Supports RS-232
  • Supports Analog audio monitoring output
  • 3G SDI output
  • 10/100 Base Ethernet Interface

Input

NDI  via  copper(1Gbps Ethernet)

Output

SDM Connector

Contact: Thomas Tang T.Tang@apantac.com

Webpage & Datasheet Link

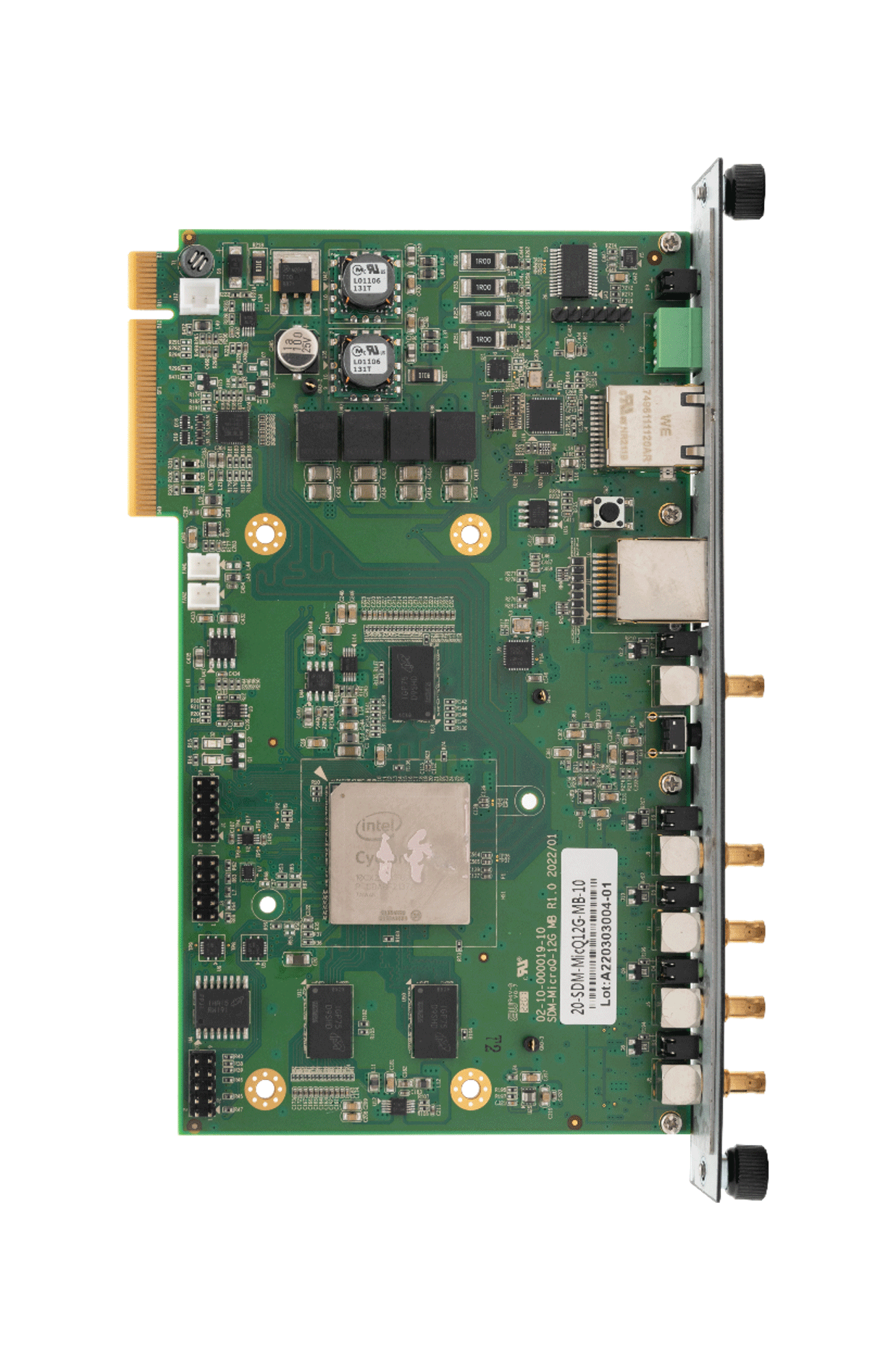

 Model: SDM-MicroQ-12G

Model

SDM-MicroQ-12G

Key Features
  • 12G SDI Quad split for SDM-L
  • 4 auto-detect 12G/3G/HD-SDI inputs
  • Fixed Quad Split, each window can go full screen
  • Single frame processing delay
  • Decode up to 8 embedded audio per SDI input
  • Display up to 8 audio meters per window
  • Ethernet for configuration, dynamic labels & Tallies (TSL)
  • SDI output

Input

4 x 12G SDI

Output

SDM Connector

Contact: Thomas Tang T.Tang@apantac.com

Webpage & Datasheet Link





BIRDDOG*

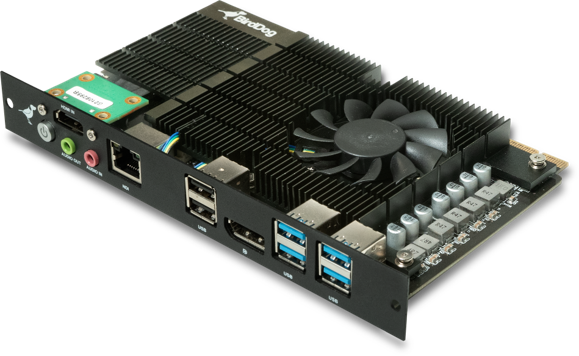

Model: SDM-M1

Model

SDM-M1

Video Format

(4K) 2160p 25, 29.97, 30, 50, 59.94, 60
(HD) 1080p 25, 29.97, 30, 50, 59.94, 60
(HD) 1080i 50, 59.94, 60
(HD) 720p 50, 59.94, 60

Video Input

1 x HDMI Standard Type A connector
HDMI v2.0, RGB or YCbCr

Video Output

SDM-L

Audio Digital

2-Channel, 24-bit embedded audio, 48 kHz sample rate
Audio Analogue 3.5mm mic. headset input / output
Video Codec Support NDI® – High Bandwidth i-frame, low latency
NDI® HX2 – h.264 / HEVC long-GOP
Network Connectivity Ethernet RJ45 1000baseT
Weight and Dimensions Dimensions (WxLxH): 195x112x25mm
Weight (TBC) ~ 200g

For ordering contacts click here

Product webpage BirdDog SDM

Product and Performance Information

1

Performance varies by use, configuration and other factors. Learn more at www.Intel.com/PerformanceIndex.
