Thunderbolt 4 technology helps provide a clutter-free desktop with consolidated connectivity and high bandwidth in one simple connection. Gamers, content creators, and workers who need everyday productivity all benefit from this single, powerful connection. Quickly move massive files. Enable the highest-quality display settings. Add more accessories with the use of Thunderbolt docks and hubs while simultaneously charging the laptop over one cable. Also, you can daisy chain multiple Thunderbolt devices together in a row or through a hub that provides up to four Thunderbolt 4 ports.
Thunderbolt™ Technology: The Fastest, Simplest and Most Reliable USB-C Connection1
What Is Thunderbolt Technology?
Thunderbolt technology is a universal cable connectivity solution that offers 40 gigabits per second (Gbps) bandwidth for high-speed data and video transfer, while also charging your laptop3 over a single cable. It uses the same Type-C connector as other USB Type-C (USB-C) ports.
However, Thunderbolt 4 technology is much more than a USB-C connector. Thunderbolt brand certification mandates higher minimum performance and capabilities for cables, PCs, and accessories for greater reliability across devices and operating systems. As the most complete and highest standard of USB-C connections available on the market, Thunderbolt 4 technology is backwards compatible with its prior generation as well as millions of USB 3 and USB4 products.
Thunderbolt Advantages
Thunderbolt Technology vs Other USB-C Connections
Despite Thunderbolt 4 products using the same USB Type-C connector—recognizable by its oval shape—Thunderbolt 4 brand certification requires higher minimum standards for power, data, and video, with constant 40 Gbps bandwidth in each direction and supports PCI Express (PCIe) connectivity for fast data transfer speed.
Other USB-C cables, devices, and ports may be limited to a variable range of data speeds, with no guarantee of display quality nor simultaneous laptop charging. PCIe support is unavailable with USB 3 and optional on USB4. The Thunderbolt logo is a simple, sure-fire indicator of what a connection between devices can do.
Comparison2: Thunderbolt vs USB
|
ThunderboltTM 4 |
ThunderboltTM 3 |
USB4 |
USB 3 / DP |
|---|---|---|---|---|
| USB Type-C |  |
 |
|
|
| 40 Gbps bandwidth | |
|
||
| 15W power to run accessories | |
|
||
| Mandatory testing and certification | |
|
||
| 2 x 4K/60Hz monitors | |
|||
| Required PC charging3 on at least one computer port | |
|||
| Universal 40 Gbps cables up to 3m | |
|||
| Up to 4 Thunderbolt™ ports on accessories | |
|||
| System wake from sleep | |
|||
| Intel® VT-d based DMA protection | |
Additional Resources
Thunderbolt Technology Benefits
As part of Thunderbolt brand certification, mandatory testing ensures broad compatibility across Mac, Windows, Chrome, or Linux. It also ensures interoperability of computers, cables, and accessories from different brands, so your devices work well together regardless of the OS or hardware manufacturer.
Thunderbolt 4 technology is backwards compatible with its prior generation as well as millions of USB 3 and USB4 products. In 2019, Intel contributed the Thunderbolt protocol specification to the USB controlling consortium, the USB Implementers Forum (USB-IF). The royalty-free use of the Thunderbolt protocol aided in the development of USB4, the next-generation USB protocol. The convergence of the underlying Thunderbolt and USB protocols further increased compatibility among USB-C-based products, simplifying how people connect their devices. However, when devices with varying ports are connected, performance capabilities will only support the lowest level of the standard in that connection.
Thunderbolt 4 technology provides a consistent total bandwidth of 40 gigabits per second in each direction. This bandwidth is dynamically allocated between data and video for all devices on a single connection. Compared to the variable speeds of USB 3.2 and USB4, the high standard set by the Thunderbolt 4 interface delivers peak data transfer speeds—or maximum video display quality—to support productivity, gaming, and content creation.
Thunderbolt Technology Use Cases
Docking Stations
Connect multiple devices to a Thunderbolt dock or hub that can be plugged into a computer with Thunderbolt ports, consolidating all accessories into a single connection. Set up once and be hassle-free. Additionally, the entire accessory setting could be shared with other users by simply switching a single cable to the other user’s notebook.
Display Connectivity
Enjoy stunning visuals on larger monitors with built-in Thunderbolt ports or easily connect any monitor to a full-featured Thunderbolt dock. The 40 Gbps high-bandwidth connection supports premium visual quality with maximum resolution, refresh rate, and color accuracy without adding extra cables to your workspace.
External Storage
The high bandwidth Thunderbolt 4 interface allows end users to connect their computer to external storage that uses PCIe-based drives. This capability delivers the highest performance and makes it possible to game or create directly from an external drive, freeing up valuable storage space on the computer.
External Graphics
Add more graphics horsepower by connecting your laptop with an external high-end desktop GPU. Gamers can play at recommended visual settings and higher frame rates, even on thin, light notebooks. Creators can significantly reduce rendering and export times, boosting their productivity and output.

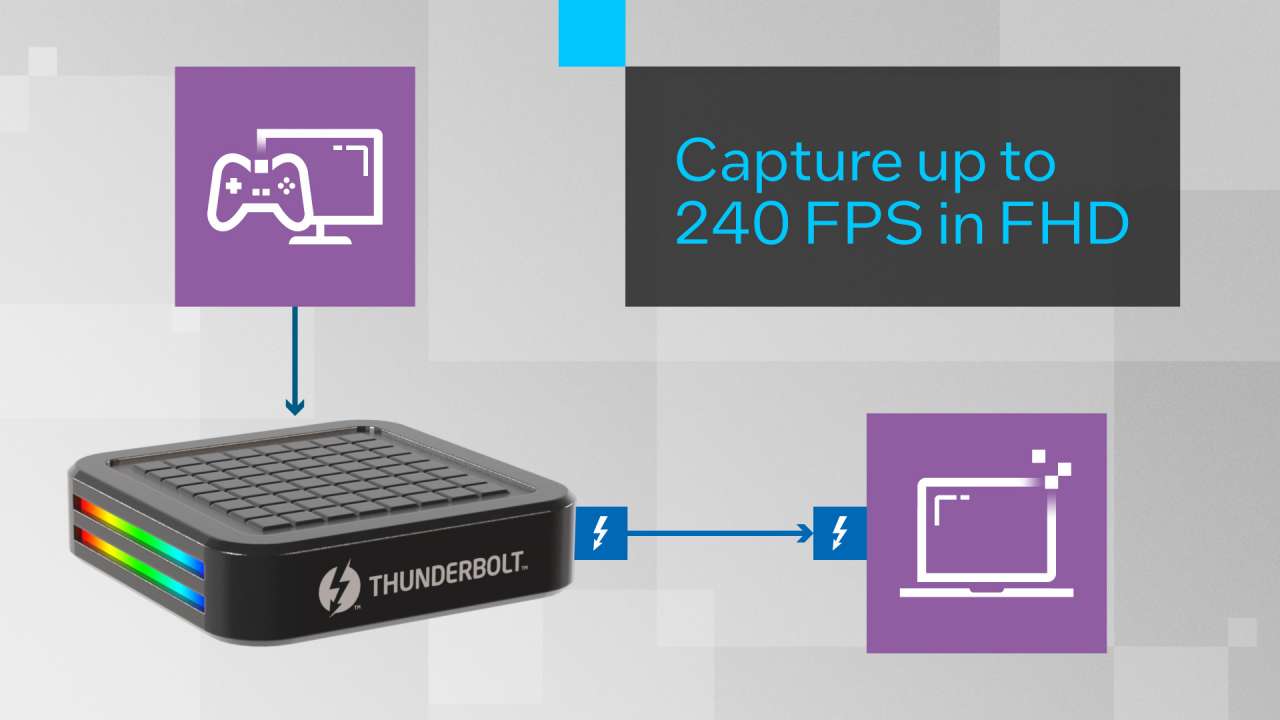

Streaming
Victory or defeat is determined in a fraction of a second. Record precious frames for your highlight reels. Thunderbolt audio/video capture cards offer the ability to capture your gameplay at up to 240 FPS in full HD for the smoothest motion and crispest details. That high quality is totally unmatchable!
Daisy Chain / Hub
Connect multiple Thunderbolt devices together in a daisy chain. Data and video signals can flow from the computer down the chain into five accessories. Thunderbolt 4 technology also introduced a new capability allowing accessories to provide up to four Thunderbolt 4 ports so users can connect more Thunderbolt devices into a single hub or dock.
Real Life Usage Videos
Working and Learning
Effortlessly expand your laptop to a full-fledged workspace for easy multitasking and ergonomic comfort. With a universal Thunderbolt port, you can connect multiple high-resolution monitors, add all the accessories you need, and power your laptop via a single cable connection. Settle into your work after just a simple plug-in.
Gaming
Transform your laptop into a full-fledged, immersive gaming station with Thunderbolt 4 ports. Connect to a gaming monitor, a keyboard, a mouse, a video capture device for recording live streams, and an external SSD drive to store and play your favorite games. Thunderbolt 4 connections can do it all. Keeping your gaming space neat and manageable has never been easier.
Creating
Effortlessly expand your laptop to a full-fledged creation space with Thunderbolt 4 ports. Get more done on multiple screens. See your vision brought to life in stunning 4K. Breeze through massive files. At 40 Gbps, Thunderbolt technology is the fastest, simplest way to connect to monitors, add storage, and charge your PC4.
Learn More About Thunderbolt 4 Technology
Thunderbolt 4 Technology
The latest generation of cable technology from Intel, the Thunderbolt 4 protocol offers distinct advantages over other USB-C solutions. It offers greater performance and an expansive set of capabilities, while fully compatible with all Type-C solutions. Thunderbolt 4 ports are available on many modern computers, and the technology is compatible with Windows, Mac, Linux, and Chrome OS. Intel® Evo™ laptops5 6 and Intel vPro®7 platform-enabled laptops all have at least one Thunderbolt 4 port.
Thunderbolt Tech Tips
A walkthrough of how to set up a docking station with your laptop, monitor, and peripheral devices over a single cable connection.
Tips on how to configure Microsoft Windows* 11 with Thunderbolt docks for dual 4K monitors and use a Windows 11 screen organization feature called SNAP to maximize productivity.
FAQs
Check out which type of ports your system has by:
- Looking for the Thunderbolt™ icon on devices (next to the USB-C port).
- Checking the product’s I/O specification online to see if it lists Thunderbolt ports.
- Downloading Intel® Driver & Support Assistant (Intel® DSA) to detect what ports you have on your PC.
Thunderbolt technology delivers the best-in-class capabilities to drive high-bandwidth data, power, and video transfers for up to five devices on one connection. Gamers, creators, and workers can enjoy a clean desktop space with multiple displays and accessories on a powerful connectivity standard. Learn how Thunderbolt technology delivers the best experiences with simple, powerful, and flexible connectivity.
- Thunderbolt 4 technology is the next generation of the Thunderbolt protocol, following Thunderbolt 3 technology. Both generations use the same USB-C connector type, but Thunderbolt 4 technology introduces higher minimum requirements and new capabilities for a best-in-class user experience.
- Learn more about the difference through this article.
Checking the product’s I/O specification online to see if it lists Thunderbolt ports. Downloading Intel® Driver & Support Assistant (Intel® DSA) to detect what ports you have on your PC.
No. You don’t need to install any software or drivers to make things work. Connect your computer with any Thunderbolt accessory, and they simply work together.
Thunderbolt 4 technology became integrated in the CPU starting with 11th Gen Intel® Core™ processors. Today, approximately 90% of 11th gen Intel Core processor-based laptops have Thunderbolt ports.
At least one Thunderbolt 4 port is required on all Intel® Evo™ and Intel® Core™ vPro® processor family-based laptops.
Look for the Thunderbolt icon on your PC (next to the USB-C port) or check the product I/O specification for Thunderbolt technology.
Please go to https://thunderbolttechnology.net/.
