Intel® RAID Controller SRCSAS18EOverview

  • Overview
  • Specifications
  • Support

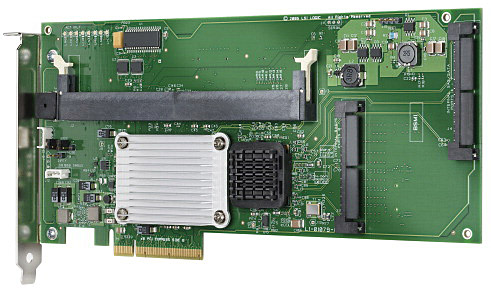

An Eight-Port RAID Solution Delivering High Performance and Reliability

The Intel® RAID Controller SRCSAS18E is the first Intel RAID Controller to support both Serial ATA (SATA) and Serial Attached SCSI (SAS) devices. This gives businesses the ability to customize RAID solutions and help lower the total cost of ownership with a standardized server and storage infrastructure.

The RAID Controller SRCSAS18E supports RAID 0, 1, 5, 10, and 50 and enclosure management using SAF-TE, SES2, and Serial GPIO protocols. The controller simplifies long-term server operation and maintenance by providing auto rebuild, remote Web-based management of the RAID array through the Intel RAID Web Console 2 utility, and both online capacity expansion and RAID-level migration.

Product information

  • Get Recommended Configurations and Order Codes

Features and benefits

Form Factor Full-height, three-quarter length PCI: 9.5" x 4.4" (241mm x 112mm)
Availability Auto hot-spare, auto rebuild, auto rebuild restore, drive roaming, controller migration, online capacity expansion, remote monitoring and management
Manageability Intel® RAID BIOS Console, Intel® RAID Web Console 2, Command Line Utilities
Configurability Variable stripe size, variable cache options, drive coercion, array spanning, variable rebuild rate
Status Indicators Audible alarm, 12C (for enclosure management)
Ambient Temperature Operating (dry bulb): 0C to 55C
Regulatory Compliance Integration with a validated Intel® Server Board and configuration as outlined in the Intel® RAID Controller SRCSAS18E Hardware Guide for the following countries or regions: Australia/New Zealand, Canada, Europe, International, Japan, Taiwan, United States
