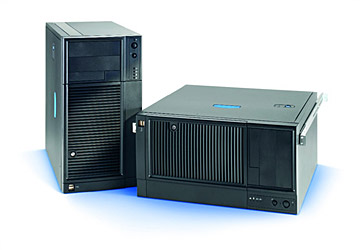

Intel® Server Chassis SC5295-EOverview
By supporting both dual-core Intel® Pentium® D processors and dual 64-bit Intel® Xeon® processors in an entry-level chassis, the Intel® Entry Server Chassis SC5295-E provides a powerful and cost-effective foundation for running business-critical applications. For reliability, the chassis offers an optional redundant power supply and endures rigorous validation testing that surpasses most industry standards. It also supports sophisticated Intel® server technologies specifically designed to boost reliability as well as simplify server administration and maintenance.
Product information
-
Download Product Brief
File Type/Size: PDF 481KB
- View Intel® Virtual System Tour
- Get Recommended Configurations and Order Codes
- Ad Builder
Features and benefits
| Specifically designed for and validated with Intel® Entry Server Board SE7230NH1-E and Intel® Server Boards SE7320EP2, SE7525RP2, and SE7520BD21 | Scalable performance, reliability, and easy integration |
|---|---|
| Several power-supply options: 350W fixed, 420W fixed, 500W redundant (SC5295BRP configuration), 600W fixed | Power capabilities for a robust workstation or server solution at diverse price points |
| One fan for cooling the main chassis and one fan for cooling the power supply | Quiet cooling operations even in clustered rack-mount configurations |
| Six tool-less fixed-drive bays upgradable to one-inch Serial ATA or Ultra320 SCSI hot-swap bays | Easily expandable and reconfigurable storage capacity |
| Two 5.25-inch peripheral drive bays and one 3.5-inch flexible drive bay | Configuration flexibility |
| Tool-less assembly of fixed and hot-swap drive bays, fixed drives in fixed-drive bay, 5.25 inch bay peripherals, hot-swap fans, hot-swap power supplies, PCI, side-access cover | Simplified maintenance for lower service and support costs |
Related products
| Processors | |
|---|---|
| Server Boards | |
| Other |
1 Different product models of the Intel® Entry Server Chassis SC5295-E are compatible with different boards: product model SC5295UP with the Intel® Entry Server Board SE7230NH1-E, product models SC5295DP and SC5295BRP with both the Intel® Server Board SE7320EP2 and Intel® Server Board SE7520BD2, and product model SC5295WS with the Intel® Server Board SE7525RP2.
