Why am I missing some icons in Signal Tap when using the Quartus® Prime Pro Edition Software version 18.0?

Environment

Bug ID: FB: 555279;

Quartus Edition

Intel® Quartus® Prime Pro Edition

Version Found: 18.0 Version Fixed: 18.1

Quartus Add-ons

Intel® Stand-Alone Programmer 10.23 (For Legacy Max+Plus® II Software)

FPGA Intellectual Property

Signal Tap Logic Analyzer Intel® FPGA IP

Version Found: 18.0

BUILT IN - ARTICLE INTRO SECOND COMPONENT

Description

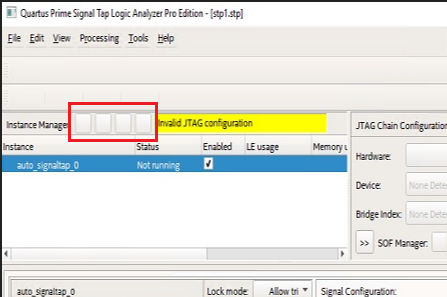

Due to a problem in the Quartus® Prime Pro Edition Software version 18.0, you may see some missing icons in the Signal Tap Logic Analyzer GUI. This problem occurs when installing the stand-alone programmer for the Quartus® Prime Pro Edition Software version 18.0.

Resolution

To work around this problem, for the Quartus® Prime Pro Edition Software version 18.0, download and install patch 0.25 from the links below. You must install the Quartus® Prime Pro Edition Software version 18.0 before installing this patch.

Download the version 18.0 patch 0.25 for Windows (.exe)

Download the version 18.0 patch 0.25 for Linux (.run)

Download the Readme for the Quartus Prime Pro edition software version 18.0 patch 0.25 (.txt)

This problem is fixed beginning with version 18.1 of the Quartus® Prime Pro Edition software version.
