Intel® Xeon® Scalable Processor Numbers and Suffixes

Documentation

Product Information & Documentation

000059657

05/20/2022

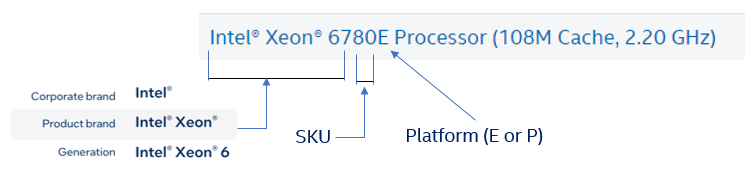

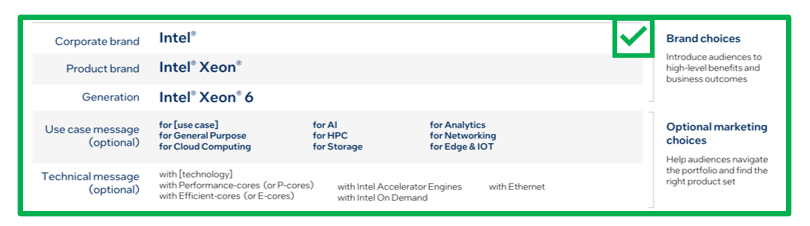

The numbers and suffixes of Intel® Xeon® Processors can indicate the performance, features, and generation. See the information below for specific details.

First digit of the four-number sequence indicate the processor level

Processor Level
9 Platinum
8 Platinum
6 Gold
5 Gold
4 Silver
3 Bronze

Second digit indicates the processor generation

Processor Generation
1 1st Generation
2 2nd Generation
3 3rd Generation

Third and fourth digits indicate the SKU number

These numbers do not represent any specific feature. In general, the better processor has a larger SKU number.

Note To view or compare specific features (for example, number of cores, Max Turbo Frequency, and so on) of Intel® Xeon® Processors, visit the Intel Product Specifications website and search or navigate to the specific processor numbers.





Options 1st Generation Intel® Xeon® Processors
(formerly Skylake)

2nd Generation Intel® Xeon® Processors
(formerly Cascade Lake)

3rd Generation Intel® Xeon® Processors
(formerly Ice Lake-SP or Cooper Lake)
B N/A Minor electrical specification changes compared to non-B SKU of the same processor number (with no change to core count, frequencies, and features and no impact to platform thermal requirements) N/A
C N/A N/A Single socket
F Support for Fabric version of the processor that has an integrated Intel® Omni-Path Connector N/A N/A
H Customized SKU for specific customers; details are Intel Confidential N/A

Processors for use in 4- or 8-socket configurations only. These processors were formerly codenamed Cooper Lake. All other 3rd Generation Intel Xeon Scalable Processors (without the H suffix) are formerly codenamed Ice Lake and support 1- or 2-socket configurations. Cooper Lake and Ice Lake processors are not interchangeable within a system.

M Large Memory Tier (See Memory Capacity table.) N/A Processor specifications optimized for AI and media processing workloads.
N N/A Specialized for Networking/Network Function Virtualization workloads Processor specifications optimized for communications/networking/NFV (Network Function(s) Virtualization) workloads and operating environments.
P Support for integrated Intel® FPGA  N/A

Processor specifications optimized for IaaS cloud environments such as orchestration efficiency in high-frequency VM environments.​

Q N/A N/A Support for a liquid cooling solution. Temperature inlet to cold plate = 40°C. TTV ψca  (case-to-fluid inlet resistance) = 0.06°C/W.
R N/A Designates that a SKU has been refreshed from the prior generation N/A
S N/A Optimizations for Search Engine Providers Support the maximum Intel® Software Guard Extensions (Intel® SGX) enclave capacity of 512GB (per processor) with up to 1TB Intel® SGX enclave capacity in a two-socket configuration. 8368Q also supports up to 512GB Intel® SGX enclave capacity.
T Thermal and Long-Life Cycle Support Thermal and Long-Life Cycle Support Support for up to 10-year reliability and support for higher Tcase. These SKUs are often used in operating environments with long-life use requirements and require Network Equipment Building System (NEBS)–Thermal friendly specification support.
U N/A Single Socket Optimized Supported in one-socket configurations only. 8351N is also supported in a one-socket configuration only.
V N/A Virtual Machine (VM) Density Value Specialized Processors specification optimized for SaaS cloud environments.
Y N/A Support for Intel® Speed Select Technology - Performance Profile (Intel® SST-PP) Support for Intel® Speed Select Technology - Performance Profile (Intel® SST-PP) 2.0. In addition, 8352S, 5318S, 5318N, and 8352V SKUs also support Intel® Speed Select Technology – Performance Profile 2.0.

Suffix may follow indicating options



Suffix may follow indicating memory capacity

Memory Capacity 1st Generation Intel® Xeon® Processors
(formerly Skylake)

2nd Generation Intel® Xeon® Processors
(formerly Cascade Lake)

3rd Generation Intel® Xeon® Processors
(formerly Cooper Lake - these SKUs have an H suffix)
3rd Generation Intel® Xeon® Processors
(formerly Ice Lake - these SKUs do not have an H suffix)
No Suffix Up to 768 GB per socket Up to 1 TB per socket
(except 9xxxx SKUs that support up to 3 TB per socket)
Up to 1.12 TB per socket Up to 6 TB per socket
L N/A Up to 4.5 TB per socket Up to 4.5 TB per socket N/A
M Up to 1.5 TB per socket N/A N/A N/A
