Technology Map Viewer Command (Tools Menu)

You can view the internal structure of the design netlist, either after fitting or after Analysis & Synthesis, with the Technology Map Viewer. To view the post-fitting view of the schematic, you must first perform a full compilation, and then choose the Technology Map Viewer (Post Fitting) command. To view the post-mapping view of the schematic, you must first perform Analysis & Synthesis, and then choose the Technology Map Viewer (Post-Mapping) command.

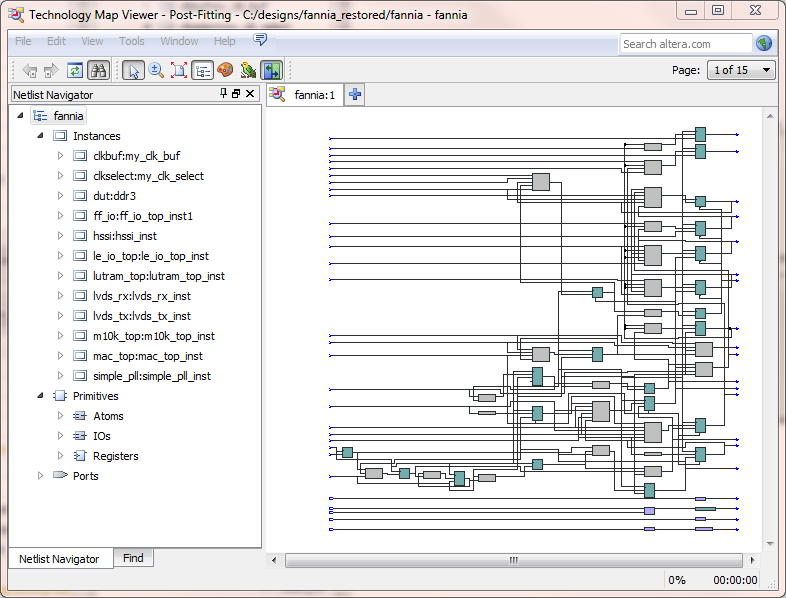

HNetlist Navigator pane

Displays a representation of the project hierarchy, including design instances, pins, primitives, state machines, and nets. Clicking an instance in the hierarchy list locates the instance in the schematic view; double-clicking an instance in the hierarchy list opens the internal logic of the instance in a tab in the schematic view.
Find pane—Click Find to open the Find pane. Provides options for you to limit the range of the search, which is useful when searching for elements in high density schematics. The Find pane allows you to search from a particular instance of the hierarchy; set an option to search only in instances, nodes, or pins; view the list of results with a progress bar; and specify whether the search includes subentities.
Note: Once you populate the Find result list, click Go Next to highlight the items in the schematic view.
