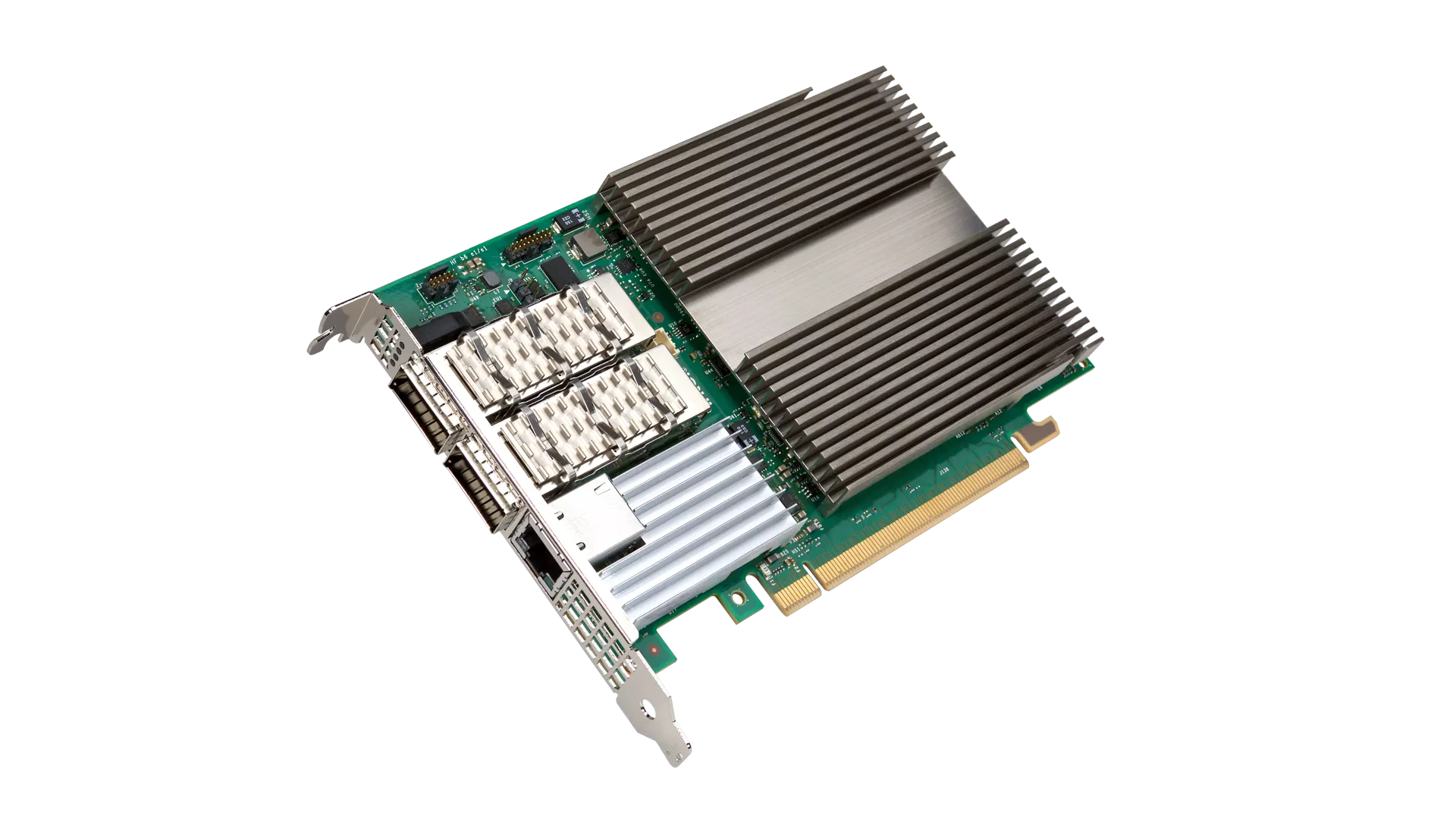

Intel® Infrastructure Processing Unit (Intel® IPU) Adapter E2100
The Intel® Infrastructure Processing Unit (Intel® IPU) Adapter E2100 delivers infrastructure acceleration, virtual storage enablement and enhanced security features.
Intel® Infrastructure Processing Unit (Intel® IPU) Adapter E2100
Enable Rapid Innovation for the Modern Data Center
Featuring a rich packet-processing pipeline, 200GbE bandwidth, and including NVMe, compression and crypto accelerators. The Arm Neoverse N1 compute complex allows customer-provided software to execute features, ranging from complex packet-processing pipelines to storage transport, device management, and telemetry. By utilizing a combination of acceleration hardware and software running in the compute complex, this IPU adapter enables rapid innovation necessary for the modern data center.
• Separation and isolation of infrastructure workloads.
• Offload virtualized networks to the IPU where the accelerators can process tasks more efficiently.
• Replace previously necessary local disk storage with detached virtualized storage.
Software and Solutions
How to buy - Contact your Intel Sales Representative
Summary features set |

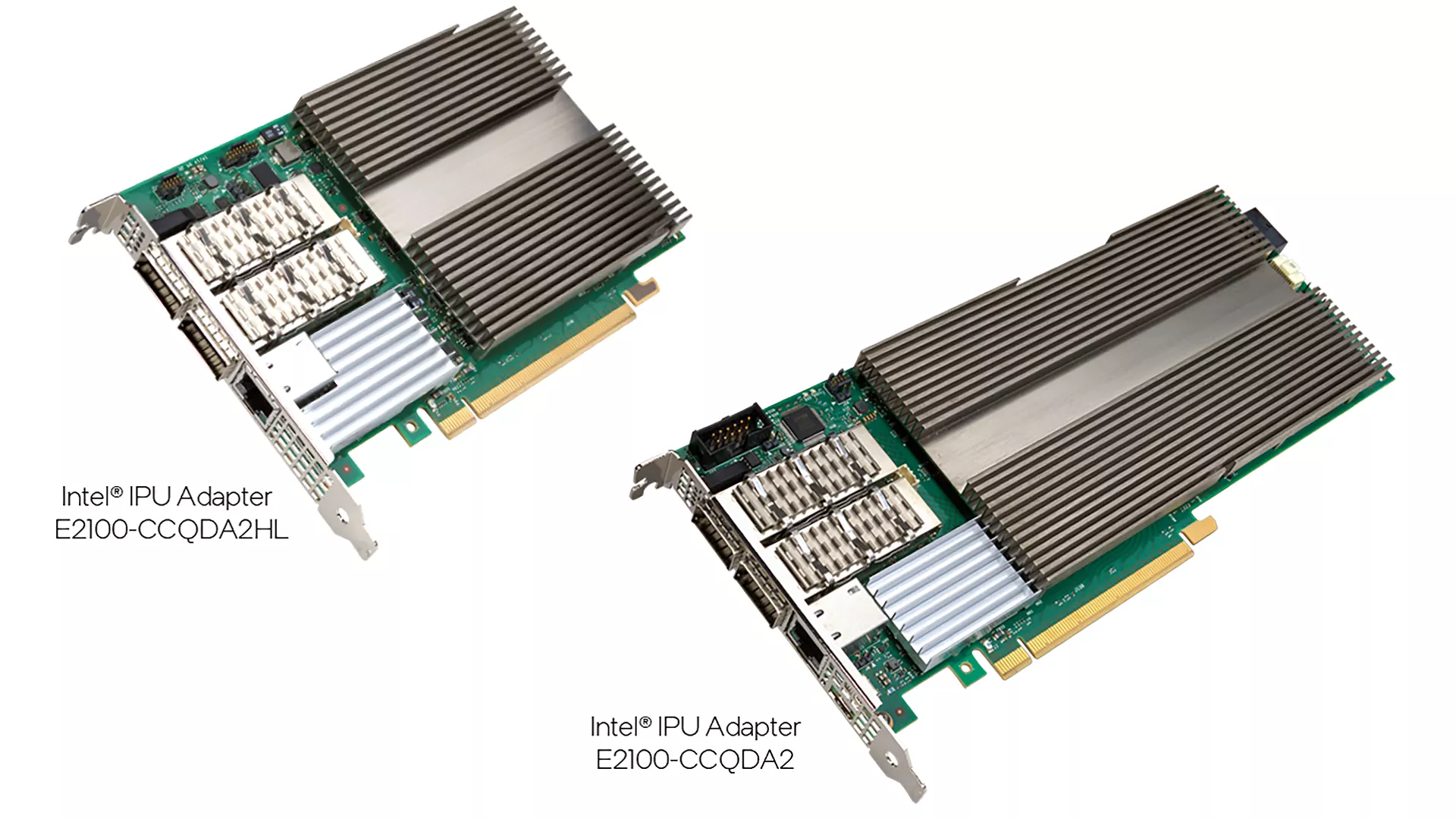

E2100-CCQDA2 |
E2100-CCQDA2HL |
|---|---|---|
Shipping |
Yes |
Yes |
PCI Card Height |
Full |
Full |
PCI Card Length |
3/4 |
1/2 |
Power Consumption |
75W+ |
Up to 75W |
Manageability Port |
RJ45 |
RJ45 |
Onboard Memory |
64GB |
120GB |
16 N1 Neoverse Cores |
✔ |
✔ |
Ethernet Connection |
1x200GbE or 2x100GbE |
1x200GbE or 2x100GbE |
Virtualization |
|
✔ |
RDMA |
|
✔ |
Falcon Technology |
|
✔ |

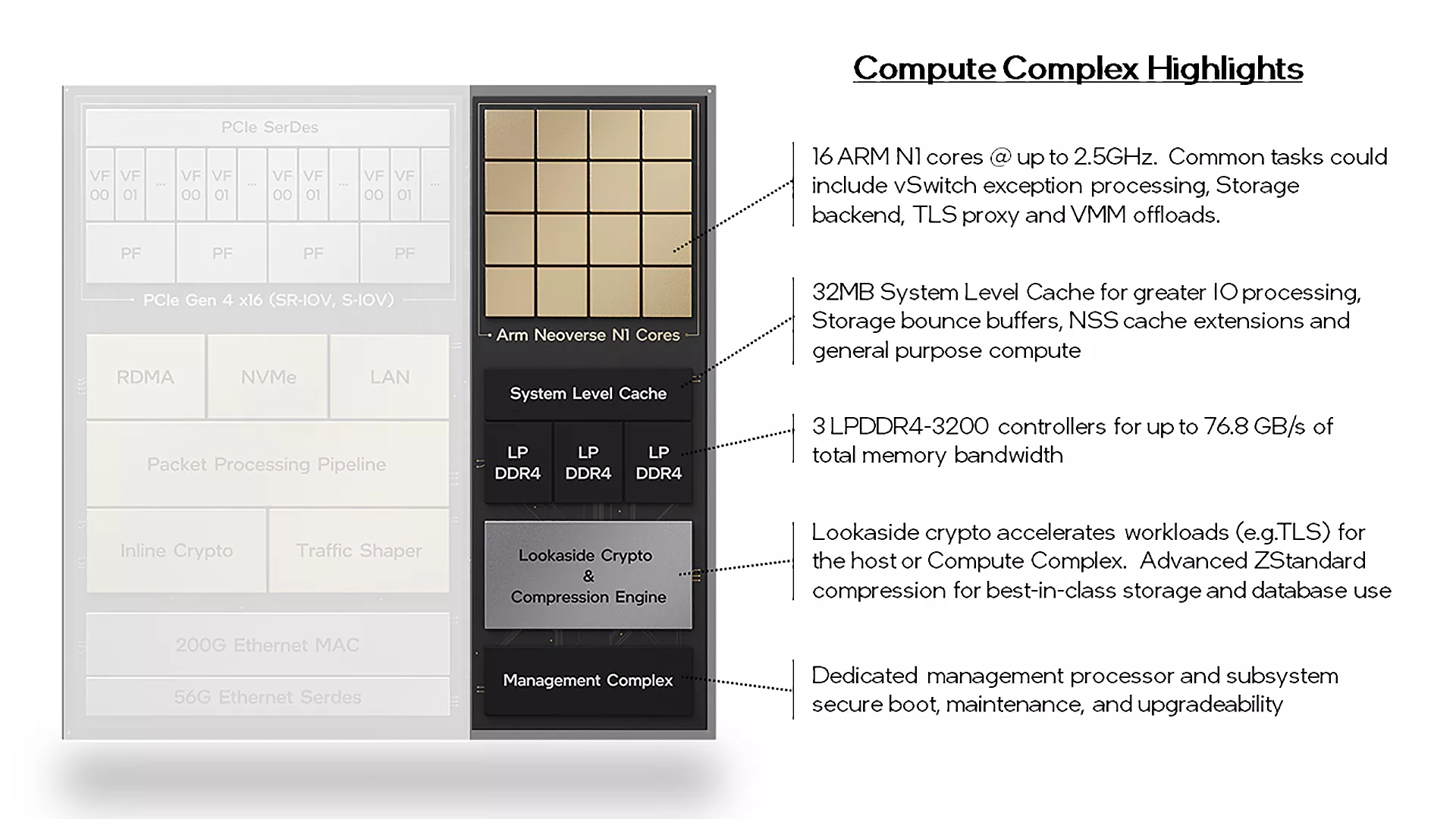

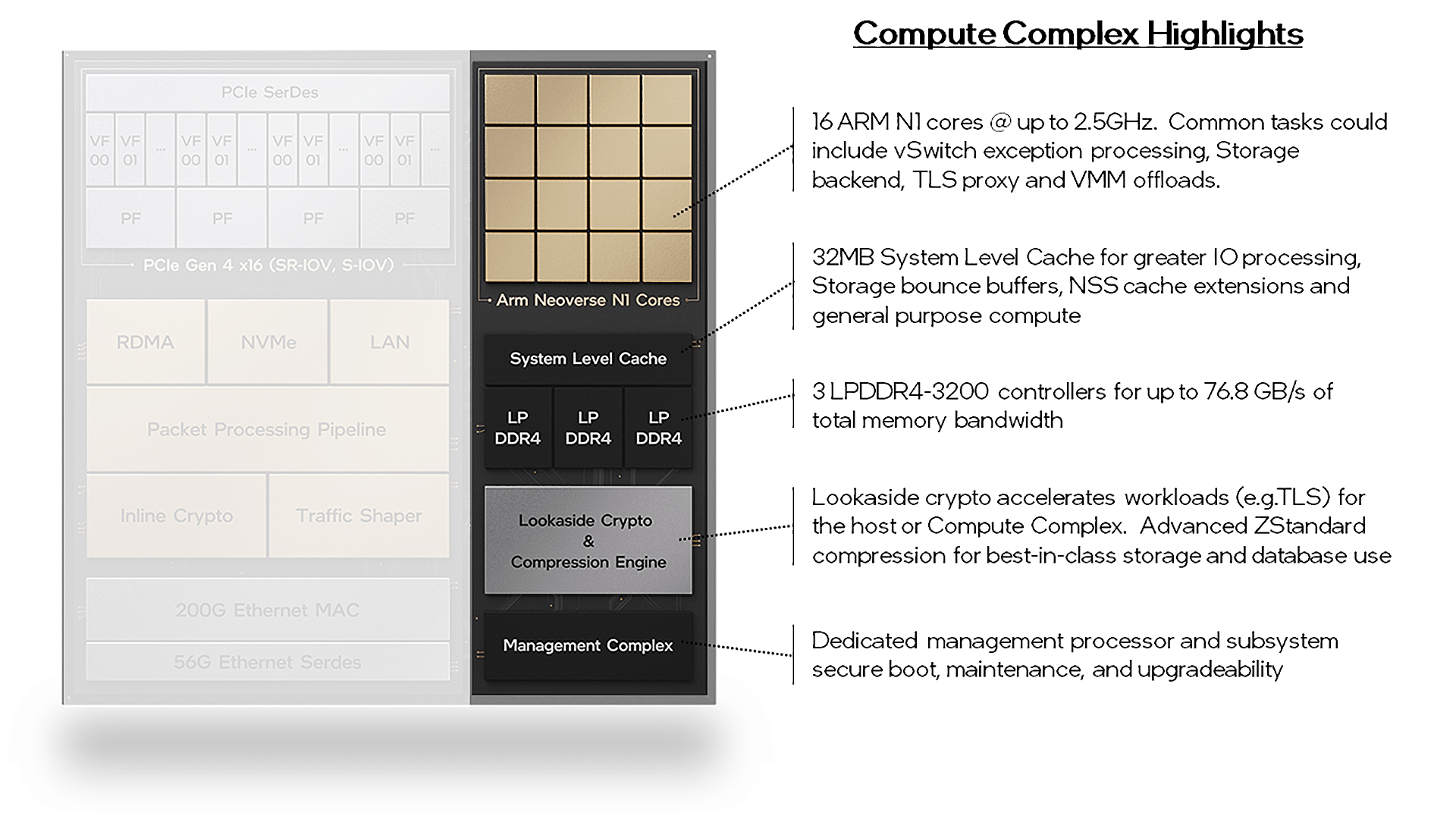

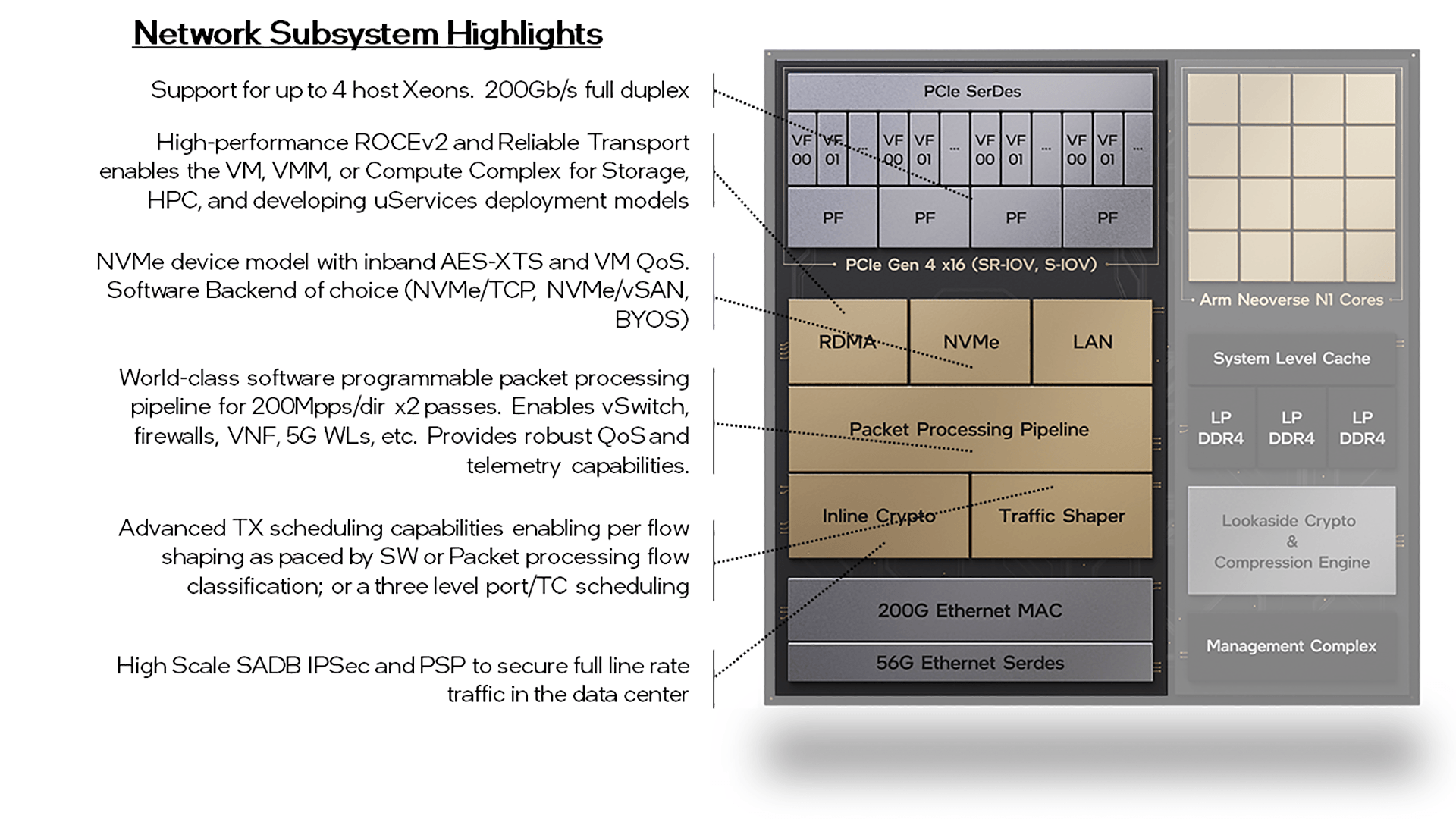

Intel® IPU SoC E2100 Architectural Overview
