4.1.1.2.1. PCIe Device

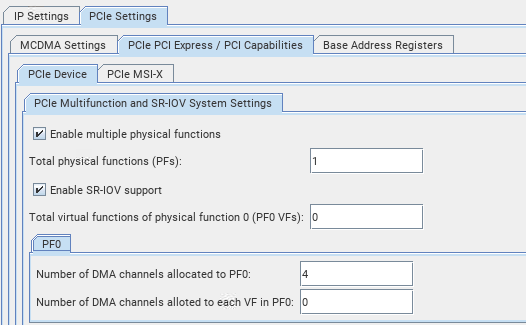

Figure 11. PCIe Multifunction and SR-IOV System Settings Parameters
Table 19.  PCIe Multifunction and SR-IOV System Settings Parameters
Parameter Value Default Value Description
Enable multiple physical functions On / Off Off

Enables multiple physical functions
Total physical functions (PFs) 1 – 8 1

Sets the number of physical functions

This parameter is available when Enable multiple physical functions is On
Enable SR-IOV support On / Off Off

Enable SR-IOV
Total virtual functions of physical function 0 (PF0VFs) 0 – 2048 0

Sets the number of VFs to be assigned to Physical Function 0

This parameter is available when Enable SR-IOV support is On
Number of DMA channels allocated to PF0 0 – 512 4

Sets the number of DMA channels allocated to the PF0
Number of DMA channels allocated to each VF in PF0 0 – 512 0

Sets the number of DMA channels allocated to each VF in PF0
