4.1.1.1.5. BAM+MCDMA Mode

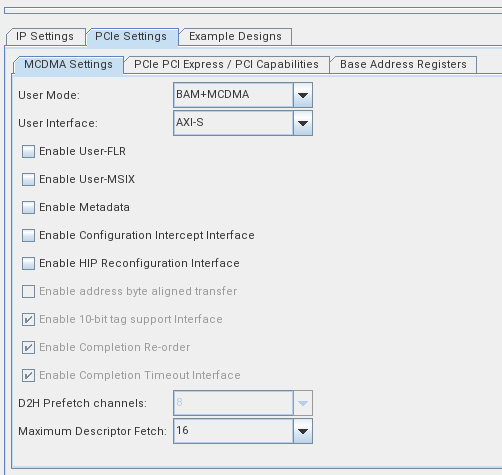

Figure 9. BAM+MCDMA Mode Parameters
Table 17.  BAM+MCDMA Mode Parameters
Parameter Value Default Value Description
User Interface AXI-S

AXI-MM

 AXI-S

Sets the type of DMA User interface.

You can select either the AXI Stream or AXI Memory-Mapped interface for DMA.
Enable User-FLR On / Off Off

Select to enable User FLR interface which allows the passing of FLR signals to the user side application.

Note: User FLR is not supported in Bursting Master, Bursting Slave, and BAM + BAS modes.
Enable User-MSIX On / Off Off

User MSI-X interface enables the user application to initiate interrupts through the MCDMA IP.

Note: User MSI-X is not supported in the Bursting Master, Bursting Slave, and BAM + BAS modes.
Enable Metadata On / Off Off

Enables or disables 8-byte metadata.

Metadata is the 8-byte user application data that is transferred to and from the device via the DEST address field (for H2D DMA) and SRC address field (for D2H DMA) in the AXI Streaming mode.
Enable Configuration Intercept Interface On / Off Off

Select to enable user configuration intercept interface.
Enable HIP Reconfiguration Interface On / Off Off

Select to enable Hard IP reconfiguration interface.
Enable address byte aligned transfer Off Off

This option is not supported in the current release.
Enable 10-bit tag support interface On On

Enables 10-bit tag support interface
Enable Completion Re-order On On

Enables completion re-order
Enable Completion Timeout Interface On On

Enables completion timeout interface
