6.6.4.5.1. General PHY

This tab shows the event counters related to the PHY at each lane level.

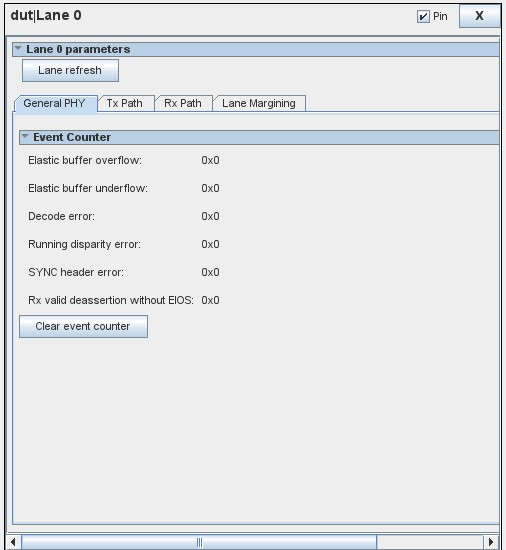

Figure 76. General PHY Tab
