5.8.3.3. Video Interface (Enable Active Video Data Protocols = AXIS-VVP Full)

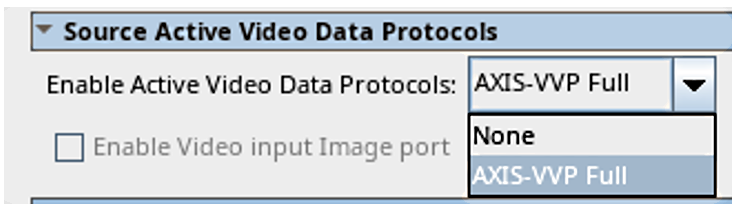

Select AXIS-VVP Full for Enable Active Video Data Protocols to enable DisplayPort AXIS Video Interface.
