Intel® Kiosk Peripheral Management Utility (Intel® KPM Utility)

Overview

The Intel® Kiosk Peripheral Management Utility (Intel® KPM Utility) enables a smarter and more efficient way to deploy Intel®-based kiosk systems. The Intel KPM Utility provides tools to directly integrate into kiosk system designs, enabling more holistic monitoring and control over USB-based peripheral devices.

On kiosk systems with Intel vPro® technology, the Intel KPM Utility can remotely manage in-band peripheral devices and resolve their issues without the need to physically access the kiosk systems, which saves costly onsite IT service calls.

Get Started   Download

Reduced Downtime

Decrease potential failures and downtime with the capability to monitor, alert, and reset peripheral devices.

Improved Maintenance

Resolve operating system and application-level issues without the need to physically access kiosk systems.

Lowered Operational Expenditures

On kiosk systems with Intel vPro technology, resolve peripheral device issues remotely and minimize the costs associated with onsite visits.

Who Needs This Solution

  • System integrators (SI) who are in the development or pilot stage for end-customer deployments
  • Original equipment manufacturers (OEMs) with software solutions and integration capabilities
  • Original design manufacturers (ODMs) with firmware or software solutions and integration capabilities
  • Independent software vendors (ISVs) who provide software and application solutions

Use Cases

Integrate and deploy this solution in multiple kiosk use cases. Some examples include:

  • Self-service kiosks in banking
  • Self-ordering kiosks in quick-service restaurants
  • Informational and self-checkout kiosks in retail
  • Self-registration, diagnostics, medical dispensing, and payment in healthcare
  • Self-check-in, ticketing, and immigration control kiosks in transportation
  • Self-service, informational, and navigation kiosks for smart cities and government

The Intel KPM Utility is available in the following packages:

  • Service SDK
  • GUI tool
  • Microcontroller unit (MCU) firmware
  • Microcontroller unit (MCU) I2C device driver for Microsoft* Simple Peripheral Bus (SPB)
  • Sample code

Note MCU applicable to STC8F2K64 series only

The utility enables the following features and capabilities:

  • USB software reset
  • USB hardware reset
  • LED control
  • MCU communication over I2C and UART
  • USB device status monitor
  • Board configuration
  • GUI tool
  • Software development kit
  • AMT agent

System Requirements

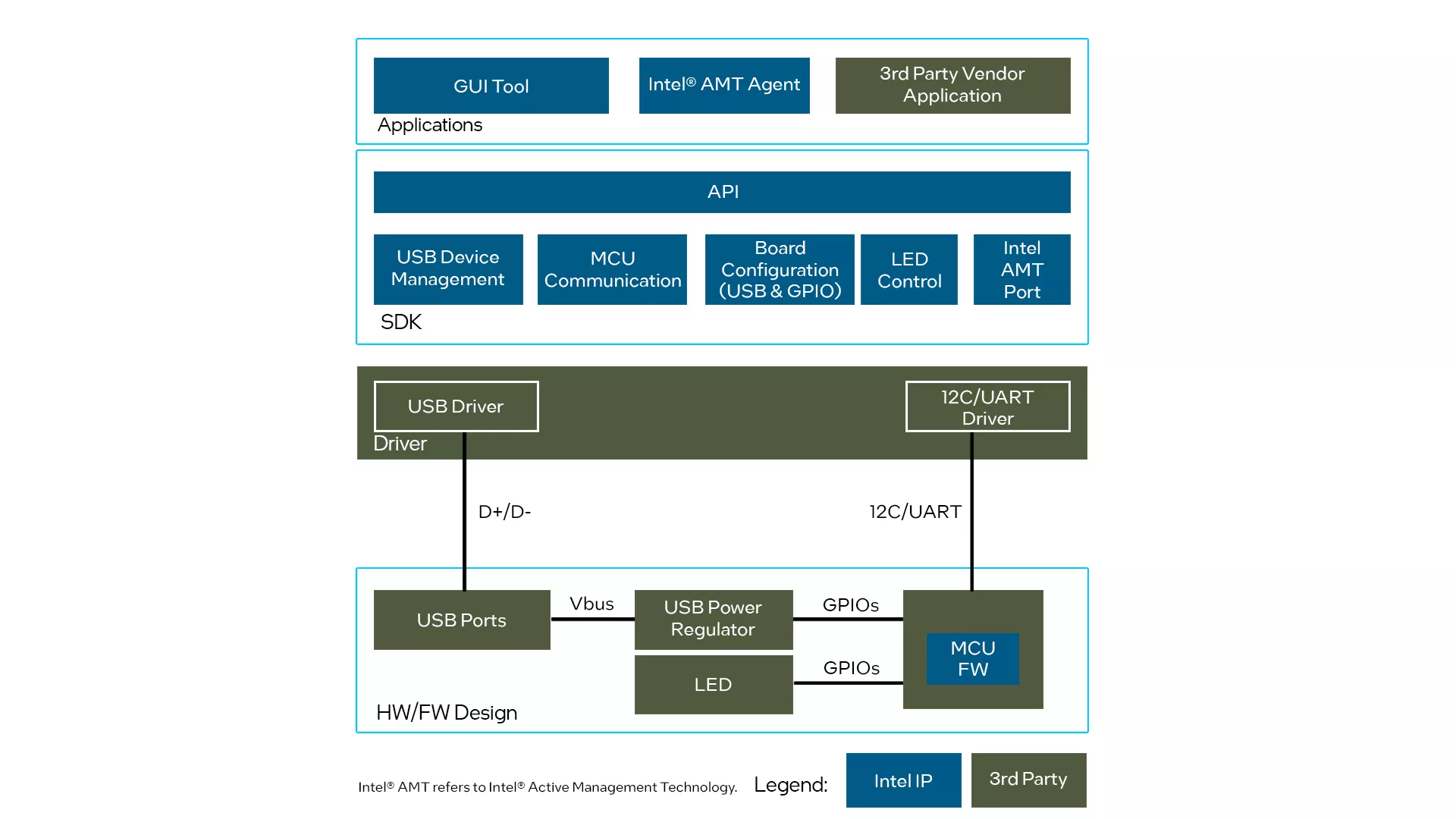

Intel® KPM Utility Hardware and Software Solution Stack

Evaluation Board

To facilitate testing and evaluation of the Intel KPM Utility, a sample evaluation daughterboard may be provided upon request (subject to availability). This evaluation board can be connected to any Intel-based motherboard with the necessary pin headers. Contact your Intel representative to submit your request.

Evaluation Board User Guide
