Intel® Unique Platform ID Usage

Intel® Unique Platform ID Overview

The Intel® Unique Platform ID (Intel® UPID) is a globally unique and persistent identity that can be used to identify a platform throughout its lifecycle. The Intel UPID is equipped with an IDevID (Initial Device Identifier) private key that is protected by the Intel® CSME security engine and an IDevID certificate issued by the Intel certificate authority. The certificate adheres to the IEEE 802_1AR 2018 industry standard for IDevID certificates.

The Intel UPID can be used to challenge (and verify) a client endpoint’s identity for various purposes. The Intel UPID IDevID certificate is issued by the Intel® CSME On Die Certificate Authority (Intel® ODCA) infrastructure. The Intel CSME Firmware UPID application provides a host API that allows an application with admin level privileges in the OS or BIOS to challenge the Intel® CSME firmware to obtain a signed proof of the identity of the PC on which the application is executing.

This Intel UPID guide can assist application developers in incorporating use of the Intel UPID attestation in their applications.

Intel UPID Advantages

• The Intel UPID does not change, and cannot be changed, throughout the device lifecycle.
• The Intel UPID cannot be spoofed. Its integrity is protected, and it cannot be overwritten.
• The Intel UPID can be updated when a platform is refurbished.
• The Intel UPID is attestable by the Intel CSME.

Privacy Controls

The following features are included to satisfy privacy concerns:

• The user application interface requires OS administrator privileges to access the Intel CSME API that returns the Intel UPID, its IDevID certificate, and the certificate chain, and to access the Intel UPID Attestation API.
• An Intel CSME API is provided to allow the BIOS to control OS access to the Intel UPID APIs.
• The Intel UPID feature state controls access to the Intel UPID APIs. When the Intel UPID feature state is disabled, access to Intel UPID APIs that read the UPID or attest the UPID is blocked.

Intel UPID Usage Examples

Following are some examples of uses for the Intel UPID IDevID:

• Verifying a device’s identity when it is returned by the customer. The UPID_PLATFORM_ID_GET command can be used to read the device’s Intel UPID in the factory before the device is shipped. When a customer returns the device for servicing, or when a customer attempts to access a service specific to the device, the same APIs can be used to verify that the same device is being returned or is accessing the service.
• Using the Intel UPID when onboarding a device. The OEM can deliver a list of the device Intel UPIDs to the purchaser of the devices (for example, to an IT department that has purchased many devices). The purchaser can then use this list when an end-user attempts to onboard the device, to ensure that the device being onboarded is indeed the same one that the customer ordered.
• Disabling Intel UPID when it is not needed, to prevent unauthorized tracking of the device by OS-level applications. The OEM can implement a mechanism in the BIOS to prevent the OS from enabling the Intel UPID. The BIOS must enable reading Intel UPID to allow the OS to read it. If the BIOS has not disabled the Intel UPID, software with OS admin privileges can use the UPID_PLATFORM_ID_FEATURE_STATE_SET command to enable it and can read it. It is recommended for the OS to disable Intel UPID (by using the same command UPID_PLATFORM_ID_FEATURE_STATE_SET), so that if in the future the level of privilege needed to read Intel UPID differs from the level required to enable it, the customer has the option of disabling so that applications without Administrator privileges cannot access it.
• Attesting the device’s Identity as an additional factor for zero-trust access to corporate services and resources. The enterprise can collect the Intel UPIDs of the devices that it owns and can map each Intel UPID to the employee using the device. When a user attempts to access a corporate service or resource, the policy can ensure that the user can access it only from their approved device. To attest the device’s identity, the UPID_OEM_PLATFORM_ID_SIGN command is invoked.

System Requirements

Intel UPID is supported on 11th Generation (Tiger Lake) Intel vPro® or Intel vPro® Essentials devices and later programs.

The availability of the Intel UPID feature depends on the OEM enabling the support in the platform hence it may not be available for all platforms of these generations.

(See Detecting Whether Intel UPID is Supported on the Platform.)

The following table lists the programs that support Intel UPID, and the Intel CSME versions that also support device attestation:

Intel UPID Structure

Following is the structure of the Intel UPID:

Intel CSME On Die CA

During Intel manufacturing, the Intel chipset is provisioned with a Certificate Authority certificate issued by the Intel Key Generation Facility (iKGF). This enables an on-die CA (Intel® ODCA) on the Intel platform to issue certificates for individual Intel CSME applications. The Intel ODCA issues the Intel UPID certificate, enabling Intel UPID Attestation. The Intel UPID certificate is issued following IEEE 802.1AR for an IDevID (initial device identity) certificate.

The following diagrams describe the Intel ODCA infrastructure in the Intel CSME firmware on different platforms.

When Intel UPID is enabled, the certificate includes the Intel UPID in alignment with the 802.1AR defined IDevID Certificate.
The ODCA TLS-Server certificate is used for the provisioning flow.

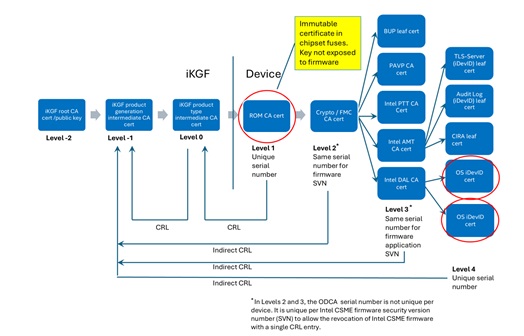

Certificate Chain for Tiger Lake and Alder Lake Platforms:

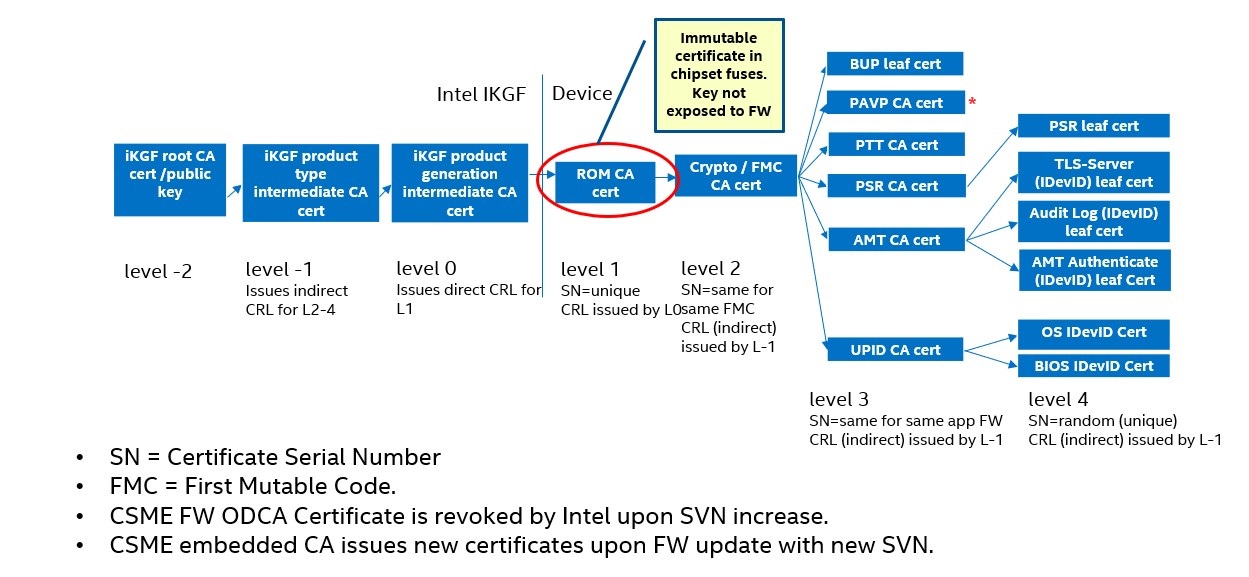

Certificate Chain for Raptor Lake and Lunar Lake Platforms:

* Starting from Meteor Lake, the chain no longer includes the PAVP CA certificate.

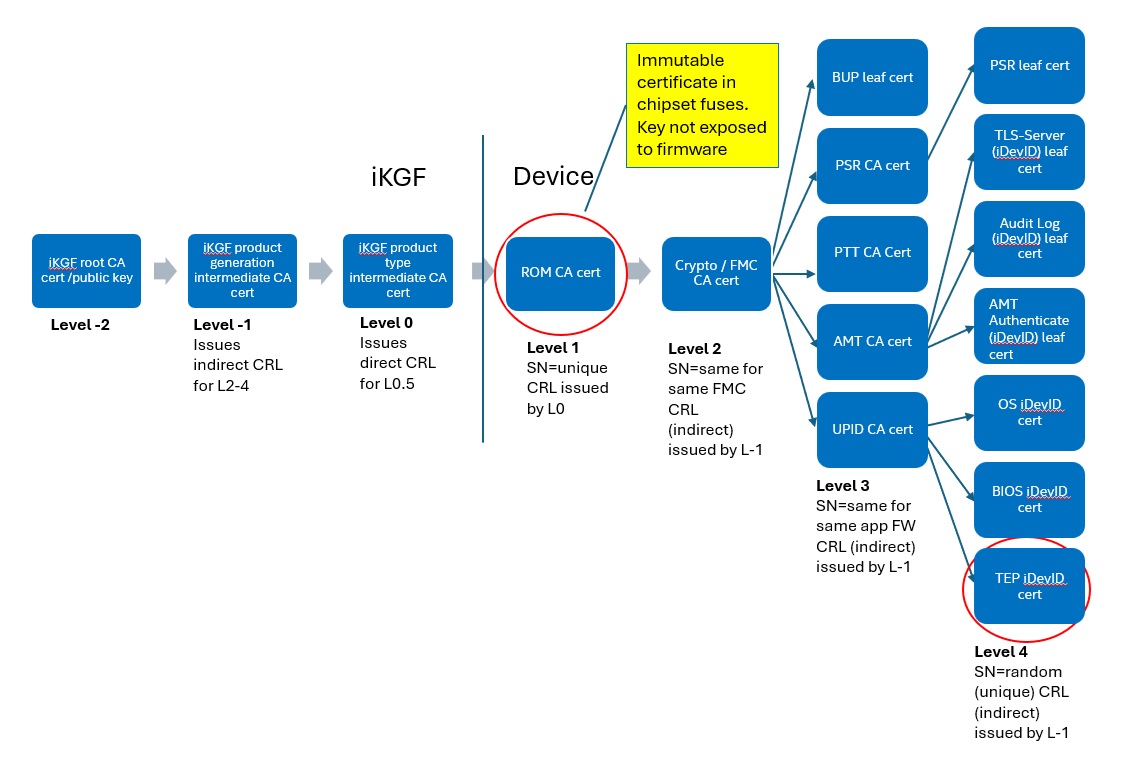

Certificate Chain for Panther Lake Platforms:

The Intel CSME application key generation includes the following:

• the Intel CSME application’s Security Version Number (SVN)
• the application’s module ID

The Intel CSME certificate is revoked by Intel iKGF when the application’s SVN is incremented. Intel iKGF publishes the revoked certificates in a CRL (Certificate Revocation List).

Intel UPID IDevID Certificate Attributes

The platform uses the IDevID certificate to attest Intel UPID.

For definitions of the UPID OEM_ID, OEM Platform ID and CSME HW ID, see the table in Intel® UPID Structure above.

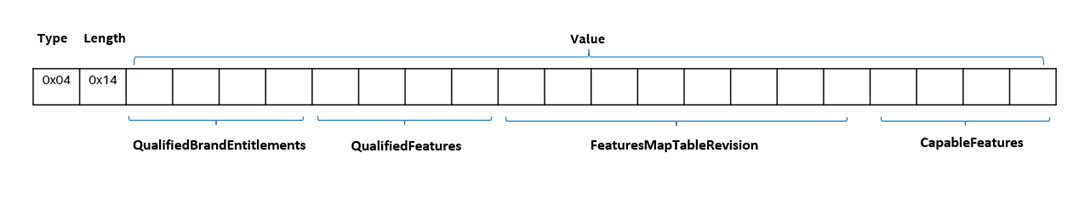

The certificate complies with the IEEE 802.1AR IDevID 2018 certificate standard and includes the following attributes:

Intel UPID MEI Commands

Intel UPID MEI Client Definition

GUID = 92136C79-5FEA-4CFD-980E-23BE07FA5E9F

TxBufferSize = 1200 bytes

RxBufferSize = 3,500 bytes

MaxClients = 1

Detecting Whether Intel UPID is Supported on the Platform

A platform’s Intel UPID capability can be detected from the presence of the Intel UPID MEI client in the Intel CSME firmware. When the Intel UPID MEI client is present, it registers its GUID with the Intel MEI driver.

The Intel MEI driver provides an interface through which software can query the list of HECI Client GUIDs supported by the Intel CSME firmware and thereby discover whether the Intel UPID MEI Client GUID is on the list. Once the Intel UPID MEI Client GUID has been found, it is also possible to discover the version of the Intel UPID feature.

If Intel UPID is not supported on the platform, the OEM should be contacted to enable the feature.

To query the Intel MEI driver for the supported Intel MEI Client GUIDs and GUID versions:

1. Use the GetDevicePath function to retrieve the Intel MEI driver filename via GUID.
2. Open a handle to the Intel MEI driver (via CreateFile, using the filename discovered in Step ‎1).
3. To discover the number of supported GUIDs:
   1. Send IOCTL - IOCTL_TEEDRIVER_GET_FW_CLIENT_COUNT (via DeviceIoControl())
      1. Input buffer    – None
      2. Output Buffer – FW_CLIENT_COUNT struct
4. Send a query that will return a list of structures that describes each one of the supported Intel MEI GUIDs. The number of entries in the structure equals the FW_CLIENT_COUNT extracted in Step ‎3:
   1. Send IOCTL - IOCTL_TEEDRIVER_GET_FW_CLIENTS (via DeviceIoControl())
      1. Input Buffer    – None
   2. Output Buffer – Array of FW_CLIENT_EXPANDED structure. The number of entries is equal to FW_CLIENT_COUNT  (see the FW_CLIENT_EXPANDED definition).
5. For each entry, compare FW_CLIENT_EXPANDED.ProtocolName with the Intel UPID MEI Client GUID (92136C79-5FEA-4CFD-980E-23BE07FA5E9F). If found, the Intel UPID feature is supported.
6. In the Intel UPID FW_CLIENT_EXPANDED structure found in Step ‎5, check the FW_CLIENT_EXPANDED.ProtocolVersion to determine the version of the Intel UPID protocol that the firmware supports.

Definitions:

typedef struct _FW_CLIENT_EXPANDED
{
     UINT16                ClientID;                // FW Client Number
     GUID                    ProtocolName;            // FW Client GUID
     UINT8                   ProtocolVersion;         // FW Client Protocol Version
     UINT8                   MaxNumberOfConnections;
     UINT8                   FixedAddress;
     UINT8                   SingleReceiveBuffer;
     UINT32                  MaxMessageLength;        // FW Max Buffer Size
} FW_CLIENT_EXPANDED;
typedef struct _FW_CLIENT_COUNT
{
     BYTE       count;
} FW_CLIENT_COUNT;
#define IOCTL_TEEDRIVER_GET_FW_CLIENT_COUNT \
     CTL_CODE(FILE_DEVICE_HECI, 0x806, METHOD_BUFFERED, FILE_READ_ACCESS | FILE_WRITE_ACCESS)
#define IOCTL_TEEDRIVER_GET_FW_CLIENTS \
     CTL_CODE(FILE_DEVICE_HECI, 0x807, METHOD_BUFFERED, FILE_READ_ACCESS | FILE_WRITE_ACCESS)

UPID MEI Command Structure

UPID_HECI_HEADER

Header for Intel UPID commands.

typedef struct
{
    UINT8                              Feature;
    UINT8                              Command;
    UINT16                             ByteCount;
}  UPID_HECI_HEADER;

Field Description

UPID_COMMAND_FEATURE

Command feature codes.

typedef enum
{
      UPID_COMMAND_FEATURE_PLATFORM_ID         = 0,
      UPID_COMMAND_FEATURES_TEP                = 1,
}   UPID_COMMAND_FEATURE;

Note: sizeof(enum) is sizeof(UINT32) = 4 bytes.

UPID_COMMAND

Command codes for the Platform ID feature (0).

typedef enum
{
      UPID_PLATFORM_ID_SUPPORT_GET_CMD = 0,
      UPID_PLATFORM_ID_STATE_GET_CMD   = 1,
      UPID_PLATFORM_ID_STATE_SET_CMD   = 2,
      UPID_PLATFORM_ID_OS_CONTROL_GET_CMD = 3,
      UPID_PLATFORM_ID_OS_CONTROL_SET_CMD = 4,
      UPID_PLATFORM_ID_GET_CMD                 = 5,
      UPID_PLATFORM_ID_REFURBISH_COUNTER_GET_CMD = 6,
      UPID_OEM_PLATFORM_ID_UPDATE_CMD          = 7,
}   UPID_PLATFORM_ID_FEATURE_COMMANDS;

Note: sizeof(enum) is sizeof(UINT32) = 4 bytes.

UPID_STATUS

Status codes.

typedef enum
{
      UPID_STATUS_SUCCESS                      = 0,
      UPID_STATUS_FEATURE_NOT_SUPPORTED        = 1,
      UPID_STATUS_INVALID_INPUT_PARAMETER      = 2,
      UPID_STATUS_STATUS_INTERNAL_ERROR        = 3,
      UPID_STATUS_NOT_ALLOWED_AFTER_EOP        = 4,
      UPID_STATUS_NOT_ALLOWED_AFTER_MANUF_LOCK = 5,
      UPID_STATUS_MAX_COUNTERS_EXCEEDED        = 6,
      UPID_STATUS_INVALID_STATE                = 7,
      UPID_STATUS_RESERVED2                    = 8,
      UPID_STATUS_NOT_ALLOWED_AFTER_CBD        = 9,
}   UPID_STATUS;

Note: sizeof(enum) is sizeof(UINT32) = 4 bytes.

UPID_PLATFORM_ID_FEATURE_SUPPORT_GET

Returns the UPID feature support.

UPID_PLATFORM_ID_FEATURE_SUPPORT_GET Request

typedef struct
{
    UPID_HECI_HEADER                   Header;
}  UPID_PLATFORM_ID_FEATURE_SUPPORT_GET_Request;

UPID_PLATFORM_ID_FEATURE_SUPPORT_GET Response

typedef struct
{
    UPID_HECI_HEADER                   Header;
    UPID_STATUS                        Status;
    PlatformIdSupported                   platformIdSupported;
}  UPID_PLATFORM_ID_FEATURE_SUPPORT_GET_Response;

PlatformIdSupported

typedef union _UPID_SUPPORT {
	UINT8 PlatformIdSupported;
	Struct {
		UINT8   Supported: 1;
			//0: UPID not supported
                       //1: supported
            	UINT8    Attestation: 1;
			//0: UPID Attestation not supported
			//1: supported
           	UINT8     Reserved:6
        }
} UPID_SUPPORT;

Note: If a platform supports Intel UPID Attestation, the value of PlatformIdSupported is 3 (i.e., Intel UPID must also be supported on the platform).

UPID_PLATFORM_ID_FEATURE_STATE_GET

Returns the Platform ID feature state.

UPID_PLATFORM_ID_FEATURE_STATE_GET Request

typedef struct
{
    UPID_HECI_HEADER               Header;
}  UPID_PLATFORM_ID_FEATURE_STATE_GET_Request;

UPID_PLATFORM_ID_FEATURE_STATE_GET Response

typedef struct
{
    UPID_HECI_HEADER                   Header;
    UPID_STATUS				   Status;
    UINT8                              FeatureEnabled;
}  UPID_PLATFORM_ID_FEATURE_STATE_GET_Response;

UPID_PLATFORM_ID_FEATURE_STATE_SET

Sets the Platform ID feature state.

UPID_PLATFORM_ID_FEATURE_STATE_SET Request

typedef struct
{
    UPID_HECI_HEADER                   Header;
    UINT8                              FeatureEnabled;
}  UPID_PLATFORM_ID_FEATURE_STATE_SET_Request;

UPID_PLATFORM_ID_FEATURE_STATE_SET Response

typedef struct
{
    UPID_HECI_HEADER                   Header;
    UPID_STATUS                        Status;
}  UPID_PLATFORM_ID_FEATURE_STATE_SET_Response;

UPID_PLATFORM_ID_GET

Returns the Unique Platform ID of the system.

UPID_PLATFORM_ID_GET Request

typedef struct
{
    UPID_HECI_HEADER                   Header;
}  UPID_PLATFORM_ID_GET_Request;

UPID_PLATFORM_ID_GET Response

typedef struct
{
    UPID_HECI_HEADER                   Header;
    UPID_STATUS                        Status;
    UPID_OEM_PLATFORM_ID_TYPE          PlatformIdType;
    UINT8[32]                          OEMPlatformId;
    UINT8[32]                          CSMEPlatformId;
}  UPID_PLATFORM_ID_GET_Response;

Note: After retrieving the UPID, it is recommended to disable the feature state using UPID_PLATFORM_ID_FEATURE_STATE_SET.

UPID_OEM_PLATFORM_ID_TYPE

UPID presentation type.

typedef enum
{
      UPID_OEM_PLATFORM_ID_TYPE_NOT_SET        = 0,
      UPID_OEM_PLATFORM_ID_TYPE_BINARY         = 1,
      UPID_OEM_PLATFORM_ID_TYPE_PRINTABLE_STRING = 2,
}   UPID_OEM_PLATFORM_ID_TYPE;

Note: sizeof(enum) is sizeof(UINT32) = 4 bytes.

UPID_PLATFORM_ID_SIGN

Signs user data with device key.

UPID_OEM_PLATFORM_ID_SIGN Request

typedef struct
{
    UPID_HECI_HEADER	Header
    UPID_KEY_IDX	KeyIdx
    UINT32		DataLen//actual length of data in the dataToSign buffer
    UINT8[DATA_TO_SIGN_MAX_SIZE] 		DataToSign;
}  UPID_PLATFORM_ID_SIGN_Request;

UPID_KEY_IDX

Private key used for signing. Specifies the type of key requested from the firmware, depending on whether
the signing request is coming from an OS application (1) or from the BIOS (0).

typedef enum
{
      UPID_KEY_IDX_BIOS                        = 0,
      UPID_KEY_IDX_OS                          = 1,
}   UPID_KEY_IDX;

Note: sizeof(enum) is sizeof(UINT32) = 4 bytes.

UPID_OEM_PLATFORM_ID_SIGN Response

typedef struct
{
    UPID_HECI_HEADER				Header
    STATUS                          	Status
    SIGNATURE_MECHANISM       	 SignatureMechanism
    UINT8[512]                         Signature
} ECDSADeviceSignChallenge_Response;

UPID_OEM_PLATFORM_ID_GET_CERTIFICATE_CHAIN

Get the On Die CA certificate chain used for signing user data.

UPID_OEM_PLATFORM_ID_GET_CERTIFICATE_CHAIN Request

typedef struct
{
    UPID_HECI_HEADER                 Header;
    UINT32 			       CertIdx
}  GetCertificateChain_Request;

typedef enum
{
      UPID_CERT_IDX_BIOS        = 0,
      UPID_CERT_IDX_OS          = 1,
}   UPID_CERT_IDX;

Note: sizeof(enum) is sizeof(UINT32) = 4 bytes.

UPID_OEM_PLATFORM_ID_GET_CERTIFICATE_CHAIN Response

typedef struct
{
    UPID_HECI_HEADER                    Header;
    STATUS                          	  Status
    UINT16[4]                           LengthsOfCertificates;
    UINT8[MAX_Certs_length]             CertificateChain; //
} GetCertificateChain_Response;

UPID_TEP_COMMAND

Command codes for the UPID TEP feature (1).

typedef enum
{

      TEP_GET_TIME_SYNC_NONCE_CMD   = 1,
      TEP_SET_TIME_CERTS_CMD   = 2,
      TEP_OWNERSHIP_VOUCHER_REQUEST_CMD = 3,
      TEP_SET_OWNERSHIP_CMD = 4,
      TEP_GET_VOUCHERS_CMD                 = 5,
      TEP_GET_OWNERSHIP_STATE_CMDD = 6,
      TEP_OWNERSHIP_VOUCHER_UPDATE_REQUEST_CMD          = 7,
      TEP_OWNERSHIP_REMOVE_CMD = 8,
      TEP_GET_CAPABILITIES_CMD = 9,
}   UPID_TEP_PLATFORM_ID_FEATURE_COMMANDS;

Note: sizeof(enum) is sizeof(UINT32) = 4 bytes.

UPID_TEP_STATUS

Status codes.

typedef enum
{
      TEP_SUCCESS                      = 0,
      TEP_TIME_NOT_SET        = 1,
      TEP_INVALID_PARAMETER      = 2,
      TEP_NOT_ALLOWED        = 3,
      TEP_BAD_SIGNATURE        = 4,
      TEP_INVALID_NONCE = 5,
      TEP_INTERNAL_ERROR        = 6,
      TEP_INVALID_CERT                = 7,
      TEP_INVALID_VOUCHER                    = 8,
      TEP_OEM_ID_MISSMATCH        = 9,
      TEP_FEATURE_NOT_ALLOWED = 10,
      TEP_INVALID_CMS = 11,
}   UPID_TEP_STATUS;

Note: sizeof(enum) is sizeof(UINT32) = 4 bytes.

TEP_GET_CAPABILITIES_CMD

Returns the Intel TEP capabilities of the system.

TEP_GET_CAPABILITIES_CMD Request

typedef struct
{
    UPID_HECI_HEADER             Header;
} TEP_GET_CAPABILITIES_CMD_Request;

TEP_GET_CAPABILITIES_CMD Response

typedef struct
{
    UPID_HECI_HEADER                   Header;
    STATUS                             Status;
    UINT8                              num_features;
    UINT8[32]                          OEMPlatformId;
    UINT8[TEP_MAX_FEATURES]            features_list;

} TEP_GET_CAPABILITIES_CMD_Response;

TEP_STATUS Values Returned:

TEP_GET_TIME_SYNC_NONCE_CMD

Intel® TEP agent running on the OS of the endpoint being provisioned sends Intel® CSME a request ID (req_id) received from the Ownership Service. The request ID serves as a nonce.
Intel® CSME returns a random Intel CSME nonce along with an Intel® CSME signature over the returned data, including the request ID and CSME nonce.

TEP_GET_TIME_SYNC_NONCE_CMD Request

typedef struct
{
    UPID_HECI_HEADER    Header;
    UINT8[20]           req_id;

}  TEP_GET_TIME_SYNC_NONCE_CMD_Request;

TEP_GET_TIME_SYNC_NONCE_CMD Response

typedef struct
{
    UPID_HECI_HEADER       Status;
    UINT8[20]           req_id;
    UINT8[20]              csme_nonce;
    CSME_SIGNATURE         signature;
} TEP_GET_TIME_SYNC_NONCE_CMD_Response;

CSME_SIGNATURE

TEP_STATUS Values Returned

TEP_SET_TIME_CERTS_CMD

Intel® TEP agent running on the OS of the endpoint being provisioned sends Intel® CSME an ownership voucher request. The request contains data that the ownership service wants to include in the voucher.

TEP_SET_TIME_CERTS Request

typedef struct
{
    UPID_HECI_HEADER   Header;
    UINT16[4]          length_of_certificates;
    UINT8[60000]       certificates;
    UNT16[4]           length_of_ocsp_response;
    UINT8[6000]        ocsp_response;

}  TEP_SET_TIME_CERTS_CMD_Request;

TEP_SET_TIME_CERTS_CMD Response

typedef struct
{
    UPID_HECI_HEADER                   Header;
    STATUS                             Status;
}  TEP_SET_TIME_CERTS_CMD_Response;

TEP_STATUS Values Returned:

TEP_OWNERSHIP_VOUCHER_REQUEST_CMD

Sends Intel® CSME an ownership voucher request. This command is used for creating new ownership vouchers. To update an existing voucher, use TEP_OWNERSHIP_VOUCHER_UPDATE_REQUEST_CMD.

TEP_OWNERSHIP_VOUCHER_REQUEST_CMD Request

typedef struct
{
    UPID_HECI_HEADER             Header;
    TEP_BINARY_VOUCHER_REQUEST   binary_voucher_request;

}  TEP_OWNERSHIP_VOUCHER_REQUEST_CMD_Request;

TEP_BINARY_VOUCHER_REQUEST

TEP_OWNERSHIP_VOUCHER_REQUEST_CMD Response

Returns a JSON Ownership Voucher signed by Intel® CSME.

typedef struct
{
    UPID_HECI_HEADER                     Header;
    STATUS                               Status;
    UINT32                               voucher_request_len;
    UINT8[TEP_MAX_JSON_VOUCHER_REQUEST]  voucher_request;

}  TEP_OWNERSHIP_VOUCHER_REQUEST_CMD_Response;

CMS Structure Returned by Intel® TEP

SignerInfo Structure

SignerInfo ::= SEQUENCE {
      version CMSVersion,
      sid SignerIdentifier,
      digestAlgorithm DigestAlgorithmIdentifier,
      signedAttrs [0] IMPLICIT SignedAttributes OPTIONAL,
      signatureAlgorithm SignatureAlgorithmIdentifier,
      signature SignatureValue,
      unsignedAttrs [1] IMPLICIT UnsignedAttributes OPTIONAL
}

TEP_STATUS Values Returned:

TEP_SET_OWNERSHIP_CMD

Sets the Ownership Voucher signed bythe  Ownership Service into Intel CSME firmware.

TEP_SET_OWNERSHIP_CMD Request

typedef struct
{
    UPID_HECI_HEADER       Header;
    UINT8[20]              voucher_id;
    UINT32                 voucher_len;
    UINT8[TEP_MAX_JSON_VOUCHER_REQUEST] json_voucher;

}  TEP_SET_OWNERSHIP_CMD_Request;

TEP_SET_OWNERSHIP_CMD Response

typedef struct
{
    UPID_HECI_HEADER                   Header;
    STATUS                             Status;
}  TEP_SET_TIME_CERTS_CMD_Response;

TEP_STATUS Values Returned:

TEP_GET_VOUCHERS_CMD

Returns list of voucher IDs. For Panther Lake: 1

TEP_GET_VOUCHERS_CMD Request

typedef struct
{
    UPID_HECI_HEADER                   Header;
}  TEP_GET_VOUCHERS_CMD _Request;

TEP_GET_VOUCHERS_CMD  Response

typedef struct
{
    UPID_HECI_HEADER                   Header;
    STATUS                             Status;
    UINT32                             num_vouchers;
    CHAR[36][TEP_MAX_VOUCHERS]         vouchers;

}  TEP_GET_VOUCHERS_CMD_Response;

TEP_STATUS Values Returned:

TEP_GET_OWNERSHIP_STATE_CMD

Returns the ownership state for a specified voucher_id. Typically executed for finding the initial state, and after performing a Set command.

TEP_GET_OWNERSHIP_STATE_CMD Request:

typedef struct
{
    UPID_HECI_HEADER Header;
    UINT8[20]        req_id;
    CHAR[36]         voucher_id;

}  TEP_GET_OWNERSHIP_STATE_CMD_Request;

TEP_GET_OWNERSHIP_STATE_CMD Response

typedef struct
{
    UPID_HECI_HEADER                   Header;
    STATUS                             Status;
    UINT8[20]                          req_id;
    TEP_OWNERSHIP_CONTEXT              voucher_context;
    CSME_SIGNATURE                     signature
}  TEP_GET_OWNERSHIP_STATE_CMD_Response;

TEP_OWNERSHIP_CONTEXT

CSME_SIGNATURE

TEP_STATUS Values Returned

TEP_OWNERSHIP_VOUCHER_UPDATE_REQUEST_CMD

Allows updating the "ownership-expires-on" and "credential-hash" of an existing voucher. Can be used to reactivate an expired voucher or to expire a voucher to enable deleting it (by giving the voucher an expiry date that has passed).

TEP_OWNERSHIP_VOUCHER_UPDATE_REQUEST_CMD Request

typedef struct
{
    UPID_HECI_HEADER                   Header;
    binary_voucher_request             TEP_BINARY_VOUCHER_REQUEST;
}  TEP_OWNERSHIP_VOUCHER_UPDATE_REQUEST_CMD_Request;

TEP_OWNERSHIP_VOUCHER_UPDATE_REQUEST_CMD Response

typedef struct
{
    UPID_HECI_HEADER                     Header;
    STATUS                               Status;
    UINT32                               voucher_request_len;
    UINT8[TEP_MAX_JSON_VOUCHER_REQUEST]  voucher_request;
}  TEP_OWNERSHIP_VOUCHER_UPDATE_REQUEST_CMD_Response;

TEP_STATUS Values Returned

TEP_OWNERSHIP_REMOVE_CMD

Removes a voucher.

TEP_OWNERSHIP_REMOVE_CMD Request

typedef struct
{
    UPID_HECI_HEADER     Header;
    CHAR[36]             voucher_id;
}  TEP_OWNERSHIP_REMOVE_CMD_Request;

TEP_OWNERSHIP_VOUCHER_UPDATE_REQUEST_CMD Response

typedef struct
{
    UPID_HECI_HEADER  Header;
    UINT32            status;

}  TEP_OWNERSHIP_REMOVE_CMD_Response;

TEP_STATUS Values Returned

Use Cases

The following table describes main use cases for Intel UPID.

Use Case: Read the Intel UPID

To read the Intel UPID from the OS:

1. Set the Intel UPID feature state to Enabled. This can be accomplished by one of the following methods:

• BIOS setting
• OS WMI Command (SetUniquePlatformIDFeatureState)
• Intel MEI command: Using the UPID_PLATFORM_ID_FEATURE_STATE_SET command.

        2. Read the Intel UPID using the UPID_PLATFORM_ID_GET command.

        3. Set the Intel UPID feature state to Disabled using one of the methods in Step 1.

Use Case: Attest the UPID

The following describes the high-level flow for Intel UPID attestation:

1. Set the Intel UPID feature state to Enabled. This can be accomplished by one of the following methods:

• BIOS setting
• OS WMI Command (SetUniquePlatformIDFeatureState)
• Intel MEI command: Using the UPID_PLATFORM_ID_FEATURE_STATE_SET command.

2. The attestor application sends a challenge request to the Intel CSME firmware via the Intel MEI UPID_OEM_PLATFORM_ID_SIGN command. The Intel CSME application uses its Intel UPID attestation key to sign the challenge and return a signed challenge response.

3. The attestor application obtains the Intel UPID IDevID certificate chain via the UPID_OEM_PLATFORM_ID_GET_CERTIFICATE_CHAIN command.

4. The attestor application retrieves the leaf certificate from the first entry in the certificate chain and verifies that this is an Intel UPID attestation certificate by checking that the Extended Key Usage (EKU) field includes the OID 2.16.840.1.113741.1.2.4.6 (for BIOS Intel UPID attestation) or 2.16.840.1.113741.1.2.4.7(for OS Intel UPID attestation).
5. If valid, the attestor verifies that this is a Production system Intel CSME certificate chain (and not an Engineering Sample or Debug system or other Intel chipset IP certificate). This is verified by the Issuer Field in the ROM ODCA certificate:

• Find the CSME ROM ODCA Certificate: This is the 4th certificate in the chain with the Subject Field Common Name attribute containing “ROM CA”.
• In the Issuer field, the organizationalUnitName Attribute (OU) must have a prefix equal to either ODCA 2 CSME P or On Die CSME P, where P stands for Production.

5. If valid, the attestor application retrieves the public key from the leaf certificate and verifies the challenge response signature. See Verifying the Challenge Response Signature.
6. If the challenge response is valid, the attestor verifies the certificate chain up to the Intel iKGF Root CA installed in the service (https://tsci.intel.com/content/OnDieCA/certs/OnDie_CA_RootCA_Certificate.cer), and verifies that no certificate in this chain has been revoked by the iKGF CA CRL.
7. If the certificate chain is valid, the attestor application verifies the Intel UPID against the IDevID certificate chain:
   • Retrieves the OEM Platform ID from the 520SerialNumber attribute in the Subject field of the IDevID certificate, and verifies it against the first 32 bytes of the Intel UPID.
   • Retrieves the hwSerialNum in the SubjectAltName field in the certificate and compares it with the second 32 bytes of the Intel UPID.
   • If valid, the attestor application verifies that the first 20 bytes of the hwSerialNum in the SubjectAltName field match the first 20 bytes of the SHA256 hash of the ROM ODCA Certificate (identified in Step 4).

Verifying the Challenge Response Signature

1. Decrypt the signature field returned in the challenge response with the public key that resides within the Intel UPID IDevID leaf certificate per the SignatureMechanism parameter in the response.
2. Compute the hash of the challenge data in the dataToSign parameter that was sent to CSME FW in UPID_OEM_PLATFORM_ID_SIGN Intel MEI command, per the hash function in SignatureMechanism.
3. Compare the decrypt signature field in Step 1 with the hash value in Step 2. Both values should be equal.

Verification Method

Any open-source crypto library that verifies ECDSA signatures can be used for verifying the challenge response signature returned from the Intel CSME firmware.

For example, the Open SSL ECDSA_verify function can be used with the following input parameters:

Method declaration:

int ECDSA_do_verify(const unsigned char *dgst, int dgst_len,
                        const ECDSA_SIG *sig, EC_KEY* eckey);

Method call:

ret = ECDSA_do_verify(digest, 48, sig, eckey);

Verifying the OCDA Certificate Chain

To verify the ODCA certificate chain, the user application is required to check all signatures in the chain and check that the root certificate matches the iKGF root certificate. This can be accomplished by the standard PKI certificate chain verification method, taking the root CA from a trusted Intel site.

If attestation fails due to a signation certification verification error, the Intel UPID certificate should not be trusted.

Intel UPID WMI Provider Commands

WMI is a Windows management subsystem that allows an administrator to access Intel MEI APIs using a standard interface.

Notes:

1. Before you can use WMI commands, you need to ensure that WMI is supported on the system that you are querying.

To determine whether your computer has the Intel CSME WMI provider (which is usually pushed by Microsoft Windows Update), perform one of the following actions:

• Run a WMI command and check whether it succeeds.
• Open a Command window and run sc query. Check whether the Intel(R) Management Engine WMI Provider Registration service is listed.
• Open a PowerShell window and run the Get-Service command. Check whether the Intel(R) Management Engine WMI Provider Registration is listed. This can also be found in the device manager (Software components \ Intel(R) Management Engine WMI Provider).
If your computer is missing the Intel CSME WMI provider, you need to install the Intel CSME Software package, which includes the provider.
The Intel CSME Software package and installation instructions are available from your OEM.
Alternatively, you can download the Intel CSME Software from Intel’s Download Center. See the section Installing Intel® CSME Software Components in the
Intel^® Converged Security and Management Engine Software Installation and Configuration Guide included with the software package.

2. The WMI commands must be executed with OS Admin control.

Set Intel UPID Feature State via WMI

To enable the feature state via WMI, open PowerShell and execute:

Invoke-CimMethod -Namespace "root\Intel_ME" -ClassName ME_System -MethodName setUniquePlatformIDFeatureState -Arguments @{ state = $True}

Get Intel UPID Feature State via WMI

To retrieve the feature state, open PowerShell and execute:

Invoke-CimMethod -Namespace "root\Intel_ME" -ClassName ME_System -MethodName getUniquePlatformIDFeatureState

Read Intel UPID via WMI

Note: This command is available only when the Intel UPID state has been set to Enabled via the BIOS, WMI or an Intel MEI command.

To read the Intel UPID, open PowerShell and execute:

Invoke-CimMethod -Namespace "root\Intel_ME" -ClassName ME_System -MethodName getUniquePlatformID

The system’s unique identity is displayed in two parts:

1. Intel CSME Platform ID
2. OEM platform ID. If the ID has not yet been set, this field will be filled with zeros.
