FPGA Boards

Terasic Development and Education Boards

The Terasic Development and Education (DE-series) boards have a rich feature set that targets applications for teaching and projects, embedded systems and robotics, and research. Intel provides an extensive set of academia-focused material specifically designed for use with these DE-series boards.

Intel offers a limited donation program for qualified professors and instructors.

Program Membership

Teaching Curriculum & Materials

Teaching and Project Boards

These boards are designed to meet your educational needs for both undergraduate and graduate level courses. They include:

  • A rich set of basic input and output features, such as robust switches, LEDs, seven-segment displays, and commonly-used I/O interfaces
  • Modern, powerful FPGAs for implementing digital designs from simple logic circuits to complete systems
  • More advanced features including a variety of memory devices, audio and video capability, as well as Ethernet and USB connectivity
  • High-quality, robust board design and manufacturing, with protection circuitry on all I/O pin connectors

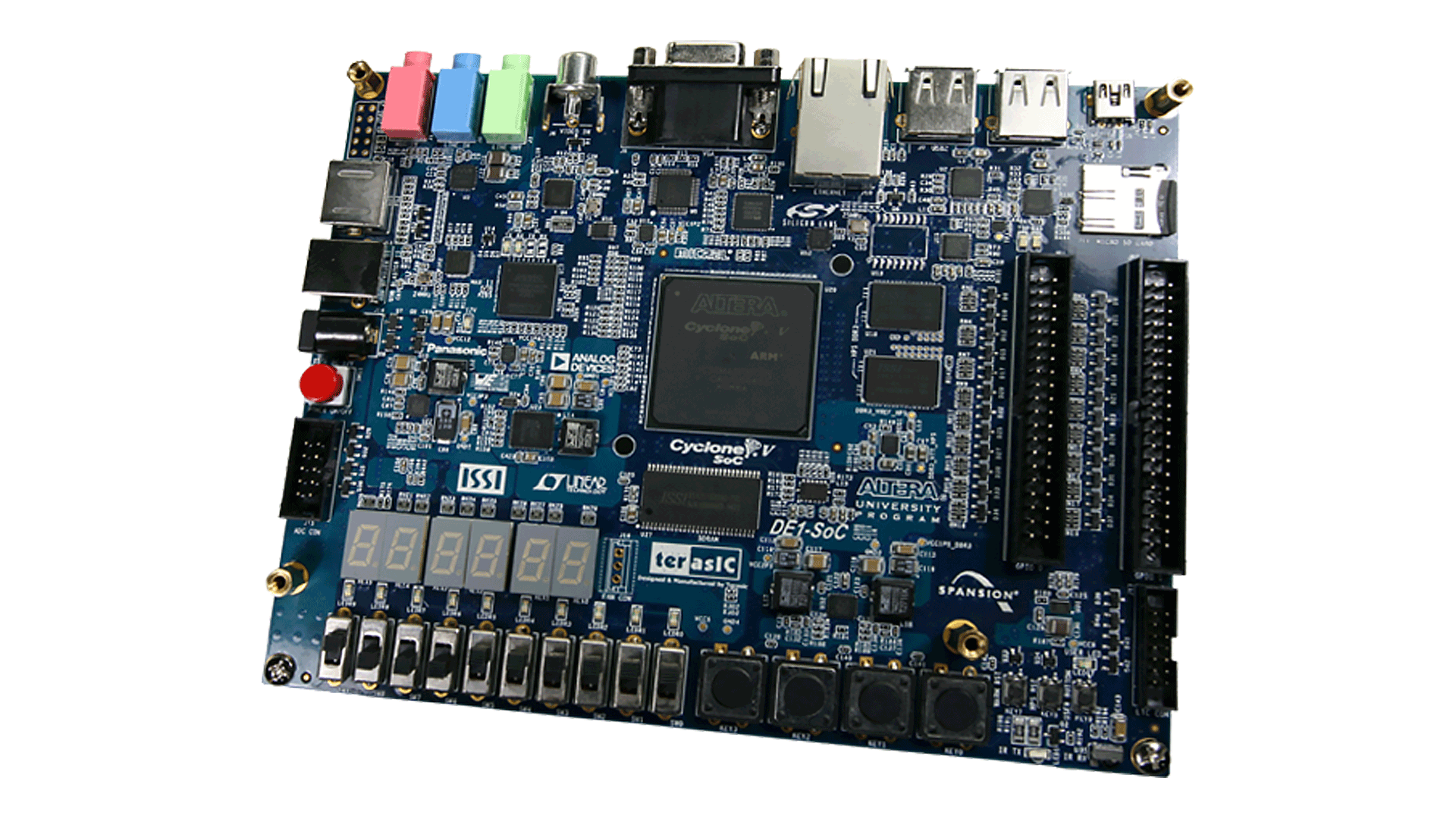

DE1-SoC

The DE1-SoC board is the recommended platform for teaching and projects.

Customer Price*
Academic $175 Order from Terasic
Commercial $249 Order from Terasic



Feature Description
FPGA
  • Cyclone V SoC FPGA 5CSEMA5F31 with EPCQ256 256-Mbit serial configuration device
Processors
  • ARM* Cortex-A9 dual core (925 MHz)
  • Nios® II processor
I/O Interfaces
  • Built-in USB-Blaster II for FPGA configuration
  • Line in/out, microphone in (24-bit audio CODEC)
  • Video out (VGA 24-bit DAC)
  • Video in (NTSC/PAL/Multiformat)
  • Infrared port
  • 10/100/1000 Ethernet
  • Two-port USB 2.0 host (Type A)
  • 3-axis accelerometer
  • PS/2 dual mouse and keyboard port
  • Expansion headers (two 40-pin headers)
Memory
  • 1 GB DDR3 SDRAM (HPS), 64 MB SDRAM (FPGA)
  • microSD* memory card slot
ADC
  • 8 channels
  • 12-bit resolution
  • 500 kilo-samples per second
  • 0-2.5V or 0-5V programmable range
Displays
  • Six 7-segment displays
Switches and LEDs
  • 10 toggle switches
  • 10 LEDs
  • Four debounced push-button switches
Clocks
  • 50 MHz oscillator



Resource Downloads
User Manual PDF
Datasheets ZIP
Intel® Quartus® Prime Design Software Setting File with Pin Assignments QSF
Intel® Quartus® Software Synopsis Design Constraints SDC

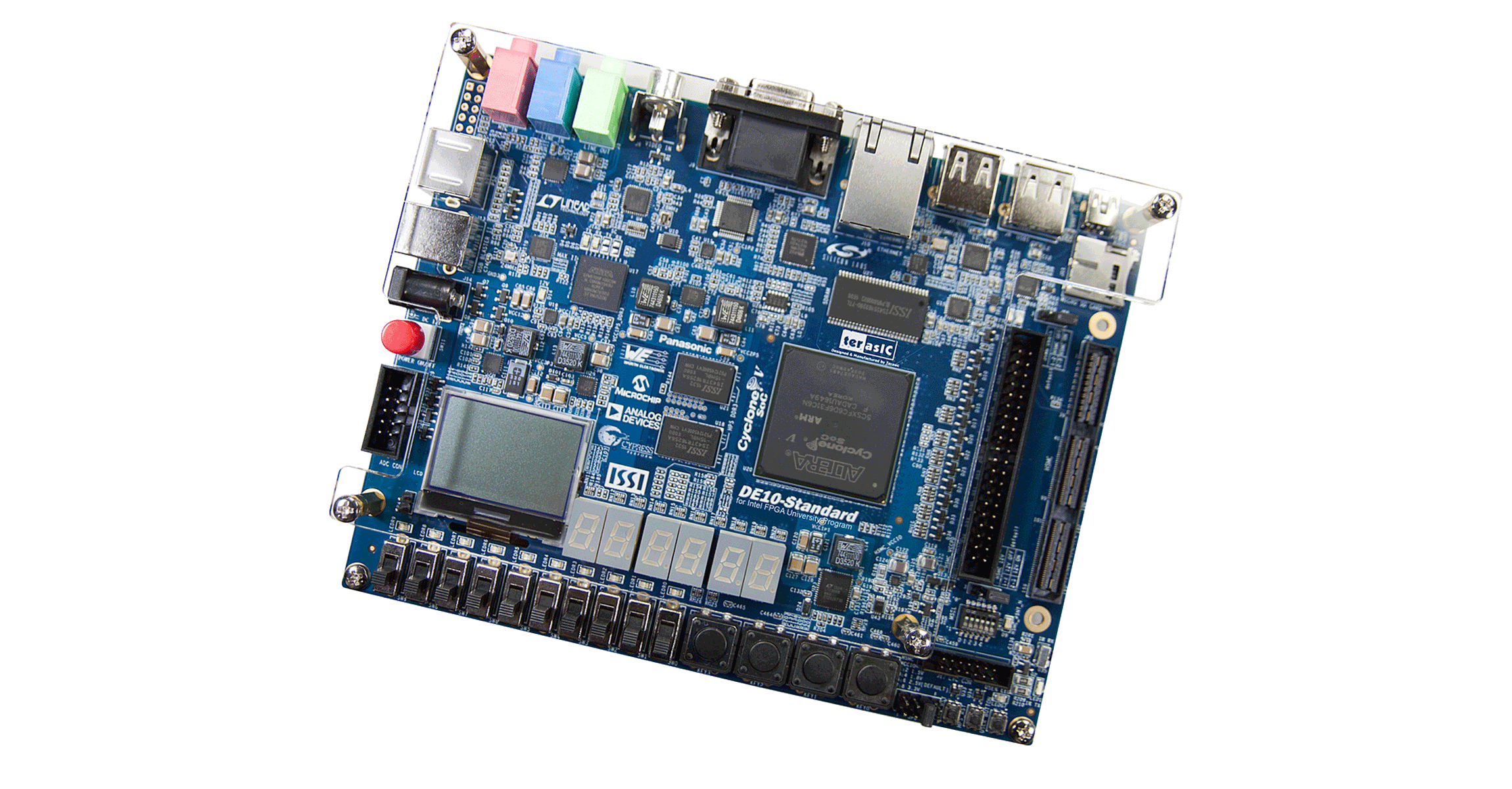

DE10-Standard

The DE10-Standard board has the same feature set as the DE1-SoC board but with some enhancements: a larger FPGA, more memory, an HSMC high-speed connector, and black & light mini LCD. It's ideal for those that need a bit more.

Customer Price*
Academic $259 Order from Terasic
Commercial $350 Order from Terasic



Feature Description
FPGA
  • Cyclone V SoC 5CSXFC6D6F31C6N with EPCS128 128-Mbit serial configuration device
Processors
  • ARM Cortex-A9 Dual Core (925 MHz)
  • Nios II processor
I/O Interfaces
  • Built-in USB-Blaster II for FPGA configuration
  • Line in/out, microphone in (24-bit audio CODEC)
  • 128 x 64 dots LCD module with backlight
  • Video out (VGA 24-bit DAC)
  • Video in (NTSC/PAL/Multiformat)
  • Infrared port
  • 10/100/1000 Ethernet
  • Two-Port USB 2.0 host (Type A)
  • 3-axis accelerometer
  • PS/2 dual mouse and keyboard port
  • HSMC connector
  • Expansion headers (40-pin header)
Memory
  • 1 GB DDR3 SDRAM (HPS), 64 MB SDRAM (FPGA)
  • microSD* memory card slot
ADC
  • 8 channels
  • 12-bit resolution
  • 500 kilo-samples per second
  • 0-2.5 V or 0-5 V programmable range
Displays
  • Six 7-segment displays
Switches and LEDs
  • 10 toggle switches
  • 10 LEDs
  • Four debounced push-button switches
Clocks
  • 50 MHz oscillator



Resource Downloads
User Manual PDF
Datasheets ZIP
Quartus Setting File with Pin Assignments QSF
Quartus Synopsis Design Constraints SDC

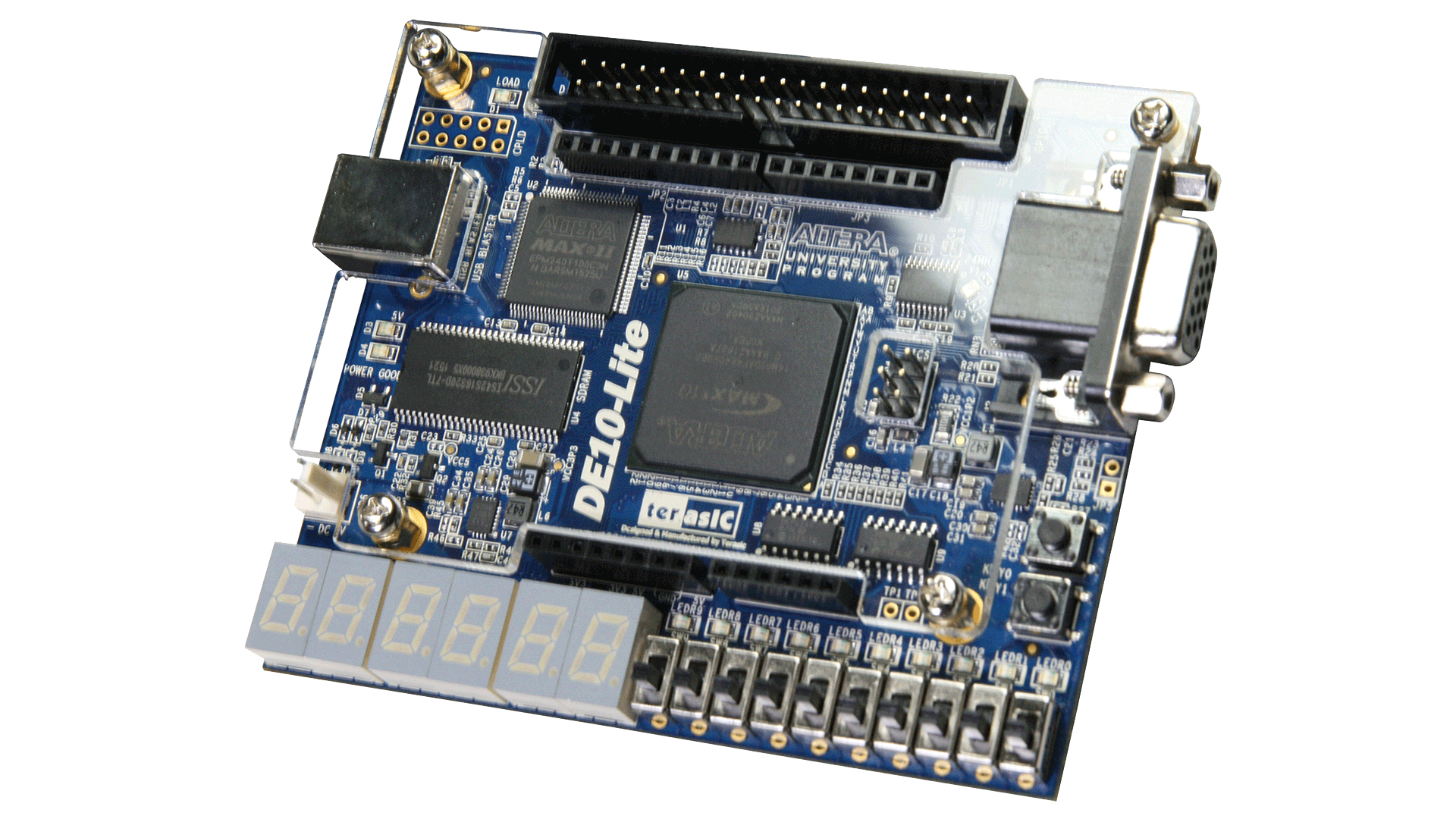

DE10-Lite

The DE10-Lite board has a subset of the features on the DE1-SoC board. It has all of the basic features that are provided by our more expensive boards, but lacks some of the more advanced capabilities.

Customer Price*
Academic $55 Order from Terasic
Commercial $85 Order from Terasic



Feature Description
FPGA
  • Intel® MAX® 10 FPGA 10M50DAF484C7G with integrated dual ADCs. Each ADC supports one dedicated analog input and eight dual function pins
Processors
  • Nios II processor
I/O Interfaces
  • Built-in USB-Blaster for FPGA configuration
  • Video out (VGA 12-bit DAC)
  • 3-axis accelerometer
  • Arduino header (Uno R3 compatibility)
  • Expansion header (40-pin header)
Memory
  • 64 MB SDRAM
Displays
  • Six 7-segment displays
Switches and LEDs
  • 10 toggle switches
  • 10 LEDs
  • Four debounced push-button switches
Clocks
  • 50 MHz oscillator



Resource Downloads
User Manual PDF
Datasheets ZIP
Quartus Setting File with Pin Assignments QSF
Quartus Synopsis Design Constraints SDC



Embedded & Robotics Boards

These boards are small in size but rich in features—perfect for embedded systems and robotics courses or projects.

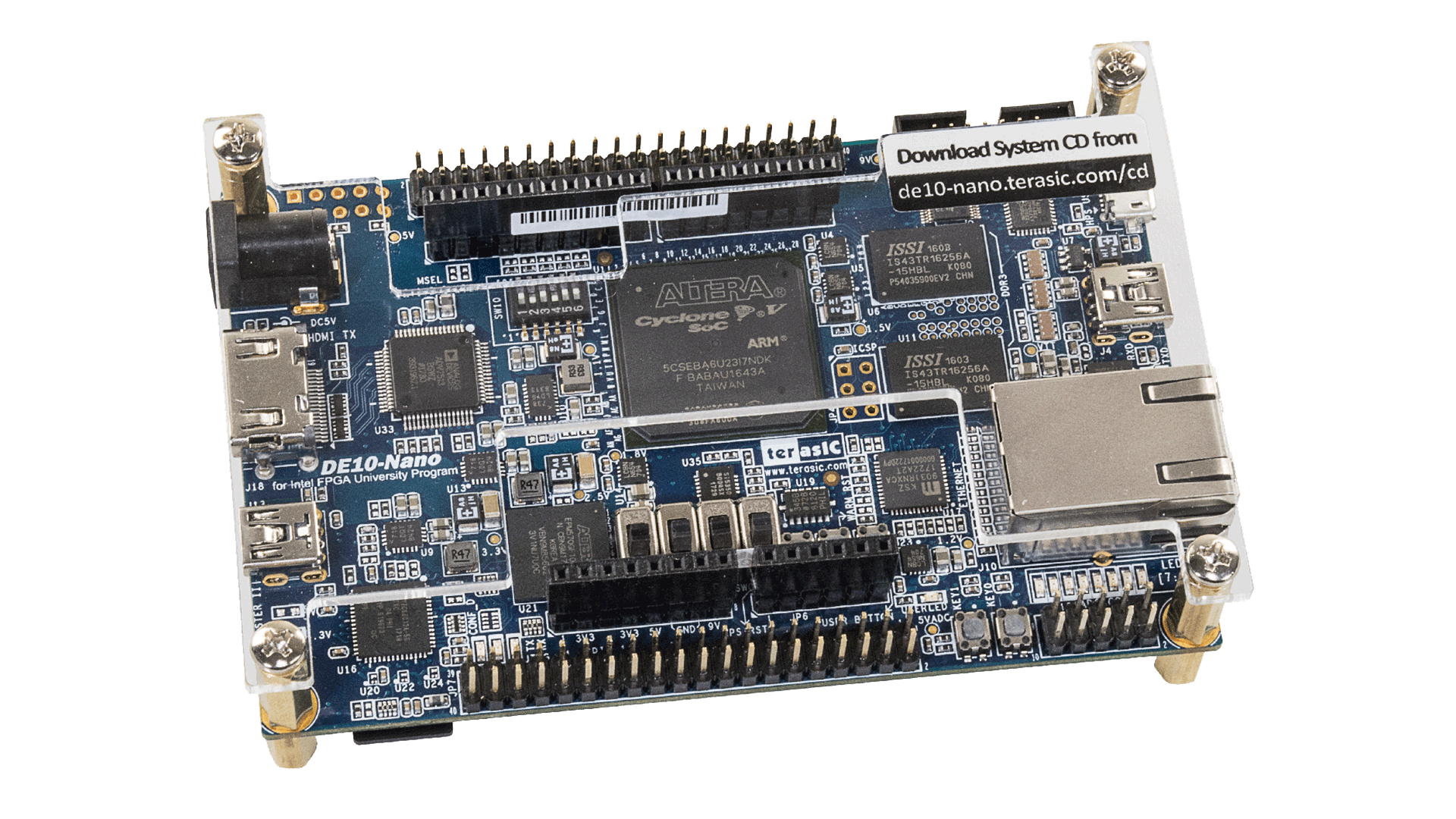

DE10-Nano

Customer Price*
Academic $99 Order from Terasic
Commercial $130 Order from Terasic



Feature Description
FPGA
  • Cyclone V SoC 5CSEBA6U23I7 with EPCS128 128-Mbit serial configuration device
Processors
  • ARM Cortex-A9 Dual Core (925 MHz)
  • Nios II processor
I/O Interfaces
  • Built-in USB-Blaster II for FPGA configuration
  • HDMI TX, compatible with DVI 1.0 and HDCP v1.4
  • Gigabit Ethernet
  • USB On-The-Go (OTG) port
  • 3-axis accelerometer
  • Arduino header (Uno R3 compatibility)
  • UART to USB Mini-B connector
  • Expansion headers (two 40-pin headers)
Memory
  • 1GB DDR3 SDRAM (HPS)
  • microSD* memory card slot
ADC
  • 8 channels
  • 12-bit resolution
  • 500 kilo-samples per second
Switches and LEDs
  • 4 toggle switches
  • 8 LEDs
  • Two debounced push-button switches
Clocks
  • 50 MHz oscillator



Resource Downloads
User Manual PDF
Datasheets ZIP
Quartus Setting File with Pin Assignments QSF
Quartus Synopsis Design Constraints SDC



Research Boards

These are designed for projects that require the fastest or largest FPGAs and the latest memory and peripheral components.

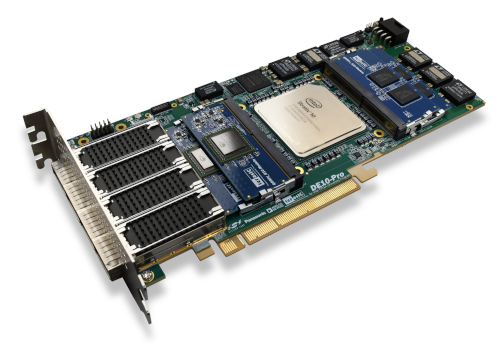

DE10-Pro

Customer Price*
Academic Contact Terasic for special pricing.
Commercial Order from Terasic



Feature Description
FPGA
  • Intel® Stratix® 10 GX FPGA
Processors
  • ARM Cortex-A53 quad-core (1.5 GHz)
  • Nios II processor
I/O Interfaces
  • Built-in USB-Blaster II for FPGA configuration; JTAG mode
  • PCI Express* Gen3 x16 edge connector
  • Four QSFP28 connectors
  • Temperature sensor
  • Power monitor
  • Fan control
Memory
  • 128 MB FLASH
  • 4 independent DDR4 SO-DIMM sockets with ECC, up to 8 GB 1200 MHz for each socket
Available Memory Modules (sold separately)
  • DDR4-2666/2400 for FPGA Core Speed 1/2 FPGA
  • QDRII+ 550 MHz 144 MBits
  • QDRIV 1066 MHz 144 MBits
Switches and LEDs
  • Two toggle switches
  • Four LEDs
  • Two debounced push-button switches
Clocks
  • 50 MHz oscillator



Documentation from Terasic

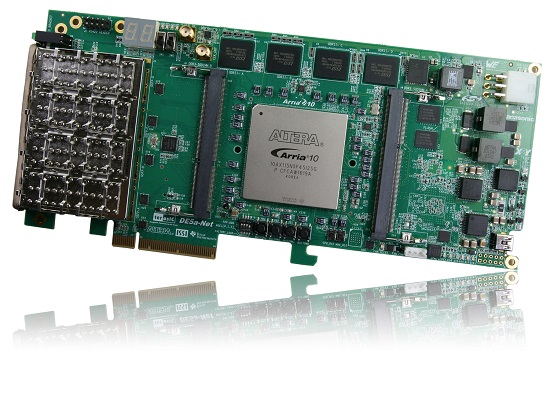

DE5a-Net-DDR4

Customer Price*
Academic Contact Terasic for special pricing.
Commercial Order from Terasic



Feature Description
FPGA
  • Intel® Arria 10 GX FPGA 10AX115N3F45E2SG with EPCS128 128-Mbit serial configuration device
Processors
  • Nios II processor
I/O Interfaces
  • Built-in USB-Blaster II for FPGA configuration
  • PCI Express* x8 Edge Connector
  • 10-gigabit Ethernet ports SFP+ (x4)
  • One RS422 expansion header
Memory
  • 2 DDR3 memory slots
  • 36 MB QDRII+ SRAM
  • 256 MB Flash
Displays
  • Two 7-segment displays
Switches and LEDs
  • Two toggle switches
  • Four LEDs
  • Four debounced push-button switches
Clocks
  • 50 MHz oscillator
  • External SMA
  • External SMA clock output



Documentation from Terasic
