Intel® Developer Cloud for oneAPI: Possible Setup Errors

Introduction

Intel® Developer Cloud offers complimentary access to a wide range of Intel® architectures to help you get instant hands-on experience with Intel® software and run your edge, AI, high-performance computing (HPC) and rendering workloads. With preinstalled Intel-optimized frameworks, tools, and libraries, you have everything you need to fast-track your learning and project prototyping.

This article describes the self-help collection of troubleshooting techniques for Intel Developer Cloud for oneAPI, which describes a problem and countermeasures for several such situations.

Permission Denied Publickey Error

During setup, the following is the most observed error:

uXXXXX@devcloud: Permission denied (publickey)

Follow these work-arounds:

1. Make sure that you have given correct permissions to the .ssh folder.

chmod 600 ~/.ssh/devcloud-access-key-12345.txt

chmod 600 ~/.ssh/config

• If this step doesn’t work, delete the existing key and try downloading the key again.
• If you are trying automatic configuration, try manual configuration steps.

2. Check whether the Intel Developer Cloud user ID is the same in Jupyter* Notebook and the configuration file.
   1. Sign in to Intel Developer Cloud.
   2. Log in and launch Jupyter.

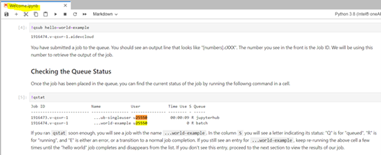

   3. Note the account number as shown in the following image in the Welcome.ipynb notebook.




   4. Next, log in with .ssh. If an error does not show up, your account is good.
   5. If a Permission Denied (Publickey) error message shows up during log in with ssh then:
      1. Check your .ssh/config: cat .ssh/config.
      2. Check if your account number in your .ssh/config matches with the one shown in Jupyter (example: 25550).
      3. Make sure the correct account number is reflected in the configuration file. If not, edit your .ssh/config to correct the account number in .ssh/config to be the same as the one with what you see in Jupyter.
      4. Login with .ssh again.
   6. If at any point during the above steps you notice files missing, contact the support team with your original account number and the correct account number. They will work with the engineering team to assist in copying your files over.

Create a New Account After Deactivation

1. Make sure that you log out of the Jupyter Notebook associated with the old user ID and clear the cookies and cache.
2. In the C:\cygwin64\home\user\.ssh folder, delete known_hosts or rename known_hosts to any other name (example: known_hosts.old).
3. Remove all the documents related to your old Intel Developer Cloud account (such as configuration files and setup keys).

Connect to Intel Developer Cloud from macOS*

Error:

$ ssh devcloud

OpenSSH_8.6p1, LibreSSL 3.3.5

ssh: connect to host ssh.devcloud.intel.com port 22: Operation timed out

kex_exchange_identification: Connection closed by remote host

Connection closed by UNKNOWN port 65535

If you are a Mac* user and trying to set up Intel Developer Cloud, you must make the following modifications, that is, make x to capital X in your config file in .ssh folder.

Change the following line:

ProxyCommand /usr/bin/nc -x 5 -x PROXY_SERVER:PORT %h %p

To the following:

ProxyCommand /usr/bin/nc -X 5 -x PROXY_SERVER:PORT %h %p

Connect via OpenSSH

You could encounter the following possible errors while connecting to Intel Developer Cloud via OpenSSH.

Create Process Error: 2

Error:

CreateProcessW failed error:2

posix_spawnp: No such file or directory

No dependencies are required if you are connected directly to the internet. However, if your internet service provider or organization requires SSH connections to pass through a proxy server, an additional third-party component is required. As per instructions in this documentation, use the Ncat networking utility from Nmap. Install Nmap from here.

Ncat: Invalid proxy port number "PORT". QUITTING.

Error:

Ncat: Invalid proxy port number "PORT". QUITTING.

kex_exchange_identification: Connection closed by remote host

You might see this error if you did not add the path to the Ncat executable in your configuration file. Add a path to the ncat.exe file in your configuration as follows:

Host devcloud-via-proxy

User guest

HostName ssh.devcloud.intel.com

IdentityFile ~/.ssh/devcloud-access-key-XXXXX.txt

LocalForward 4022 c009:22

ProxyCommand C:/Program Files (x86)/Nmap/ncat.exe --proxy PROXY_SERVER:PORT --proxy-type socks5 %h %p

ssh: Could not resolve hostname ssh.devcloud.intel.com\302\240: No such host is known.

Error:

ssh: Could not resolve hostname ssh.devcloud.intel.com\302\240: No such host is known.

kex_exchange_identification: Connection closed by remote host

Try the following work-arounds mentioned to resolve this error:

1. Right-click on the downloaded key file, devcloud-access-key-XXXXX.txt, and then open Properties to change the file permissions in the Security tab. Apply the permissions as shown in the following image.

If this does not work, delete the .ssh folder and try creating a new .ssh directory with the config file and downloaded key file. Paste the following content into your config file and try connecting to Intel Developer Cloud from a Windows* terminal again.

Host devcloud

User uXXXXX

IdentityFile ~/.ssh/devcloud-access-key-XXXXX.txt

ProxyCommand ssh -T -i ~/.ssh/devcloud-access-key-XXXXX.txt guest@ssh.devcloud.intel.com

Host devcloudx

User uXXXXX

Port 4022

IdentityFile ~/.ssh/devcloud-access-key-XXXXX.txt

ProxyCommand ssh -T devcloud-via-proxy

Host devcloud-via-proxy

User guest

HostName ssh.devcloud.intel.com

IdentityFile ~/.ssh/devcloud-access-key-XXXXX.txt

LocalForward 4022 c009:22

ProxyCommand <path to ncat executable in Nmap folder>/ncat.exe --proxy PROXY_SERVER:PORT --proxy-type socks5 %h %p

Connection via VSCode

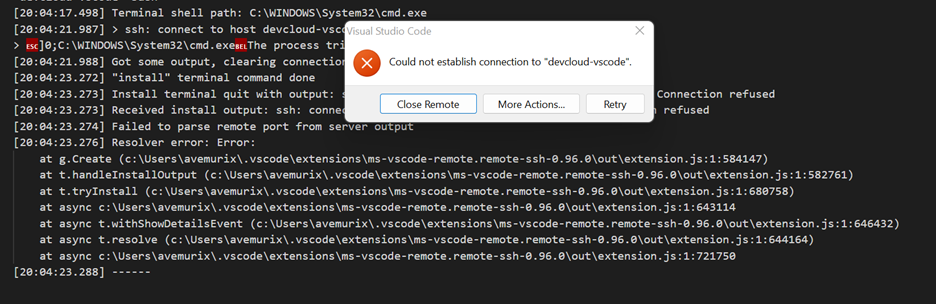

After connecting successfully to Intel Developer Cloud via OpenSSH, you might observe the below error:

Error:

Possible work-arounds:

1. If you are connected to VPN, try disconnecting or adding the following code to your config file, save it, and then reload the VSCode window.

Host devcloud-vscode-proxy

UserKnownHostsFile /dev/null

StrictHostKeyChecking no

User uXXXXX

Port 4022

IdentityFile ~/.ssh/devcloud-access-key-113485.txt

ProxyCommand ssh -T devcloud-via-proxy

2. If you are not behind proxy, add the following line under devcloud-vscode in your config file.

ssh -T -i ~/.ssh/devcloud-access-key-80713.txt guest@ssh.devcloud.intel.com
