DE10-Nano Board Mechanical Layout

Published: 02/04/2017

Last Updated: 02/04/2017

Mechanical layout of the DE10-Nano board.

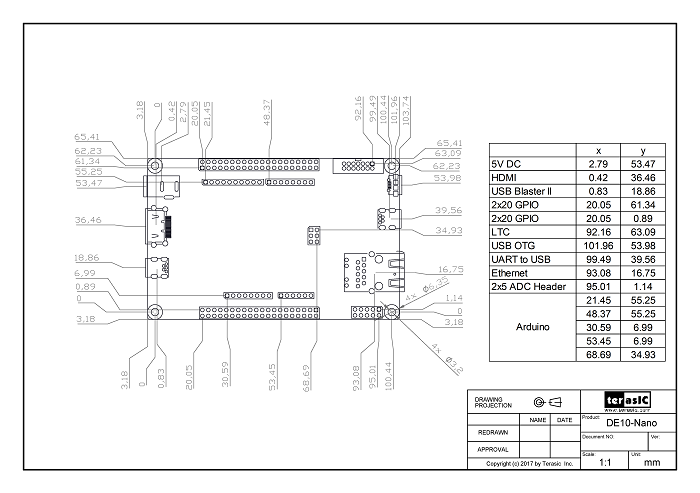

DE10-Nano Mechanical Drawing

Board Feature x-axis (mm) y-axis (mm)
5V DC 2.79 53.47
HDMI 0.42 36.46
USB Blaster II 0.83 18.86
2x20 GPIO 20.05 61.34
2x20 GPIO 20.05 0.89
LTC 92.16 63.09
USB OTG 101.96 53.98
UART to USB 99.49 39.56
Ethernet 93.08 16.75
2x5 ADC Header 95.01 1.14
Arduino* Header 21.45 55.25
Arduino* Header 48.37 55.25
Arduino* Header 30.59 6.99
Arduino* Header 53.45 6.99
Arduino* Header 68.69 34.93

Download    Learn More    Related

Attachment Size
de10-nano-mechanical-drawing.pdf 134.8 KB
