MongoDB* Tuning Guide on 3rd Generation Intel® Xeon® Scalable Processors

Published: 08/15/2021

Introduction

This guide is targeted towards users who are already familiar with MongoDB* and is designed to provide pointers and setting suggestions for BIOS, OS, MongoDB, and system settings that will provide the best performance for most situations. The settings apply to running MongoDB on a 2-socket Intel® Server System with a 3rd Generation Intel® Xeon® Scalable Processors. For this guide we will be using Ubuntu* 20.04.1 LTS, MongoDB v4.4.1. Acquire and install the target software first. Dependent software binaries or licenses are not distributed with the workloads.

MongoDB is a document-based, general purpose, distributed database built for modern application developers including the cloud. MongoDB is a document database storing data in JSON-like documents. MongoDB is developed by MongoDB Inc. and licensed under the Server Side Public License (SSPL). Learn more about MongoDB here: https://www.mongodb.com/

Yahoo! Cloud Serving Benchmark* (YCSB) is an open-source specification and program suite for evaluating retrieval and maintenance capabilities of computer programs. The goal of the Yahoo Cloud Serving Benchmark (YCSB) project is to develop a framework and common set of workloads for evaluating the performance of different "key-value" and "cloud" serving stores. Learn more about YCSB here: https://research.yahoo.com/news/yahoo-cloud-serving-benchmark/

3rd Gen Intel® Xeon® Scalable processors deliver industry-leading, workload-optimized platforms with built-in AI acceleration, providing a seamless performance foundation to help speed data’s transformative impact, from the multi-cloud to the intelligent edge and back. Here are some of the features in these new processors:

  • Enhanced Performance
  • Intel® Deep Learning Boost with VNNI
  • More Intel® Ultra Path Interconnect
  • Increased DDR4 Memory Speed & Capacity
  • Intel® Advanced Vector Extensions
  • Intel® Security Essentials and Intel® Security Libraries for Data Center
  • Intel® Speed Select Technology
  • Support for Intel® Optane™ Persistent Memory 200 series

BIOS Settings

BIOS can optimize configuration items and recommended values ​​are as follows:

Configuration Item

Recommended Value

Hyper-Threading

Enabled

Hardware Prefetcher

Enable

L2 RFO Prefetch Disable

Enable

Adjacent Cache Prefetch

Enable

DCU Streamer Prefetcher

Enable

DCU IP Prefetcher

Enable

LLC Prefetch

Enable

Turbo Mode

Enable

Freq Throttling Lock (ICX system)

Disable

Power & Perf Policy

Performance

Frequency Driver

intel_pstate

System Set-up and Optimizations

Network configuration

Fast network is critical for the MongoDB performance. To make sure that network is not the performance bottleneck, recommendation is to use 10Gb/sec or higher network bandwidth between server and client.

Memory Configuration

  • Use identical DIMM types throughout the platform:
    • Same size, speed, and number of ranks
  • Maximize the same number of channels populated in each memory controller
  • Use a "balanced" platform configuration:
    • All available memory channels populated equally
    • Identical DIMMs in all locations (size/speed/rank)

Disk Configuration

MongoDB performance gets limited if the system-under-test (SUT) is using SSD for storing the database. The recommendation is to use the high disk bandwidth (i.e. NVME drives) that help achieve maximum performance. For instance: 4 x NVME drives in RAID 0 configuration of 6 TB (4x1.5TB)

CPU Configuration

This guide was developed using 8380 3rd Generation Intel® Xeon® Scalable Processor(s).

  • Set the corresponding CPU governor to performance mode
sudo cpupower frequency-set --governor performance
  • Disable the IRQBalance
sudo service irqbalance stop
  • IRQ Affinity

IRQs can be affinitized to one or more specific CPU cores. Therefore, a particular IRQ will be handled only by a specific set of CPU cores. The recommended setting is to affinitize IRQ queues to all cores to improve the workload performance.

Kernel Configuration

  • Set the transparent hugepage
echo "never" | sudo tee /sys/kernel/mm/transparent_hugepage/defrag
  • Set the transparent zone_reclaim_mode
echo "0" | sudo tee /proc/sys/vm/zone_reclaim_mode

MongoDB Settings

Methodology

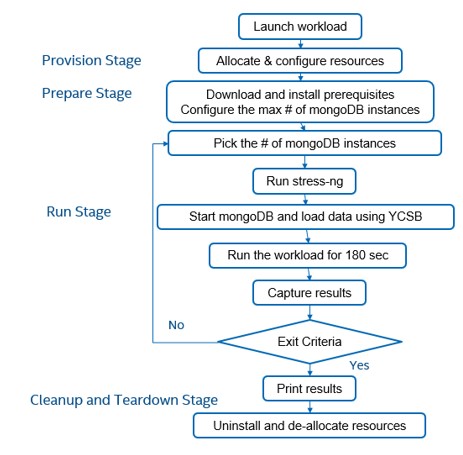

In doing our testing, we followed the flow shown below:

mongoDB flow

Follow the below-mentioned steps to get mongodb running:

  • Allocate and configure resources on server and client machines as specified by your workload configuration files
  • Download and install the prerequisites (libcurl4) and the workload (mongoDB, YCSB)
  • Configure the maximum number of mongoDB instances one can run on the target system
  • Engage the storage subsystem by limiting memory available to mongoDB instances and run stress-ng in parallel to occupy the remaining memory
  • Start the mongoDB and use YCSB to load the data “90Read10Update”
  • Run the workload for 180 sec
  • Capture the results and check the exit criteria
  • Uninstall and de-allocate the resources on server and client
  • Print results, throughput being the primary metric

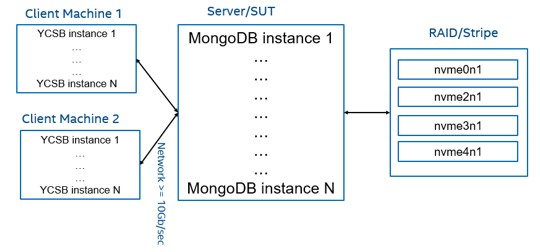

Below is a diagram of our testing setup:

test setup

Application version and URL

MongoDB Enterprise Version 4.4.1 - https://downloads.mongodb.com/linux/mongodb-linux-x86_64-enterprise-ubuntu2004-4.4.1.tgz

  • Install with default settings

Strategy for running MongoDB

MongoDB is an open-source scale-out NoSQL database. In the test scenario, this server-client application has been set up to run multiple MongoDB instances on the SUT (server under test) and automatically increasing the load on the target system incrementally until a maximum throughput and maximum throughput under SLA is achieved. The input database size impacts the performance of the workload. Small databases fit in DRAM and users can get better performance. However, for the more realistic scenario, the database size should be larger than the DRAM size. The latter scenario has been used for the test setup where the storage system has been engaged by limiting memory available to the MongoDB instances. The goal is to utilize the system to its full potential to achieve the max throughput and max throughput under SLA (3msec p99 read latency).

Storage Engine

WiredTiger is the default storage engine with MongoDB and what we have tested with. Use default settings. MongoDB recommends cache size of 50% of (RAM -1GB). Default settings have been used for WiredTiger.Clients

Two (2) clients minimum are required. Client CPU can be slower speed than the SUT. On the clients, be sure to install YCSB v0.17 (or higher), Java v8 (or higher), and Maven v3.6.3 (or higher)

Filesystem mount options commands used are as follows:

sudo mdadm --create /dev/md0 --level=stripe --raid-devices=4 /dev/nvme1n1 /dev/nvme2n1 /dev/nvme3n1 /dev/nvme4n1

sudo mke2fs -F -E lazy_itable_init=0,discard -O ^has_journal -t ext4 -b 4096 /dev/md0

Performance Monitoring Tools

Software tools that can be used to analyze the workload performance and to generate and monitor system resource statistics while the workload runs are as follows:

Open Source Tools:

  • Sar
  • Dstat
  • Collectd
