Why does an Intel® Agilex™ device fail during configuration after updating the Intel® Quartus® Prime Software version to version 21.3 or later?

Environment

  • Intel® Quartus® Prime Pro Edition
  • BUILT IN - ARTICLE INTRO SECOND COMPONENT
    Description

    If the following conditons are met, an Intel® Agilex™ device may fail during configuration:

    • The Intel® Agilex™ device design project is updated from the Intel® Quartus Prime® Pro Editon Software v21.2 or earlier to v21.3 or later
    • PMBus Master is used in VID mode in the Configuration setting under Device and Pin Options
    • Auto Discovery option is used in Voltage output format in the Power Management & VID setting under Device and Pin Options

    This is because the Auto Discovery option is no longer supported in Intel® Agilex™ devices since Intel® Quartus® Prime Pro Edition Software v21.3.  When Auto Discovery option is used and the Intel® Quartus Prime® Pro Edition Software version is updated from v21.2 or earlier to v21.3 or later,  the following message is displayed in the System Message window:

    Info(22747): Value AUTO_DISCOVERY for QSF Assignment PWRMGT_VOLTAGE_OUTPUT_FORMAT is not supported. Hence changing the value to LINEAR_FORMAT

    Resolution

    Set the Power Management & VID settings based on the power requlator device.

     Example

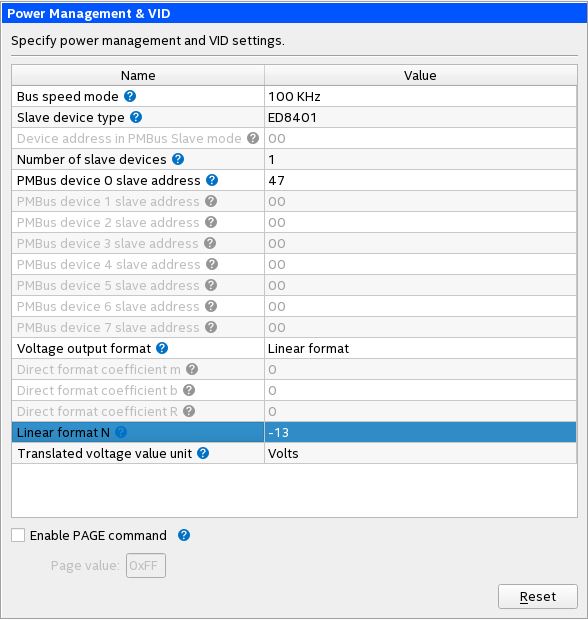

    Intel® Agilex™ F-Series FPGA Development Kit - Analog Devices LTC3884 version







































    Intel® Agilex™ F-Series FPGA Development Kit - Intel® Enpirion® device ED8401 version
