Description
You can see the per-lane information under each tab in the P-Tile Debug Toolkit.

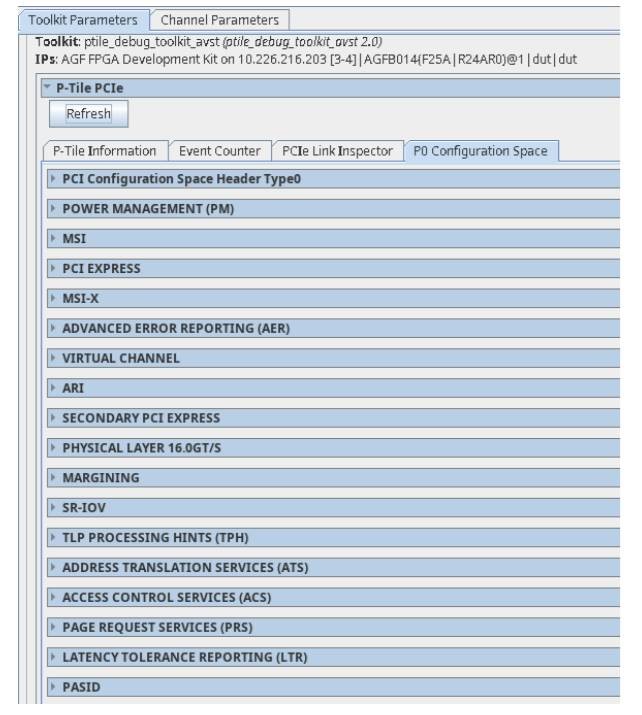

- In the Configuration Space tab, there is the logical lanes information for each port
- In the Channels Parameter tab, there is the physical lanes information for each port
- In the Eye Viewer Controls tab, there is the physical lanes information for each port
Resolution
This information is added to the P-Tile Avalon® Streaming Intel® FPGA IP for PCI Express User Guide starting with v21.4 onwards.
