Article ID: 000086009 Content Type: Troubleshooting Last Reviewed: 07/21/2020

Why are the simulation waveforms different between Intel® HLS compiler version 19.2 and 20.1 with the explicit_streams_packets_empty example?

Environment

    Intel® Quartus® Prime Pro Edition
    Intel® High Level Synthesis Compiler Pro Edition
BUILT IN - ARTICLE INTRO SECOND COMPONENT
Description

When you compile the HLS example  xxx/hls/examples/tutorials/interfaces/explicit_streams_packets_empty with Intel® HLS Compiler version 19.2 and 20.1, you will get different waveforms.  In version 19.2, the signal in_pixels_startofpacket has a start pulse, but in versions 19.3 and 20.1, the start pulse is missing.

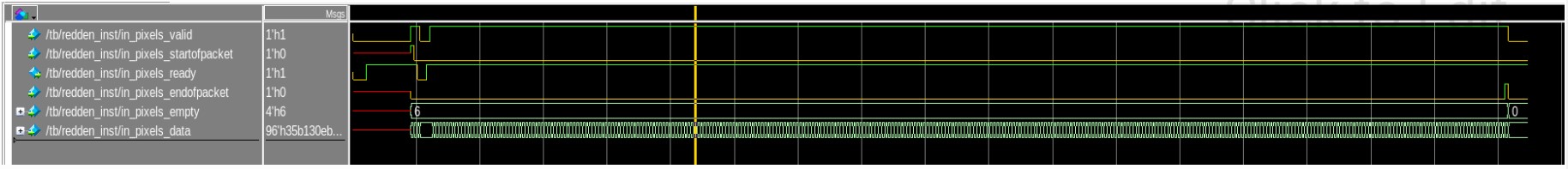

19.2

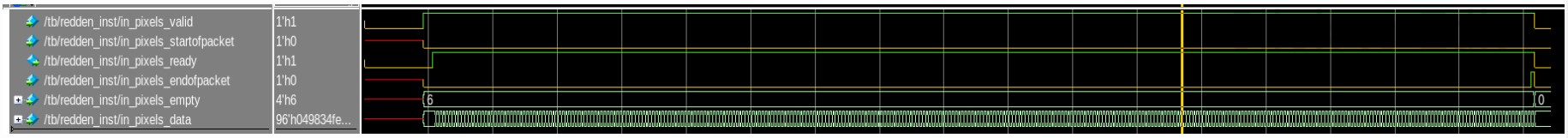

20.1 and 19.3


Resolution

This problem is scheduled to be fixed in Intel® High Level Synthesis version 20.4.

Related Products

This article applies to 1 products

Intel® Programmable Devices
