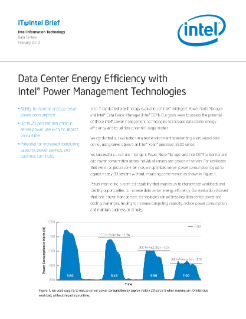

Data Center Energy Efficiency with Intel® Power Management Technologies • Ability to monitor and cap server power consumption • Up to 20 percent reduction in server power use with no impact on runtime • Potential for increased computing capacity, power savings, and business continuity Intel IT conducted a technology evaluation of Intel® Intelligent Power Node Manager and ...Intel® Data Center Manager (Intel® DCM). Our goals were to assess the potential of these Intel® power management technologies to increase data center energy efficiency, and to validate potential usage models. We conducted our evaluation in a test environment representing a virtualized data center, using servers based on Intel® Xeon® processor 5500 series. We successfully used Intel Intelligent Power Node Manager and Intel DCM to monitor and cap power consumption across individual servers and groups of servers. For workloads that were not processor-intensive, we optimized server power consumption by up to approximately 20 percent without impacting performance, as shown in Figure 1. Power monitoring is a critical capability that enables us to characterize workloads and identify opportunities to increase data center energy efficiency. Our evaluation showed that Intel power management technologies can address key data center power and cooling challenges, helping to increase computing capacity, reduce power consumption, and maintain business continuity. 1,200 Caps (W) ts 100-W Reduction Wat~10% 1,100 in n 200-W Reduction sumptio~20% 1,000 300-W Reduction Con~30% Power 900 5:50 5:45 5:50 7:00 800 Time Figure 1. We used capping to reduce server power consumption by approximately 20 percent when running an I/O-intensive workload, without impacting runtime. IT@Intel Brief www.intel.com/it Business Challenge Intel IT, like other organizations, faces significant data center power and cooling challenges. Rapid growth in demand drives a continual need for more computing resources. This is straining the limits of data center power and cooling capacity. At the same time, power and cooling costs are becoming an increasingly important component of total cost of ownership (TCO). Ways to accommodate the increasing demand include building new data centers or adding power and cooling capacity to existing data centers. However, both of these options are extremely expensive and take a long time to complete. Because of this, we are increasingly applying alternative approaches that focus on using existing data center power more efficiently in order to increase computing capacity, cut power costs, and reduce Intel’s carbon footprint. Traditionally, because IT organizations have lacked detailed information about actual server power consumption in everyday use, data center computing capacity has been based on nameplate power, peak server power consumption, or derated power. In practice, server power consumption with real data center workloads is nearly always lower than this. This situation results in overprovisioned data center power, overcooling of IT equipment, and increased TCO. If we can better understand and control server power consumption, we can more efficiently use existing data center power, resulting in benefits such as increased capacity and reduced power costs. Applied across tens of thousands of servers, this could result in considerable savings. To this end, we conducted an evaluation of two new Intel power management technologies: Intel Intelligent Power Node Manager and Intel Server 1 based on Intel® Xeon® processor X5550 Test Load Test Load Test Load on VM on VM on VM Server 2 based on Intel Xeon processor X5550 Test Load Test Load Test Load on VM on VM on VM Server 3 based on Intel Xeon processor X5550 Test Load Test Load Test Load on Read the full IT@Intel Brief Intel Information Technology Data Centers February 2010.
