HDMI Intel® FPGA IP Core

The HDMI Intel FPGA intellectual property (IP) core provides support for the next generation of video display interface technology. Due to its ability to send high-definition audio and video, High-Definition Multimedia Interface (HDMI) has become the most common digital connection in consumer electronics.

Read the HDMI Intel® Cyclone® 10 GX FGPA IP Design Example user guide ›

Read the HDMI Intel® Arria® 10 FPGA IP Design Example user guide ›

Read the HDMI Intel® FPGA IP user guide ›

Read the Intel® Arria® 10 and Intel® Stratix® 10 HDMI 2.1 System Design Guidelines ›

Read the HDMI Intel® Stratix® 10 FPGA IP design example user guide ›

Read the Intel® Agilex™ 7 F-tile HDMI Intel® FPGA IP design example user guide ›

Read the HDMI PHY Intel® FPGA IP user guide ›

Read the HDMI PHY Intel® FPGA IP design example user guide ›

HDMI Intel® FPGA IP Core

  • Overview

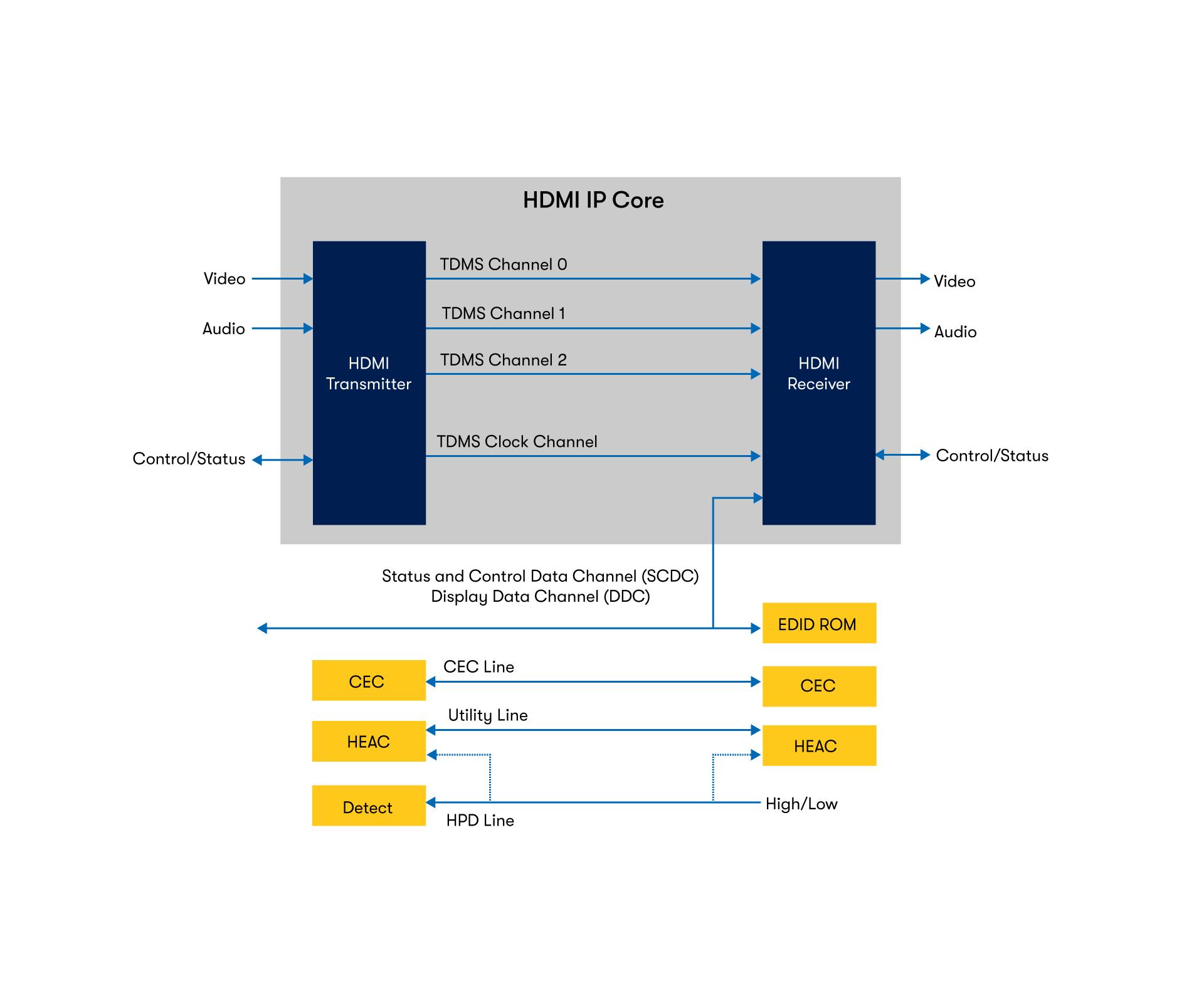

The HDMI cable and connectors carry four differential pairs that are composed of three Transition-minimized differential signaling (TMDS) data channels and one clock channel in HDMI 2.0 or four Fixed Rate Link (FRL) data channels in HDMI 2.1. You can use these channels to carry video, audio, and auxiliary data at a raw bit rate of up to 3.4/6/8/10/12 Gbps per channel. HDCP-encrypted transmission can also be integrated into our IP through the newly released Intel® FPGA HDCP core.

HDMI 2.1 8K Demo Video

In this demo, we will be showing the 8K UDX10 reference design for Intel® Arria® 10 FPGAs, featuring HDMI 2.1 connectivity IP as well as the 8K ready Video and Image Processing Suite Intel® FPGA IP.

Features

IP Core Feature

Description

Color support

  • 8, 10, 12 or 16 bits per color (bpc)
  • RGB and YCbCr 444, 422 and 420 color modes

Symbols per clock

1, 2, 4 or 8 symbols per clock

Video

Support up to 8k

Audio

Up to 32 channels of embedded audio

View all Show less

Device Support

Device Family

One Symbol per Clock

Maximum Data Rate

Two Symbols per Clock

Maximum Data Rate

Four Symbols per Clock

Maximum Data Rate

Eight Symbols per Clock

Maximum Data Rate

HDMI Version

Intel® Agilex™ 7 F-tile

Not supported

Not supported

Not supported

12,000 Mbps v.1.4, v2.0, and v2.1
Intel® Stratix® 10

Not supported

5,940 Mbps

Not supported

12,000 Mbps

v.1.4, v2.0, and v2.1

Intel® Arria® 10

Not supported

5,940 Mbps

Not supported

12,000 Mbps

v.1.4, v2.0, and v2.1

Intel® Cyclone® 10

Not supported

5,940 Mbps

Not supported

Not supported
v1.4 and v2.0

Stratix V

2,970 Mbps

5,940 Mbps

Not supported

Not supported

v1.4 and v2.0

Arria V

1,875 Mbps

3,276.8 Mbps

5,940 Mbps

Not supported

v1.4 and v2.0

View all Show less

Quality Metrics

Basics

Year IP was first released

2014

Latest version of Intel® Quartus® Prime software supported?

Yes

Status

FPGA

HDMI Version

Status

A10

2.0

Production

A10

2.1

Production

S10

2.0

Production

S10

2.1

Production

C10

2.0

Production

Agilex F-tile 2.1 Preliminary

Deliverables

Customer deliverables include the following:

  • Design file (encrypted source code or post-synthesis netlist)
  • Simulation model for ModelSim*-Intel® FPGA Edition
  • Timing and/or layout constraints
  • Testbench or design example
  • Documentation with revision control
  • Readme file



  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • No

Any additional customer deliverables provided with IP

None

Parameterization GUI allowing end user to configure IP

Yes

IP core is enabled for Intel FPGA IP Evaluation Mode Support

Yes

Source language

Both Verilog and VHDL

Testbench language

Both Verilog and VHDL

Software drivers provided

Verilog

Driver operating system (OS) support

N/A

Implementation

User interface

Other (Video Data)

IP-XACT metadata

No

Verification

Simulators supported

ModelSim, VCS, Riviera-PRO, NCSim (Verilog)

Hardware validated

Intel® Stratix® 10, Intel® Arria® 10, Intel® Cyclone® 10, Stratix® V, Arria® V, Intel® Agilex 7 F-tile

Industry standard compliance testing performed

Yes

If Yes, which test(s)?

HDMI Source/Sink Compliance Test CTS 2.0b

If Yes, on which Intel FPGA device(s)?

Intel® Arria® 10, Arria V

If Yes, date performed

2017

If No, is it planned?

N/A

Interoperability

IP has undergone interoperability testing

Yes

If yes, on which Intel FPGA device(s)

Intel® Stratix® 10, Intel® Cyclone® 10, Intel® Arria® 10, Stratix V, Arria V, Intel® Agilex 7 F-tile

Interoperability reports available

Contact Sales

View all Show less

Getting Started

Design Examples and Development Kits

Design Example

Development Kits Supported

Platform Designer Compliant

Provider

HDMI Intel® Stratix® 10 FPGA IP Design Example User Guide

Intel® Stratix® 10 FPGA Development Kit

Yes

Intel

Intel® FPGA HDMI Design Example User Guide for Intel® Cyclone® 10 GX Devices

Intel® Cyclone® 10 GX FPGA Development Kit

Yes

Intel

Intel® FPGA HDMI Design Example User Guide for Intel® Arria® 10 Devices

Intel® Arria® 10 GX FPGA Development Kit

Yes

Intel

Intel® Arria® 10 FPGA UHD Video Reference Design

Intel® Arria® 10 GX FPGA Development Kit

Yes

Intel

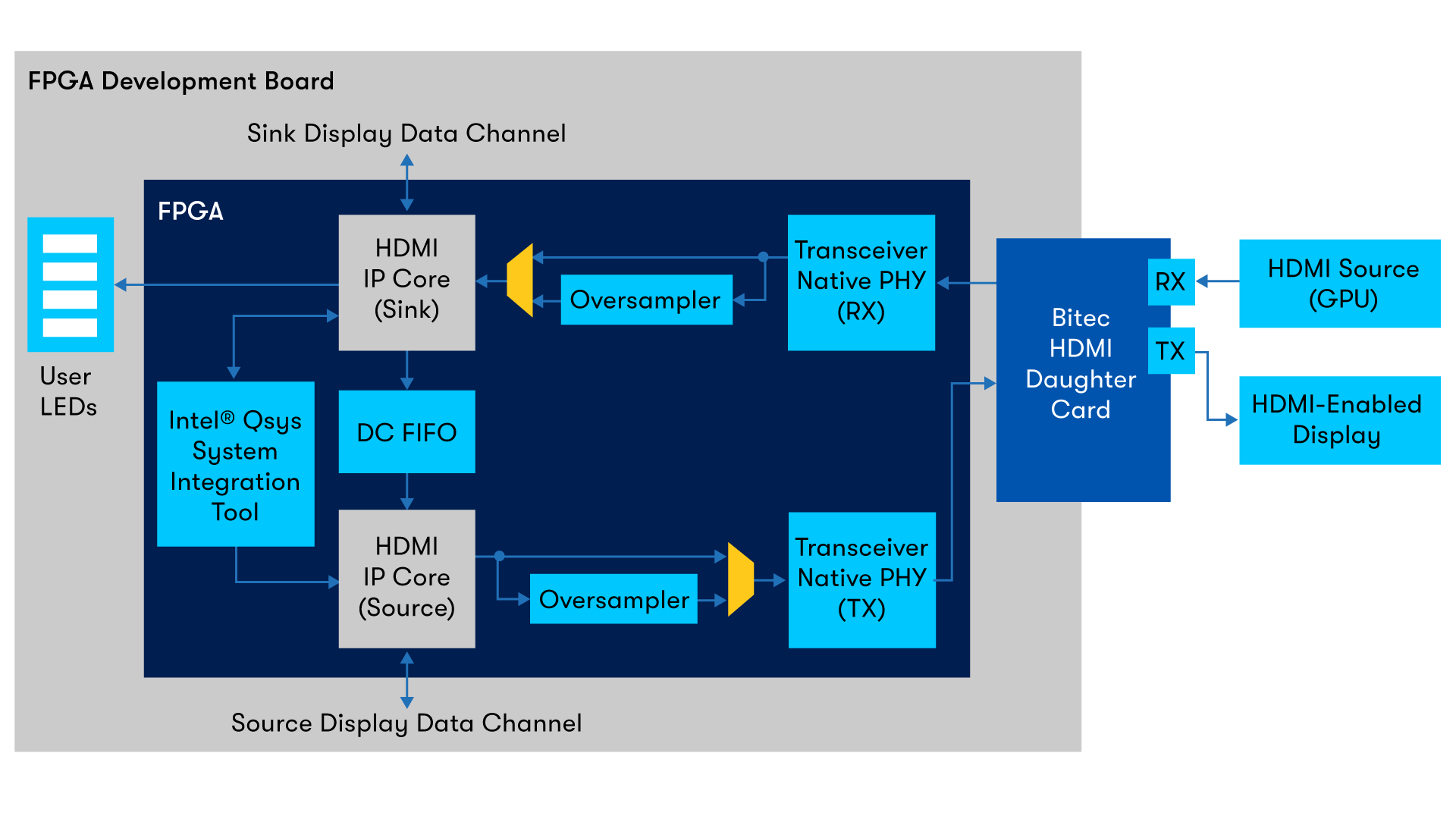

HDMI Hardware Demonstration in Chapter 4 of the Intel FPGA HDMI IP Core User Guide

Intel® Stratix® 10 FPGA Development Kit

Intel® Cyclone® 10 GX Development Kit

Intel® Arria® 10 GX FPGA Development Kit

Yes

Intel

Stratix V GX FPGA Development Kit

Arria V GX FPGA Development Kit

No

Intel

HDMI Intel FPGA IP Design Example User Guide Intel® Agilex™ 7 FPGA I-Series Transceiver-SoC Development Kit Yes Intel
View all Show less

Daughter Card

Partner

FMC HDMI 2.0

BItec

HSMC HDMI 2.0

BItec

FMC HDMI 2.1

BItec

View all Show less
