Intel® Cyclone® 10 LP FPGA

Intel's Cyclone® 10 LP FPGA family extends the Intel® Cyclone® FPGA series leadership in low-cost and low-power devices. Ideal for high-volume, cost-sensitive functions, Intel® Cyclone® 10 LP FPGA is designed for a broad spectrum of general logic applications.

Intel® Cyclone® 10 LP FPGA

Architecture

The logic and routing core fabric sea of gates is surrounded on each side by I/O elements, with a phase-locked loop (PLLs) in each corner. Embedded memory blocks (M9K) and 18 x 18 bit multipliers blocks are arranged in vertical columns.

The architecture also includes highly efficient interconnect and low-skew clock networks, providing connectivity between logic structures for clock and data signal.

Single Event Upset (SEU)

Configuration error detection is supported in all Intel® Cyclone® 10 LP devices. User mode error detection is only supported in devices with 1.2-V core voltage. Dedicated circuitry built into Intel® Cyclone® 10 LP devices consists of a CRC error detection feature that can optionally check for a single-event upset (SEU) continuously and automatically.

In critical applications used in the fields of avionics, telecommunications, system control, medical, and military applications, it is important to be able to:

Confirm the accuracy of the configuration data stored in an FPGA device.
Alert the system to an occurrence of a configuration error.

Nios® II Processor

Nios® II processor, the world's most versatile, royalty-free processor according to Gartner Research is the most widely used soft processor in the FPGA industry. The Nios II processor delivers unprecedented flexibility for your cost-sensitive, real-time, safety-critical (DO-254), and ASIC-optimized applications processing needs.

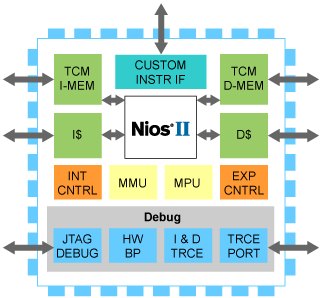

The Nios II processor family consists of two configurable 32 bit Harvard architecture cores:

Fast (/f core): Six-stage pipeline optimized for highest performance, optional memory management unit (MMU), or memory protection unit (MPU).
Economy (/e core): Optimized for smallest size, and available at no cost (no license required).

Need to boost performance? No problem. Hardware acceleration is as easy as using an FPGA's programmable logic to offload and accelerate tasks that are typically implemented in an application software. Find out more on the Nios® II Processor web page.

For more information on free software development tools, visit the Nios® II Processor Design Tools web page.

For Nios II processor training, visit the Intel® FPGA Technical Training web page.

Nios® II Processor Performance (DMIPS at Fmax)

Note: Dhrystones 2.1 benchmark (Intel Estimate)

Variant	Performance (DMIPS)
Nios II / e Economy	30 at 175 MHz
Nios II / f Fast	190 at 165 MHz

View all Show less

Nios® II Processor Applications

Application	Nios® II Processor Core	Vendor	Description
Power and cost sensitive	Nios® II economy core	Intel®	With as low as 600 logic elements, the Nios II economy processor core is ideal for microcontroller applications. The Nios II economy processor core, software tools, and device drivers are offered free of charge.
Real Time	Nios® II fast Core	Intel®	Absolutely deterministic, jitter-free real-time performance with the following unique hardware real-time feature options: Vector Interrupt Controller. Tightly Coupled Memory. Custom instructions (ability to use FPGA hardware to accelerate a function). Supported by industry-leading real-time operating systems (RTOS) such as Linux* and Zephyr*. Nios® II processor is the ideal real-time processor to use with the DSP Builder for Intel FPGAs-based hardware accelerators to provide deterministic, high-performance real-time results.
Applications processing	Nios® II fast core	Intel®	With a simple configuration option, the Nios® II fast processor core can use a memory management unit (MMU) to run embedded Linux*. Both open source and commercially supported versions of Linux for Nios II processors are available.
Safety Critical	Nios® II SC core	HCELL	Certify your design for DO-254 compliance by using the Nios® II Safety Critical processor core along with the DO-254 compliance design services offered by HCELL.
Lockstep Dual Core	fRSmartComp IP	Yogitech	The lockstep solution provides high diagnostic coverage, self-checking, and advanced diagnostic features in full compliance with functional safety standards IEC 61508 and ISO 26262 while reducing the need for difficult-to-develop and performance-sapping diagnostic software test libraries.

View all Show less

Configuration error detection is supported in all Intel® Cyclone® 10 LP devices. User mode error detection is only supported in devices with 1.2-V core voltage. Dedicated circuitry built into Cyclone 10 LP devices consists of a CRC error detection feature that can optionally check for a single-event upset (SEU) continuously and automatically.

In critical applications used in the fields of avionics, telecommunications, system control, medical, and military applications, it is important to be able to:

Confirm the accuracy of the configuration data stored in an FPGA device.
Alert the system to an occurrence of a configuration error.

Qualification and Certification

Intel® Cyclone® 10 LP FPGAs are offered in commercial, industrial, and automotive (AEC-Q100) temperature grades.

In addition, they will be supported in a future release of the functional safety pack, TUV certified to IEC 61508, reducing development time and time to market.
