Offerings
Offering
Key Features:Aluminum chasiss, Fanless design Intel® E3950 CPU (formerly "Apollo Lake")2-Ch DDR3L, On-board+SODIMM, up to 8GB 1*DP, 1*VGA, 1*Smart Display, three displays 2*GbE LAN(with POE function), 5*USB 2*Iso.COM, 8-bit Iso. DIO, optional 2*CAN4*Mini PCIe(opt. 1*mSATA), support GPS/WiFi/4G EN50155, E-Mark certificationTPM2.0, DC 9~36V, ITPS power management Optional Railway power DC 48/72/110V
Offering
nIntel® Xeon® E or 9th/8th-Gen Core™ i7/i5/i3 processorKey FeaturesnIntel® C246 Chipset n4*DDR4 2400/2666MHz DIMM, Up to 128GBn2*DP+1*HDMI, Support 3 independent displaysn3*LAN, 4*USB3.1, 2*COM, 8-bit DIOn1*PCIeX16 or 2*PCIeX8 +2*PCIeX4 expansionn1*Mini PCIe & SIM slot, support 4G/WiFi/GSM/BTn2*3.5"SATA3,1*M.2 2280 M-Key(NVMe)nSupport AMT12.0, Intel® iVpro and TPM2.0nATX 600W Power supply
Offering
Key features:◼ Intel® Xeon® E or 9th/8th-Gen Core™ i7/i5/i3 processor ◼ Intel® Q370/C246 Chipset ◼ Large memory, 4*DDR4 up to 128G ECC/non-ECC ◼ UHD dual 4K and 3 independent displays, 2*DP+1*VGA ◼ 3* Gig-LAN ,Opt. Multi-ch 10Gig-SFP ◼ Multi-ch PCIe standard slot, supports multiple high - speed extension interface modules ◼ Super storage configuration,4*SATA3.0, 1*M.2 2280 M-Key ◼ Support AMT12.0, Intel® iVpro and TPM2.0 ◼ CPU fanless, AI/GPU efficient fan cooling design ◼ Super deep learning ability, support dual 350W GPU/ 75W PGPU/AI acceleration card
Offering
KMDA-2630 is a low power consumption compact fan-less box computer, powered by Intel Elkhart lake SoC Celeron series 4 cores or dual-core CPU, supporting a 2.5G bandwidth network and dual USB3.1gen2 10G High-speed ports. It has a full range of functions IO, with a fanless aluminum frame, which is a delicate cabinet, and also supports wide power input, so it is suitable for machine vision, AGV/ARM, data gateway and other fields.
Offering

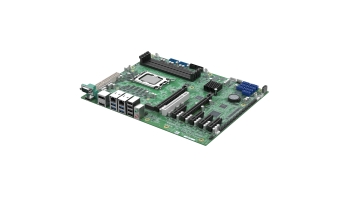

ATX-I980 is an industrial motherboard powered by Intel® 12th Gen Core i9/i7/i5/i3/Pentium/Celeron processor with Intel Q670 chipset. It is designed according to the standard ATX hole size, there are seven PCIe and PCI extension, suitable for all 4U chassis and wall-mounted chassis on the market, suitable for machine vision, CNC machinery, digital medical and gambling games and other fields.
Offering
Product Description: KMDA-3301 is powered by Intel® Soc CPU series, support Intel® DL boost deep learning technology, shock absorption design, very suitable for C-V2X MEC computing, AGV, machine vision and other applications. Key Features: Intel® Soc CPU 3xI255V LAN, support iAMT13.0 1xDP+1xHDMI 8K+4K dual display output, 1xMini PCIe support Wifi/BT, 1xM.2 B-Key with SIM slot support 5G NR module 1xM.2 M-Key, 1xmSATA, 1xSATA3.0 DC 9-36V, with short circuit, over-voltage and over-current protection Support desk mounting and Din-Rail mounting
Offering
KGEC-6310 Product Overview JHCTECH's KGEC-6310 is an industrial edge controller designed to provide solutions for automatic production equipment. KGEC-6310 is a brand-new edge controller with 4xLAN ports. Three of the four LAN ports use Intel® I210AT internet chipset, which supports EtherCAT Protocol and is able to connect to network cameras. It is suitable for both wall-mounting and Din-Rail mounting. BIOS optimize and support real-time system (RTOS), Ubuntu preemt-RT and optional support to INTime. With compact aluminum chassis and fanless heat dissipation design, KGEC-6310 is extremely powerful and suitable for machine vision, CNC machine tools, construction machinery, and other fields. Key Features Intel® CPU Aluminum chassis and fanless heat dissipation design 1x HDMI, 1x DVI-D, Dual display interface, prolong display without attenuation 3x I210AT Internet chipset, optional support for time sensitive networking (TSN) 1x I219LM, support iAMT12.0 BIOS optimization and support real-time operating system (RTOS) 1xMini PCIe with SIM slot ， 1xM.2 ， 2230 E-Key Support third-party software platform (optional) DC12-24V wide voltage power supply , with reverse polarity protection, overcurrent and overvoltage protection Suitable for wall mounting and Din-rail mounting
Offering
Hardware and software solution-- Intel® Edge Control Solution 01 Intel® industrial edge nodes have two standard specifications, Type E and Type F. The KGEC-6310 is designed according to this standard. 02 Intel® Edge Controls for Industrial, ECI is a software reference platform whose key features include time deterministic compute, workload convergence, application and platform management, infrastructure management, industrial connectivity, controls application, security, functional safety. Intel® Edge Controls for Industrial perfectly adapted to Intel® industrial edge node products, edge controllers KGEC-6310 and KGEC-6320, which can be used to develop RTOS (real-time operating system) with ECI. The solutions for realizing RTOS are as below: 1) Debug and develop based on Intel® ECI platform to generate an open-source Xenomai Linux or Preempt RT Linux real-time operating system; 2) Base on Windows 10, it can also integrate real-time components such as EC-Win, INTime and RTX2016 to optimize into Windows RTOS; 3) Adopt professional and efficient real-time systems such as VxWork and QNX. Third-party application development platforms (tools) can be rooted in the above Real-time operating system for users to develop terminal applications efficiently and differentiated. Third-party programmable logic controller development platforms (tools) generally include Codesys’ Development System and AXEL’s LogicLab SoftPLC. The developed application software requires the manufacturer’s Runtime System License to be put into use. The real-time communication of the upper application software to the lower servo drive and the logic IO module needs to be realized through Fieldbus protocols such as EtherCAT, RTEX, Profibus and CanOpen. Among them, the most applicable and the most widely applicable is the EtherCAT protocol. To realize the real-time communication between upper application software and lower servo drive and IO module, it is necessary to use the Fieldbus protocols such as EtherCAT, RTEX, Profibus and CanOpen. The most applicable and widely used protocol is the EtherCAT protocol. Market Direction The integration of the above hardware platform, real-time operating system, application, and Fieldbus finally forms a set of integrated software and hardware solution, which can be used as X86 universal programmable logic controller or controller for robot, machine and AGV. It can be used in a wide range of industries such as robotics, CNC machinery, semiconductor and electronic manufacturing, digital printing, detecting control system, packaging machinery and engineering machinery. Here are some specific applications, including laser cutting machine, laser engraving and milling machine, CNC machining center, industrial multi-axis robotic arm, fire-fighting and explosion-proof robot, digital printing machine, laser welding machine, high-precision dispensing machine, PCB laser drilling machine, aluminum battery winding Machines, injection molding machines, automatic packaging machinery and road construction machinery, etc. KGEC-6310 Product Overview JHCTECH's KGEC-6310 is an industrial edge controller designed to provide solutions for automatic production equipment. KGEC-6310 is a brand-new edge controller with 4xLAN ports. Three of the four LAN ports use Intel® I210AT internet chipset, which supports EtherCAT Protocol and is able to connect to network cameras. It is suitable for both wall-mounting and Din-Rail mounting. BIOS optimize and support real-time system (RTOS), Ubuntu preemt-RT and optional support to INTime. With compact aluminum chassis and fanless heat dissipation design, KGEC-6310 is extremely powerful and suitable for machine vision, CNC machine tools, construction machinery, and other fields. Key Features Intel® CPU Aluminum chassis and fanless heat dissipation design 1x HDMI, 1x DVI-D, Dual display interface, prolong display without attenuation 3x I210AT Internet chipset, optional support for time sensitive networking (TSN) 1x I219LM, support iAMT12.0 BIOS optimization and support real-time operating system (RTOS) 1xMini PCIe with SIM slot ， 1xM.2 ， 2230 E-Key Support third-party software platform (optional) DC12-24V wide voltage power supply ， with reverse polarity protection, overcurrent and overvoltage protection Suitable for wall mounting and Din-rail mounting
Offering
ECB-267 provides 1x HDMI and 1xDP dual display interfaces, 3 x I225V three Gigabit Ethernet ports, supports iAMT13.0, 2 x COM, 2xx USB3.1 and 4 x USB2.0 (one is built-in), 8-bit GPIO, 1 x Mini PCIe supports Wifi/BT and other functional expansion, 1x M.2 3050 B-Key with SIM card slot supports 4G or 5G wireless router, 1x M.2 2280 M -Key (PCIeX2), 1x full-length mSATA and 1 x SATA 3.0 HDD/SSD storage. DC 9-36V wide voltage power supply, with over-voltage protection, reverse polarity protection and over-current protection, LED switch button, remote switch interface. According to the Intel® IEN Type F design specification, it is suitable for all Type F CPU modules.
Offering
Product Description: BRAV-7601 is a high-performance AI MEC edge computing system, powered by 10th-Gen Intel® CPU. Which is very suitable for C-V2X, Special vehicle mounted, high-precision machine vision, medical imaging and other applications. Key Features: 10th-Gen Intel® Celeron® processor / Pentium® processor / Intel ® Core™ i9/i7/i5/i3 CPU Two temperature control fan, aluminum chassis 3 x 2.5G-LAN+ 4 x Gig-LAN with POE function 3 x M.2 support Gig+WiFi6, 4G LTE, 5G NR module 1x MXM3.1, supports MXM GPU modules and AI acceleration cards which power consumption lower than 190W DC 9-36V wide power input
