About this offer

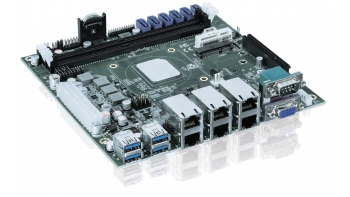

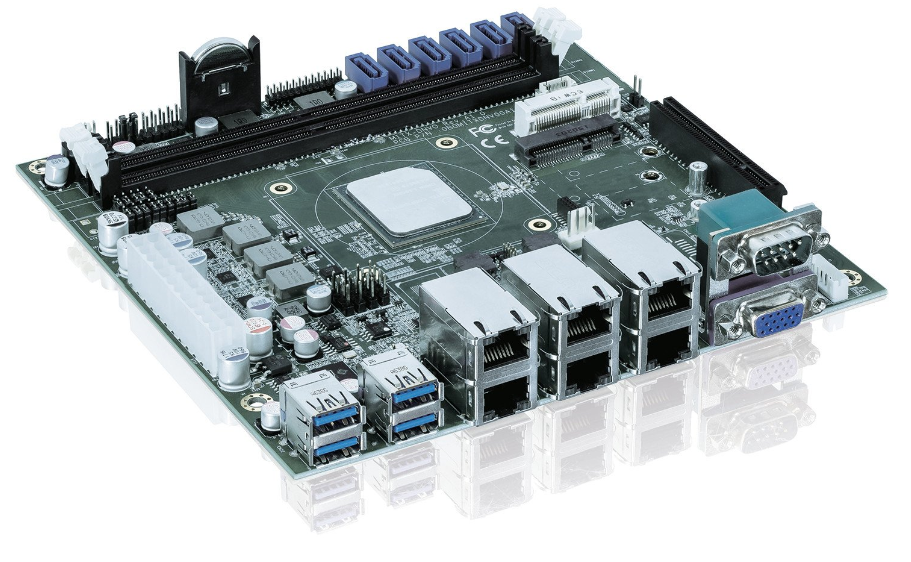

Mini-ITX Industrial Motherboard with Intel® Denverton ProcessorSpecifications1x VGA for display output6x GbE LAN for Ethernet4x USB 3.0, 2x USB 2.0, 2x RS232/422/485, 1x 8-bit DIO for peripheralsUp to 6x SATA 3.0, Up to 1x mSATA, 1x M.2 Key B, optional eMMC for storageUp to 1x mPCIe, 1x PCIe x8 for expansionIdeal for Dense Low-Power ApplicationsLow-power Server MotherboardKontron's mITX-DNV is a Mini-ITX industrial motherboard equipped with Intel® Denverton SoC processors, Atom™ C3000 Series, which is specially suitable for dense low-power network, storage, and IoT applications.Large Storage and Networking CapacityIt has up to six SATA 3.0 sockets and one M.2 Key B socket for HDD / SSD storage device connection as well as optional eMMC drive soldered on-baord. In addition, It also supports six GbE LAN ports to deliver sufficient traffic flow for huge data volumes.Flexible ExpansionThe mITX-DNV reserves one mPCIe slot and one PCIex8 slot, allowing users to expand specific functions such as wireless connection or additional network interface card.
Availability and Pricing
Working Sample Schedule: 2019-09-30
Mass Production Schedule: 2019-09-30
Minimum Order Quantity (Unit): 1
Order Lead Time (Days): 120
North America Region
People's Republic of China:
People's Republic of China
High Performance Computing
Manufacturing : Industrial Automation
- Component: Board: Mini-ITX
- End Customer Type:
