EvoTRAC-G102
EvoTRAC-G102
About this offer

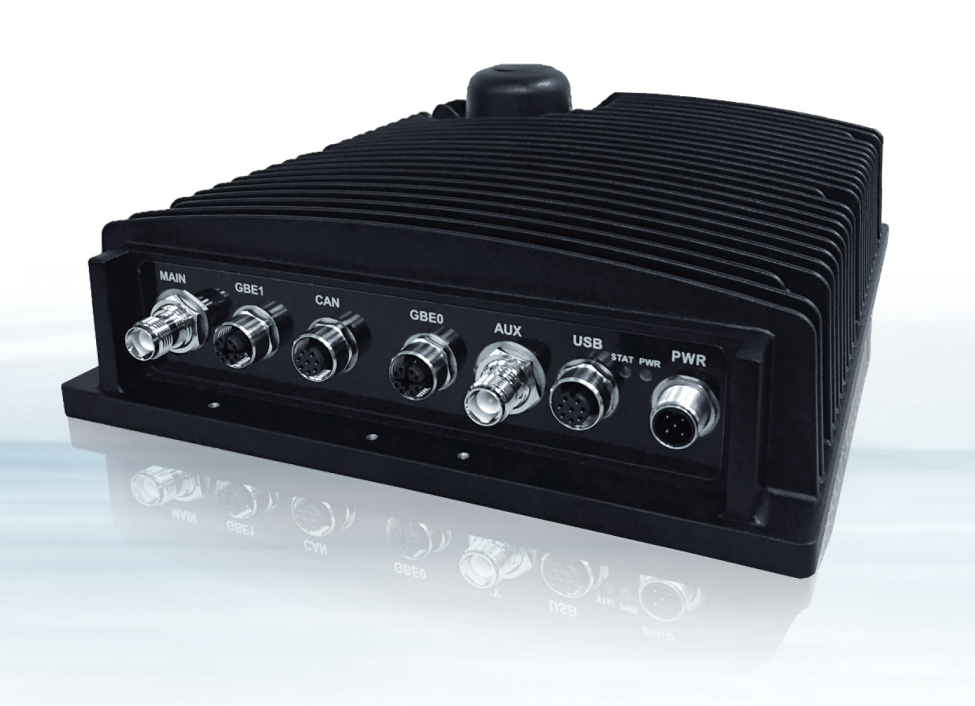

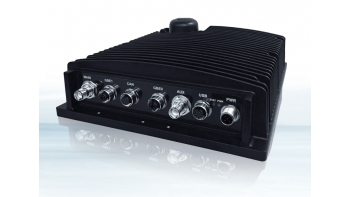

RUGGED GATEWAY | CELLULARSPECIFICATIONSrugged, fanless, IP67, application computing platform for vehiclessmall form factor with high performance Intel® Atom™ E3845 processor @ 1.91 GHzGbE port and fully ISO 11898-2 compliant CANBUS 2.0 A/B3G/4G LTE Modem with GPS and remote out antenna9-36 VDC vehicle power input with surge protection and filteringEvoTRAC-G102 Rugged Cellular GatewayKontron’s EvoTRAC-G102 Gateway computer leverages the Intel® Atom™ processors on Kontron’s hardened Type 6 COM Express® CPU module coupled with a ruggedized Carrier Board, all packaged in a natural convection, sealed IP67 enclosure to survive rigorous environmental conditions for on and off-road vehicle use. Featuring a compact COMe E3845 (quad core @ 1.91 GHz) module, the EvoTRAC-G102 Gateway is designed to be a computing platform for extreme rugged In-Vehicle applications. Mechanically compact, this small form-factor computer subsystem integrates Gigabit Ethernet and a single CAN bus interface that supports 2.0 A and B, along with two USB 2.0 interfaces, and cellular wireless connectivity. The unit comes with an embedded 64 GB MLC eMMC for onboard storage and a 3G/4G modem with GPS for wireless connectivity and a spare mSATA slot for additional storage. Designed for rugged vehicle applications and environments, the In-Vehicle Server has been tested for use under extreme temperature (-40° C to +80° C) and other demanding environmental conditions (shock, vibration, humidity, salt fog). The conduction cooled, IP67 sealed chassis incorporates protection from water and dust ingress, as well as CISPR25 emissions and ISO 11452-2 susceptibility.
Details
Availability and Pricing
Mass Production Schedule: 2018-09-16
Working Sample Schedule: 2018-09-16
Minimum Order Quantity (Unit): 1
Order Lead Time (Days): 120
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Others
Industry
Transportation and Warehouse
Automotive
Technical Specifications
- Category:
- System: IoT Gateways
- Operating Systems:
-
Linux*:Ubuntu family*
Linux*:Ubuntu family*:Ubuntu*
Included Intel Technology
Intel Atom® Processor
Intel Atom® Processor E Series
