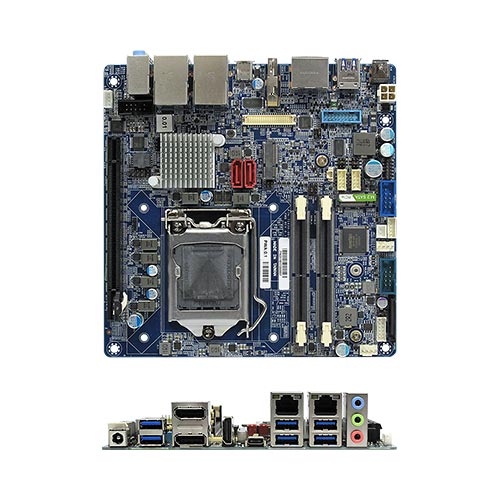

BCM MX370QD mini-ITX Motherboard
About this offer
Gold Plated Connectors* Intel® Q370 PCHSocket LGA 1151 supports 8th generation Intel® Core™/Pentium®/Celeron® Processors (formerly Coffee Lake)2 x Gold Plated DIMM Up to 32GB Dual Channel DDR4 2400Mhz Optional ECC Memory Support2 x Gigabit LAN: Intel® I219-LM and Intel® I211-ATExpansion Slots: 1 x PCIe x 16 Slot (Gold Plated), 1 x M.2 Type M 2242, 2280 Slot (with USB, PCIe x4 & SATA III) (Gold Plated), 1 x M.2 Type A/E 2232 (with USB & PCIe x2) (Gold Plated)Onboard I/O: 2 x SATA III Connectors (Red) (Gold Plated),1 x SATA III Connector, 1 x USB 2.0 Headers with Shroud (2 Ports on Header) (Gold Plated), 1 x USB 3.1 Gen 1 Header with Shroud (2 Ports On Header) (Gold Plated), 1 x RS-232 Headers, 1 x LVDS Header (Gold Plated)(Optional eDP)External I/O: 1 x HDMI (30μ Gold Plated), 2 x DisplayPort Connector (Gold Plated) (4k/2k Capable), 2 x RJ45 & Dual USB 3.1 Gen 2 (Stacked), 2 x USB 3.1 Gen 1 Ports, 1 x USB Type-C (USB 3.1 Gen 2 Speed), 1 x 3 Jacks Audio Connector6.7" x 6.7"TPM 2.0* Please Note that all product specifications and product images are subject to change without notice
Details
Availability and Pricing
Mass Production Schedule: 2018-10-31
Working Sample Schedule: 2018-04-16
Minimum Order Quantity (Unit): 1
Order Lead Time (Days): 3
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Digital Security Surveillance
Industry
Retail
Communications
Transportation and Warehouse
Manufacturing
Automotive
