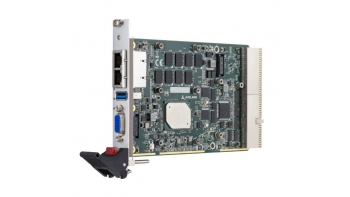

ADLINK cPCI-3630 3U CompactPCI Quad-Core Intel Atom® Processor X Series Blade
About this offer
Low power quad-core Intel Atom® x7-E3950 Processor (formerly Apollo Lake I)Up to 8GB DDR3L-1600 ECC soldered memoryOnboard 32GB SSD support by optionSmart Embedded Management Agent (SEMA) for system health monitoringOptional additional GbE ports with MIL-STD M12 connectorsEN 50155 compliant for railway safety-critical applicationsThe ADLINK cPCI-3630 Series is a 3U CompactPCI® 2.0 processor blade featuring the 64-bit Intel Atom® Processor X Series SoC (formerly Apollo Lake I) and soldered DDR3L-1600 MHz ECC memory up to 8GB.Available in single-slot (4HP) or dual-slot (8HP) width form factors, the cPCI-3630 Series utilizes various daughter boards to provide a broad range of I/O functionality. Faceplate I/O on the single-slot (4HP) version includes 1x USB 3.0, 2x RJ-45 GbE and 1x VGA port (common to all versions). Additional faceplate I/O on the dual-slot (8HP) versions include 2x USB 2.0, 1x COM, 1x PS/2 KB/MS and Line-in/Line-out on the cPCI-3630D; 2x DisplayPorts, 1x COM via RJ-45 connector, 1x KB/MS and USB 2.0 port on the cPCI-3630G; 2x GbE via MIL-STD M12 connectors and 1x COM on the cPCI-3630T; and 2x GbE in RJ-45 connectors and 1x COM on the cPCI-3630TR. Another dual-slot option is the cPCI-3630S with an additional XMC site on layer 2. There is also a cPCI-3630N single-slot option that provides LED indicators only with no I/O on the faceplate.The Intel Atom® SoC integrates the low-power 9th generation graphics engine and provide excellent graphics, media and display support. By using cPCI-3630G, it supports up to 4K HD resolution. Storage options include an onboard 32GB SSD (optional), mSATA socket or CFast and 2.5" SATA drive space on the layer 2 riser card (cPCI-3630D/G/T/TR). One optional PCI 32-bit/66 MHz PCIe x1 XMC site is available on the dual-slot cPCI-3630S version.Rear I/O signals to J2 include 2x GbE, 1x VGA, 1x USB 2.0, 2x COM, 1x SATA 3 Gb/s, providing for expansion with an optional Rear Transition Module (RTM).The cPCI-3630 is an ideal solution for transportation, military, factory automation and other industrial applications that require optimal computing performance for data transfer with lower power consumption. The ADLINK cPCI-3630 provides high manageability, supports Satellite mode operation as a standalone blade in peripheral slots, and features ADLINK's Smart Embedded Management Agent (SEMA) for system health monitoring.
Availability and Pricing
Mass Production Schedule: 2018-10-08
Working Sample Schedule: 2018-10-08
North America Region
Latin America Region
Asia, Pacific, and Japan:
Rest of Asia
People's Republic of China:
People's Republic of China
Transportation and Warehouse
Defense and Space
- Component: Board: cPCI
- Operating Systems:
Linux*:Wind River Linux family*
Linux*:Wind River Linux family*:VxWorks*
Included Intel Technology
Intel Atom® Processor
