Harrier (EPU-4011)
Harrier (EPU-4011)
About this offer

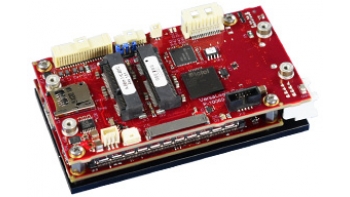

The Harrier is an extremely small and rugged SWaP-optimized embedded computer. It has been engineered and tested to meet the industries' need for smaller, lighter, and lower power embedded systems. Slightly larger in size than a credit card and one inch thick, the Harrier is a member of VersaLogic's family of small, ultra-rugged embedded x86 computers. Equipped with a powerful dual- or quad-core Intel® "Apollo Lake" processor and soldered-on ECC RAM, the Harrier is designed to withstand extreme temperature, impact, and vibration.Up to 8 GB of soldered-on Error Correcting Code (ECC) memory is available for high-reliability applications. ECC memory is beneficial in environments where single bit memory errors may occur, such as with cosmic ray interactions which increase dramatically with altitude.A TPM 2.0 chip is included for hardware-based security.On-board I/O includes dual Gigabit Ethernet, one USB 3.0 and four USB 2.0 ports, and two serial ports. SATA interface, eMMC Flash options, and a microSD socket provide a range of data storage options. Dual Mini PCIe sockets accommodate plug-in A/D, Wi-Fi modems, GPS receivers, MIL-STD-1553, Ethernet, Firewire, and other mini cards.The Harrier is designed and tested for full industrial temperature (-40° to +85°C) operation and meets MIL-STD-202H specifications for shock and vibration. It also features an on-board voltage regulation for dependable operation from nominal 12V sources.VersaLogic's 10+ year product life support programs ensure long-term availability. This avoids expensive upgrades and migrations that come from short, disposable lifecycle products.VersaLogic products are designed for use by OEMs working in a variety of market applications: Aerospace, Defense, Energy, Industrial, Security, Medical, Military, Robotics, and Transportation. Anywhere that the need for superb quality and high-performance embedded computing exists, applications include: automation, avionics, gateway, in-vehicle, monitoring, simulation, and vision.VersaLogic delivers extremely reliable standard and customized embedded computers backed with unsurpassed service and the highest availability in the market. VersaLogic exists to exceed customers' product, service, support and delivery needs - whenever and wherever the need arises.
Details
Availability and Pricing
Mass Production Schedule: 2019-10-22
Working Sample Schedule: 2019-10-22
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Digital Security Surveillance
Industry
Health and Life Sciences
Transportation and Warehouse
Manufacturing
Communications
Automotive
VERSALOGIC CORP.
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
VERSALOGIC CORP.
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
VersaLogic delivers state-of-the-art embedded computers, coupled with expert technical support, for critical markets such as medical and defense. Featuring long-term availability, -40° to +85°C operation, MIL-STD-202 shock and vibration testing, and outstanding US-based support, VersaLogic products are ideal for critical applications that value ruggedness, reliability and long life. A 40+ year history of consistency has earned VersaLogic the reputation of being “the industry’s most trusted embedded computer company.”VersaLogic Corporation is dedicated to supporting its customers with the best embedded computer solutions and customer service. Whether selecting the best products for an application, providing expert technical assistance during development, or delivering product on time, VersaLogic's team of specialists is committed to making sure that its customer's embedded design projects go smoothly from start to finish. VersaLogic helps customers to save time and money by eliminating product redesigns. Fully custom SBC designs are also available.
