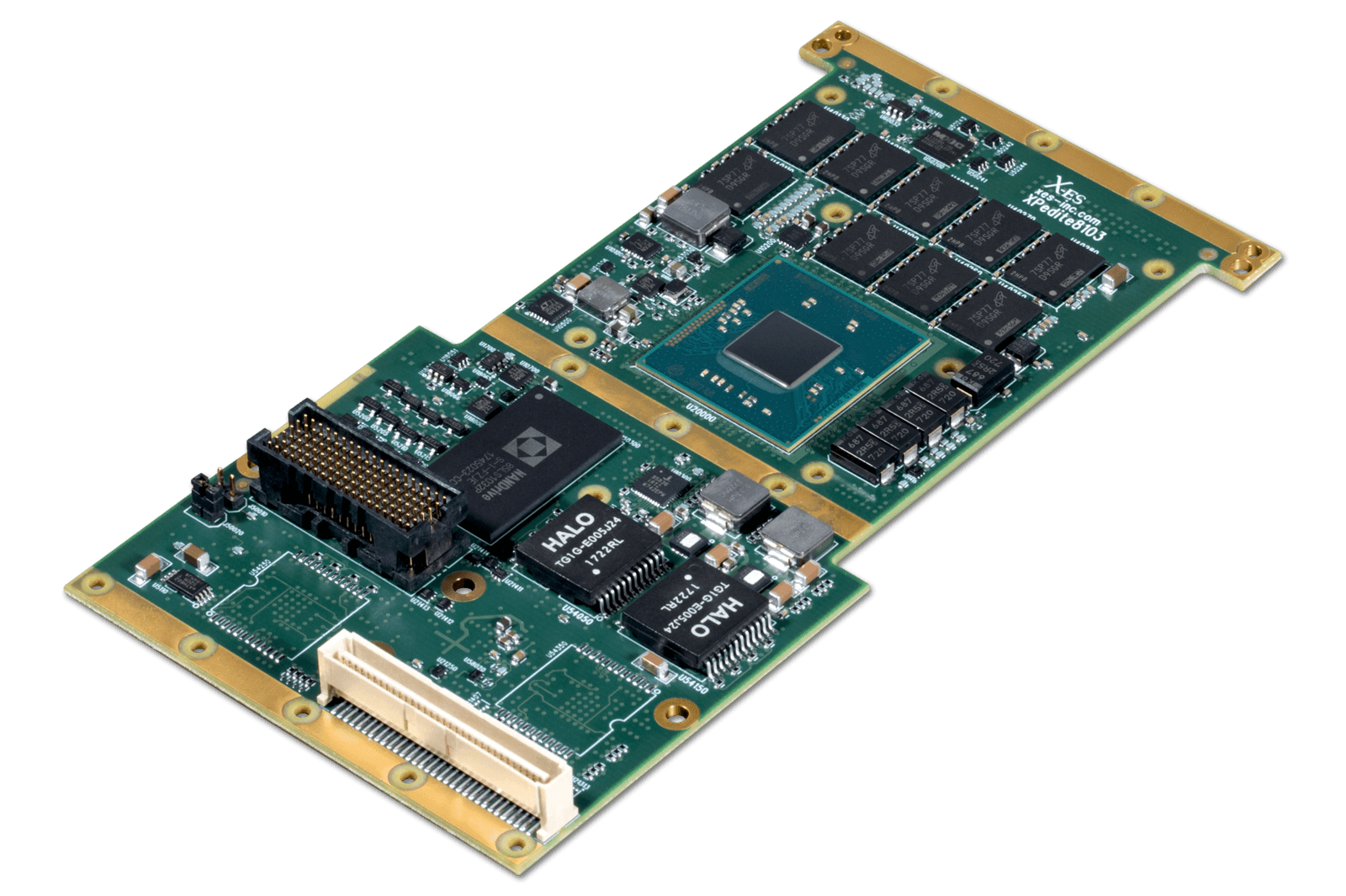

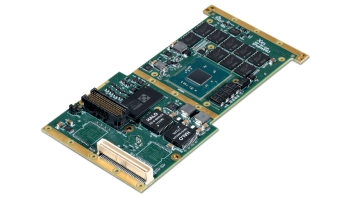

XPedite8103 | Intel Atom® E3800 Series Processor-Based Conduction- or Air-Cooled XMC Module
About this offer
The XPedite8103 is an Intel Atom® E3800-based XMC available in conduction- and air-cooled configurations. The Atom™ E3800 processors provide excellent computational performance and I/O functionality for their power profile and size. They are low-power system-on-chip (SoC) processors with integrated graphics and support for up to four cores operating at up to 1.91 GHz. Along with best-in-class performance-per-watt, the E3800 family supports extremely low operating temperatures, and its power-efficient 22 nm technology enables operation in the most demanding high-temperature environments. The XPedite8103 supports up to 8 GB of DDR3 ECC SDRAM and up to 32 GB of SLC NAND flash. It supports up to four Gigabit Ethernet ports, two RS-232/422/485 serial ports, and one optional USB 2.0 port through the P14 connector. The XPedite8103 supports the E3845 processor in standard configurations and can be built to support the E3827, E3826, E3825, E3815, and E3805. The E3800 series is the 4th generation Atom™ processor from Intel® and was formerly known as the Bay Trail-I platform and Valleyview processor. Wind River VxWorks and Linux Board Support Packages are available for the XPedite8103. It also supports the open source coreboot bootloader, powered by Intel®’s Firmware Support Package (FSP), to enable ultra-fast boot times and drastically simplify system security.
Details
Availability and Pricing
Working Sample Schedule: 2019-09-26
Mass Production Schedule: 2019-09-26
Order Lead Time (Days): 81
Minimum Order Quantity (Unit): 1
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
High Performance Computing
Industry
Energy and Utilities
Communications
Health and Life Sciences
Defense and Space
Transportation and Warehouse
Manufacturing
Automotive
Technical Specifications
- Category:
- Component: Board
- Operating Systems:
-
IPA OS:Integrity
IPA OS:LynxOS
IPA OS:Neutrino
Linux*:Wind River Linux family*
Linux*:Wind River Linux family*:VxWorks*
Microsoft Windows Client*:Windows Embedded family*
Included Intel Technology
Intel Atom® Processor
Intel Atom® Processor E Series
Resources
Extreme Engineering Solutions, Inc. (X-ES)
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
Extreme Engineering Solutions, Inc. (X-ES)
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
Founded in 2002, Extreme Engineering Solutions (X-ES) is headquartered in the Madison, Wisconsin area and is a leader in the design, manufacture, testing, and support of high-quality, cost-effective, hardware and software solutions for the embedded computing market. Our product portfolio contains an array of solutions, including high-performance single board computers (SBCs), processor mezzanine modules, ruggedized extended temperature systems, networking I/O modules, embedded routers, Ethernet switches, Solid-State Storage drives, and development chassis. X-ES’ commitment to high-quality products is reinforced by their top-tier customer service and support. Customer satisfaction is our single most important corporate objective, and our commitment to total customer satisfaction, superior product quality, and exceptional service has earned us the reputation of an exceptional design and manufacturing organization. Automotive Solutions X-ES is able to provide rugged, high-performance, embedded computing solutions for the unmanned and autonomous vehicle market, including: XPedite7670 - Intel® Xeon® D-1500 Family Processor-Based 3U VPX-REDI Single Board Computer with Dual 10 Gigabit Ethernet and an XMC Site XPedite7674 - Intel® Xeon® D-1500 Family Processor-Based 3U VPX-REDI Single Board Computer with Dual 10 Gigabit Ethernet and Xilinx Kintex® Ultrascale™ FPGA XPedite7650 - Intel® Xeon® D-1500 Family Processor-Based Rugged COM Express® Basic (Type 7) Module with Dual 10 Gigabit Ethernet XCalibur4643 - Intel® Xeon® D-1500 Family Processor-Based 6U VPX Single Board Computer with Dual 10 Gigabit Ethernet, Dual XMC/PMC Sites, and Onboard FPGA XChange3021 - 3U VPX PCI Express Gen3 and 10 Gigabit Ethernet Integrated Switch with XMC Support XChange3100 - 6U VPX 10 Gigabit Ethernet Switch with Optional Layer 2 Switching and Layer 3 Routing Management Support XPand6903 - Rugged, Sealed, and Compact Intel® Atom™-Based Fanless Embedded Box PC
